MB81V4800S-60PJ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MB81V4800S-60PJ

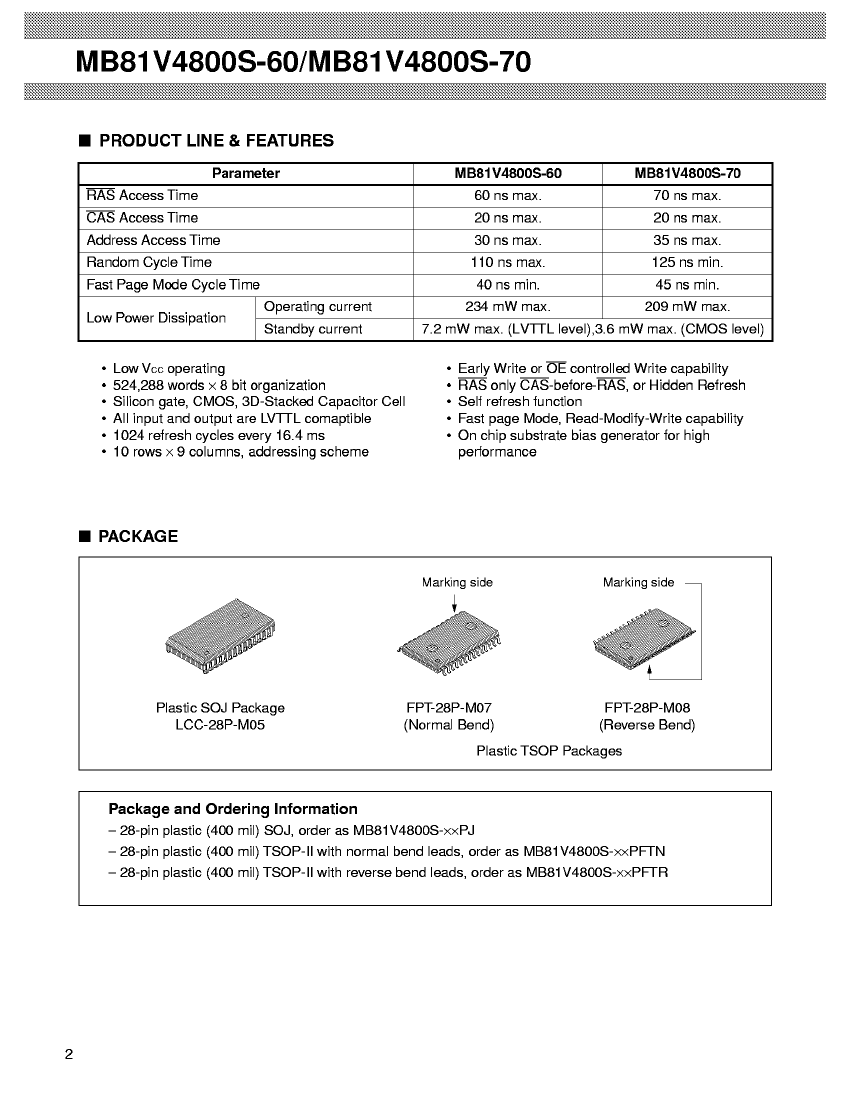

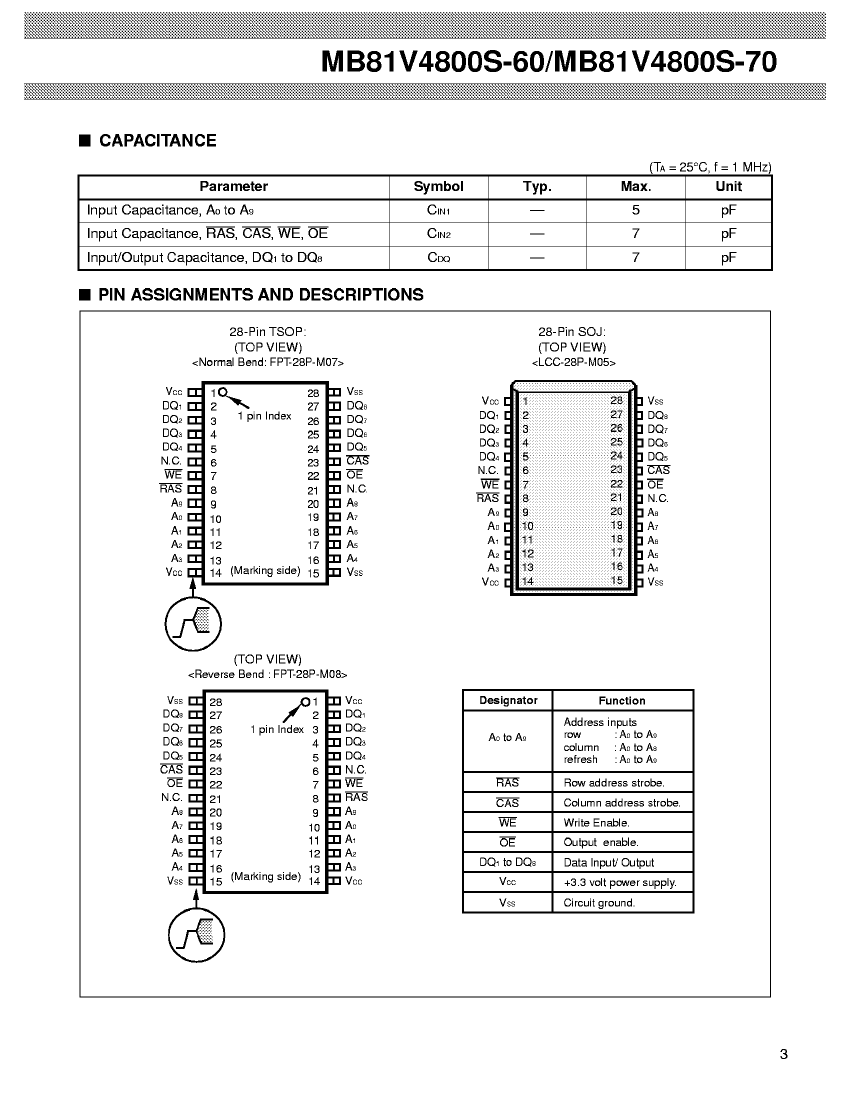

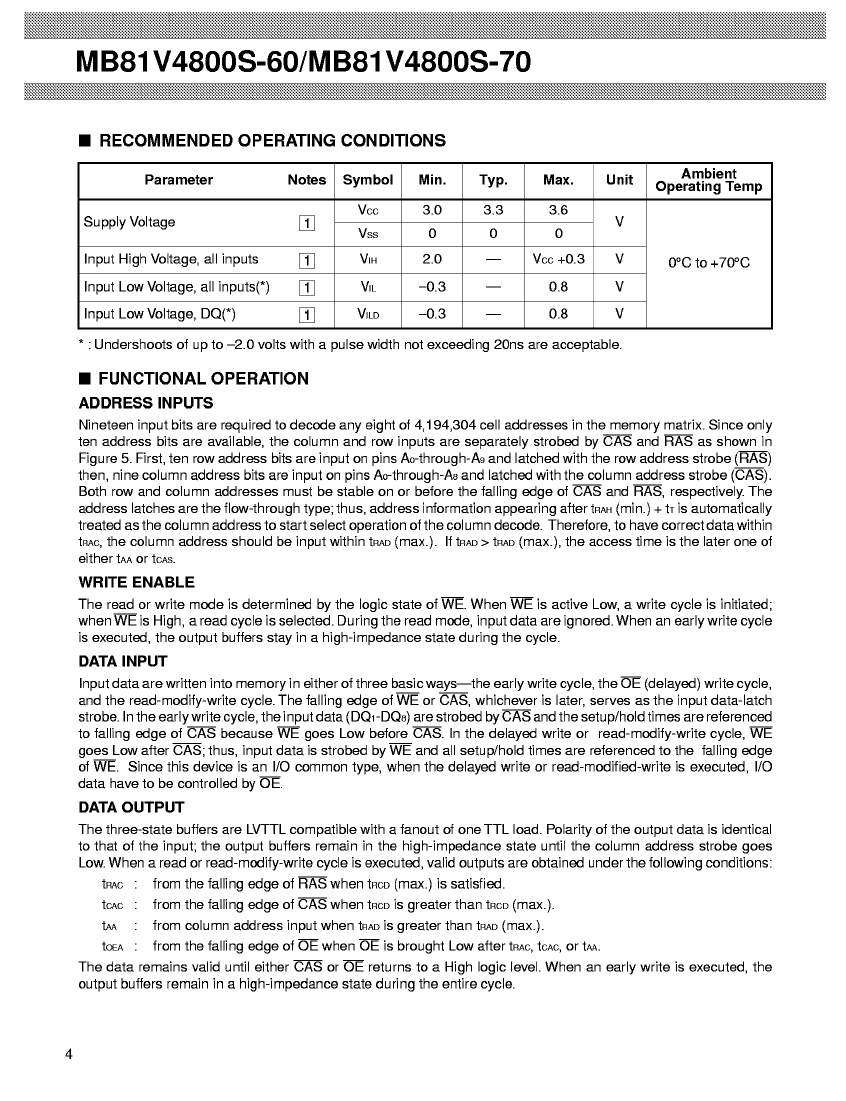

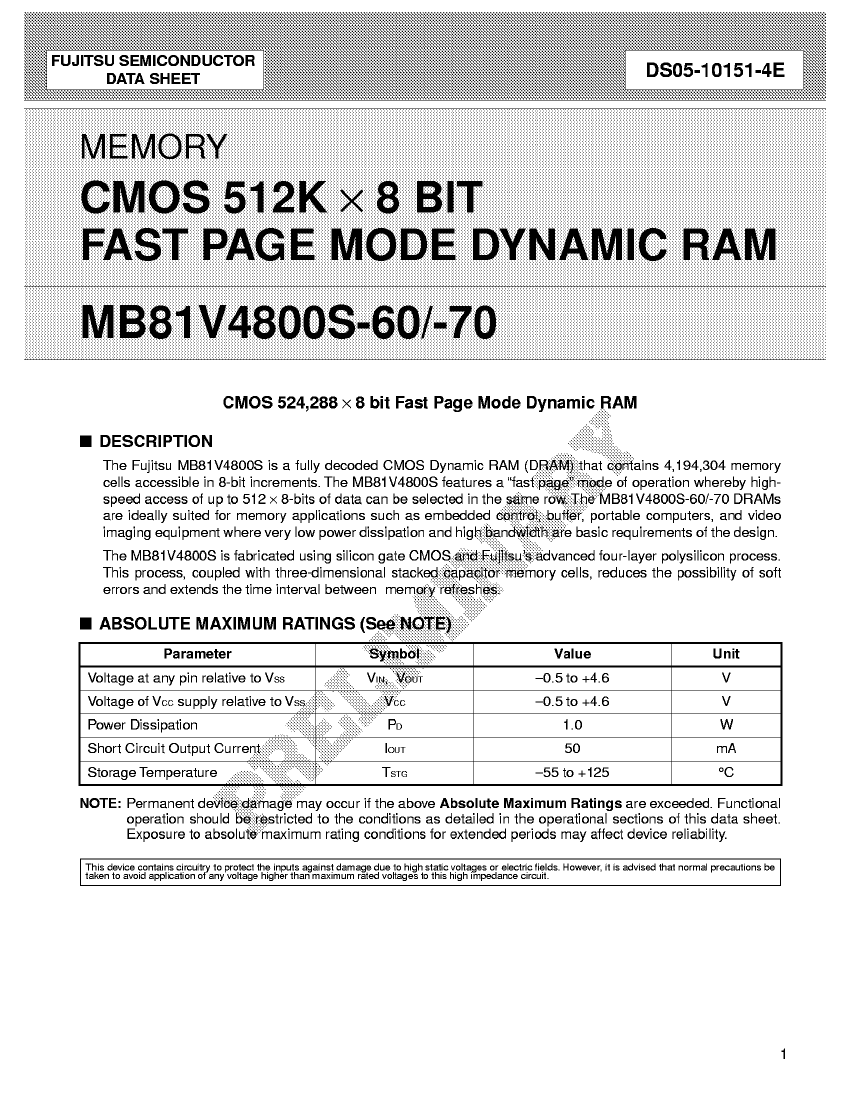

Preview

MB81V4800S-60PJ: DescriptionFast Page DRAM, 512KX8, 60ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, SOJ-28; Categorystorage storage; File Size1MB，26 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB81V4800S-60PJ Overview

Fast Page DRAM, 512KX8, 60ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, SOJ-28

MB81V4800S-60PJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FUJITSU
package instruction	SOJ, SOJ28,.44
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
length	18.42 mm
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.75 mm
self refresh	YES
Maximum standby current	0.001 A
Maximum slew rate	0.065 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm

Preview

Download Datasheet

View All

MB81V4800S-60PJ Related Products

	MB81V4800S-60PJ	MB81V4800S-60PFTR	MB81V4800S-60PFTN	MB81V4800S-70PFTR	MB81V4800S-70PJ
Description	Fast Page DRAM, 512KX8, 60ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, SOJ-28	Fast Page DRAM, 512KX8, 60ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, TSOP2-28	Fast Page DRAM, 512KX8, 60ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, TSOP2-28	Fast Page DRAM, 512KX8, 70ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, TSOP2-28	Fast Page DRAM, 512KX8, 70ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, SOJ-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
package instruction	SOJ, SOJ28,.44	TSOP2, TSOP28,.46	TSOP2, TSOP28,.46	TSOP2, TSOP28,.46	SOJ, SOJ28,.44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	60 ns	60 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-J28
JESD-609 code	e0	e0	e0	e0	e0
length	18.42 mm	18.41 mm	18.41 mm	18.41 mm	18.42 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	28	28	28	28	28
word count	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	TSOP2	TSOP2	TSOP2	SOJ
Encapsulate equivalent code	SOJ28,.44	TSOP28,.46	TSOP28,.46	TSOP28,.46	SOJ28,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024
Maximum seat height	3.75 mm	1.2 mm	1.2 mm	1.2 mm	3.75 mm
self refresh	YES	YES	YES	YES	YES
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.065 mA	0.065 mA	0.065 mA	0.058 mA	0.058 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	GULL WING	GULL WING	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
