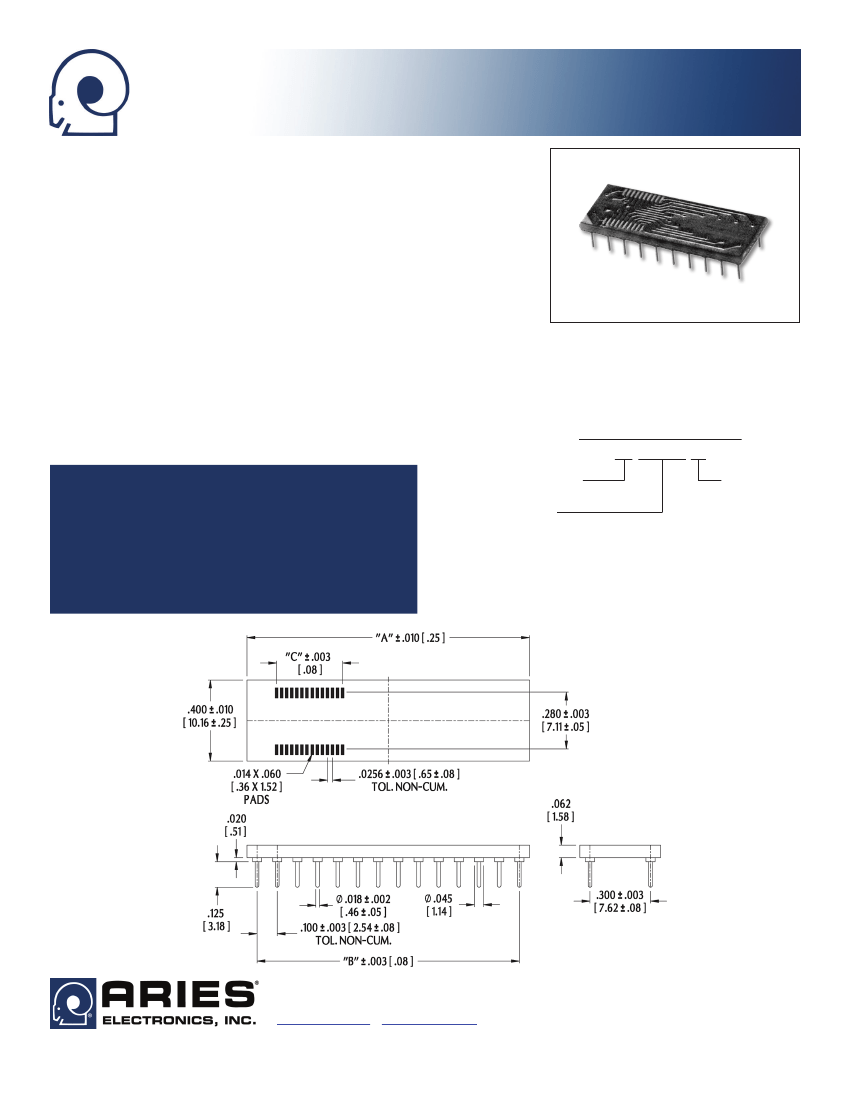

Series 351000
SSOP-to-DIP Adapter
FEATURES
• Allows the use of 0.65mm pitch surface-mount ICs in thru-hole designs.
• Ideal for prototyping and testing/evaluating SSOP ICs.
• Adapter can be cut to smaller sizes by end user.
• Consult factory for Panelized Form or for mounting of consigned ICs.
GENERAL SPECIFICATIONS
• ADAPTER BODY: FR-4, 0.062 [1.58] thick, with 1-oz. Cu traces
• PINS: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
• PIN PLATING: 200µ [5.08µ] min. Sn/Pb 93/7 per ASTM B579-73 over 100µ
[2.54µ] Ni per SAE AMS-QQ-N-290 with 10µ [0.25µ] min. Au per MIL-G-4524
over 100µ [2.54] Ni per SAE AMS-QQ-N-290
• CURRENT RATING: 1 amp
• OPERATING TEMPERATURE: 221°F [105°C]
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE: 0.028 ±0.003 [0.71 ±0.08] dia.
• Will plug into standard IC socket
CUSTOMIZATION:
In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
right to change product general specifications without notice.
ORDERING INFORMATION
XX-351000-10
No. of Pins
14, 16, 18, 20, 24, 28
Series
Plating
10 = Sn/Pb
11 = Au
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” # OF PINS PER ROW x 0.100 [2.54]
“B” (# OF PINS PER ROW -1) x 0.100 [2.54]
“C” (# OF PADS PER ROW -1) x 0.0256 [0.65]
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18036
Rev. AA
