LH5316P00CTR: DescriptionMASK ROM, 2MX8, 120ns, CMOS, PDSO48, 12 X 18 MM, REVERSE, PLASTIC, TSOP1-48; Categorystorage storage; File Size184KB，9 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH5316P00CTR Overview

MASK ROM, 2MX8, 120ns, CMOS, PDSO48, 12 X 18 MM, REVERSE, PLASTIC, TSOP1-48

LH5316P00CTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	12 X 18 MM, REVERSE, PLASTIC, TSOP1-48
Reach Compliance Code	unknown
Maximum access time	120 ns
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	16.4 mm
memory density	16777216 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	48
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	12 mm

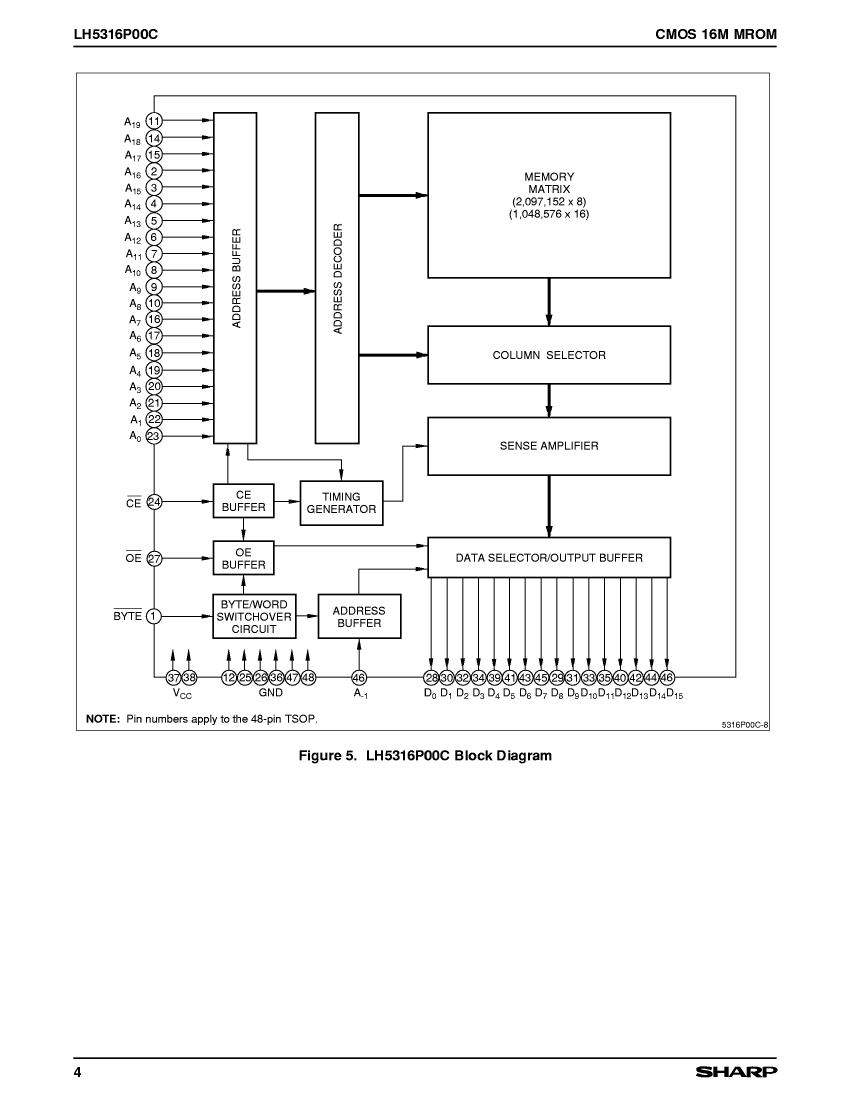

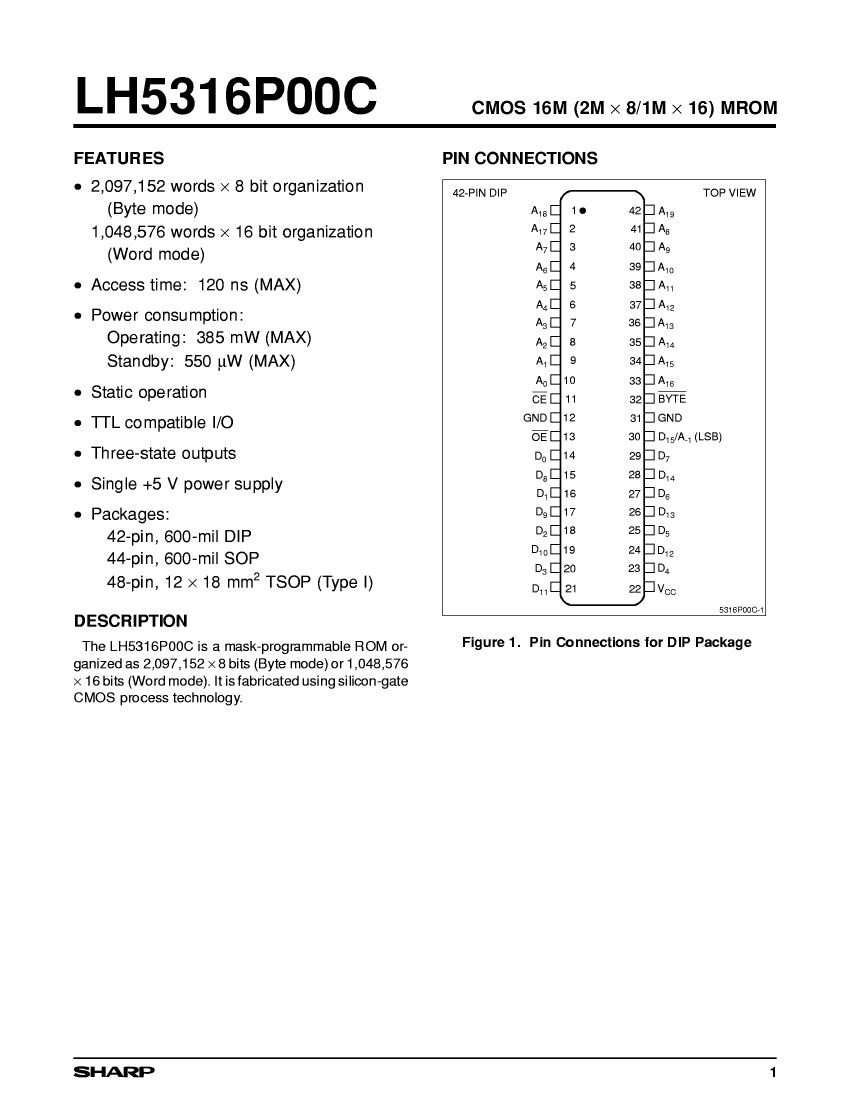

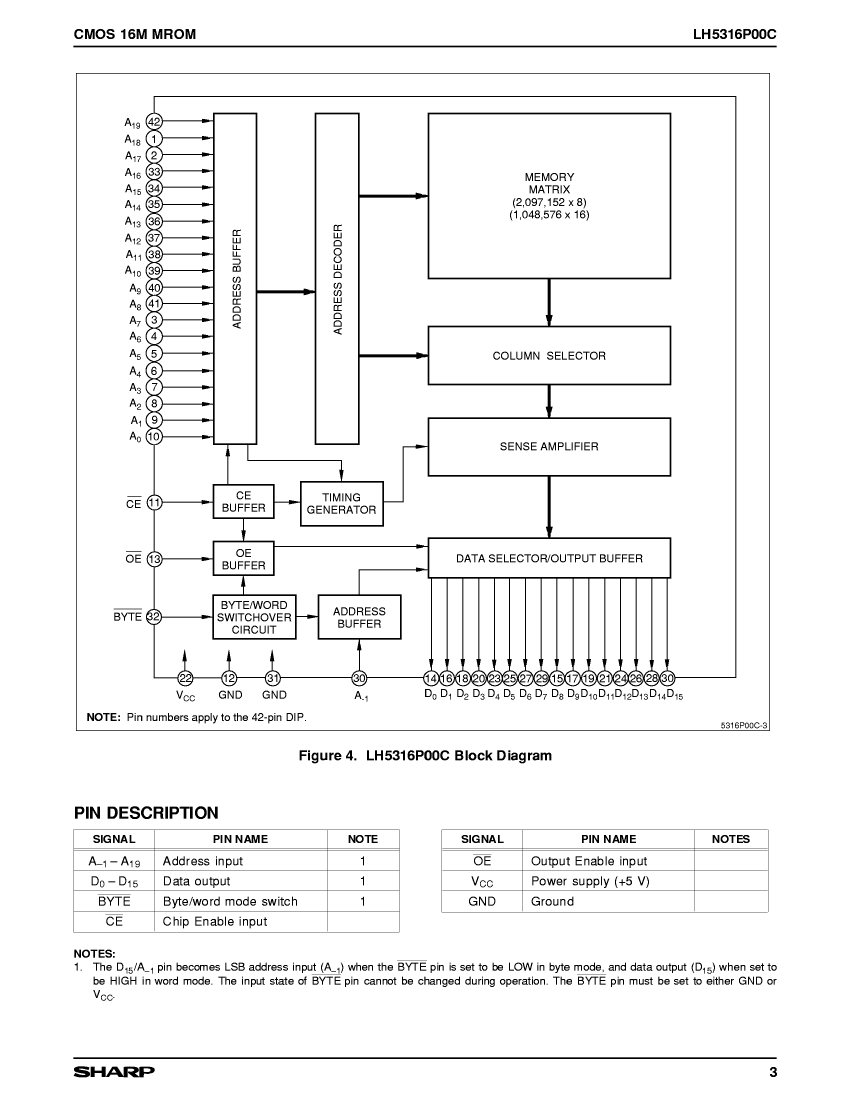

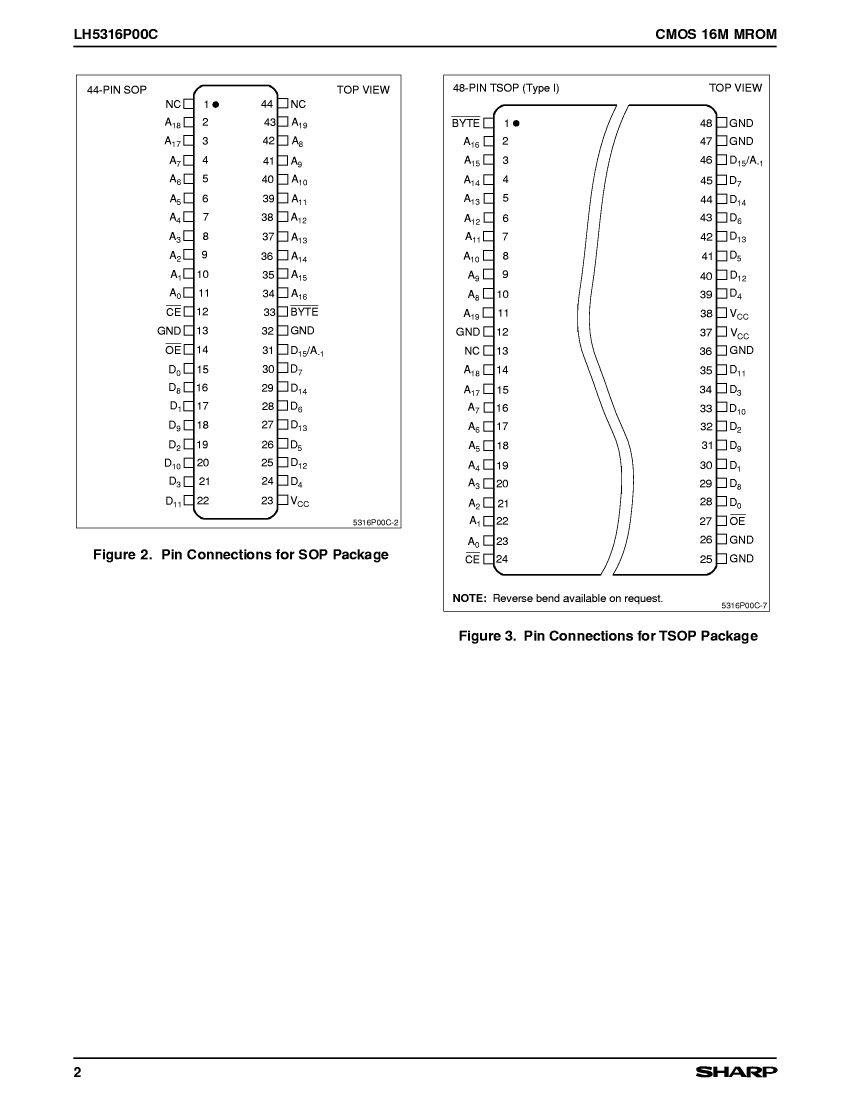

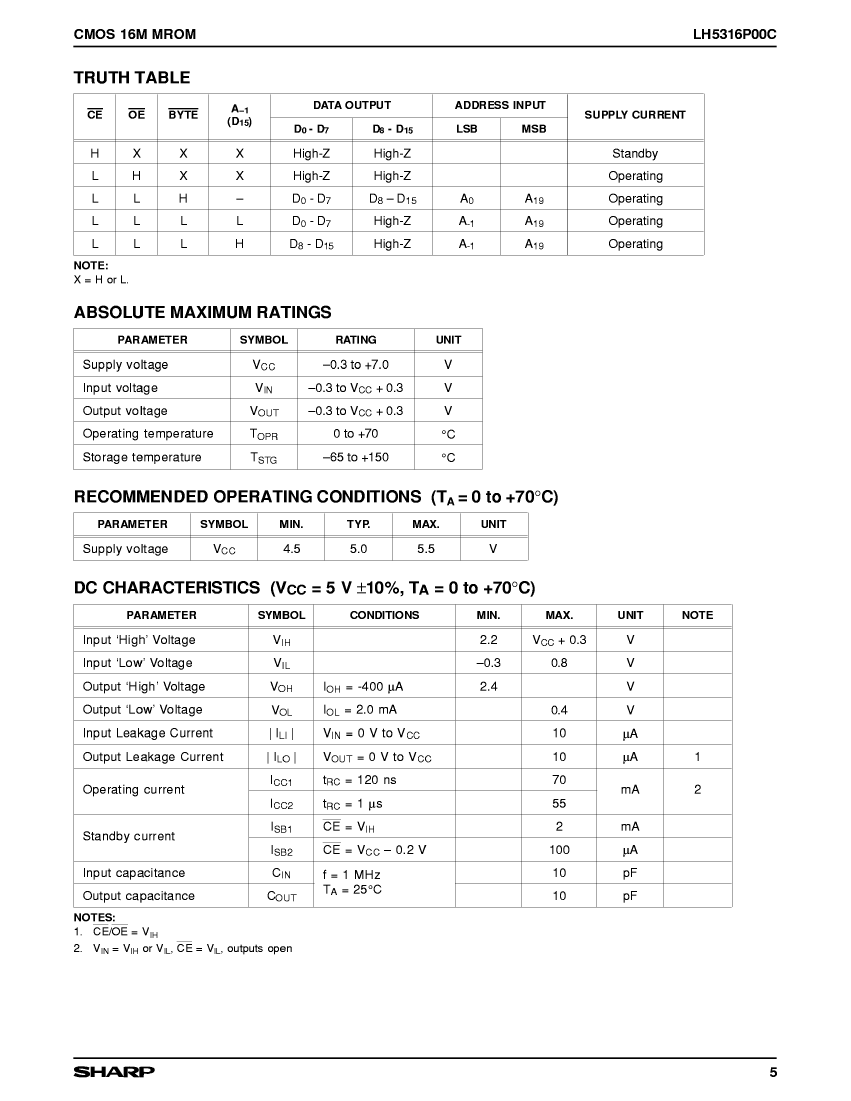

Preview

Download Datasheet

View All

LH5316P00CTR Related Products

	LH5316P00CTR	LH5316P00CD	LH5316P00CN	LH5316P00CT
Description	MASK ROM, 2MX8, 120ns, CMOS, PDSO48, 12 X 18 MM, REVERSE, PLASTIC, TSOP1-48	MASK ROM, 2MX8, 120ns, CMOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42	MASK ROM, 2MX8, 120ns, CMOS, PDSO44, 0.600 INCH, PLASTIC, SOP-44	MASK ROM, 2MX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	12 X 18 MM, REVERSE, PLASTIC, TSOP1-48	0.600 INCH, PLASTIC, DIP-42	0.600 INCH, PLASTIC, SOP-44	12 X 18 MM, PLASTIC, TSOP1-48
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	120 ns	120 ns	120 ns	120 ns
JESD-30 code	R-PDSO-G48	R-PDIP-T42	R-PDSO-G44	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0
length	16.4 mm	53.8 mm	28.2 mm	16.4 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	48	42	44	48
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1-R	DIP	SOP	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	5.4 mm	3.25 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	0.5 mm	2.54 mm	1.27 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	12 mm	15.24 mm	13.2 mm	12 mm
Base Number Matches	-	1	1	1
