BRIGHT VIEW
ELECTRONICS CO.,LTD

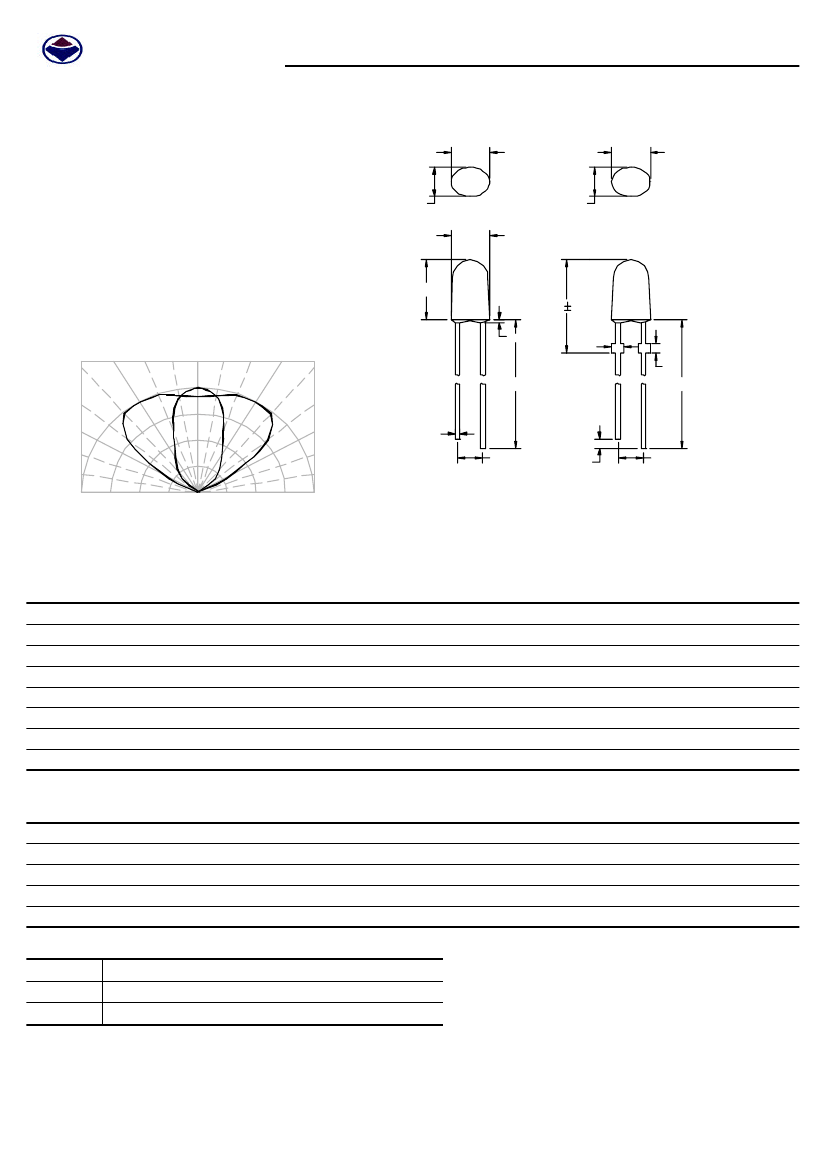

OVAL LED LAMP
PACKAGE CONFIGURATION
3.95
3.95
BVU-359QT9
DESCRIPTION
3.0
3.0
3.95
Dice Material :
Light Color :
Lens Color :
Stand-Off P/N :
Lead Frame Material:
AlInGaP/GaP Orange Red
Orange Red Color
Red Tinted Diffused
BVU-359QT9 R
Copper
6.20
10.0
1.0Max.
0.5
RADIATION PATTERN
-30
0
30
1.3
1.0
25.4Min.
CATHODE
25.4Min.
CATHODE
-60
60
0.5
2.54
1.0Min.
2.54
Leadframe orientation parallel
100 75 50 25 0
25 50 75 100
Relative Luminous Intensity ( Iv % )
Tolerance ± 0.25
ABSOLUTE MAXIMUM RATINGS AT Ta = 25
PARAMETER
Power Dissipation
Continuous Forward Current
Peak Forward Current ( 1/10 Duty Cycle , 0.1ms Pulse Width )
Reverse Voltage
Derating Linear From 50
Operating Temperature Range
Storage Temperature Range
Lead Solder Temperature 1.6 mm Below Package 260
for 5 seconds
40
40
MAX.
80
30
160
5
0.4
to
to
100
100
UNIT
mW
mA
mA
V
mA/
o
C
ELECTRICAL / OPTICAL CHARACTERISTICS AT Ta = 25
SYMBOL
V
F
I
R
PARAMETER
Forward Voltage
Reverse Current
Peak Emission Wavelength
2 1/2
Dominant Wavelength
Viewing Angle
TEST COND.
I
F
= 20 mA
V
R
= 5V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
634
629
110/50
MIN.
TYP.
2.3
MAX.
2.8
100
UNIT
V
A
nm
nm
Deg
BIN GRADE LIMITS ( I F = 20 mA ) LUMINOUS INTENSITY / mcd
Bin
Min.
Max.
G
465
600
H
600
780
I
780
1000
J
1000
1300
K
1300
1680
L
1680
2180
Tolerance ± 15%mcd
*Bright View reserves the rights to alter specifications and remove availability of products at any time without notice.
*Dominant Wavelength, d is according to CIE Chromaticity Diagram base on color of lamps.
* 1/2 is the off-axis angle where the luminous intensity is one half the on-axis intensity.
2006/3/17 – A
BRIGHT VIEW
ELECTRONICS CO.,LTD
OVAL LED LAMP
BVU-359QT9
TYPICAL ELECTRICAL / OPTICAL CHARACTERISTIC CURVES
FIG. 1 Forward Current vs. Forward Voltage
( Ta = 25 °C )
100
90
80
70
60
50
40
30
20
10
0
3.0
2.5
Relative Intensity
2.0
1.5
1.0
0.5
0
1.1
1.7
2.3
2.9
Forward Voltage Vf ( V )
3.5
0
10
20 30 40 50 60
Forward Current If ( mA )
70
Forward Current ( mA )
FIG. 2 Relative Intensity vs. Forward Current
( Ta = 25 ° C )
FIG. 3 Forward Voltage vs. Temperature
1.2
Relative Intensity @ 20mA
Forward Voltage @ 20mA
1.1
1.0
0.9
0.8
-50
3.0
2.5
2.0
1.5
1.0
0.5
FIG. 4 Relative Intensity vs. Temperature
-25
0
25
50
75
100 125
0
-50 -25
0
25
50
75
100 125
Ambient Temperature Ta ( °C )
FIG. 5 Relative Intensity vs. Wavelength ( p )
( Ta = 25 °C )
IF-DC Forward Current ( mA )
1.0
Forward Intensity @ 20mA
40
30
20
10
0
0
Ambient Temperature Ta ( °C )
FIG. 6 Maximum Forward Current
vs. Temperature
0.5
0
550
600
650
Wavelength ( nm )
700
20
40
60
80 100
Ambient Temperature Ta ( °C )
120
2006/3/17 - A
BRIGHT VIEW
ELECTRONICS CO.,LTD

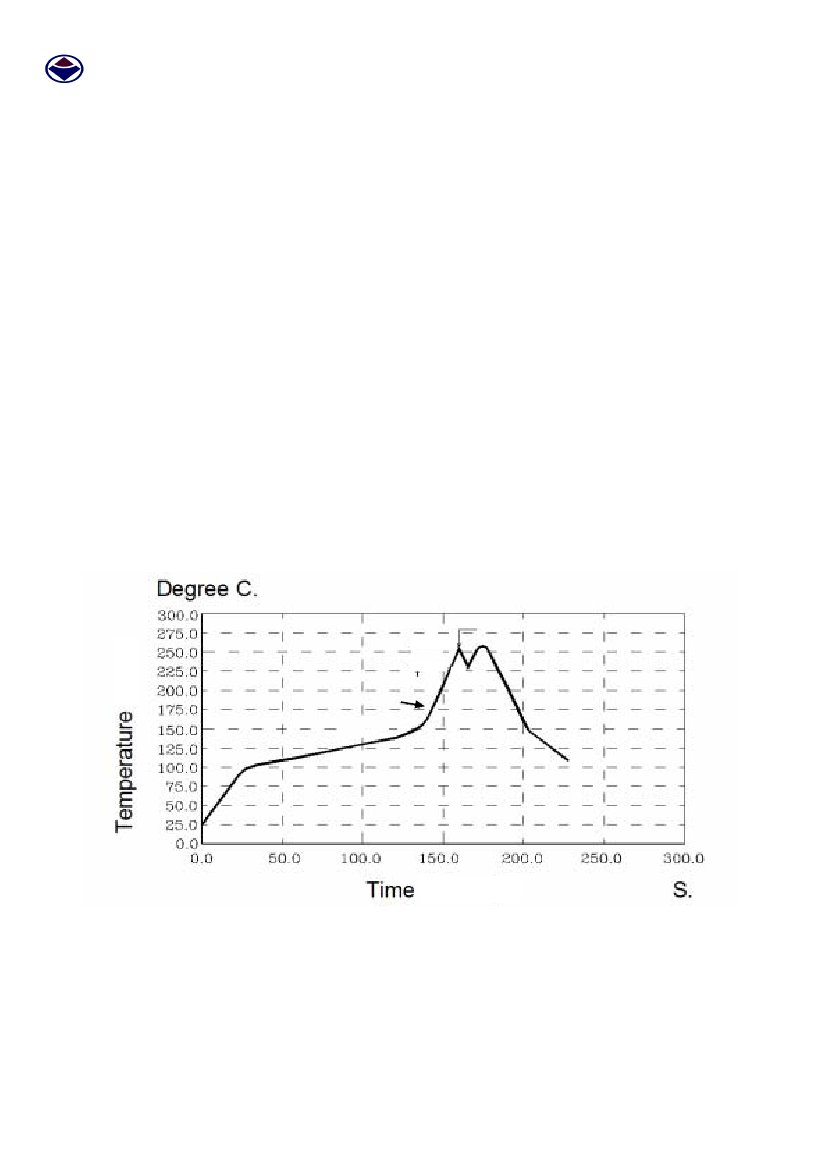

LAMP APPLICATION ( PB FREE SOLDERING )
Apply to LAMP(DIP) series.
Description:
(1) Manual soldering (Solder Iron)
(2) Dip Soldering(Wave soldering-Solder Bath)
DOC. NO.:S-QW-K001
2006 / 02 / 08 -B
BRIGHT VIEW
ELECTRONICS CO.,LTD
LAMP PACKING
Label 2
Label 1
Bright View
PART NO.:
LOT NO.:
GRADE:
Q'ty
X-
-
pcs
Electronics Co.,Ltd.
Bright View
PART NO.:
LOT NO.:
GRADE:
Electronics Co.,Ltd.
BVU-5M5XXXXX
QA
Q'ty
pcs
QA
3mm or 5mm Polybag
X: Bin grade
: Wavelength
: Vf
Anti-electrostatic bag
ELECTROSTATIC SENSITIVE DEVICES
DO NOT OPEN OR HANDLE EXCEPT
AT A STATIC-FREE WORKSTATION
BOX
Dimension(cm): 29*25*15
25
BVU
-5X1XX4XR
BVT
Stand-offs
Luminous Grade-refer
to the selection guide for BIN options
Lens Color-refer
to lens color (1) to (9)
Dice Code-refer
to the selection guide
Lens Configuration
-refer to lens drawing
View Angle-refer
to the selection guide (A) to (Z)
Outline Dimension-refer
to the outline dimension
29
3
15
TYPE
Q'TY
N,W
G,W
C.NO
PCS
KGS
KGS
Label 1 or Label 2 attach on it.
Device
5mm(T-1 3/4)
3mm(T-1)
Blue / Green / White
Q'ty / Polybag (pcs)
1000pcs
1000pcs
500pcs
Polybag / Box A
14 bags
20 bags
18 bags
Fig.
Label 1
Label 1
Label 2
32
53
RE
Y
CARTON
Dimension(cm): 53*32*33
33
ITEM NO.
DEVICE:
Q'TY
N. W.:
G. W.:
PCS.
PCS.
PCS.
4 Boxes / Carton
5mm : 56,000pcs
3mm : 80,000pcs
Blue / Green / White : 36,000pcs
2003 / 9 / 15 - A
