BRIGHT VIEW
ELECTRONICS CO.,LTD
HIGH BRIGHTNESS LED LAMP

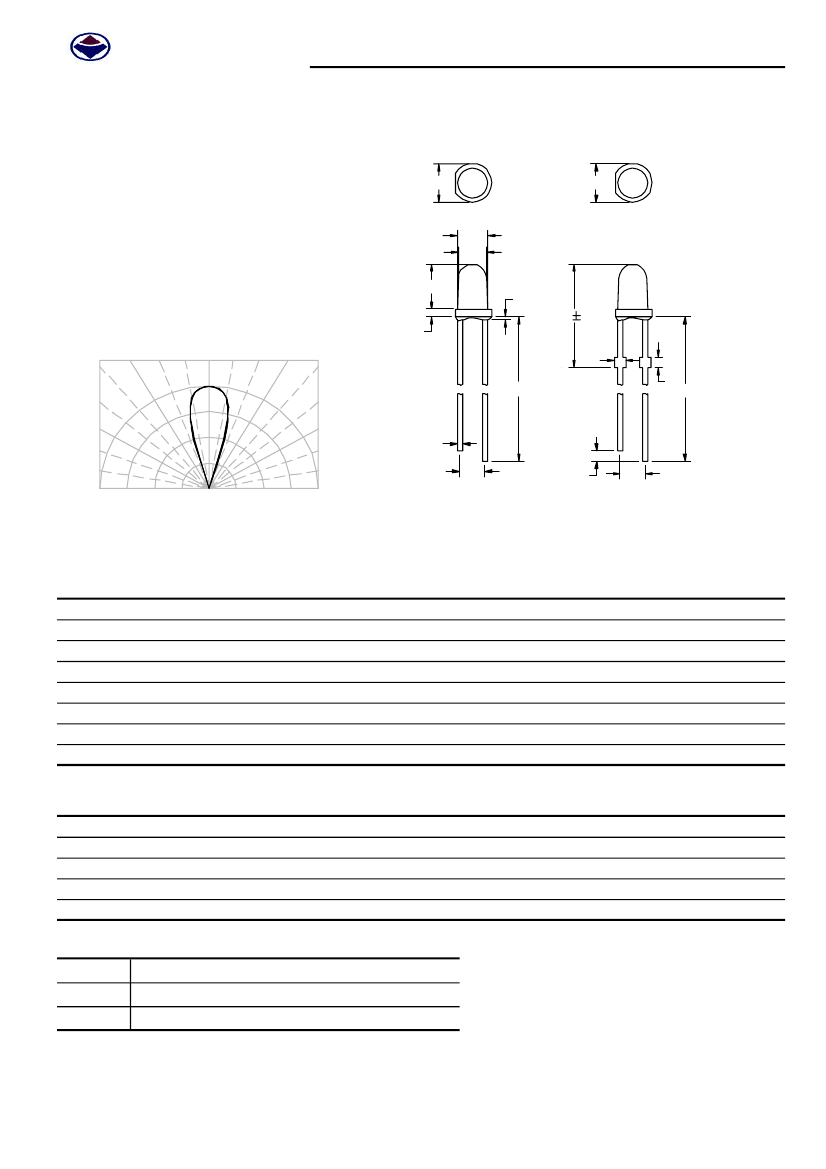

PACKAGE CONFIGURATION
BVU-3P0RU1
3.9
3.9
DESCRIPTION
Dice Material : GaAlAs/GaAlAs Red
Light Color : Red Color
Lens Color : Red Diffused
Stand-Off P/N : BVU-3P0RU1 R
3.0
2.9
4.5
1.0Max.
10.4
0.8
0.5
RADIATION PATTERN
-30
0
30
1.3
25.4Min.
1.0
25.4Min.
CATHODE
-60
60
CATHODE
0.5
2.54
1.0Min.
2.54
100 75
75 100
Relative Luminous Intensity ( Iv % )
Tolerance ± 0.25
50
25
0
25
50
ABSOLUTE MAXIMUM RATINGS AT Ta = 25
PARAMETER
Power Dissipation
Continuous Forward Current
Peak Forward Current ( 1/10 Duty Cycle , 0.1ms Pulse Width )
Reverse Voltage
Derating Linear From 50
Operating Temperature Range
Storage Temperature Range
Lead Solder Temperature 1.6 mm Below Package 260
for 5 seconds
MAX.
100
40
200
5
0.4
40
to
40
to
100
100
UNIT
mW
mA
mA
V
mA/
o
C
ELECTRICAL / OPTICAL CHARACTERISTICS AT Ta = 25
SYMBOL
V
F
I
R
p
d
2 1/2
PARAMETER
Forward Voltage
Reverse Current
Peak Emission Wavelength
Dominant Wavelength
Viewing Angle
TEST COND.
I
F
= 20 mA
V
R
= 5V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
660
643
35
MIN.
TYP.
2.1
MAX.
2.7
100
UNIT
V
A
nm
nm
Deg
BIN GRADE LIMITS ( I F = 20 mA ) LUMINOUS INTENSITY / mcd
Bin
Min.
Max.
D
218
280
E
280
360
F
360
465
G
465
600
H
600
780
I
780
1000
Tolerance ± 15%mcd
*Bright View reserves the rights to alter specifications and remove availability of products at any time without notice.
*Dominant Wavelength, d is according to CIE Chromaticity Diagram base on color of lamps.
* 1/2 is the off-axis angle where the luminous intensity is one half the on-axis intensity.
2001/11/13 – A

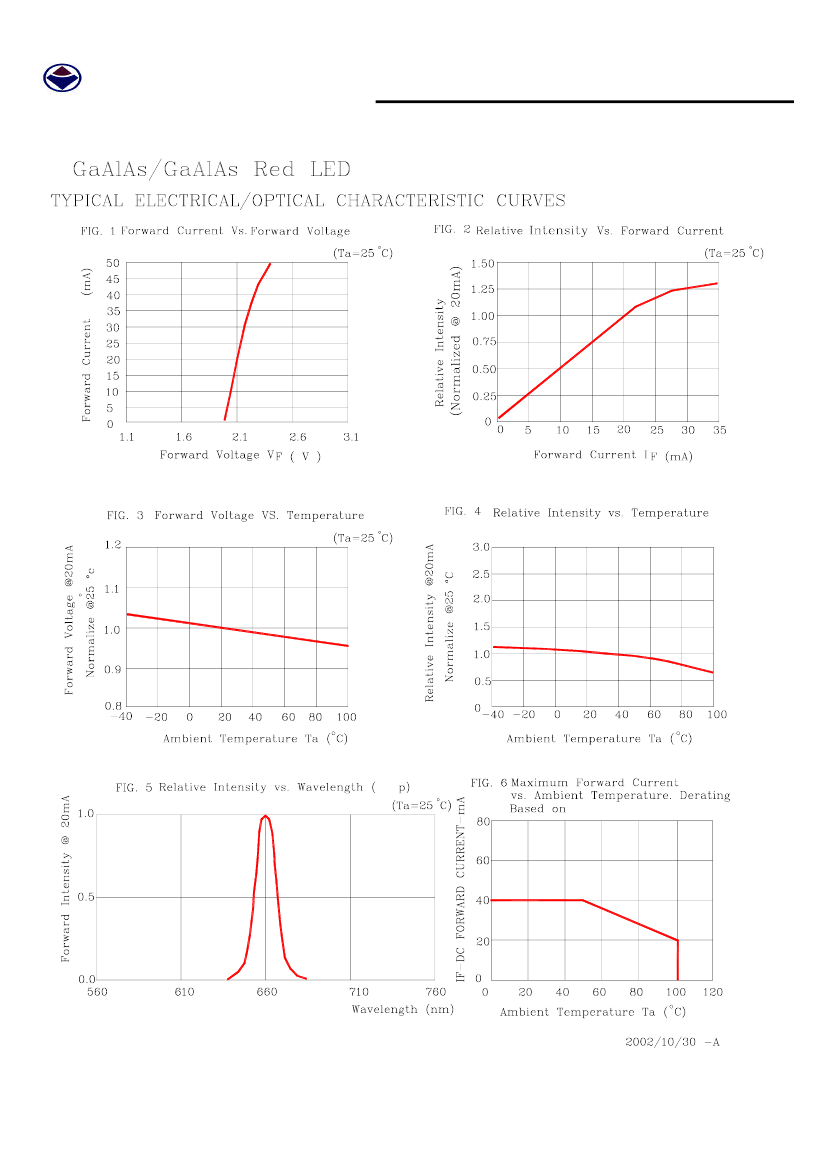

BRIGHT VIEW
ELECTRONICS CO.,LTD
LAMP PACKING
Label 2
Label 1
Bright View
PART NO.:
LOT NO.:
GRADE:
Q'ty
X-
-
pcs
Electronics Co.,Ltd.
Bright View
PART NO.:
LOT NO.:
GRADE:
Electronics Co.,Ltd.
BVU-5M5XXXXX
QA
Q'ty
pcs
QA
3mm or 5mm Polybag
X: Bin grade
: Wavelength
: Vf
Anti-electrostatic bag
ELECTROSTATIC SENSITIVE DEVICES
DO NOT OPEN OR HANDLE EXCEPT
AT A STATIC-FREE WORKSTATION
BOX
Dimension(cm): 29*25*15
25
BVU
-5X1XX4XR
BVT
Stand-offs
Luminous Grade-refer
to the selection guide for BIN options
Lens Color-refer
to lens color (1) to (9)
Dice Code-refer
to the selection guide
Lens Configuration
-refer to lens drawing
View Angle-refer
to the selection guide (A) to (Z)
Outline Dimension-refer
to the outline dimension
29
3
15
TYPE
Q'TY
N,W
G,W
C.NO
PCS
KGS
KGS
Label 1 or Label 2 attach on it.
Device
5mm(T-1 3/4)
3mm(T-1)
Blue / Green / White
Q'ty / Polybag (pcs)
1000pcs
1000pcs
500pcs
Polybag / Box A
14 bags
20 bags
18 bags
Fig.
Label 1
Label 1
Label 2
32
53
RE
Y
CARTON
Dimension(cm): 53*32*33
33
ITEM NO.
DEVICE:
Q'TY
N. W.:
G. W.:
PCS.
PCS.
PCS.
4 Boxes / Carton
5mm : 56,000pcs
3mm : 80,000pcs
Blue / Green / White : 36,000pcs
2003 / 9 / 15 - A
