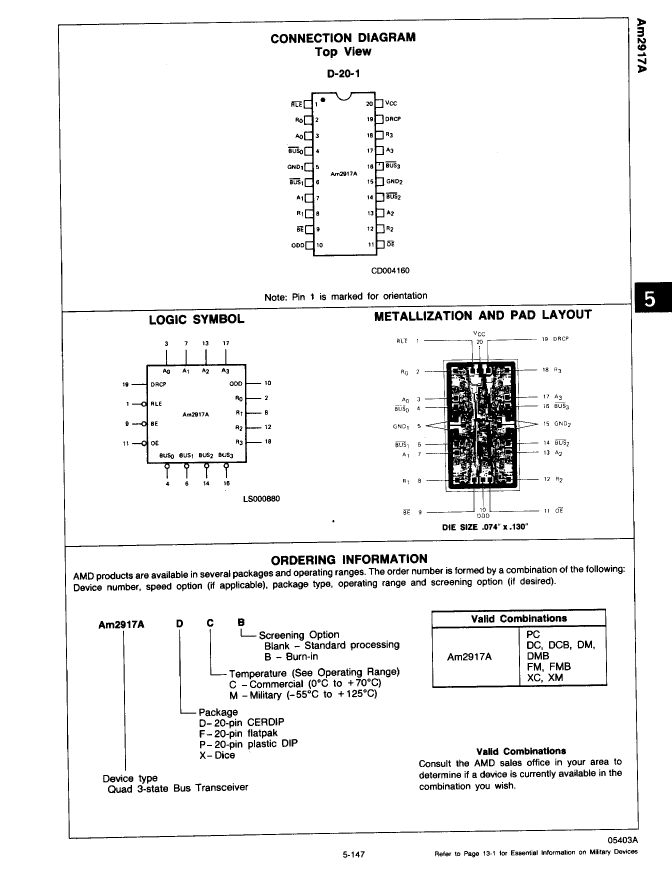

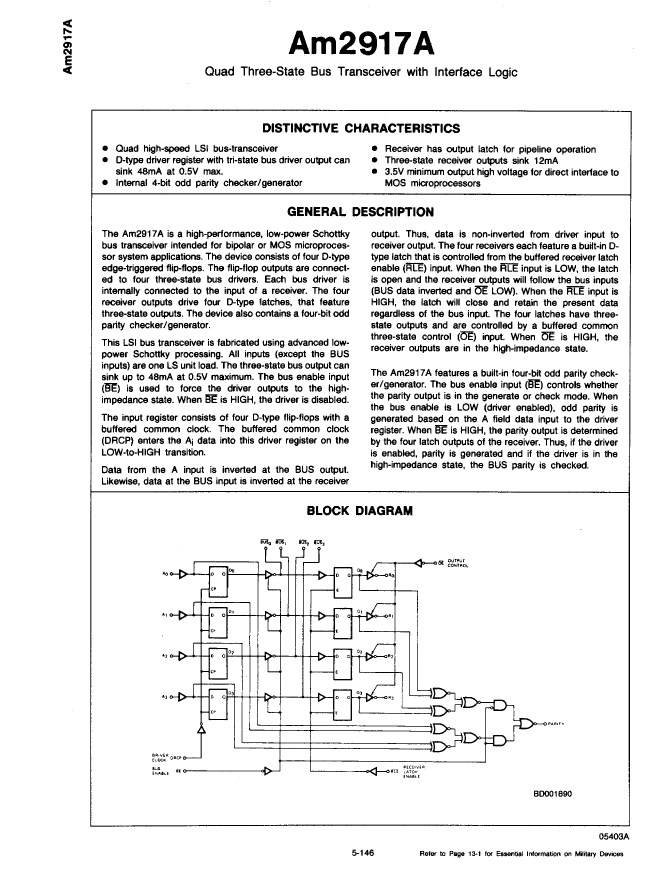

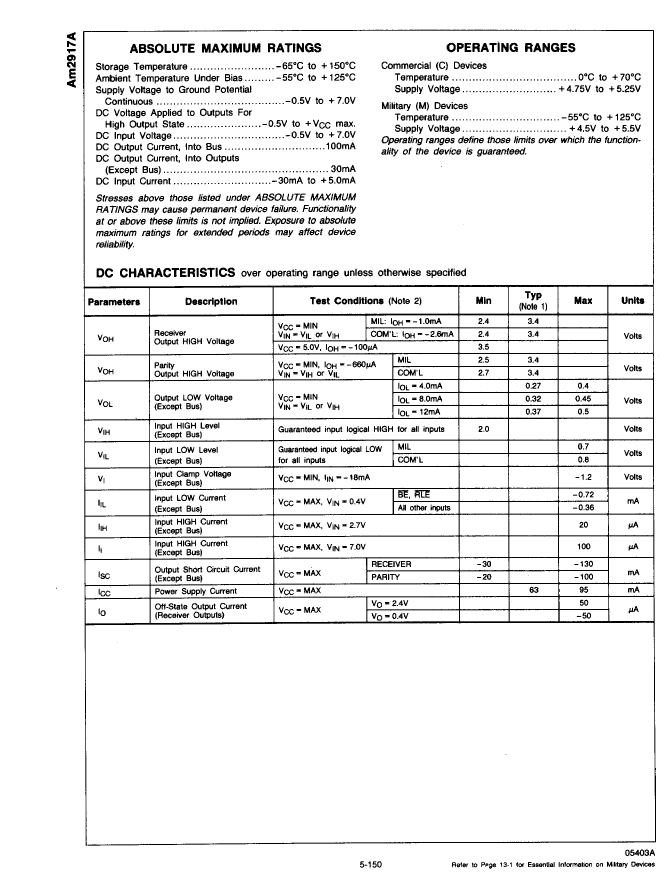

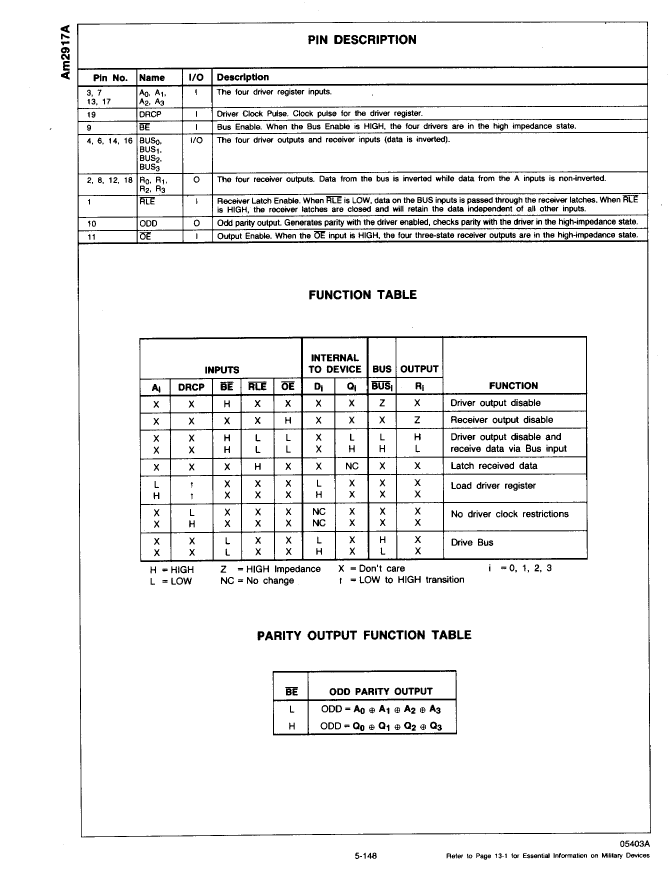

Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, PDIP20
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| package instruction | DIP, DIP20,.3 |
| Reach Compliance Code | unknown |
| Control type | INDEPENDENT CONTROL |
| Counting direction | UNIDIRECTIONAL |
| JESD-30 code | R-PDIP-T20 |
| JESD-609 code | e0 |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP20,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| AM2917APCTB | AM2917A/BRA | AM2917A/BSA | AM2917AJC | AM2917ADCT | AM2917APC-B | |
|---|---|---|---|---|---|---|
| Description | Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, PDIP20 | Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, CDIP20, | Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, CDFP20 | Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, PQCC20 | Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, CDIP20 | Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, PDIP20, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Control type | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL |
| Counting direction | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| JESD-30 code | R-PDIP-T20 | R-XDIP-T20 | R-XDFP-F20 | S-PQCC-J20 | R-XDIP-T20 | R-PDIP-T20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | CERAMIC | CERAMIC | PLASTIC/EPOXY | CERAMIC | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DFP | QCCJ | DIP | DIP |
| Encapsulate equivalent code | DIP20,.3 | DIP20,.3 | FL20,.3 | LDCC20,.4SQ | DIP20,.3 | DIP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | FLATPACK | CHIP CARRIER | IN-LINE | IN-LINE |
| surface mount | NO | NO | YES | YES | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | FLAT | J BEND | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | QUAD | DUAL | DUAL |
| Maker | AMD | - | - | AMD | AMD | AMD |
| package instruction | DIP, DIP20,.3 | - | DFP, FL20,.3 | - | DIP, DIP20,.3 | DIP, DIP20,.3 |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - |
