BRIGHT VIEW
ELECTRONICS CO.,LTD
ULTRA BRIGHTNESS LED LAMP
PACKAGE CONFIGURATION
5.9
5.9
BVU-5K5TT4
DESCRIPTION
Dice Material : AlInGaP Yellow
Light Color : Yellow Color
Lens Color : Water Transparent
Stand-Off P/N : BVU-5K5TT4 R
5.0
4.9
7.6
1.0Max.
12.0±0.5
RADIATION PATTERN
-30°
0°
30°
1.0
1.3
1.0
25.4Min.
-60°
60°
25.4Min.
CATHODE
CATHODE
0.5
2.54
100 75 50 25
0
25 50 75 100
1.0Min.
2.54
Relative Luminous Intensity ( Iv % )
Tolerance ± 0.25
㎜
ABSOLUTE MAXIMUM RATINGS AT Ta = 25
℃
PARAMETER
Power Dissipation (P
D
)
Continuous Forward Current (I
F
)
Peak Forward Current ( 1/10 Duty Cycle , 10ms Pulse Width ) (I
FP
)
Reverse Voltage (V
R
)
MAX.
80
30
100
5
0.4
UNIT
mW
mA
mA
V
mA/
o
C
Derating Linear From 50
℃
Operating Temperature Range (Topr)
－30 ℃
to
＋
85
℃
Storage Temperature Range (Tstg)
－40
℃
to
＋
100
℃
Lead Solder Temperature 1.6 mm Below Package 260
℃
for 5 seconds (Tsld)
ELECTRICAL / OPTICAL CHARACTERISTICS AT Ta = 25
℃
SYMBOL
V
F
I
R
λp
λd
2θ1/2
I
V
PARAMETER
Forward Voltage
Reverse Current
Peak Emission Wavelength
Dominant Wavelength
Viewing Angle
Luminous Intensity
TEST COND.
I
F
= 20 mA
V
R
= 5V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
MIN.
TYP.
2.3
592
590
25
7800
MAX.
2.8
100
UNIT
V
μA
nm
nm
Deg
mcd
6000
BIN GRADE LIMITS (IF=20 mA)
LUMINOUS INTENSITY / mcd
Bin
Min.
Max.
Q
6000
7800
R
7800
10000
S
10000
13000
BIN GRADE LIMITS (IF=20 mA)
DOMINANT WAVELENGTH / nm
Bin
Min.
Max.
YD
586
589
YE
589
592
YF
592
595
Tolerance ± 15%mcd
*Bright View reserves the rights to alter specifications and remove availability of products at any time without notice.
*Dominant Wavelength,
λd
is according to CIE Chromaticity Diagram base on color of lamps.
*
θ
1/2 is the off-axis angle where the luminous intensity is one half the on-axis intensity.
2009/6/23 - B
BRIGHT VIEW
ELECTRONICS CO.,LTD
ULTRA BRIGHTNESS LED LAMP
BVU-5K5TT4
TYPICAL ELECTRICAL / OPTICAL CHARACTERISTIC CURVES
FIG. 1 Forward Current vs. Forward Voltage
( Ta = 25 °C )
FIG. 2 Relative Intensity vs. Forward Current
( Ta = 25 °C )
120
Forward Current ( mA )
100
80
60
40
20
5.0
Relative Intensity
4.0
3.0
2.0
1.0
0
0
1.3
1.8
2.3
2.8
Forward Voltage Vf ( V )
3.3
0
20
40
80 100
60
Forward Current If ( mA )
120
1.2
Forward Voltage ( a.u )
1.1
1.0
0.9
FIG. 3 Forward Voltage vs. Temperature
( If = 20 mA )
Relative Intensity ( a.u )
3.0
2.5
2.0
1.5
1.0
0.5
FIG. 4 Relative Intensity vs. Temperature
( If = 20 mA )
0.8
-50
-25
0
25
50
75
100 125
0
-50 -25
0
25
50
75
100 125
Ambient Temperature Ta ( °C )
FIG. 5 Relative Intensity vs. Wavelength (
λp
)
( Ta = 25 °C )
IF-DC Forward Current ( mA )
Ambient Temperature Ta ( °C )
FIG. 6 Maximum Forward Current
40
30
20
10
0
0
vs. Temperature
Relative Emission Intensity ( a.u)
1.0
0.5
0
500
550
600
Wavelength ( nm )
650
20
40
60
80 100
Ambient Temperature Ta ( °C )
120
2009/6/23 - B
BRIGHT VIEW
ELECTRONICS CO.,LTD
ULTRA BRIGHTNESS LED LAMP
BVU-5K5TT4
Apply to LAMP(DIP) series.
Description:
( 1 ) Manual soldering (Solder Iron)
(1.1) Temperature at tip of the iron: 300°C Max.
(1.2) It's banned to load any stress on the resin during soldering.
(1.3) Soldering time: 5 sec. Max.(one time only)
(1.4) Leave 1.6mm of minimum distance from the base of epoxy.
( 2 ) Dip Soldering(Wave soldering-Solder Bath)
(2.1) Leave 1.6mm of minimum distance from the base of the epoxy.
Soldering beyond the base of the tie bar(stand off) is recommended.
(2.2) When soldering, do not put stress on the LEDs during heating.
(2.3) Cutting the leadframes at high temperatures may cause LED failure.
(2.4) Never take next process until the component is cooled down to room temperature
after reflow.
(2.5) After soldering, do not warp the circuit board.
(2.6) The recommended dip soldering profile is the following:
Degree C.
300.0
275.0
250.0
225.0
200.0
175.0
150.0
125.0
100.0
75.0
50.0
25.0
0.0
0.0
50.0
MAX 260 C
， 5
sec.
>20 C
Temperature
(
C
)
4 C / sec.
150 C
100.0
150.0
200.0
250.0
300.0
Time ( sec. )
2009/6/23 - B
BRIGHT VIEW
ELECTRONICS CO.,LTD
ULTRA BRIGHTNESS LED LAMP
BVU-5K5TT4

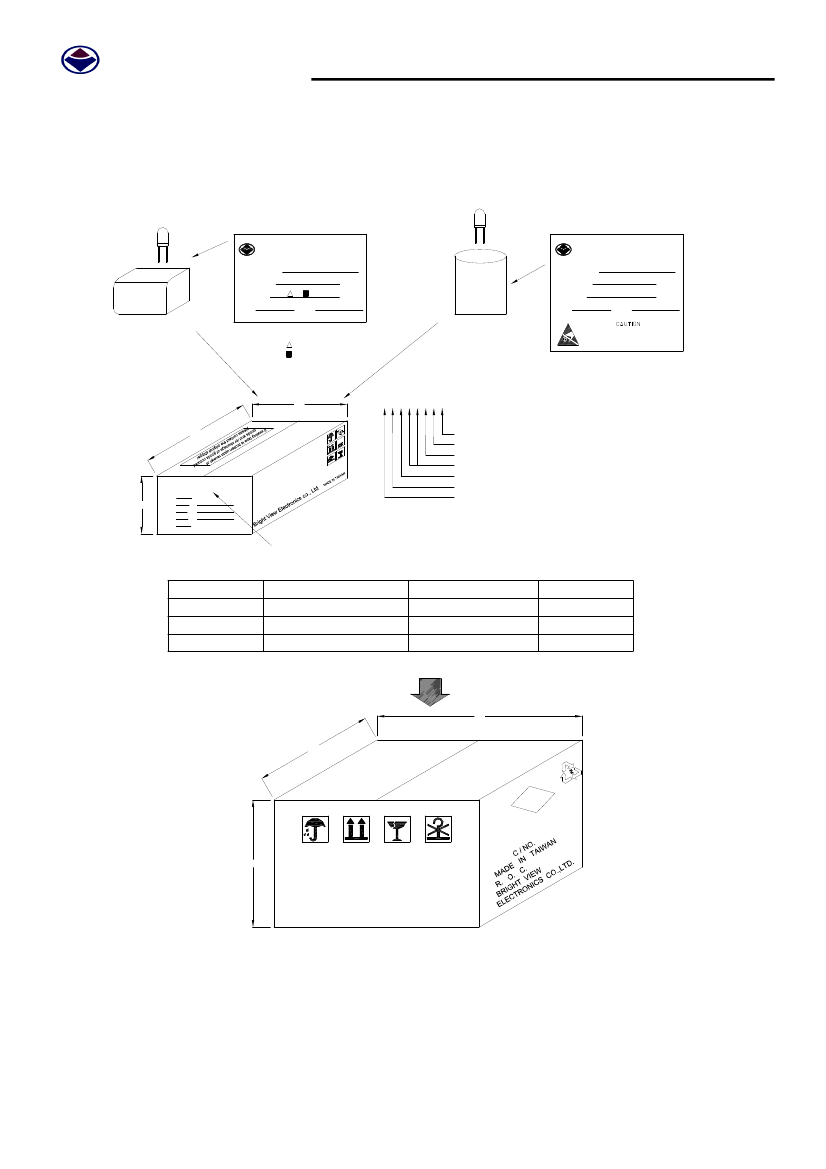

Label 1
Label 2
Bright View
PART NO.:
LOT NO.:
GRADE:
Q'ty
X-
-
pcs
Electronics Co.,Ltd.
Bright View
PART NO.:
LOT NO.:
GRADE:
Electronics Co.,Ltd.
BVU-XXXXXXXX
QA
3mm or 5mm Polybag
Pb - Free / RoHS Compliant
X: Bin grade
: Wavelength
: Vf
Anti-electrostatic bag
Q'ty
pcs
QA
Pb - Free / RoHS Compliant
ELECTROSTATIC SENSITIVE DEVICES
DO NOT OPEN OR HANDLE EXCEPT
AT A STATIC-FREE WORKSTATION
BOX
Dimension(cm): 29*25*15
25
BVU - X X X X X X X R
29
3
15
TYPE
Q'TY
N,W
G,W
C.NO
PCS
KGS
KGS
Stand-offs
Luminous Grade-refer
to the selection guide for BIN options
Lens Color-refer
to lens color (1) to (9)
Dice Code-refer
to the selection guide
Lens Configuration-refer
to lens drawing
View Angle-refer
to the selection guide (A) to (Z)
Outline Dimension-refer
to the outline dimension
Label 1 or Label 2 attach on it.
Device
5mm(T-1 3/4)
3mm(T-1)
Blue / Green / White
Q'ty / Polybag (pcs)
1000pcs
1000pcs
500pcs
Polybag / Box A
14 bags
20 bags
18 bags
Fig.
Label 1
Label 1
Label 2
32
53
RE
Y
CARTON
Dimension(cm): 53*32*33
33
ITEM NO.
DEVICE:
Q'TY
N. W.:
G. W.:
PCS.
KGS.
KGS.
4 Boxes / Carton
5mm : 56,000pcs
3mm : 80,000pcs
Blue / Green / White : 36,000pcs
2009/6/23 - B
