BRIGHT VIEW
ELECTRONICS CO.,LTD
SUPER FLUX LED
PACKAGE CONFIGURATION
2 X R 0.69 0.20
BVZ-915EA4
DESCRIPTION
Dice Material : AlGaInP Orange Red
Light Color : Orange Red Color
Lens Color : Water Transparent
1.25 X 1.25
CATHODE
7.62 0.5
ANODE
RADIATION PATTERN
100
75
2.50 0.5
7.62 0.5
5.0
2.5
4.7
5.3
50
0.4
1.55
0.76 0.1
5.08
25
5.08 0.3
0
-80 -60 -40 -20
0
20
40
60
80
Viewlng Angle
ABSOLUTE MAXIMUM RATINGS AT Ta = 25
PARAMETER
Power Dissipation
Continuous Forward Current
Peak Forward Current ( 1/10 Duty Cycle , 0.1ms Pulse Width )
Reverse Voltage
Derating Linear From 50
Operating Temperature Range
Storage Temperature Range
LED Junction Temperature
Soldering Preheat Temperature
Lead Solder Temperature ( 1.5mm Below Seating Plane )
Tolerance ± 0.25
MAX.
140
50
100
5
0.9
40 to
100
55 to
100
125
100 °C for 30 seconds
250 °C for 5 seconds
UNIT
mW
mA
mA
V
mA/
o
C
o
C
o
C
o
C
ELECTRICAL / OPTICAL CHARACTERISTICS AT Ta = 25
SYMBOL
V
F
I
R
p
d
2 1/2
V/ V
R
j-pin
PARAMETER
Forward Voltage
Reverse Current
Peak Emission Wavelength
Dominant Wavelength
Viewing Angle
Luminous Intensity / Total Flux
Thermal Resistance
TEST COND.
I
F
=
50mA
V
R
= 5V
I
F
=
50mA
I
F
=
50mA
I
F
=
50mA
MIN.
TYP.
2.3
623
617
120
0.3
125
MAX.
2.8
100
UNIT
V
A
nm
nm
Deg
cd/lm
o
C/W
BIN GRADE LIMITS ( I F = 50 mA ) Total Flux / lm
Bin
Min.
Max.
D
1.7
2.2
E
2.2
2.8
F
2.8
3.6
G
3.6
4.7
H
I
4.7
6.0
6.0
7.8
Tolerance ± 15%lm
*Bright View reserves the rights to alter specifications and remove availability of products at any time without notice.
*Dominant Wavelength, d is according to CIE Chromaticity Diagram base on color of the device.
* 1/2 is the off-axis angle where the luminous intensity is one half the on-axis intensity.
2006/2/17 – B
BRIGHT VIEW
ELECTRONICS CO.,LTD
SUPER FLUX LED
BVZ-915EA4
TYPICAL ELECTRICAL / OPTICAL CHARACTERISTIC CURVES
FIG. 1 Forward Current vs. Forward Voltage
( Ta = 25 °C )
100
90
80
70
60
50
40
30
20
10
0
3.0
2.5
Relative Intensity
2.0
1.5
1.0
0.5
0
1.7
2.0
2.3
2.6
Forward Voltage Vf ( V )
2.9
0
20
40 60 80 100 120 140
Forward Current If ( mA )
Forward Current ( mA )
FIG. 2 Relative Total Flux vs. Forward Current
( Ta = 25 °C )
FIG. 3 Forward Voltage vs. Temperature
1.2
Relative Total Flux @ 50mA
Forward Voltage @ 50mA
1.1
1.0
0.9
0.8
-50
3.0
2.5
2.0
1.5
1.0
0.5
FIG. 4 Relative Intensity vs. Temperature
-25
0
25
50
75
100 125
0
-50 -25
0
25
50
75
100 125
Ambient Temperature Ta ( °C )
FIG. 5 Relative Intensity vs. Wavelength ( p )
( Ta = 25 °C )
IF-DC Forward Current ( mA )
1.0
Forward Intensity @ 50mA
80
60
40
20
0
0
Ambient Temperature Ta ( °C )
FIG. 6 Maximum Forward Current
vs. Temperature
0.5
0
550
600
650
Wavelength ( nm )
700
20
40
60
80 100
Ambient Temperature Ta ( °C )
120
2006/2/17 - B
BRIGHT VIEW
ELECTRONICS CO.,LTD

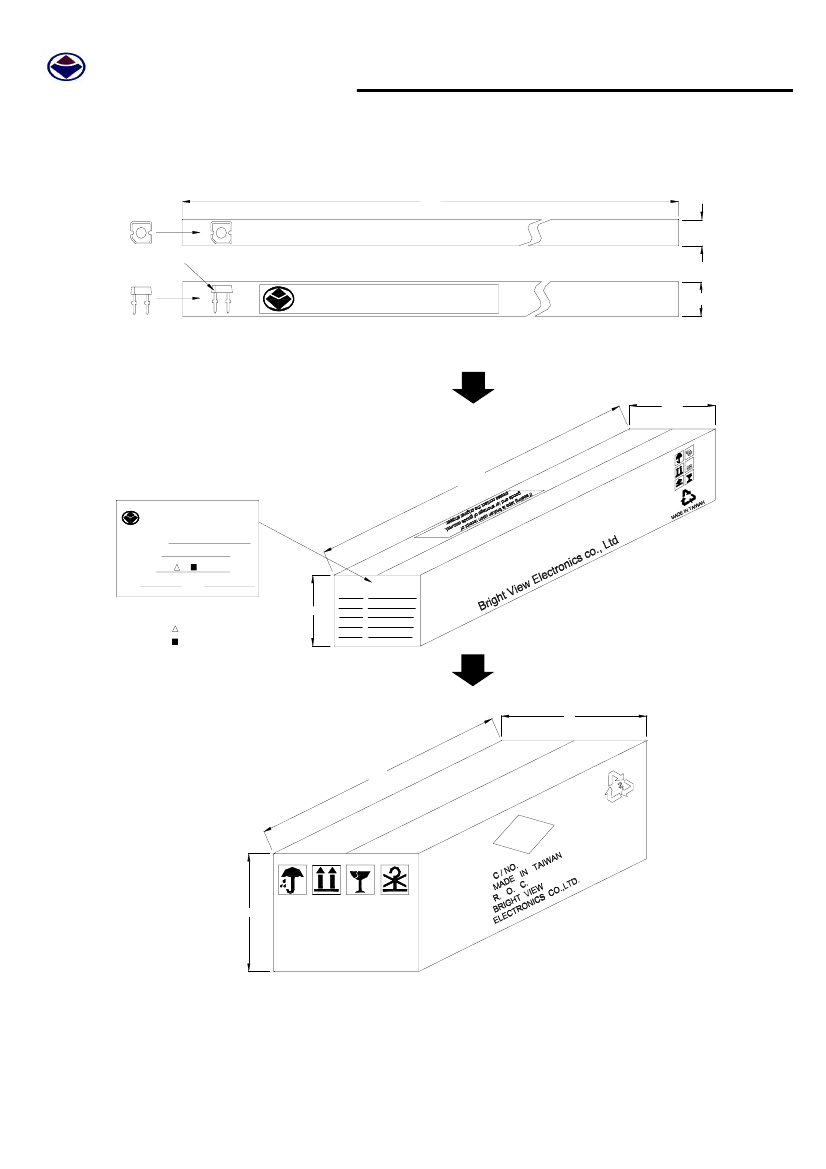

SUPER FLUX PACKING
48.5
Front
Gap
Side
Tube
Dimension(cm): 1.27* 0.97* 48.5
60PCS / Tube
L/N
BV
P/N :___________:______:________
BIN :______ Q'ty
QA :
0.97
1.27
13.5
BOX
Dimension(cm): 10.5 * 13.5 * 50.5
100 Tubes / Box
50.5
Box : 6,000PCS
3
Bright View
PART NO.:
LOT NO.:
GRADE:
Q'ty
X-
-
pcs
Electronics Co.,Ltd.
BVZ-91XXXX
QA
TYPE
Q'TY
N,W
G,W
C.NO
PCS
KGS
KGS
X: Bin grade
: Wavelength
: Vf
10.5
30
52
RE
Y
CARTON
Dimension(cm): 23*30*52
23
ITEM NO.
DEVICE:
Q'TY
N. W.:
G. W.:
4 Boxes / Carton
Total : 24,000PCS
PCS.
KGS.
KGS.
2004 / 3 / 4 - B
