Power Transistor (160V , 1.5A)
2SD1918 / 2SD1857A
Features
1) High breakdown voltage.(BV
CEO=
160V)
2) Low collector output capacitance.
(Typ. 20pF at V
CB=
10V)
3) High transition frequency.(f
T=
80MH
Z
)
4) Complements the 2SB1236A.
Absolute maximum ratings
(Ta = 25°C)
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector
power
dissipation
2SD1857A
2SD1918
P
C
Symbol
V
CBO
V
CEO
V
EBO
I
C
Limits
160
160
5
1.5
3
1
1
10
Tj
Tstg
150
−55 ∼+150
Unit
V
V
V
A(DC)
A(Pulse)
W
W
W(Tc=25°C)
°C
0.9
4.4
Dimensions
(Unit : mm)
2SD1918
0.75
5.5
1.5
(3) (2) (1)
2.3
0.9
0.9
0.65
2.3
1.0
0.5
0.5
1.5
2.5
9.5
2.3
0.8Min.
5.1
6.5
C0.5
ROHM : CPT3
EIAJ : SC-63
∗1
∗2
(1) Base(Gate)
(2) Collector(Drain)
(3) Emitter(Source)
2SD1857A
6.8
2.5
Junction temperature
Storage temperature
°C
0.65Max.
1.0
0.5
2.54 2.54
∗
1 Pw=200msec duty=1/2
∗
2
Printed circuit board 1.7mm thick, collector plating 1cm
2
or larger
.
(1) (2) (3)
1.05
0.45
Packaging specifications and h
FE
Type
Package
h
FE
Marking
Code
Basic ordering unit (pieces)
*
Denotes h
FE
Taping specifications
14.5
2SD1918
CPT3
QR
−
TL
2500
2SD1857A
ATV
PQ
−
TV2
2500
ROHM : ATV
(1) Emitter
(2) Collector
(3) Base
Electrical characteristics
(Ta = 25°C)
Parameter
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cutoff current
Emitter cutoff current
Collector-emitter saturation voltage
Base-emitter saturation voltage
DC current
2SD1918
h
FE
2SD1857A
f
T
Cob
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
V
CE(sat)
V
BE(sat)
Min.
160
160
5
−
−
−
−
Typ.
−
−
−
−
−
−
−
−
−
Max.
−
−
−
Unit
V
V
V
µA
µA
V
V
−
−
Conditions
I
C
=
50µA
I
C
=
1mA
I
E
=
50µA
V
CB
=
120V
V
EB
=
4V
I
C
/I
B
=
1A/0.1A
I
C
/I
B
=
1A/0.1A
V
CE
/I
C
=
5V/0.1A
V
CE
=
5V , I
E
= −
0.1A , f
=
30MHz
V
CB
=
10V , I
E
=
0A , f
=
1MHz
1
1
2
1.5
390
270
−
−
∗
∗
120
82
−
−
transfer ratio
Transition frequency
Output capacitance
80
20
MHz
pF
∗
Measured using pulse current.
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
1/2
2009.12 - Rev.B
2SD1918 / 2SD1857A

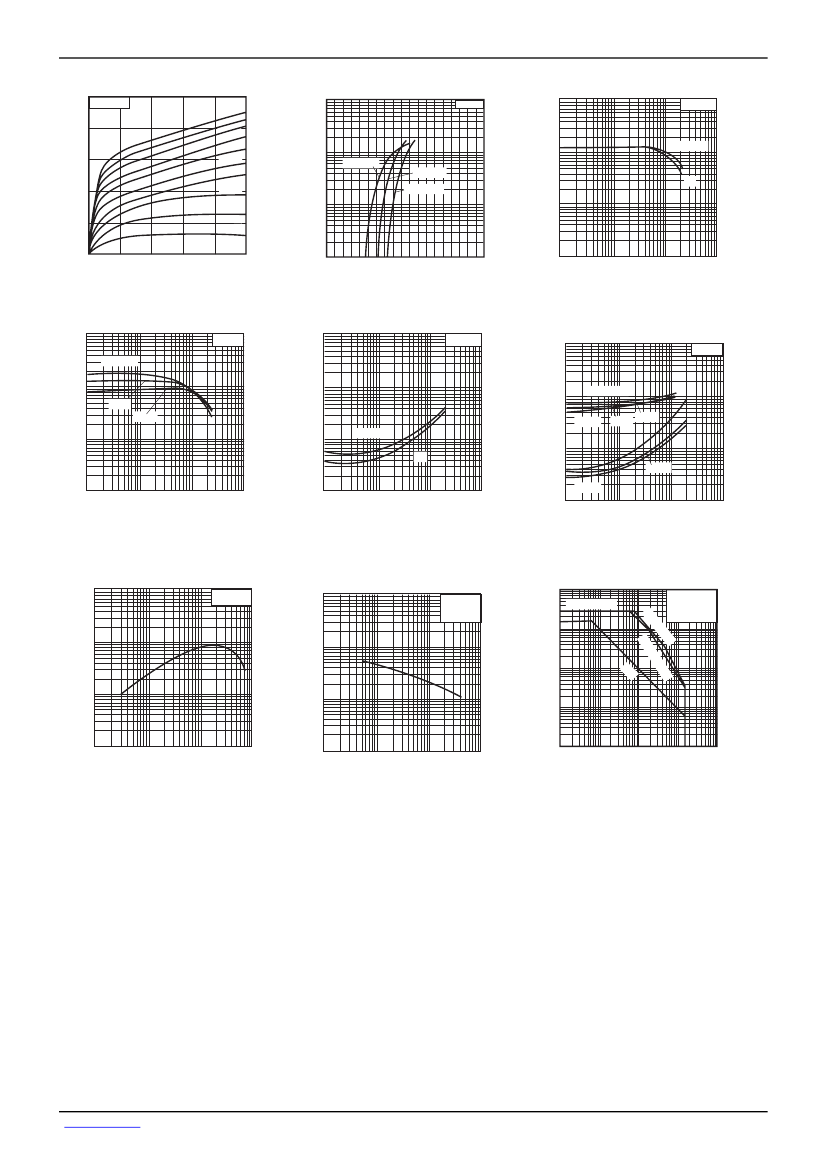

Electrical characteristic curves
1.0
Ta=25°C
Data Sheet
10
COLLECTOR CURRENT : I
C
(A)
A
10m
9mA
8mA
7mA
6mA
V
CE
=5V
1000
500
DC CURRENT GAIN : h
FE
Ta=25°C
COLLECTOR CURRENT : I
C
(A)
5
2
1
0.5
0.2
0.1
0.05
0.02
Ta=100°C
Ta=25°C
Ta=
−25°C
0.8
200
100
50
20
10
5
2
5V
V
CE
=10V
0.6
5mA
4mA
0.4
3mA
2mA
0.2
I
B
=1m
A
0
0
1
2
3
4
5
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
1
0.01
0.02
0.05
0.1
0.2
0.5
1
2
5
10
COLLECTOR TO EMITTER VOLTAGE : V
CE
(V)
BASE TO EMITTER VOLTAGE : V
BE
(V)
COLLECTOR CURRENT : I
C
(A)
Fig.1 Ground emitter output characteristics
Fig.2 Ground emitter propagation characteristics
Fig.3 DC current gain vs. collector current (
Ι
)
COLLECTOR SATURATION VOLTAGE : V
CE(sat)
(V)
1000
500
DC CURRENT GAIN : h
FE
V
CE
=5V
Ta=100°C
10
5
2
1
0.5
0.2
0.1
0.05
0.02
0.01
0.01
0.02
0.05
0.1
0.2
0.5
1
2
I
C
/I
B
=20
10
Ta=25°C
COLLECTOR SATURATION VOLTAGE : V
CE(sat)
(V)
BASE SATURATION VOLTAGE : V
BE(sat)
(V)
10
5
2
1
0.5
V
BE(sat)
0.2
0.1
−25°C
V
CE(sat)
0.02 0.05
0.1
0.2
0.5
1
2
25°C
Ta=
−25°C
100°C
I
C
/I
B
=10
200
100
50
20
10
5
2
1
0.01
0.02
0.05
0.1
0.2
0.5
1
2
5
10
25°C
−25°C
0.05
0.02
0.01
0.01
5
10
COLLECTOR CURRENT : I
C
(A)
COLLECTOR CURRENT : I
C
(A)
5
10
Fig.4 DC current gain vs. collector current (
ΙΙ
)
Fig.5 Collector-emitter saturation voltage
vs. collector current
COLLECTOR CURRENT : I
C
(A)
Fig.6 Collector-emitter saturation voltage
vs. collector current
Base-emitter saturation voltage
COLLECTOR OUTPUT CAPACITANCE : C
ob
(pF)
1000
TRANSITION FREQUENCY : f
T
(MHz)
500
200
100
50
20
10
5
2
1
−1
−2
−5
−10
−20
−50
Ta=25°C
V
CE
=5V
1000
500
200
100
50
20
10
5
2
1
0.1
0.2
0.5
1
2
5
10
10
COLLECTOR CURRENT : I
C
(A)
Ta=25°C
f=1MHz
I
E
=0A
5
2
1
500m
200m
100m
50m
20m
10m
5m
Ic
Max
(Pulse
∗
)
=
Pw
m
10
=1
Pw
00
Ta=25°C
∗Single
nonrepetitive
pulse
s
∗
∗
ms
D
C
−100 −200
−500 −1000
20
50
100
2m
1m
0.1 0.2
0.5
1
2
5
10 20
50 100 200
500 1000
EMITTER CURRENT : I
E
(mA)
COLLECTOR TO BASE VOLTAGE : V
CB
(V)
COLLECTOR TO EMITTER VOLTAGE : V
CE
(V)
Fig.7 Gain bandwidth products vs. emitter current
Fig.8 Collector output capacitance
vs. collector-base voltage
Fig.9 Safe operating area (2SD1918)
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
2/2
2009.12 - Rev.B
