PLSCE105H-37JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PLSCE105H-37JC

PLSCE105H-37JC: DescriptionEE PLD, 15ns, PLS-Type, CMOS, PQCC28, PLASTIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size443KB，17 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

PLSCE105H-37JC Overview

EE PLD, 15ns, PLS-Type, CMOS, PQCC28, PLASTIC, LCC-28

PLSCE105H-37JC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	QLCC
package instruction	QCCJ, LDCC28,.5SQ
Contacts	28
Reach Compliance Code	unknown
Architecture	PLS-TYPE
maximum clock frequency	25 MHz
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
Dedicated input times	16
Number of I/O lines
Number of entries	16
Output times	8
Number of product terms	48
Number of terminals	28
Maximum operating temperature	75 °C
Minimum operating temperature
organize	16 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	EE PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED

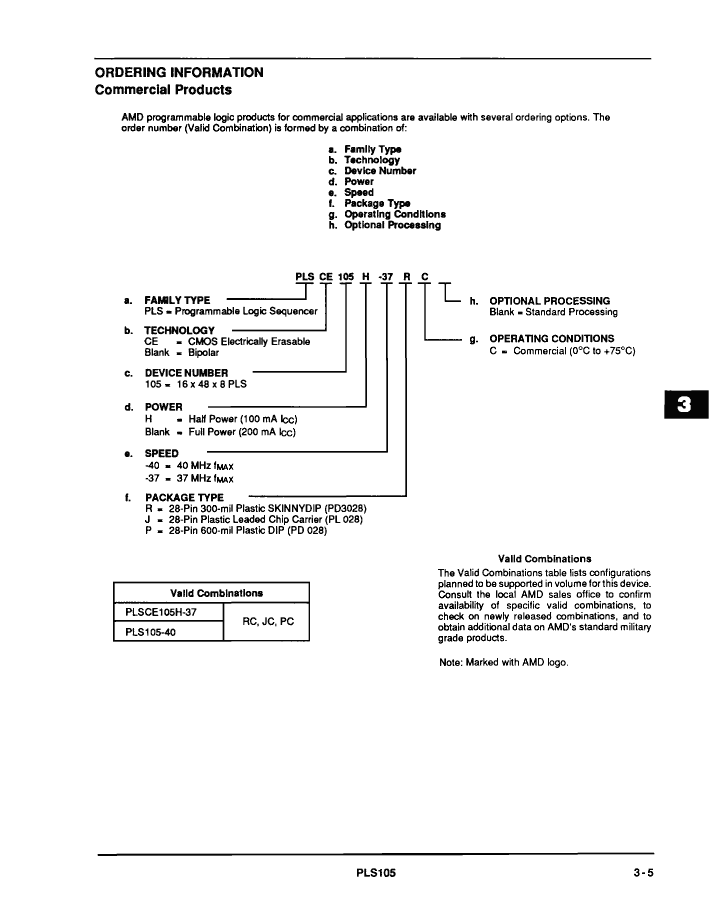

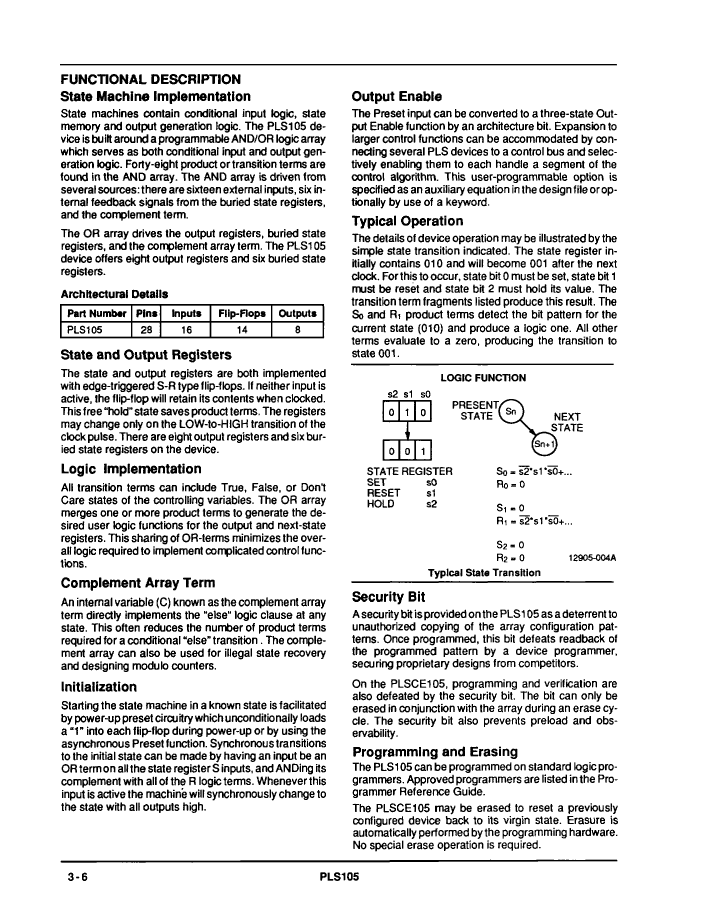

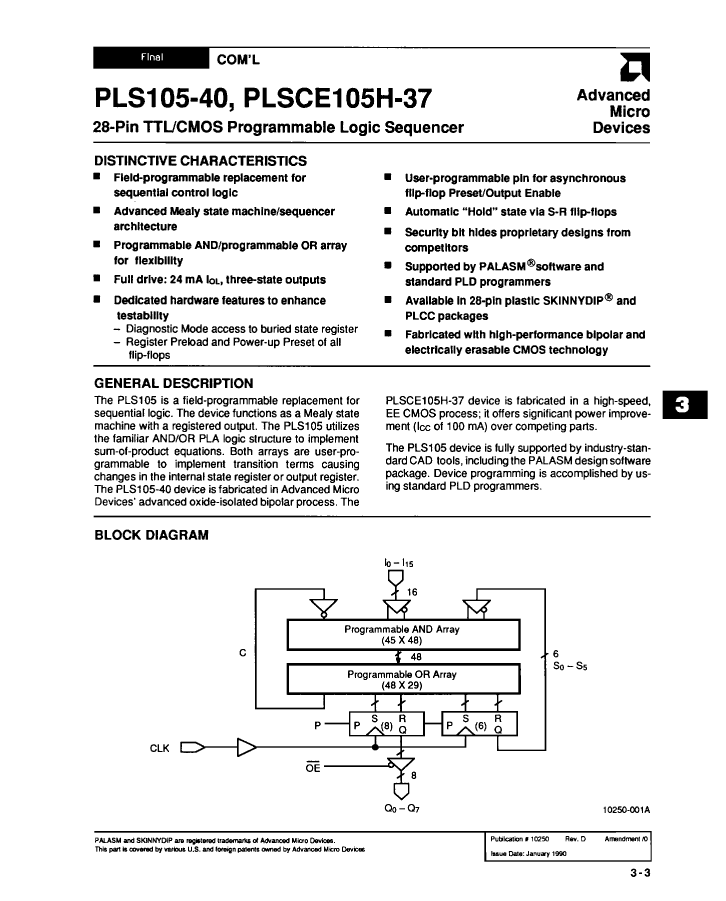

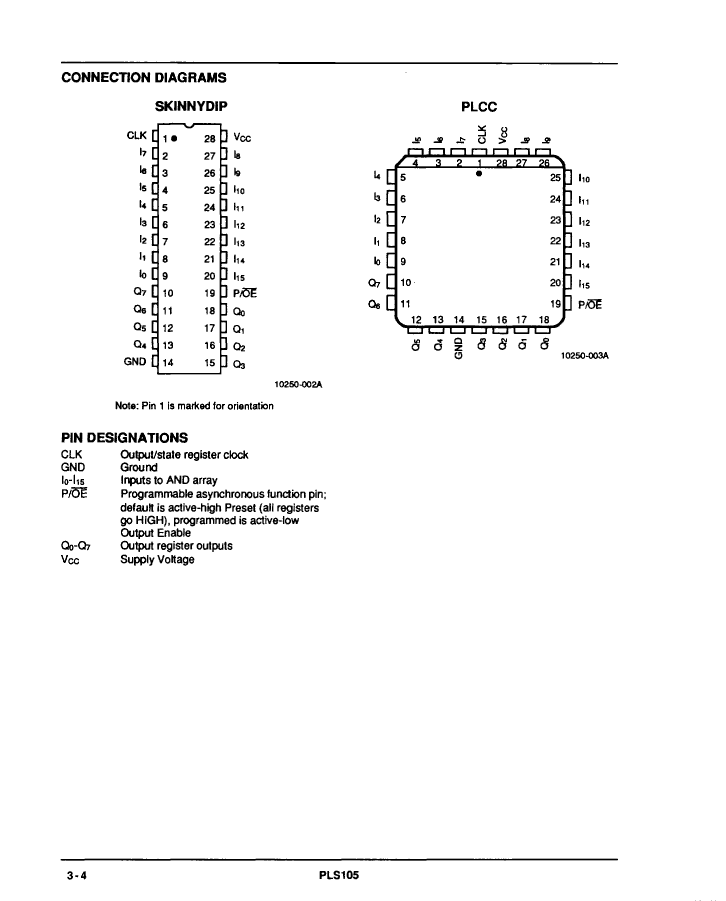

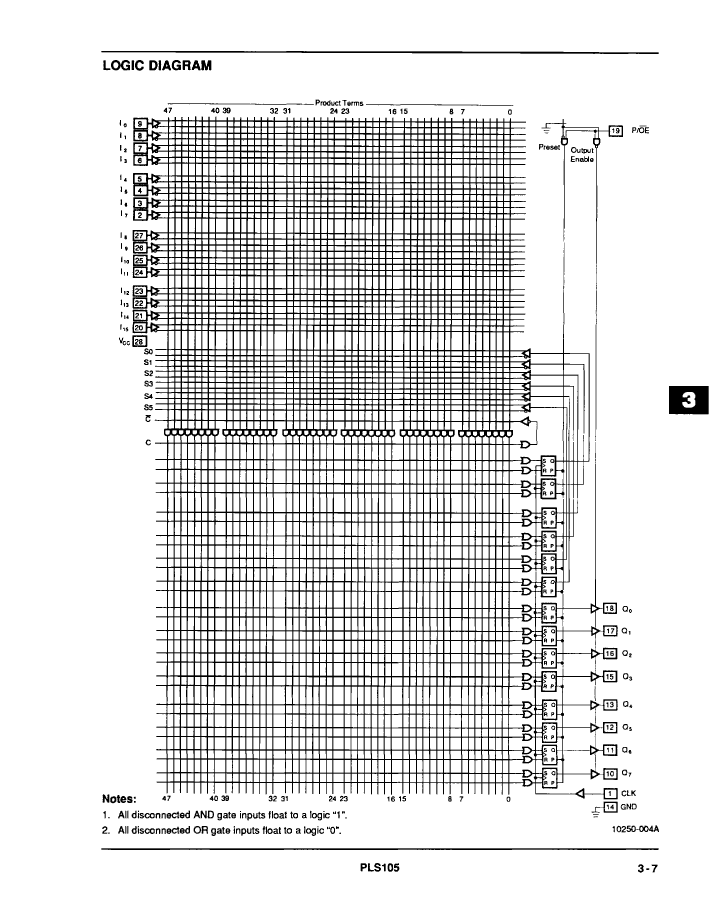

Preview

Download Datasheet

View All

PLSCE105H-37JC Related Products

	PLSCE105H-37JC	PLS105-40JC	PLS105-40RC	PLS105-40PC	PLSCE105H-37RC	PLSCE105H-37PC
Description	EE PLD, 15ns, PLS-Type, CMOS, PQCC28, PLASTIC, LCC-28	OT PLD, 15ns, PLS-Type, TTL, PQCC28, PLASTIC, LCC-28	OT PLD, 15ns, PLS-Type, TTL, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28	OT PLD, 15ns, PLS-Type, TTL, PDIP28, 0.600 INCH, PLASTIC, DIP-28	EE PLD, 15ns, PLS-Type, CMOS, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28	EE PLD, 15ns, PLS-Type, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	AMD	AMD	AMD	AMD	AMD	AMD
Parts packaging code	QLCC	QLCC	DIP	DIP	DIP	DIP
package instruction	QCCJ, LDCC28,.5SQ	QCCJ, LDCC28,.5SQ	DIP, DIP28,.3	DIP, DIP28,.6	DIP, DIP28,.3	DIP, DIP28,.6
Contacts	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Architecture	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE
maximum clock frequency	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
JESD-30 code	S-PQCC-J28	S-PQCC-J28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
Dedicated input times	16	16	16	16	16	16
Number of entries	16	16	16	16	16	16
Output times	8	8	8	8	8	8
Number of product terms	48	48	48	48	48	48
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
organize	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED	REGISTERED	REGISTERED	REGISTERED	REGISTERED	REGISTERED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	DIP	DIP	DIP	DIP
Encapsulate equivalent code	LDCC28,.5SQ	LDCC28,.5SQ	DIP28,.3	DIP28,.6	DIP28,.3	DIP28,.6
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Programmable logic type	EE PLD	OT PLD	OT PLD	OT PLD	EE PLD	EE PLD
propagation delay	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	NO
technology	CMOS	TTL	TTL	TTL	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
