PAL20R6-10/BLA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PAL20R6-10/BLA

PAL20R6-10/BLA: DescriptionOT PLD, 12ns, PAL-Type, TTL, CDIP24, 0.300 INCH, SKINNY, CERAMIC, DIP-24; CategoryProgrammable logic devices Programmable logic; File Size1MB，41 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

PAL20R6-10/BLA Overview

OT PLD, 12ns, PAL-Type, TTL, CDIP24, 0.300 INCH, SKINNY, CERAMIC, DIP-24

PAL20R6-10/BLA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	PAL; POWER-UP RESET
Architecture	PAL-TYPE
maximum clock frequency	50 MHz
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
length	31.9405 mm
Dedicated input times	12
Number of I/O lines	2
Number of entries	14
Output times	8
Number of product terms	64
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 2 I/O
Output function	MIXED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	OT PLD
propagation delay	12 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

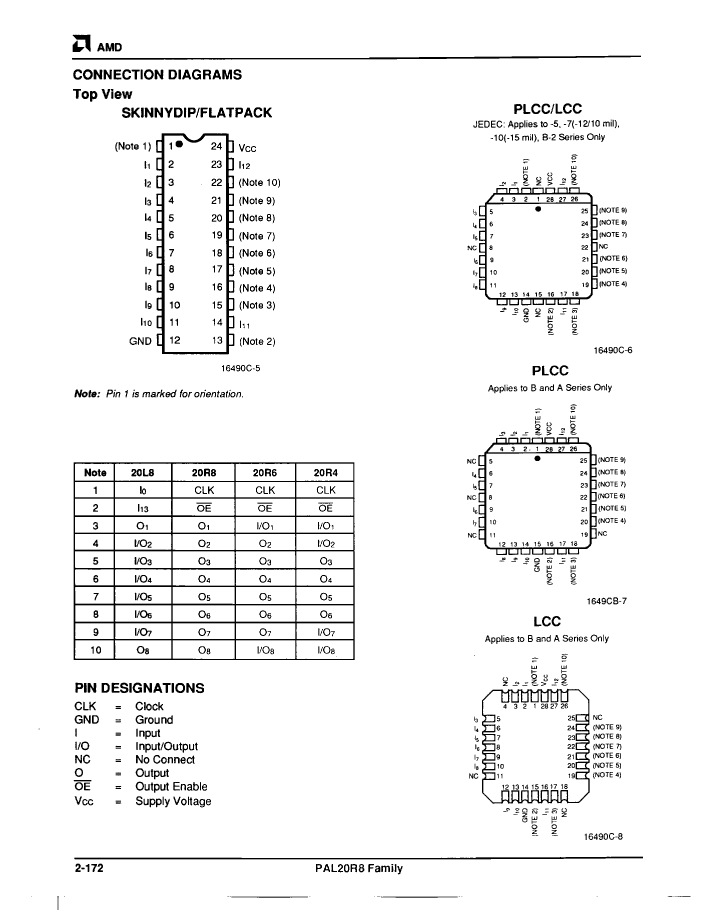

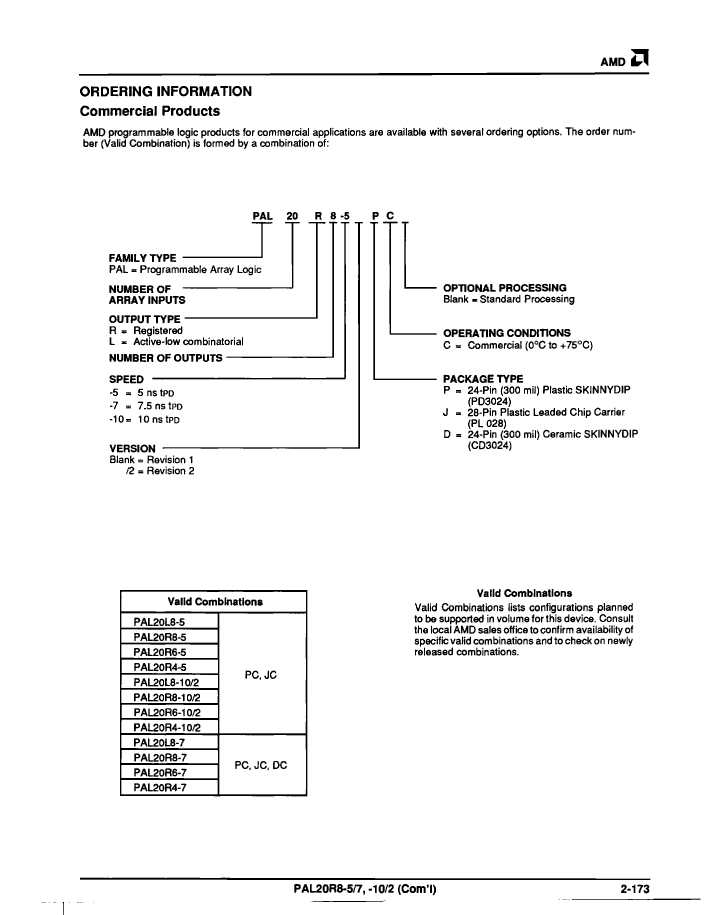

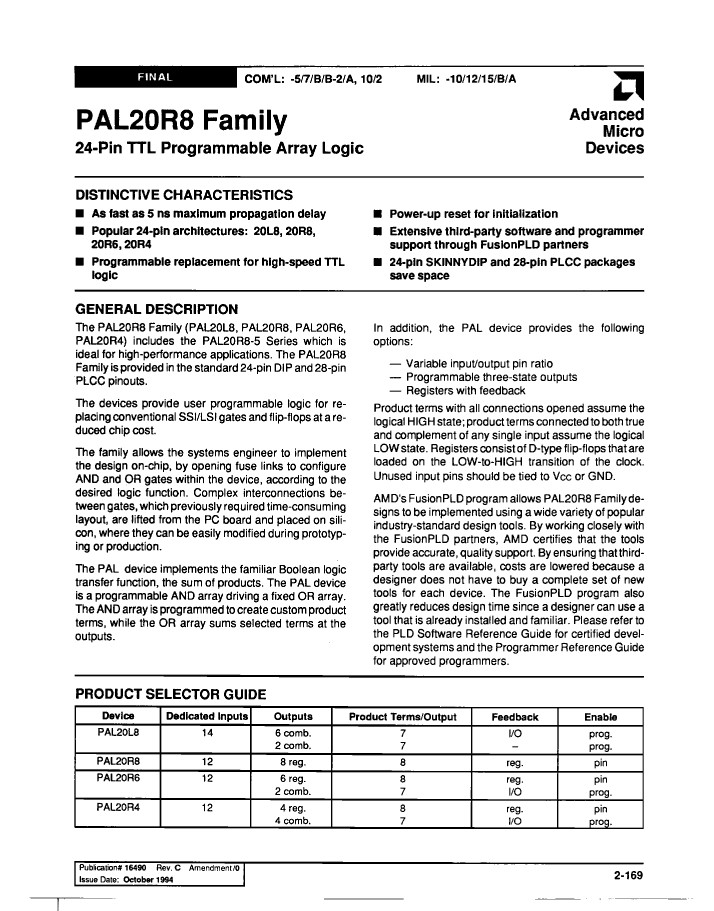

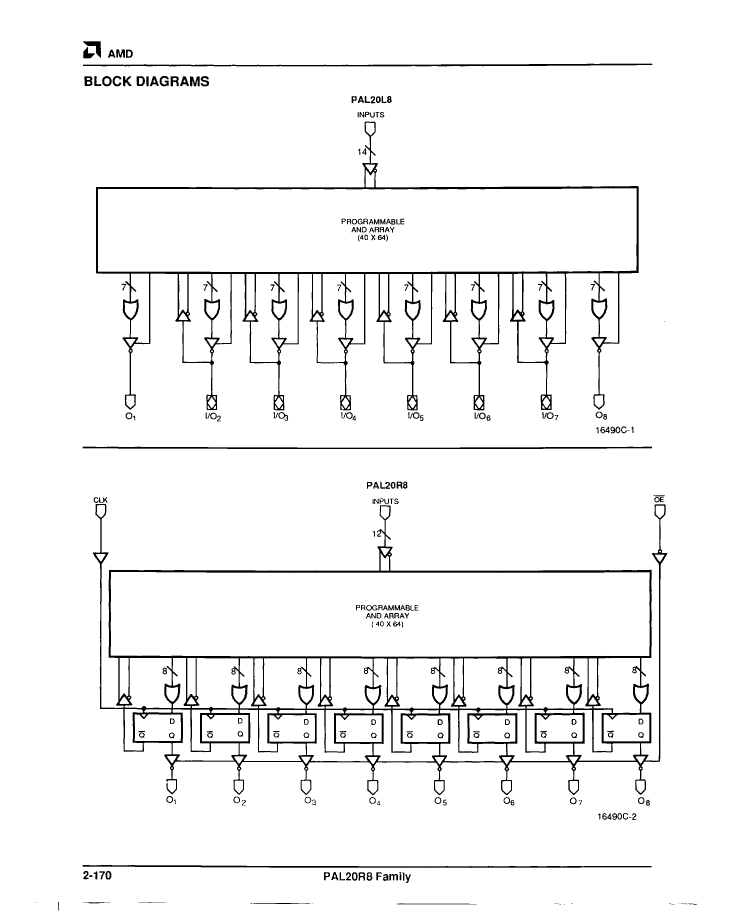

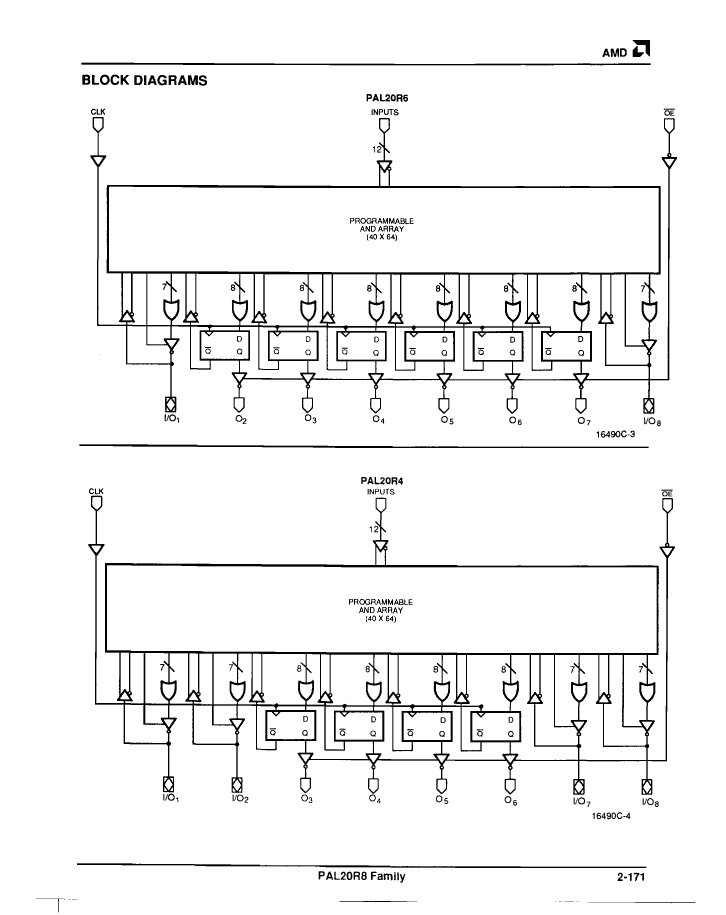

Preview

Download Datasheet

View All

PAL20R6-10/BLA Related Products

	PAL20R6-10/BLA	PAL20L8-10/BLA	PAL20L8-10/B3A	PAL20R4-10/B3A	1N5391_15	PAL20R6-10/B3A	PAL20R8-10/B3A	PAL20R8-10/BLA
Description	OT PLD, 12ns, PAL-Type, TTL, CDIP24, 0.300 INCH, SKINNY, CERAMIC, DIP-24	OT PLD, 12ns, PAL-Type, TTL, CDIP24, 0.300 INCH, SKINNY, CERAMIC, DIP-24	OT PLD, 12ns, PAL-Type, TTL, CQCC28, CERAMIC, LCC-28	OT PLD, 12ns, PAL-Type, TTL, CQCC28, CERAMIC, LCC-28	Standard Recovery Rectifier Diodes	OT PLD, 12ns, PAL-Type, TTL, CQCC28, CERAMIC, LCC-28	OT PLD, 12ns, PAL-Type, TTL, CQCC28, CERAMIC, LCC-28	OT PLD, 12ns, PAL-Type, TTL, CDIP24, 0.300 INCH, SKINNY, CERAMIC, DIP-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible
Maker	AMD	AMD	AMD	AMD	-	AMD	AMD	AMD
Parts packaging code	DIP	DIP	QLCC	QLCC	-	QLCC	QLCC	DIP
package instruction	DIP, DIP24,.3	0.300 INCH, SKINNY, CERAMIC, DIP-24	CERAMIC, LCC-28	QCCN, LCC28,.45SQ	-	QCCN, LCC28,.45SQ	QCCN, LCC28,.45SQ	DIP, DIP24,.3
Contacts	24	24	28	28	-	28	28	24
Reach Compliance Code	unknown	unknown	unknown	unknown	-	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	PAL; POWER-UP RESET	PAL; POWER-UP RESET	PAL; POWER-UP RESET	PAL; POWER-UP RESET	-	PAL; POWER-UP RESET	PAL; POWER-UP RESET	PAL; POWER-UP RESET
Architecture	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	-	PAL-TYPE	PAL-TYPE	PAL-TYPE
maximum clock frequency	50 MHz	-	-	50 MHz	-	50 MHz	50 MHz	50 MHz
JESD-30 code	R-CDIP-T24	R-CDIP-T24	S-CQCC-N28	S-CQCC-N28	-	S-CQCC-N28	S-CQCC-N28	R-CDIP-T24
JESD-609 code	e0	e0	e0	e0	-	e0	e0	e0
length	31.9405 mm	31.9405 mm	11.43 mm	11.43 mm	-	11.43 mm	11.43 mm	31.9405 mm
Dedicated input times	12	14	14	12	-	12	12	12
Number of I/O lines	2	6	6	4	-	2	-	-
Number of entries	14	20	20	16	-	14	12	12
Output times	8	8	8	8	-	8	8	8
Number of product terms	64	64	64	64	-	64	64	64
Number of terminals	24	24	28	28	-	28	28	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
organize	12 DEDICATED INPUTS, 2 I/O	14 DEDICATED INPUTS, 6 I/O	14 DEDICATED INPUTS, 6 I/O	12 DEDICATED INPUTS, 4 I/O	-	12 DEDICATED INPUTS, 2 I/O	12 DEDICATED INPUTS, 0 I/O	12 DEDICATED INPUTS, 0 I/O
Output function	MIXED	COMBINATORIAL	COMBINATORIAL	MIXED	-	MIXED	REGISTERED	REGISTERED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	QCCN	QCCN	-	QCCN	QCCN	DIP
Encapsulate equivalent code	DIP24,.3	DIP24,.3	LCC28,.45SQ	LCC28,.45SQ	-	LCC28,.45SQ	LCC28,.45SQ	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	-	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	-	CHIP CARRIER	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	-	5 V	5 V	5 V
Programmable logic type	OT PLD	OT PLD	OT PLD	OT PLD	-	OT PLD	OT PLD	OT PLD
propagation delay	12 ns	12 ns	12 ns	12 ns	-	12 ns	12 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.08 mm	5.08 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	-	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	-	YES	YES	NO
technology	TTL	TTL	TTL	TTL	-	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	-	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	QUAD	-	QUAD	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	11.43 mm	11.43 mm	-	11.43 mm	11.43 mm	7.62 mm
