DF Series
Power Rocker Switches

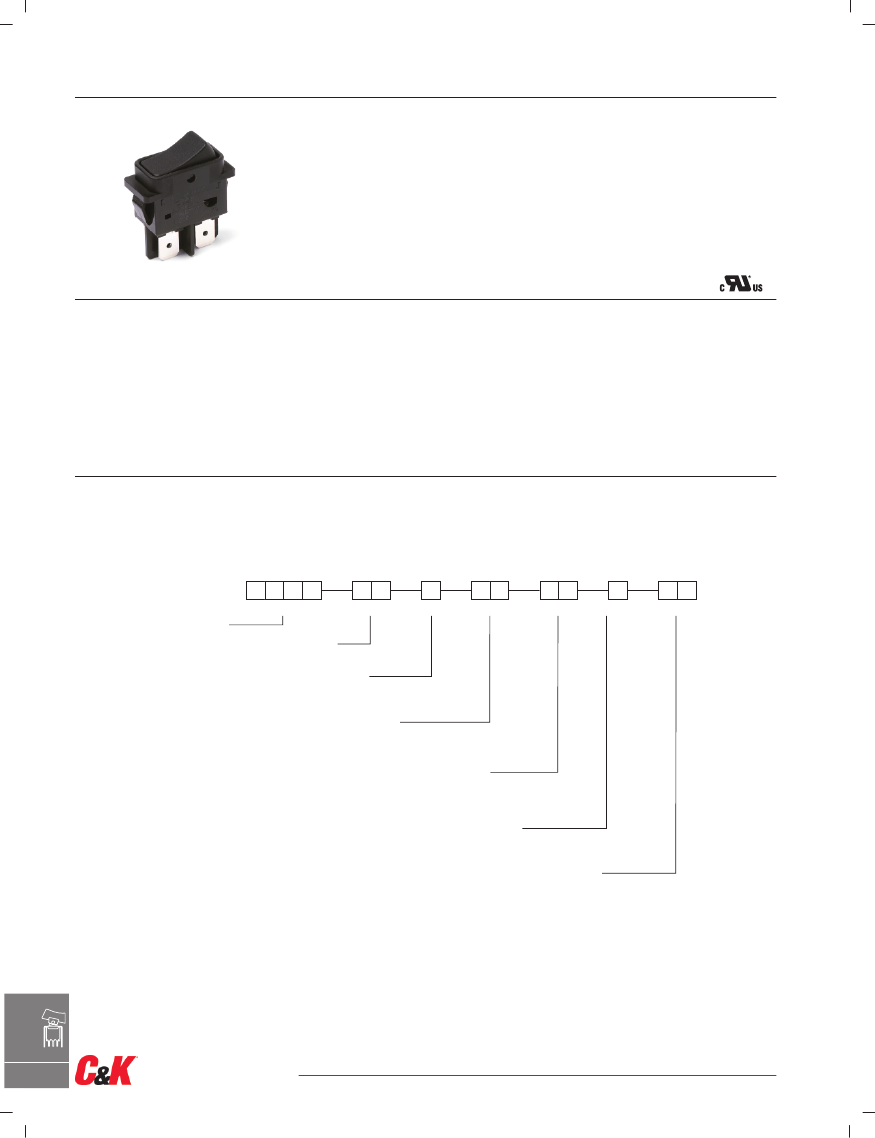

Features/Benefits
•
Power switching up to 16 AMPS
•
Sub-panel and Front-panel mounting
•
PC and quick connect terminals
•
Multi-position and multi-pole function
•
Available in UL94V-0 grade materials
•
RoHS compliant
Typical Applications
•
Computers
•
Power supplies
•
Appliances
•
Fitness equipment
•
Off-road vehicles
Specifications
CONTACT RATING: 16 AMPS @ 125, 250 V AC; 1/4 HP
@ 125 V AC; 1/2 HP @ 250 V AC; 6 AMPS @ 48 V DC
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: -20ºC to +85ºC
Materials
HOUSING & ACTUATOR: 6/6 nylon (UL 94V-2), black, finish: matte.
CONTACTS: Fine silver, silver plated.
TERMINALS: Copper, silver plated.
CONTACT SPRING: Music wire or stainless steel.
NOTE:
Specifications and materials listed above are for standard switches.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G–79 thru G–81. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
DF52
SPST, Off-On
DF62
DPST, Off-On
DF72
SPDT, Off-On-On
Actuator
J1
Rocker
Actuator Color
2
Black
1
White
Housing Style/Color
S2
Sub-panel, black
G2
Actuator guard, black
P2
Panel, black
S1
Sub-panel, white
Terminations
15
Quick connect
A
Right angle, PC thru-hole
Actuator Markings
NONE
No marking
D
ON-OFF
H
O|
Contact Material
P
0–
QA
Silver
Rocker
G
G–78
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
DF Series
Power Rocker Switches

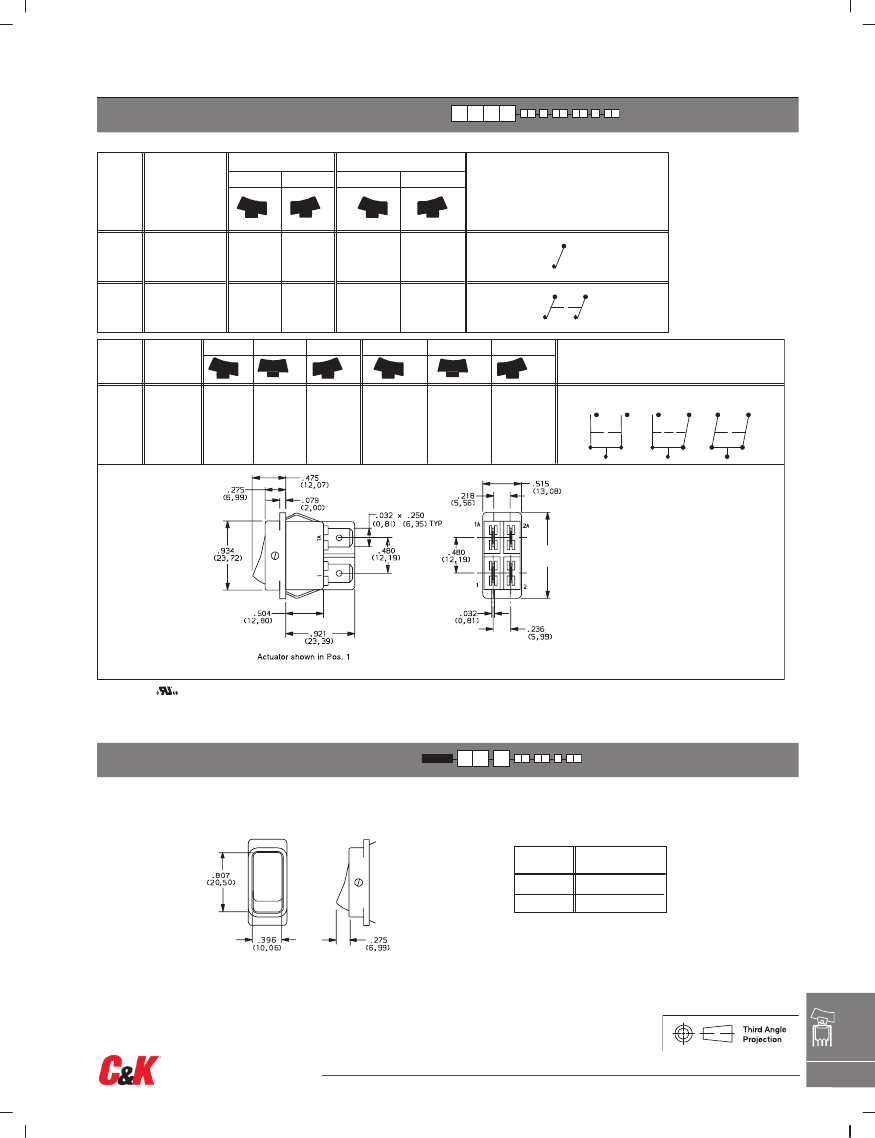

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
POS. 2
CONNECTED TERMINALS
POS. 1
POS. 2
NO.
POLES
MODEL
NO.
SCHEMATIC
1
SP
DF52
OFF
ON
OPEN
1-1A
SPST
1A
1
2
DP
DF62
OFF
ON
OPEN
1-1A, 2-2A
DPST
1A
2A
POS. 1
NO.
POLES
MODEL
NO.
POS. 2
POS. 3
POS. 1
POS. 2
POS. 3
SCHEMATIC
POS. 1
1a
2a
POS. 2
1a
2a
POS. 3
1a
2a
SP
DF72
OFF
ON
ON
OPEN
1 / 2-2A
1 / 2-1A
1 / 2-2A
1
2
1
2
1
2
DPST
1.176
(29,87)
Part number shown: DF62J12S215QA
All models
ACTUATOR COLOR
ACTUATOR
J1
ROCKER
ACTUATOR
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
2
1
Rocker
NOTE:
Actuator finish: matte. Other colors
available, consult Customer Service Center.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–79
www.ck-components.com
G
DF Series
Power Rocker Switches

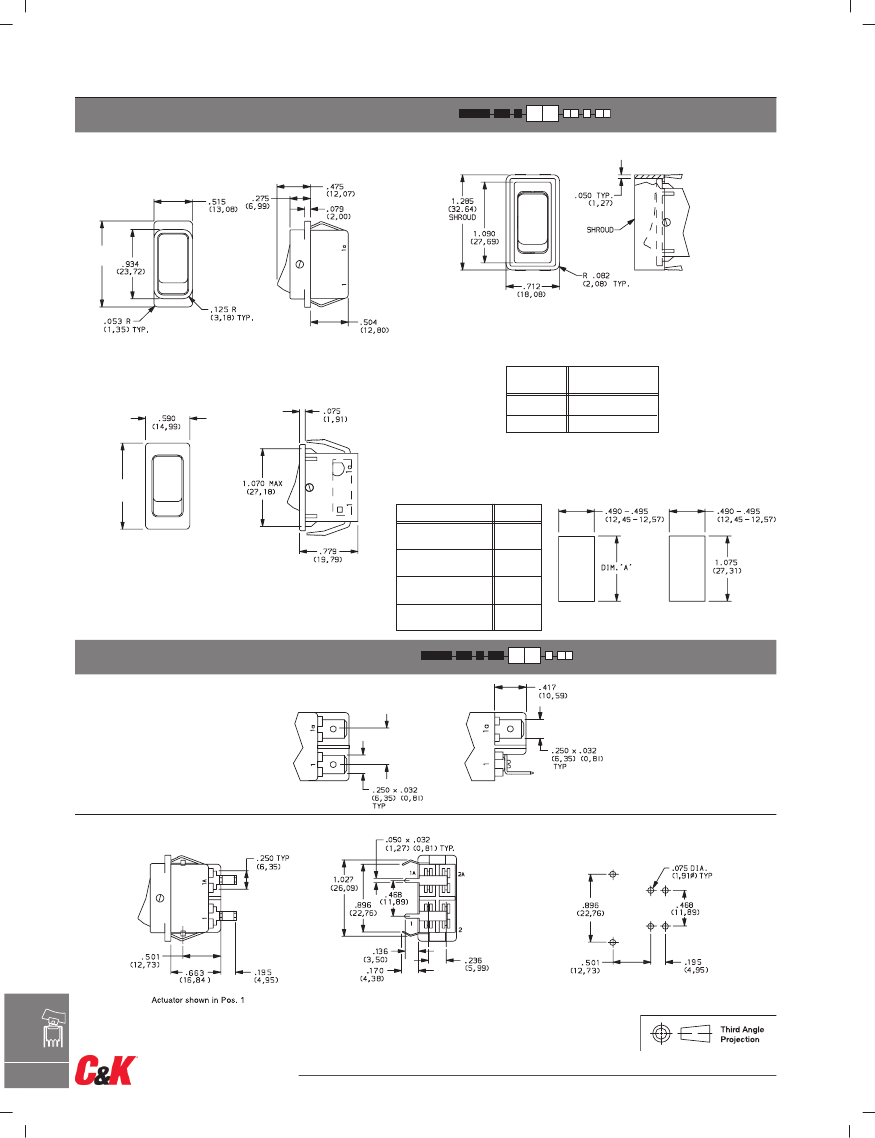

HOUSING STYLE/COLOR
S
SUB-PANEL
G2
ACTUATOR GUARD
!
NEW
1.176
(29,87)
NOTE:
Not available with ‘A’ termination.
Available in black only.
NOTE:
DF52 & DF62 models only.
P
PANEL
OPTION
CODE
HOUSING
COLOR
(STD.) BLACK
WHITE
2
1
NOTE:
Housing finish: matte. Other colors
available, consult Customer Service Center.
PANEL MOUNTING
1.176
(29,87)
PANEL THICKNESS
.029–.048
(0,74) (1,22)
.048–.078
(1,22) (1,98)
NOTE:
Not available with ‘A’ termination.
Available in black only.
.078–.117
(1,98) (2,97)
.075–.140
(1,91) (3,56)
DIM ‘A’
1.021
(25,93)
1.029
(26,14)
1.045
(26,54)
1.075
(27,31)
DF52 & DF62 Models
with ‘S’ housing style
DF52, DF62 & DF72 Models
with ‘P2’ & ‘G2’ housing style
TERMINATIONS
15
QUICK CONNECT
.480
(12,19)
DF72 Models Only
A
RIGHT ANGLE, PC THRU-HOLE
PC MOUNTING
Rocker
NOTE:
DF52 and DF62 Models Only
G
G–80
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
DF Series
Power Rocker Switches
ACTUATOR MARKINGS
NONE
NO MARKING
D
ON-OFF
H
O|
P
O–
OFF
ON
O
O
I
NOTE:
Orientation of actuator
markings and terminals.
1A
‘D, H, & P’ marking options: marking color white, standard for all actuator colors except white.
Marking color black, standard for white actuators. Consult Customer Service Center for other available marking colors.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER 1,2
RATINGS
16 AMPS @ 125, 250 V AC; 1/4 HP @ 125 V AC; 1/2 HP @ 250 V AC; 6 AMPS @ 48 V DC (UL)
I
1
QA
POWER
16 AMPS @ 125, 250 V AC; 1/4 HP @ 125 V AC; 1/2 HP @ 250 V AC (UL)
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1 CONTACTS: Fine silver, silver plated.
2 TERMINALS: Copper, silver plated.
All models
AVAILABLE HARDWARE
Actuator Guard
PART NO.
285B02000
Material: Nylon 6/6
Finish: Matte
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–81
www.ck-components.com
G
