Document 107-1
Mini Spring™ Air Core Inductors

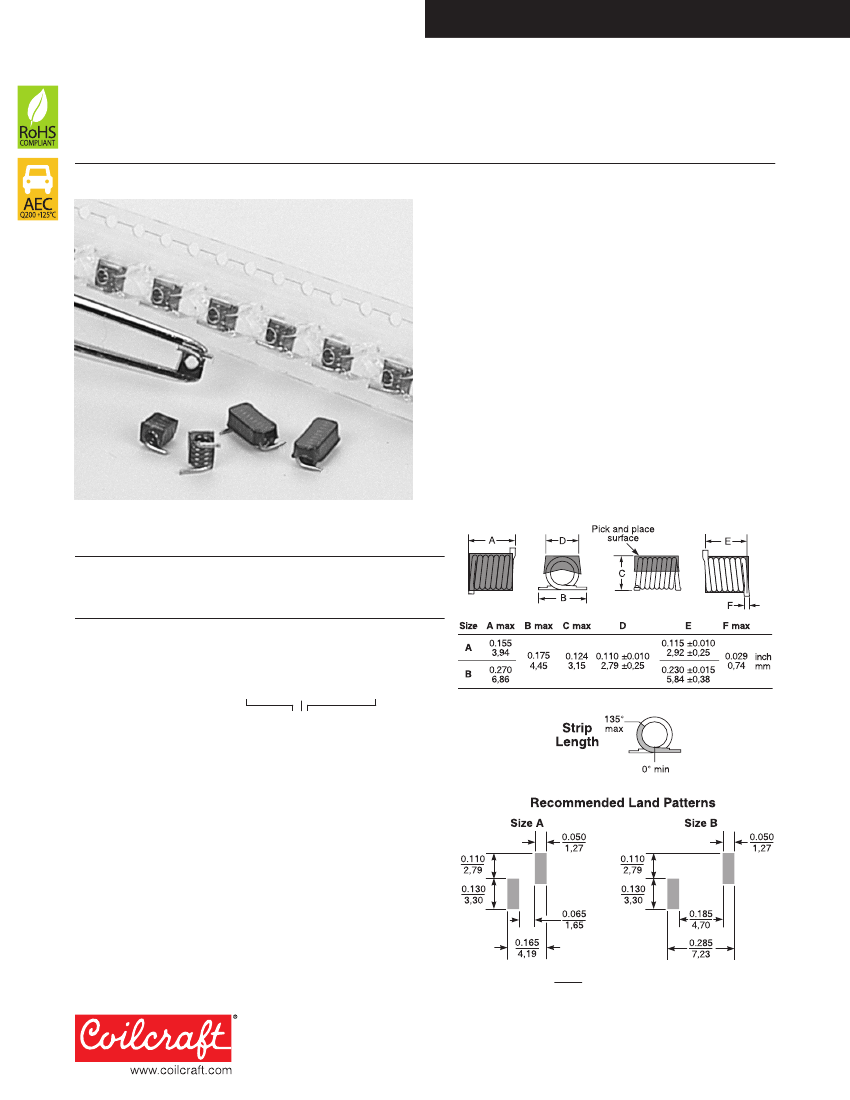

• Small air core inductors feature high Q and tight tolerances
• Acrylic jacket provides a flat top for pick and place
• Solder coated leads ensure reliable soldering
Terminations
RoHS compliant tin-silver over copper. Other termina-
tions available at additional cost.
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+5 to +70 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging A0xT:
700/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.32 mm thick, 8 mm pocket spacing, 3.3 mm pocket depth
BxxT:
500/7″ reel; 2200/13″ reel Plastic tape: 16 mm wide,
0.28 mm thick, 8 mm pocket spacing, 3.4 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other
solvents, see Doc787_PCB_Washing.pdf
SRF
DCR
L
2
Percent Q
4
min
5
max
6
Irms
7
Weight
3
(nH)
tol
min (GHz) (mOhm) (A)
(mg)
2.5
10
145 12.5
1.1
4
31
5.0
5,2,1
140
6.5
1.8
4
42
8.0
5,2,1
140
5.0
2.6
4
52
12.5
5,2,1
137
3.3
3.4
4
65
18.5
5,2,1
132
2.5
3.9
4
78
17.5
5,2,1
100
2.2
4.5
4
100
22.0
5,2,1
102
2.1
5.2
4
110
28.0
5,2,1
105
1.8
6.0
4
118
35.5
5,2,1
112
1.5
6.8
4
133
43.0
5,2,1
106
1.2
7.9
4
147
Part
number
1
Turns
A01TKL_
1
A02T_L_
2
A03T_L_
3
A04T_L_
4
A05T_L_
5
B06T_L_
6
B07T_L_
7
B08T_L_
8
B09T_L_
9
B10T_L_
10
1. When ordering, please specify
tolerance, termination
and
packaging
codes:
A02TGLC
Tolerance: F
= 1%
G
= 2%
J
= 5%
K
= 10% (Table shows stock
tolerances in bold.)
Termination: L
= RoHS compliant tin-silver (96.5/3.5) over copper.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape,
700 (AxxT) or 500 (BxxT) parts per full reel.
B
= Less than full reel. In tape, but not machine-ready. To have
a leader and trailer added ($25 charge), use code letter C
instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape.
Factory order only, not stocked, 2500 (AxxT) or 2200 (BxxT)
parts per full reel.
2. Inductance measured at 150 MHz with an Agilent/HP 4286 or equivalent, a
Coilcraft SMD-A and correlation.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured at 150 MHz using an Agilent/HP 4291A with an Agilent/HP 16193A
test fixture or equivalents.
5. SRF tested on an Agilent/HP 8720D or equivalent and a Coilcraft SMD-D fixture.
6. DCR tested on the Cambridge Technology Model Micro-ohmmeter or equivalent.
7. Current that causes a 15°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 107-1
Revised 10/03/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 107-2
Designer’s Kit C302
contains 12 each of all 5% values
Designer’s Kit C302-2
contains 12 each of all 2% values
Mini Spring™ Air Core Inductors

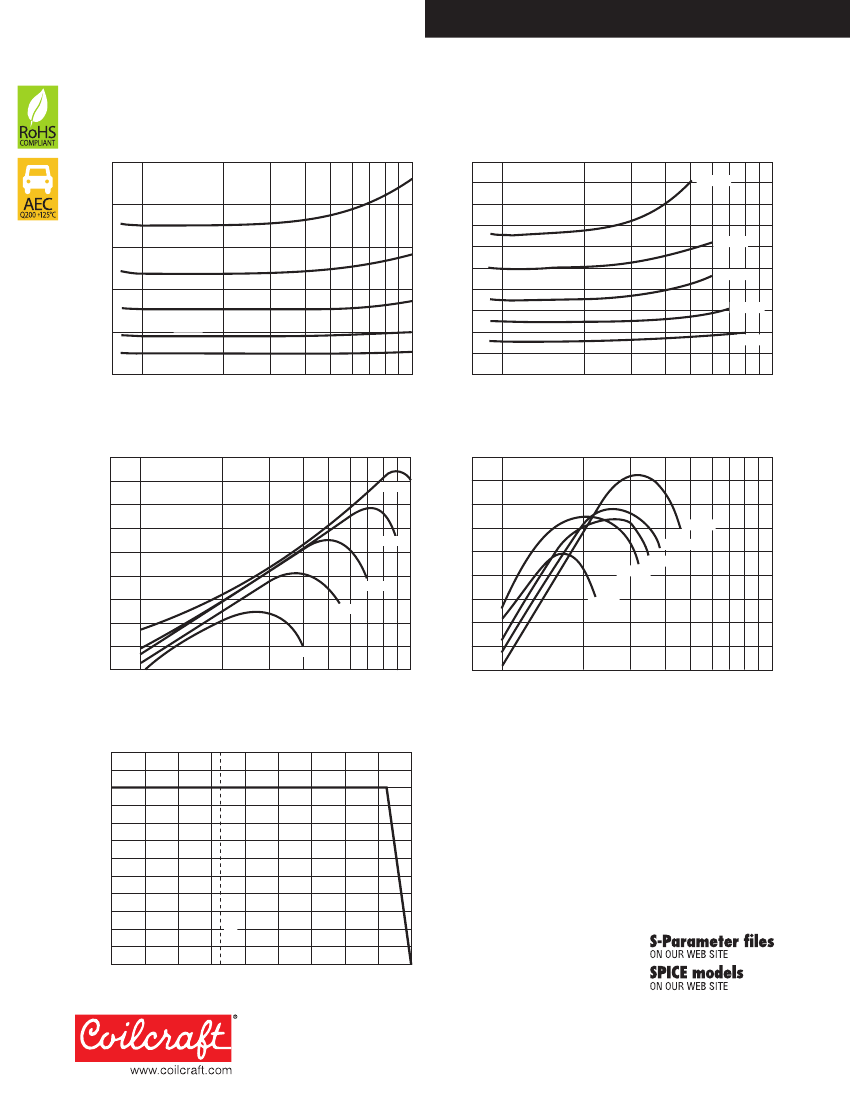

Typical L vs Frequency
25
60
55
20
50
43.0 nH
Inductance (nH)
Inductance (nH)
18.5 nH
45
40
35
30
25
20
15
22.0 nH
35.5 nH
15
12.5 nH
28.0 nH
10
8.0 nH
5
5.0 nH
2.5 nH
17.5 nH
0
100
200
400
600
1000
10
100
200
400
600
1000
Frequency (MHz)
Frequency (MHz)
Typical Q vs Frequency
220
210
200
190
2.5 nH
135
130
125
120
17.5 nH
22.0 nH
28.0 nH
35.5 nH
Q factor
180
170
160
150
140
130
100
200
18.5 nH
8.0 nH
12.5 nH
Q factor
5.0 nH
115
110
105
100
95
43.0 nH
400
600
1000
90
100
200
400
600
1000
Frequency (MHz)
Frequency (MHz)
Typical Irms Derating
120
110
100
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
Percent of rated
I
rms
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
25°C
Document 107-2
Revised 10/03/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
