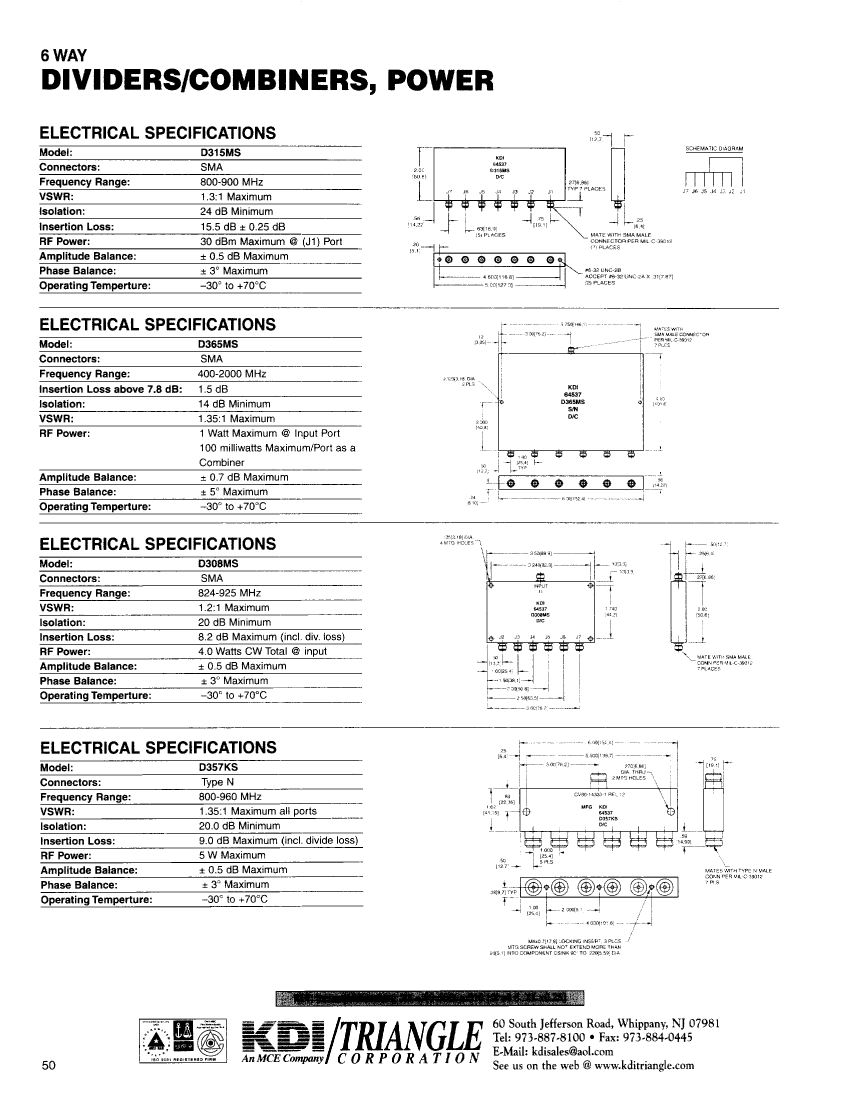

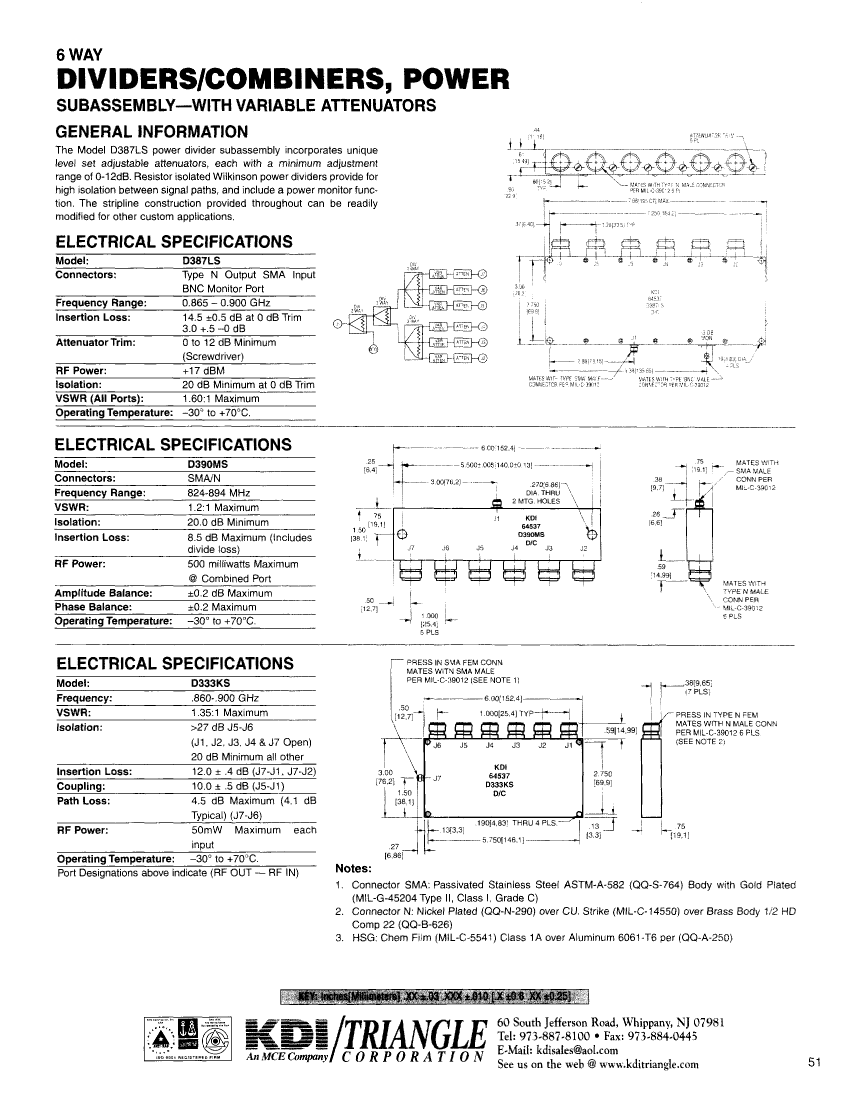

D315MS: DescriptionRF/Microwave Splitter/Combiner, 800 MHz - 900 MHz RF/MICROWAVE SPLITTER AND COMBINER, 15.5 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size144KB，2 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

D315MS Overview

RF/Microwave Splitter/Combiner, 800 MHz - 900 MHz RF/MICROWAVE SPLITTER AND COMBINER, 15.5 dB INSERTION LOSS

D315MS Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Maximum input power (CW)	30 dBm
Maximum insertion loss	15.5 dB
Maximum operating frequency	900 MHz
Minimum operating frequency	800 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

D315MS Related Products

	D315MS	D333KS	D308MS	D365MS	D357KS	D390MS	D387LS
Description	RF/Microwave Splitter/Combiner, 800 MHz - 900 MHz RF/MICROWAVE SPLITTER AND COMBINER, 15.5 dB INSERTION LOSS	RF/Microwave Splitter/Combiner, 860 MHz - 900 MHz RF/MICROWAVE SPLITTER AND COMBINER, 12.4 dB INSERTION LOSS	RF/Microwave Splitter/Combiner, 824 MHz - 925 MHz RF/MICROWAVE SPLITTER AND COMBINER, 8.2 dB INSERTION LOSS	RF/Microwave Splitter/Combiner, 400 MHz - 2000 MHz RF/MICROWAVE SPLITTER AND COMBINER, 1.5 dB INSERTION LOSS	RF/Microwave Splitter/Combiner, 800 MHz - 960 MHz RF/MICROWAVE SPLITTER AND COMBINER, 9 dB INSERTION LOSS	RF/Microwave Splitter/Combiner, 824 MHz - 894 MHz RF/MICROWAVE SPLITTER AND COMBINER, 8.5 dB INSERTION LOSS	RF/Microwave Splitter/Combiner, 865 MHz - 900 MHz RF/MICROWAVE SPLITTER AND COMBINER, 15 dB INSERTION LOSS
Maker	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input power (CW)	30 dBm	16.99 dBm	36.02 dBm	30 dBm	36.99 dBm	26.99 dBm	16.99 dBm
Maximum insertion loss	15.5 dB	12.4 dB	8.2 dB	1.5 dB	9 dB	8.5 dB	15 dB
Maximum operating frequency	900 MHz	900 MHz	925 MHz	2000 MHz	960 MHz	894 MHz	900 MHz
Minimum operating frequency	800 MHz	860 MHz	824 MHz	400 MHz	800 MHz	824 MHz	865 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3	1.35	1.2	1.35	1.35	1.2	1.6
