1/4
STRUCTURE
FUNCTION
SILICON MONOLITHIC INTEGRATED CIRCUIT
HIGH SLWE RATE QUAD OPERATIONAL AMPLIFIERS
PRODUCT SERIES
BA3474F
BA3474FV
・Operating temperature range(BA3474F:-40½+75[℃], BA3474FV:-40½+85[℃])
・High slew rate (10[V/us] typ.)
・Wide output voltage range (-14.7[V]½14.0[V] with VCC/VEE=+15[V]/-15[V] typ.)
・Operable with a single power supply.(3[V]½36[V])
FEATURES
○ABSOLUTE MAXIMUM RATINGS(Ta=25[℃])
Parameter
Supply Voltage
Power dissipation
Pd
Differential Input Voltage (*4)
Input Common Voltage Range
Operating Temperature
Topr
BA3474FV
Storage Temperature
Maximum junction Temperature
Tstg
Tjmax
-40½+85
-55½+150
150
℃
℃
Symbol
VCC-VEE
BA3474F
BA3474FV
Vid
Vicm
BA3474F
Rating
+36
610(*1)(*3)
870(*2)(*3)
36
(VEE-0.3)½VEE+36
-40½+75
℃
V
V
Unit
V
mW
・This IC is not designed for protection against radioactive rays.
(*1) To use at temperature above Ta＝25[℃] reduce 4.9[mW]/[℃].
(*2) To use at temperature above Ta＝25[℃] reduce 7.0[mW]/[℃].
(*3) Mounted on a glass epoxy PCB(70[mm]×70[mm]×1.6[mm]).
(*4) The voltage difference between inverting input and non-inverting input is the differential input voltage.
Then input terminal voltage is set to more than VEE.
○OPERATING CONDITION
Parameter
Supply Voltage
VCC
Symbol
Rating
＋3.0½＋36.0 (Single Supply)
±1.5½±18.0 (Split Supply)
V
Unit
REV. D
2/4
○ELECTRICAL CHARACTERISTICS (unless otherwise specified VCC=+15[V]、VEE=-15[V]、Ta=25[℃])
Parameter
Input Offset Voltage (*5)
Vio
-
Input Offset Current (*5)
Input Bias Current (*5)
Supply Current
High Level Output Voltage
Iio
Ib
ICC
-
-
-
3.7
VOH
13.7
13.5
Low Level Output Voltage
-
VOL
-
-
Large Signal Voltage Gain
Input Common-mode
Voltage Range
Common-mode Refection Ratio
Power Supply Rejection Ratio
Output Source Current (*6)
Output Sink Current (*6)
Maximum Frequency
Slew rate
Channel Separation
(*5)
(*6)
AV
Vicm
CMRR
PSRR
IOH
IOL
ft
SR
CS
80
0
60
60
10
20
-
-
-
1.5
6
100
8
4
14
-
0.1
-14.7
-
100
-
97
97
30
30
4
10
120
10
75
500
11
-
-
-
0.3
-14.3
-13.5
-
VCC-2.0
-
-
-
-
-
-
-
dB
V
dB
dB
mA
mA
MHz
V/μs
dB
Av=1,Vin=-10 to +10[V],RL=2[kΩ]
V
V
nA
nA
mA
Symbol
Min.
-
Guaranteed Limit
Typ.
1
Max.
10
mV
VCC=5[V],VEE=0[V],Vicm=0[V],VOUT=VCC/2
Vicm=0[V],Vout=0[V]
Vicm=0[V],Vout=0[V]
RL=∞ All Op-Amps
VCC=5[V],RL=2[kΩ]
RL=10[kΩ]
RL=2[kΩ]
VCC=5[V],RL=2[kΩ]
RL=10[kΩ]
RL=2[kΩ]
RL≧2[kΩ],Vout=±10[V]
VCC=5[V],VEE=0[V],VOUT=VCC/2
Vicm=0[V],Vout=0[V]
Vicm=0[V],Vout=0[V]
VIN+=1[V],VIN-=0[V],Vout=0[V],
Only 1CH is short circuit
VIN+=0[V],VIN-=1[V],Vout=5[V],
Only 1CH is short circuit
Vicm=0[V],Vout=0[V]
Unit
Condition
Absolute value.
Under the high temperature environment, consider the power dissipation of IC when select the output current.
When output terminal short circuits continuously, the output current reduce to climb temperature inside IC by flash.
REV. D
3/4
○

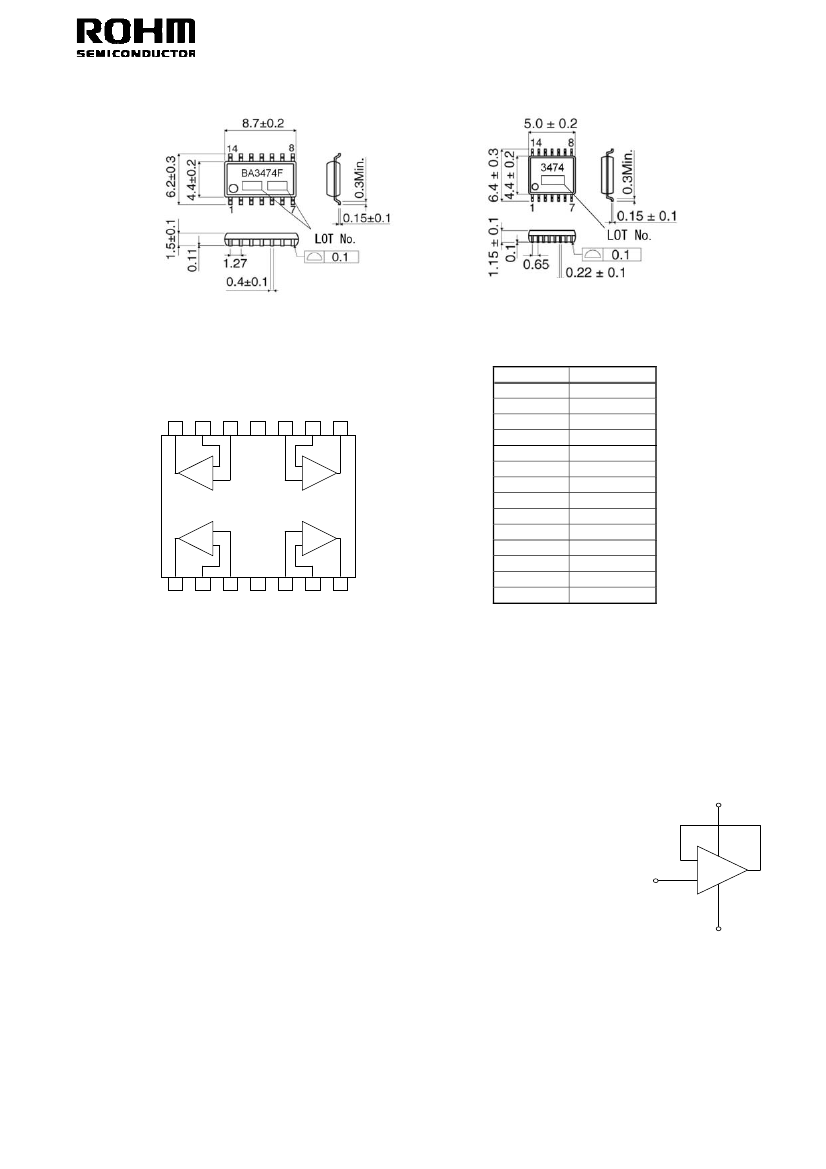

Physical Dimensions
BA3474F(SOP14) (Unit：[mm])
○Block diagram
BA3474FV(SSOP-B14) (Unit：[mm])
○Pin No. ・Pin Name
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Pin Name
OUT1
-IN1
+IN1
VCC
+IN2
-IN2
OUT2
OUT3
-IN3
+IN3
VEE
+IN4
-IN4
OUT4
OUT4 -IN4 +IN4 VEE +IN3 -IN3 OUT3
14
13
12
11
10
9
8
－
－
CH4
＋
＋
CH3
＋
＋
CH1
－
－
CH2
1
2
3
4
5
6
7
OUT1 -IN1 +IN1 VCC +IN2 -IN2 OUT2
F:SOP14
FV:SSOP-B14
○Application example
(1) Absolute maximum ratings
Absolute maximum ratings are the values which indicate the limits,
within which the given voltage range can be safely charged to the terminal.
However, it does not guarantee the circuit operation.
(2) The example of disabled circuit application
When there is a circuit not in use, it is recommended to make the
non-inverting input terminal be the potential in the common-mode
input voltage range like in Fig.1.
Circuit operation is guaranteed within “Operating Conditions”.
(3) Applied voltage to the input terminal
For normal circuit operation of comparator, please input voltage for its
input terminal within input common mode voltage VCC-1.5[V].
Then, regardless of power supply voltage,VEE+36[V] can be applied to input
terminals without deterioration or destruction of its characteristics.
(4) Operating power supply (split power supply/single power supply)
The OP-Amp operates if a given level of voltage is applied between VCC and
VEE. Therefore, the OP-Amp can be operated under single power supply or
split power supply.
connect
to Vicm
VCC
－
＋
VEE
Fig.1 The example of
disabled circuit
REV. D
4/4
(5) Power dissipation(Pd)
If the IC is used under excessive power dissipation. An increase in the chip temperature will cause
deterioration of the radical characteristics of IC.
For example, reduction of current capability. Take consideration of the effective power dissipation and thermal
design with a sufficient margin. Pd is reference to the provided power dissipation curve.
(6) Short circuits between pins and incorrect mounting
Short circuits between pins and incorrect mounting when mounting the IC on a printed circuits board,
take notice of the direction and positioning of the IC.
If IC is mounted erroneously, It may be damaged. Also, when a foreign object is inserted between
output, between output and VCC terminal or VEE terminal which causes short circuit, the IC may be damaged.
(7) Using under strong electromagnetic field
Be careful when using the IC under strong electromagnetic field because it may malfunction.
(8) Usage of IC
When stress is applied to the IC through warp of the printed circuit board,
The characteristics may fluctuate due to the piezo effect.
Be careful of the warp of the printed circuit board.
(9) Output operation
This IC is configured with a push-pull circuit and Class C output stage. Therefore, when load resistance
is connected to the middle point potential of VCC and VEE, this configuration generates crossover
distortion when switching between source and sink current.
To suppress crossover distortion, connect a resistor between the output terminal and VEE then increase
the bias current to enable Class A operation.
(10) Testing IC on the set board
When testing IC on the set board, in cases where the capacitor is connected to the low impedance,
make sure to discharge per fabrication because there is a possibility that IC may be damaged by stress.
When removing IC from the set board, it is essential to cut supply voltage.
As a countermeasure against the static electricity, observe proper grounding during fabrication process
and take due care when carrying and storage it.
(12) The IC destruction caused by capacitive load
The transistors in circuits may be damaged when VCC terminal and VEE terminal is shorted with the charged
output terminal capacitor.
When IC is used as a comparator or as application circuits no constructed negative feed back,
where oscillation is not activated by an output capacitor, the output capacitor must be kept below
0.1[μF] in order to prevent the damage mentioned above.
(13) The oscillation caused by capacitive load
Designed negative feedback circuit using this IC, verify output oscillation caused by capacitive load.
REV. D
