These motor drivers are full bridge drivers for brush motor applications, supporting output currents of up to 2A. The output
modes are available in four modes, normal, reverse, stop (idling), and braking in accordance with input logic (2 inputs). The
output voltage can be optionally set by reference voltage setting pin.
No.09008EAT03
Features
1) Large output current (l
OMAX
=2.2A)
2) Built-in thermal shutdown circuit
3) Output voltage can be optionally set by reference voltage setting pin
4) High output voltage can be set by low voltage input because of it has 11.4dB gain (BA6222)
5) Low standby current
Applications
Audio-visual equipment; PC peripherals; Car audios; Car navigation systems; OA equipments
Absolute maximum ratings
(Ta=25°C, All voltages are with respect to ground)
Parameter
Supply voltage
Output current
All other input pins
Operating temperature
Storage temperature
Power dissipation
Junction temperature
Symbol
VCC1, VCC2
I
OMAX
V
IN
T
OPR
T
STG
Pd
T
jmax
-55 ~ 150
1.45*
2
150
-0.3 ~ VCC1
Ratings
BA6219BFP-Y
24
2.2*
1
-0.3 ~ VCC1+0.3
-25 ~ 75
-55 ~ 125
2.00*
3
125
BA6222
Unit
V
A
V
°C
°C
W
°C
*1 Do not, exceed Pd or ASO (Pulse at 1/100 duty: 500µs).
*2 HSOP25 package. Mounted on a 70mm x 70mm x 1.6mm FR4 glass-epoxy board with less than 3% copper foil. Derated at 11.6mW/°C above 25°C.
*3 HSIP10 package. Derated at 20mW/°C above 25°C.
Operating conditions
(Ta=25°C)
Parameter
Supply voltage
Symbol
VCC1, VCC2
Ratings
8 ~ 18
Unit
V
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
1/10
2009.04 - Rev.A
BA6219BFP-Y, BA6222
Electrical characteristics
(BA6219BFP-Y, unless otherwise specified, Ta=25°C and VCC1=VCC2=12V)
Parameter
Supply current 1
Supply current 2
Supply current 3
Input threshold voltage H
Input threshold voltage L
VR bias current
CD1 current
CD2 current
Output leak current
Output voltage H
Output voltage L
Symbol
I
CC1
I
CC2
I
CC3
V
IH
V
IL
I
VREF
I
CD1
I
CD2
I
OL
V
OH
V
OL
Limits
Min.
-
-
-
3.0
0
0.6
0.7
0.7
-
6.5
Typ.
1.2
16
25
-
-
1.2
1.5
1.5
-
-
-
Max.
2.5
35
60
VCC1
1.0
2.4
3.0
3.0
1
-
1.2
Unit
mA
mA
mA
V
V
mA
mA
mA
mA
V
V
R
L
=60Ω, VR=6.8V
Technical Note
Conditions
Standby mode
FWD/REV mode
Brake mode
(IN1, IN2)=(H, L), CD1 -> GND
(IN1, IN2)=(L, H), CD2 -> GND
(IN1, IN2)=(L, L), VCC2 current
R
L
=60Ω, VR=6.8V
R
L
=60Ω, VR=6.8V
Electrical characteristics
(BA6222, unless otherwise specified, Ta=25°C and VCC1=VCC2=12V)
Parameter
Supply current 1
Supply current 2
Supply current 3
Input threshold voltage H
Input threshold voltage L
VR bias current
VR-OUT trans. gain
CD1 current
CD2 current
Output leak current
Output voltage H
Output voltage L
Symbol
I
CC1
I
CC2
I
CC3
V
IH
V
IL
I
VREF
G
V
I
CD1
I
CD2
I
OL
V
OH
V
OL
Limits
Min.
-
-
-
3.0
0
-
10.35
0.7
0.7
-
9.5
Typ.
1.2
16
25
-
-
1.2
11.35
1.5
1.5
-
-
-
Max.
2.5
35
60
VCC1
1.0
5.0
12.35
3.0
3.0
1
-
0.5
GV = 20 log
Unit
mA
mA
mA
V
V
µA
dB
mA
mA
mA
V
V
VR=1.0V
Conditions
Standby mode, VR=0V
FWD/REV mode, VR=0V
Brake mode, VR=0V
(IN1, IN2)=(H, L) or (L, H), I
OUT
=0.1A*
1
(IN1, IN2)=(H, L), CD1 -> GND
(IN1, IN2)=(L, H), CD2 -> GND
(IN1, IN2)=(L, L), VCC2 current
I
OUT
=0.1A, VR=5V
I
OUT
=0.1A, VR=5V
*1 Vout1 = V
OH
-V
OL
@VR=1V
Vout2 = V
OH
-V
OL
@VR=2V
These voltages are stabilized value without any heat radiation board.
Vout2 – Vout1
2V – 1V
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
2/10
2009.04 - Rev.A
BA6219BFP-Y, BA6222

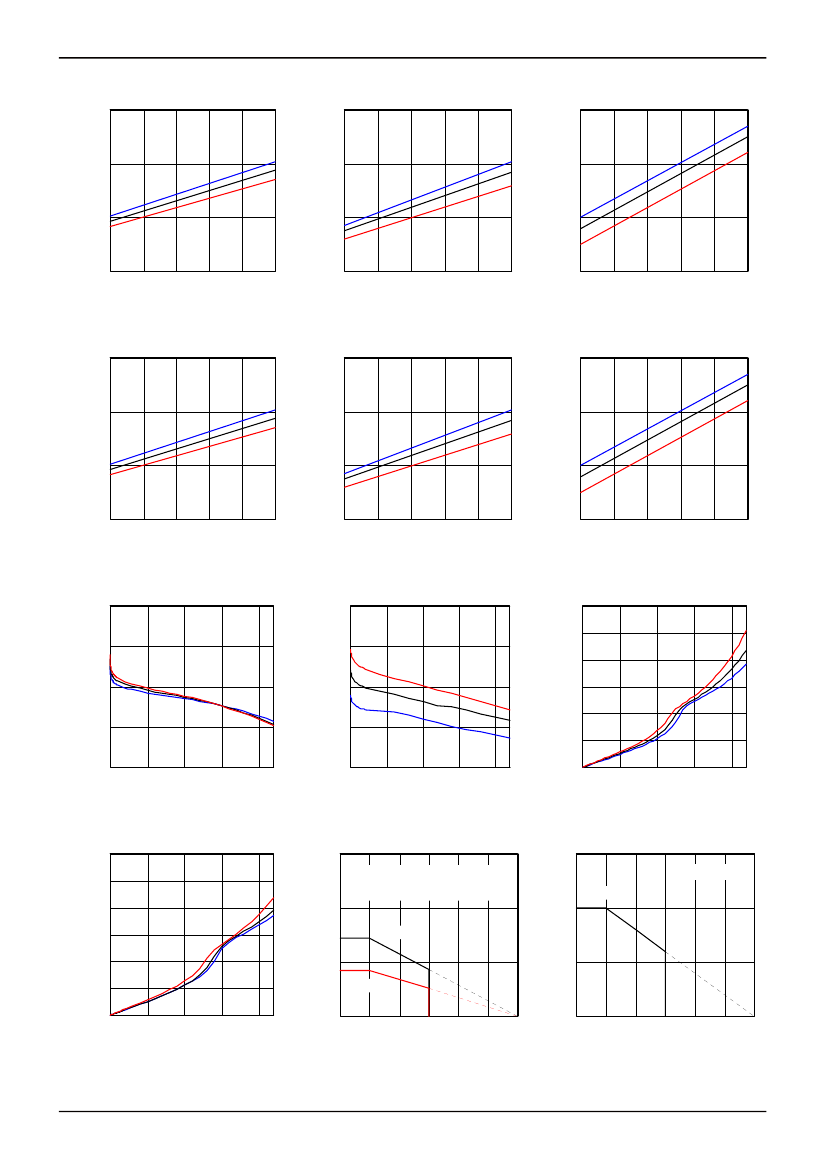

Electrical characteristic curves (Reference data)
2.0
-25°C
25°C
75°C
1.5
25
-25°C
25°C
75°C
20
40
Technical Note
Stand-by Current: Icc2 [mA]
_
Circuit Current: Icc1 [mA]
_
Supply Current: Icc3 [mA]
_
30
1.0
15
20
-25°C
25°C
75°C
0.5
8
10
12
14
16
18
Supply Voltage: Vcc [V]
10
8
10
12
14
16
18
Supply Voltage: Vcc [V]
10
8
10
12
14
16
18
Supply Voltage: Vcc [V]
Fig.1 Supply current 1 (standby)
(BA6219BFP-Y)
2.0
-25°C
25°C
75°C
1.5
25
Fig.2 Supply current 2 (reverse)
(BA6219BFP-Y)
40
-25°C
25°C
75°C
20
Fig.3 Supply current 3 (brake)
(BA6219BFP-Y)
Stand-by Current: Icc2 [mA]
_
Circuit Current: Icc1 [mA]
_
Supply Current: Icc3 [mA]
_
30
1.0
15
20
-25°C
25°C
75°C
0.5
8
10
12
14
16
18
Supply Voltage: Vcc [V]
10
8
10
12
14
16
18
Supply Voltage: Vcc [V]
10
8
10
12
14
16
18
Supply Voltage: Vcc [V]
Fig.4 Supply current 1 (standby)
(BA6222)
8.0
Output High Voltage: VOH [V]
_
75°C
25°C
-25°C
Fig.5 Supply current 2 (reverse)
(BA6222)
11.0
Output High Voltage: VOH [V]
_
75°C
25°C
-25°C
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
0.5
1
1.5
2
Fig.6 Supply current 3 (brake)
(BA6222)
7.5
10.5
7.0
10.0
6.5
-25°C
25°C
75°C
0
0.5
1
1.5
2
9.5
Output Low Voltage: VOL [V]
_
6.0
Output Current: Iout [A]
9.0
Output Current: Iout [A]
75°C
25°C
-25°C
0
0.5
1
1.5
2
Output Current: Iout [A]
Fig.7 Output high voltage
(BA6219BFP-Y)
3.0
2.5
2.0
Fig.8 Output high voltage
(BA6222)
3
ii) Mounted on ROHM standard PCB
Fig.9 Output low voltage
(BA6219BFP-Y)
3
i) Without heat sink
i) 2.0W
Output Low Voltage: VOL [V]
_
(70mm x 70mm x 1.6mm FR4 glas s-epox y board)
i) Package only
2
Pd [W]
ii)1.45W
2
Pd [W]
1
i)0.85W
1.5
1.0
0.5
0.0
0
0.5
1
1.5
Output Current: Iout [A]
75°C
25°C
-25°C
2
1
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE [°C]
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE [°C]
Fig.10 Output low voltage
(BA6222)
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
Fig.11 Thermal derating curve
(HSOP25)
Fig.12 Thermal derating curve
(HSIP10)
3/10
2009.04 - Rev.A
BA6219BFP-Y, BA6222
Block diagram and pin configuration
BA6219BFP-Y
10
TSD
IN1
6
CTRL
IN2
8
15
19
20
FIN
GND
7
VR
4
CD2
13
C3
ZD
2
CD1
C2
GND
GND
11
24
OUT1
M
C4
VCC1
VCC2
R1
C1
Technical Note
Table 1 BA6219BFP-Y
Pin
2
4
6
7
8
10
11
13
15
19
20
24
FIN
Name
CD1
VR
IN1
GND
IN2
VCC1
VCC2
CD2
OUT2
GND
GND
OUT1
GND
Function
Cross conduction control pin
Reference voltage setting pin
Control input (forward)
GND
Control input (reverse)
Power supply (small signal)
Power supply (driver stage)
Cross conduction control pin
Driver output
GND
GND
Driver output
GND
OUT2
Fig.13 BA6219BFP-Y
NC
CD1
NC
VR
NC
IN1
GND
GND
IN2
NC
VCC1
VCC2
NC
CD2
NC
OUT1
NC
NC
NC
GND
GND
GND
NC
NC
NC
OUT2
NC
Note: All pins not described above are NC pins.
Fig.14 HSOP25
BA6222
7
TSD
IN1
5
CTRL
IN2
6
x4
10
1
OUT2
GND
x4
8
2
VCC1
VCC2
OUT1
M
C4
R1
C1
Table 2 BA6222
Pin
1
2
3
4
5
6
7
8
9
10
FIN
Name
GND
OUT1
CD1
VR
IN1
IN2
VCC1
VCC2
CD2
OUT2
GND
GND
Driver output
Cross conduction control pin
Reference voltage setting pin
Control input (forward)
Control input (reverse)
Power supply (small signal)
Power supply (driver stage)
Cross conduction control pin
Driver output
GND
Function
FIN
C5
VR
4
CD2
9
C3
3
CD1
C2
ZD
Fig.15 BA6222
GND
VR
IN1
OUT1
IN2
Fig.16 HSIP10
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
OUT2
CD1
VCC1
VCC2
CD2
4/10
2009.04 - Rev.A
BA6219BFP-Y, BA6222
External application components
Technical Note
1) Resistor for the current limitation, R1
This is a current limiting resistor for collector loss reduction and at the time of short-circuited output. It depends on the
power supply voltage used, etc., but choose resistance of about 5 to 10Ω. In addition, set resistance with utmost care
to voltage drop caused by inrush current that flows when the motor is started.
2) Zener diode for the output high voltage setting, ZD
This is the zener diode used when output high voltage (VR pin voltage) is set.
BA6219BFP-Y: Output high voltage
≈
zener voltage
BA6222: Output high voltage
≈
fourfold zener voltage
3) Stabilization capacitor for the power supply line, C1
Please connect the capacitor of 1μF to 100μF for the stabilization of the power supply line, and confirm the motor
operation.
4) Capacitors for the cross conduction control of output transistors, C2 and C3
Simultaneous ON is prevented by delaying base potential buildup of transistors which enter output high state. Set the
capacitors from 0.01μF to 1μF and make sure inrush current caused by simultaneous output ON does not flow when
output mode is switched.
5) Phase compensating capacitor, C4
Noise is generated in output pins or oscillation results in accord with the set mounting state such as power supply
circuit, motor characteristics, PCB pattern artwork, etc. As noise oscillation measures, connect 0.01μF to 0.1μF
capacitors.
6) Phase compensating capacitor, C5 (BA6222 only)
The gain about fourfold VR pin voltage in output high voltage is set, and the output oscillates easily. Please connect the
capacitor of 3300pF to 0.1µF as an oscillation prevention measures when the oscillation is seen in the output voltage.
Functional descriptions
1) Operation modes
Table 3 Logic table
IN1
L
H
L
H
IN2
L
L
H
H
OUT1
OPEN*
H
L
L
OUT2
OPEN*
L
H
L
Operation
Stop (idling)
Forward (OUT1 > OUT2)
Reverse (OUT1 < OUT2)
Brake (stop)
* OPEN is the off state of all output transistors. Please note that this is the state of the connected diodes, which differs from that of the mechanical relay.
a) Stand-by mode
In stand-by mode, all output power transistors are turned off, and the motor output goes to high impedance.
b) Forward mode
This operating mode is defined as the forward rotation of the motor when the OUT1 pin is high and OUT2 pin is low.
When the motor is connected between the OUT1 and OUT2 pins, the current flows from OUT1 to OUT2.
c) Reverse mode
This operating mode is defined as the reverse rotation of the motor when the OUT1 pin is low and OUT2 pin is high.
When the motor is connected between the OUT1 and OUT2 pins, the current flows from OUT2 to OUT1.
d) Brake mode
This operating mode is used to quickly stop the motor (short circuit brake).
I learned about Xianji Semiconductor last year and have been paying attention to it. Later, I saw Yehuo selling HPM6750 and HPM6450 chips on Taobao. I wanted to buy a development board when Yehuo rele...
StellarisWare Example IntroductionAES Pre-expanded Key(aes_expanded_key)This example demonstrates how to use a pre-expanded key to encrypt plaintext and decrypt it back to the original message. Using ...
[i=s] This post was last edited by ohahaha on 2016-5-20 08:29 [/i] [p=null, 2, left][color=rgb(62,62,62)]Reprinted from: Printed Circuit World [/color][/p][p=null, 2, left][/p][p=null, 2, left][color=...
Recently,
Xpeng Motors and Xinlian Integrated Circuit jointly announced the mass production of China's first hybrid silicon carbide product.
Designed and developed by Xpeng Motors and joint...[Details]
Common Mode Semiconductor has officially released its latest generation of power management ICs—the GM6506 series. This fully integrated high-frequency synchronous rectification step-down p...[Details]
With the rapid development of electric vehicles in my country, people are beginning to pay attention to the issue of radiation from electric vehicles. We all know that mobile phones emit radiation,...[Details]
There are basically three causes of spontaneous combustion of electric vehicles: The first is that the battery components are punctured or suffer fatal damage due to a collision accident, and part ...[Details]
Permanent magnets are essential components in a wide range of household and industrial devices. They are particularly crucial in the renewable energy sector, including electric vehicle motors. Curr...[Details]
The 2025 China International Automotive Testing Exhibition will be held at the Shanghai World Expo Exhibition and Convention Center from August 27 to 29, 2025.
Clacton Seafront, UK, ...[Details]
Speaking of the problem of vehicle spontaneous combustion, whether it is a pure electric vehicle or a fuel vehicle, there will be incidents of spontaneous combustion. For the same spontaneous combu...[Details]
introduction
In today's busy society, people experience chronic high stress, which in turn poses a significant threat to our health. Therefore, effectively relieving stress has become a pr...[Details]
Most cameras on the market use chips manufactured by Japanese companies like Sony, Sharp, Panasonic, and LG. South Korea now has the capability to produce chips, but the quality is somewhat inferio...[Details]
Pure electric vehicles have experienced rapid growth in recent years, and many consumers now consider them as a top choice when purchasing a car. But do you know how to choose a satisfactory and sa...[Details]
With the rapid development of the automotive industry, automotive requirements for control, communication, and network management are becoming increasingly stringent. Hardware platforms based on 32...[Details]
1. Output power. Rated power (RMS): Rated power refers to the sinusoidal alternating power that the amplifier can withstand for a long time. Maximum undistorted power...
2. Frequency response:...[Details]
The "China Electric Vehicle Charging Equipment Development Report (2024)" was compiled by the China Electric Vehicle Charging Infrastructure Promotion Alliance and Shenzhen Shenghong Electric Co., ...[Details]
Trump Says Chips Will Be Subject to a 100% Tariff, Exempting US Factories
According to CCTV News, US President Trump recently stated that the US will impose tariffs of approximately 100% o...[Details]
From August 8 to 12, 2025, the highly anticipated 2025 World Robotics Conference (WRC) will be held at the Beiren Yichuang International Convention and Exhibition Center in the Beijing Economic and...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
