TECHNICAL NOTE

High-performance Video Signal Switchers

Single Circuit

Video Signal Switcher

BA7654F, BA7653AF/AFV ,BA7652AF

Description

The BA7654F, BA7653AF/AFV, or BA7652AF is a video signal (display signal) switch containing one 2-input or 3-input

circuit.

Each of the input pin formats is “sync-tip clamp input” that matches the synchronous tips of video signals (display signals) to

the same potential. The inputs have an high input impedance configuration, in which they can utilize a small clamp capacitor

(0.01 F (FZ) ceramic capacitor is recommended).

Features

1) Low value clamp capacitance can be used (Min. 3000 pF Recommended 0.01 F (FZ) ceramic capacitor)

2) Low voltage operation is possible (Operating range 4.0 7.0V)

3) Superimposed can be applied since switching speed of SW is fast and there is little switching noise (Typ. 70ns)

4) Low power consumption (Typ. 25mW when Vcc=5V)

5) Large dynamic range (Typ. 3.1V

P-P

when Vcc=5V)

6) Good frequency characteristics (Typ. 10 MHz 0 dB)

7) Low interchannel crosstalk (Typ. –70 dB)

8) Voltage can be applied to the CTL pin without a VCC voltage.

9) Built-in mute function (BA7652AF)

Applications

VCR, TV, and other applications that use display signals.

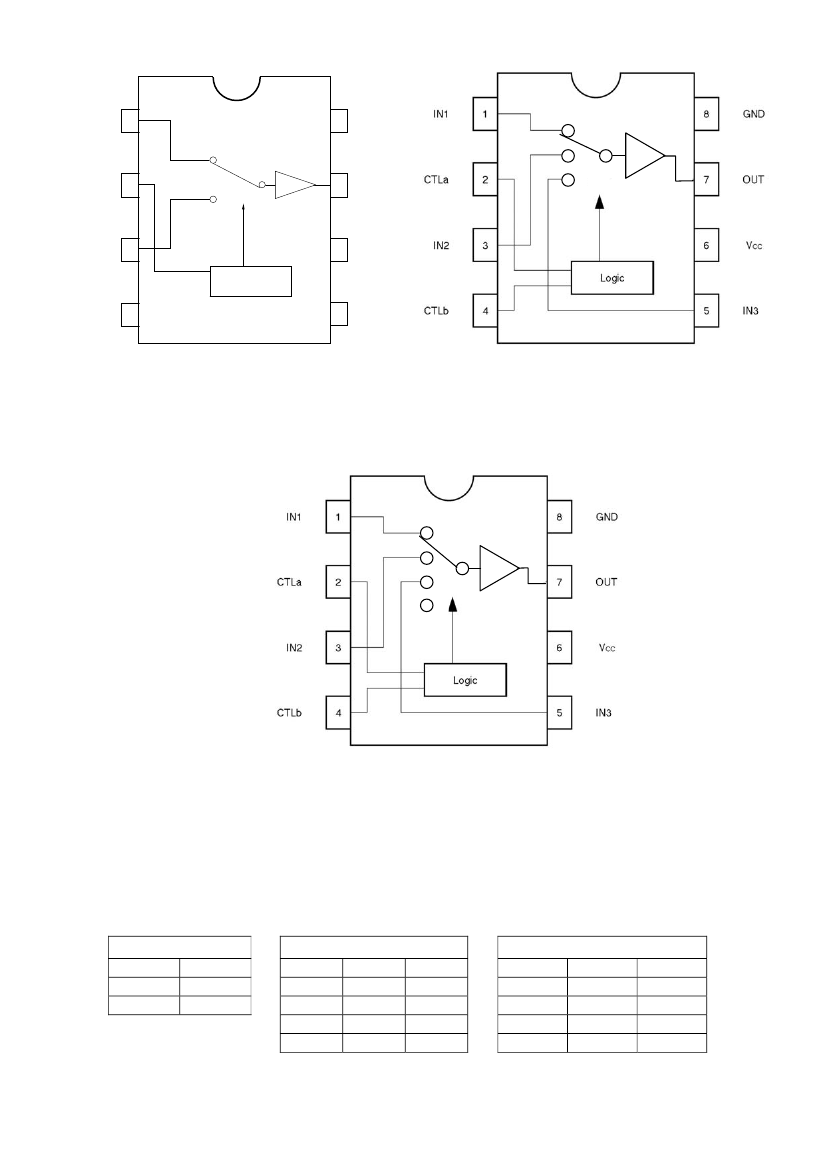

Product lineup

Part No.

BA7654F

BA7653AF/AFV

BA7652AF

Input type

2 in 1 Circuit

3 in 1 Circuit

Mute

Supply voltage(V)

4.0

7.0

Aug.2008

BA7654F_08 Related Products

	BA7654F_08	BA7652AF	BA7653AFV	BA7653AF	BA7654F
Description	3-CHANNEL, AUDIO/VIDEO SWITCH, PDSO8	3-CHANNEL, AUDIO/VIDEO SWITCH, PDSO8	3-CHANNEL, AUDIO/VIDEO SWITCH, PDSO8	3-CHANNEL, AUDIO/VIDEO SWITCH, PDSO8	3-CHANNEL, AUDIO/VIDEO SWITCH, PDSO8
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Parts packaging code	-	SOIC	SOIC	SOIC	SOIC
package instruction	-	LSOP, SOP8,.25	LSSOP, TSSOP8,.25	LSOP, SOP8,.25	LSOP, SOP8,.25
Contacts	-	8	8	8	8
Reach Compliance Code	-	compli	compli	compli	compli
Analog Integrated Circuits - Other Types	-	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH
JESD-30 code	-	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	-	e2	e2	e2	e2
length	-	5 mm	4.4 mm	5 mm	5 mm
Number of channels	-	3	3	3	2
Number of functions	-	1	1	1	1
Number of terminals	-	8	8	8	8
Maximum operating temperature	-	80 °C	80 °C	80 °C	75 °C
Minimum operating temperature	-	-30 °C	-30 °C	-30 °C	-25 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	LSOP	LSSOP	LSOP	LSOP
Encapsulate equivalent code	-	SOP8,.25	TSSOP8,.25	SOP8,.25	SOP8,.25
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	-	260	260	260	260
power supply	-	5 V	5 V	5 V	4/7 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	1.6 mm	1.25 mm	1.6 mm	1.6 mm
Maximum supply current (Isup)	-	8.2 mA	8.2 mA	8.2 mA	-
Maximum supply voltage (Vsup)	-	7 V	7 V	7 V	7 V
Minimum supply voltage (Vsup)	-	4 V	4 V	4 V	4 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V
surface mount	-	YES	YES	YES	YES
technology	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	-	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)
Terminal form	-	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	-	1.27 mm	0.65 mm	1.27 mm	1.27 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	10	10	10	10
width	-	4.4 mm	3 mm	4.4 mm	4.4 mm
Base Number Matches	-	1	1	1	-
