Small and High Accuracy Temperature Sensor IC Series
Analog Output
Temperature Sensor IC
BD1020HFV
●Description
Low quiescent current (4µA) and high accuracy temperature sensor
Detecting temperature by itself, output voltage appears linearly along the temperature.
●Features
1) Detection Temperature Range -30½+100℃
2) Operating Voltage Range
+2.4V½+5.5V
3) High Accuracy ( typically ±1.0℃@Ta=30℃, typically ±2.0℃@Ta=-30½+100℃ )
4) Temperature Sensitivity ( typically -8.2mV/℃ )
5) Low Quiescent Current ( typically 4µA )
6) Ultra Small Package ( typically 1.60mm×1.60mm×0.60mm)
7) Low Thermal Resistance ( typically 187℃/W )
8) ESD Rating 8kV ( HBM )
9) Excellent Ripple Rejection Characteristic
●Applications
Cell Phone ( RF Module, Battery Thermal Management ),Audio Systems,Digital Still Camera
LCD, PDP,Optical pick up module for DVD,BlueRay
●Absolute
Maximum Ratings
( Ta=25℃ )
PARAMETERS
Power Supply Voltage
Output Voltage
Output Current
Power Dissipation
Storage Temperature Range
SYMBOL
V
DD
V
OUT
I
OUT
Pd
T
stg
LIMIT
-0.3½7.0
※
1
-0.3½V
DD
+0.3
±1
536
※
2
-55½150
UNIT
V
V
mA
mW
℃
No.10047EBT02
※1.
Not to exceed Pd
※2.
Reduced by 5.36mW for each increase in Ta of 1℃ over 25℃( mounted on 70mm×70mm×1.6mm Glass-epoxy PCB )
●Recommended
Operating Condition
PARAMETERS
Power Supply Voltage
Operation Temperature
SYMBOL
V
DD
T
opr
MIN.
2.40
-30
TYP.
3.00
-
MAX.
5.50
100
UNIT
V
℃
●Electrical
Characteristics and Accuracy
(Unless otherwise specified, V
DD
=3.0V, Ta=25℃)
LIMIT
PARAMETERS
SYMBOL
UNIT
MIN.
TYP.
MAX.
-
±1.0
±1.5
Accuracy
-
±2.0
±2.5
℃
T
acc
-
±2.0
±2.5
Temperature Sensitivity
-8.4
-8.2
-8.0
mV/℃
V
SE
Supply Current
-
4.0
7.0
µA
I
S
Output Voltage
1.288
1.300
1.312
V
V
OUT
Output VoltageLine Regulation
⊿V
OUT
V
DD
-
-
4
mV
Output VoltageLoad Regulation
Radiation hardiness is not designed.
CONDITIONS
Ta = 30℃
Ta = 100℃
Ta = -30℃
Ta = 30℃
V
DD
= 2.4½5.5V
I
OUT
：
0µA / 0.7µA,Difference
⊿V
OUT
R
L
-
-
1
mV
www.rohm.com
© 2010 ROHM Co., Ltd. All rights reserved.
1/5
2010.01 - Rev.B

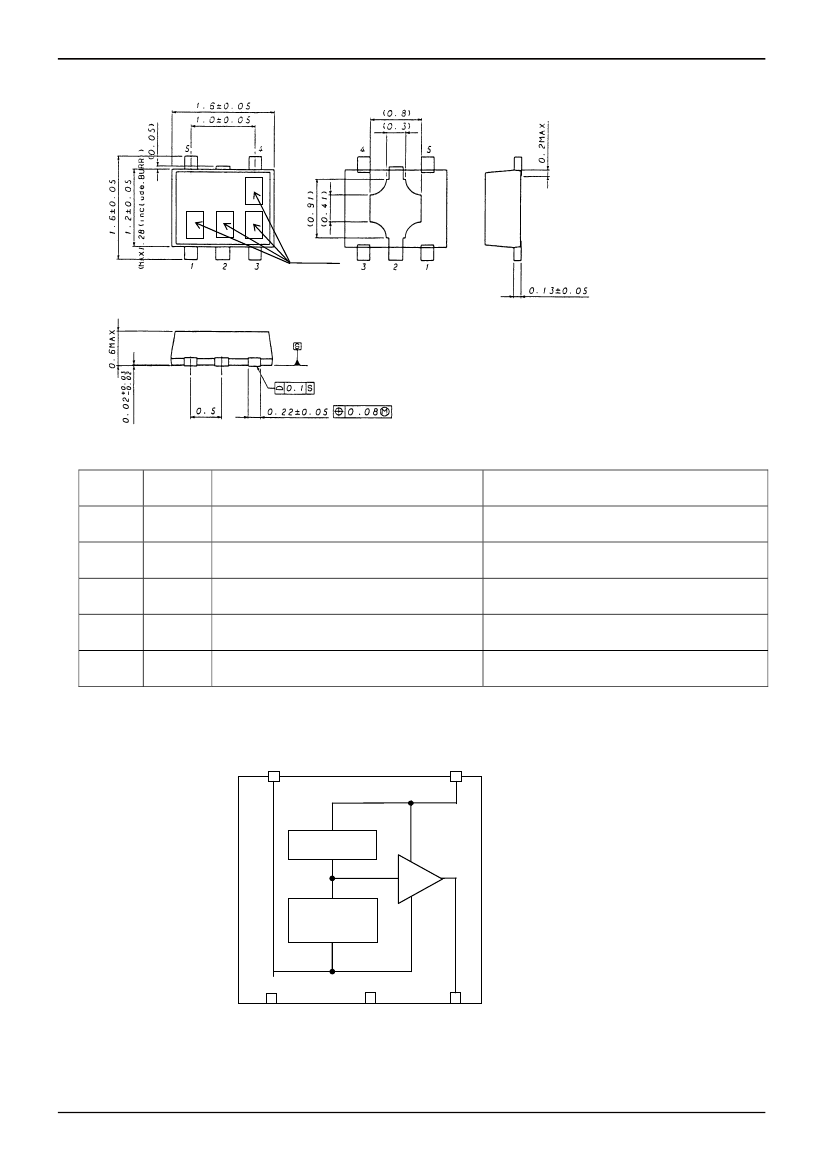

BD1020HFV
●Package
Outlines
Technical Note
T A
Lot No.
HVSOF5 (Unit : mm)
●Pin
Descriptions
Pin No.
1
2
3
4
5
Pin Name
N.C.
PG
VOUT
VDD
GND
Heat Condition
Output Voltage for proportional t
emperature reversely
Power Supply
Ground
Function
-
Comment
Please set to OPEN .
Please connect to temperature measurement part.
-
-
-
●Block
Diagram
GND
VDD
REGULATER
BUFFER
TEMPARATURE
SENSOR
N.C.
PG
VOUT
www.rohm.com
© 2010 ROHM Co., Ltd. All rights reserved.
2/5
2010.01 - Rev.B
BD1020HFV
●Reference
Data
Technical Note
2.5
VDD=3V
8.0
Ta=25℃
2.0
VOUT [V]
1.5
1.0
0.5
0.0
-40 -20
0
20
40
60
80 100
Ta [℃]
Fig.1 Output Voltage vs. Temperature
6.0
I
DD
[uA]
4.0
2.0
0.0
0
1
2
3 4
V
DD
[V]
5
6
7
Fig.2 Supply Current vs. Supply Voltage
2.0
Ta=25℃
3.0
2.0
Temperature Error [℃]
1.0
0.0
-1.0
-2.0
-3.0
VDD=3V
1.5
VOUT [V]
1.0
0.5
0.0
0
1
2
3
4
5
6
7
V
DD
[V]
Fig.3 Output Voltage vs. Supply Voltage
-50 -30 -10 10
30
Ta [℃]
50
70
90 110
Fig.4 Error vs. Temperature
3.0
VDD=3V, Ta=25℃
Source
1.0
Sink
VOUT [V]
VOUT [V]
2.0
0.0
-3
-2
-1
0
1
2
3
IOUT [uA]
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
0.7
0.6
0
30℃
100℃
5
Time [s]
10
15
Fig.5 Output Voltage vs. Output Current
Fig.6 Start Up Response
( VOUT response 100℃→30℃ in atmosphere )
www.rohm.com
© 2010 ROHM Co., Ltd. All rights reserved.
3/5
2010.01 - Rev.B
BD1020HFV
Technical Note
●Notes
for use
1) Absolute Maximum Ratings
An excess in the absolute maximum ratings, such as supply voltage, temperature range of operating conditions, etc., can
break down devices, thus making impossible to identify breaking mode such as a short circuit or an open circuit. If any
special mode exceeding the absolute maximum ratings is assumed, consideration should be given to take physical safety
measures including the use of fuses, etc.
2) GND voltage
Make setting of the potential of the GND terminal so that it will be maintained at the minimum in any operating state.
3) Pin short and mistake fitting
When mounting the IC on the PCB, pay attention to the orientation of the IC. If there is a placement mistake, the IC may be
burned up.
4) Operation in strong electric field
Be noted that using ICs in the strong electric field can malfunction them.
5) Mutual impedance
Use short and wide wiring tracks for the power supply and ground to keep the mutual impedance as small as possible.
Use a capacitor to keep ripple to a minimum.
6) Please connect it with the temperature measurement part (GND line usually) to make thermal conductivitywith the mount
board side the best though the PG pin (Pin NO.2) is hindered and doesn't exist about OPEN even if it connects it with GND.
www.rohm.com
© 2010 ROHM Co., Ltd. All rights reserved.
4/5
2010.01 - Rev.B
BD1020HFV
●Ordering
part number
Technical Note
B
D
1
Part No.
1020
0
2
0
H
F
V
-
T
R
Part No.
Package
HFV: HVSOF5
Packaging and forming specification
TR: Embossed tape and reel
(HVSOF5)
HVSOF5
<Tape and Reel information>
1.6±0.05
(0.8)
0.2MAX
Tape
Quantity
Direction
of feed
Embossed carrier tape
3000pcs
TR
The direction is the 1pin of product is at the upper right when you hold
1.2±0.05
(MAX 1.28 include BURR)
1.0±0.05
(0.05)
(0.3)
1.6±0.05
5
4
4
5
(0.91)
(0.41)
(
reel on the left hand and you pull out the tape on the right hand
1pin
)
1 2 3
3 2 1
0.13±0.05
S
0.6MAX
+0.03
0.02 –0.02
0.1
0.5
0.22±0.05
S
0.08
M
Direction of feed
(Unit : mm)
Reel
∗
Order quantity needs to be multiple of the minimum quantity.
www.rohm.com
© 2010 ROHM Co., Ltd. All rights reserved.
5/5
2010.01 - Rev.B
