LPR1229-1001: DescriptionAudio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack,; CategoryThe connector The connector; File Size175KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

LPR1229-1001 Overview

Audio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack,

LPR1229-1001 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
Body/casing type	JACK
Configuration	3X1 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	LPR1229
Installation type	BOARD
Number of poles	2
Number of ports	3
Options	GENERAL PURPOSE
Termination type	SOLID LEAD

Preview

Download Datasheet

View All

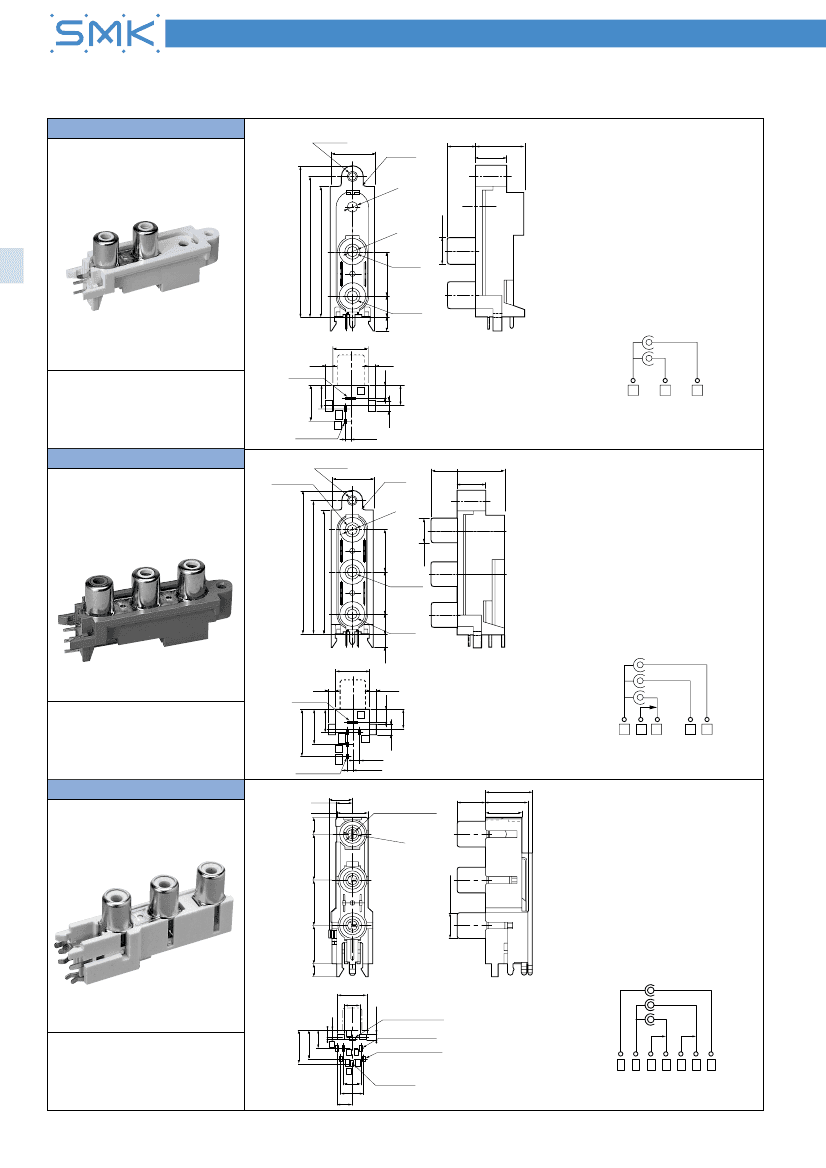

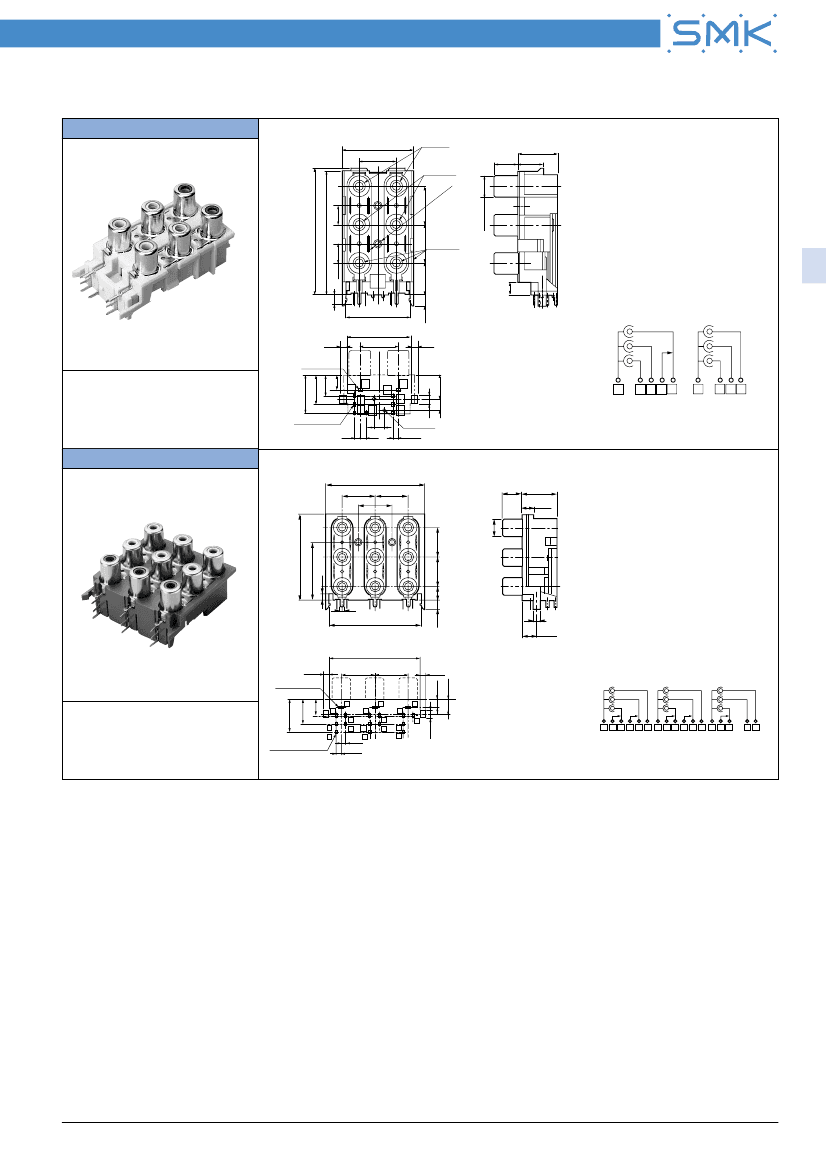

Triple Decker Pin Jack

LPR6520-A600

H=6.5mm

ø2.4

14

White

ø3.3

9

15.8

10

47.5

44

41

ø3.3

PIN JACKS

14

Yellow

Circuits

(Without Switch)

4.5 6.5

White

11.6

2PRight

Angle (2P)

LPR6529-4000

H=6.5mm

4

2.5

0.8x3.3

11.4

7.6

a

2.5

6.5

a

b

c

b

c

2-1.5x0.8

ø2.4

Yellow

14

2.2

9

Red

ø3.3

3.5

ø8.3

(Recommended P.W.Board Dimension)

(The Pattern Side)

15.8

10

47.5

44

41

6.5

14

White

ø8.3

14

Red

Circuits

(With Switch)

11.6

3PRight

Angle (3P)

LPR1229-1001

H=12.5mm

15.2

11.4

7.6

6.5

a

3.5

c

4

2.5

0.8x3.3

4.5

2.5

b

e

d

4-1.5x0.8

5.6

10

5.5

8

a

(Recommended P.W.Board Dimension)

(The Pattern Side)

c b

e

d

2.2

ø 6 (Earth metal

opening)

9.5

(15.25)

14

12

ø 3.25

15

4.5 12.5

15

3-ø 8.3

Circuits

(With Switch)

12.4

6.8

14.5

12.5

8

4 3

<China>

3PRight

Angle (3P)

2.5

b

d c

f

g

e

1.3x2.5 Hole

3-1x2.5 Hole

2-1.2x2.5 Hole

a

7.5

9.7

6.7

(Recommended P.W.Board Dimension)

1x2 Hole

(The Pattern Side)

a b c d e

f

g

LPR1229-1001 Related Products

	LPR1229-1001	LPR1229-0800	LPR6520-A600	LPR6529-4000	LPR6529-3600
Description	Audio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack,
Maker	SMK	SMK	SMK	SMK	SMK
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Body/casing type	JACK	JACK	JACK	JACK	JACK
Configuration	3X1 HORIZONTAL	3X2 HORIZONTAL	2X1 HORIZONTAL	3X1 HORIZONTAL	3X3 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR
DIN compliance	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	LPR1229	LPR1229	LPR6520	LPR6529	LPR6529
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of poles	2	2	2	2	2
Number of ports	3	6	2	3	9
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD
