LH5P832N-12 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> LH5P832N-12

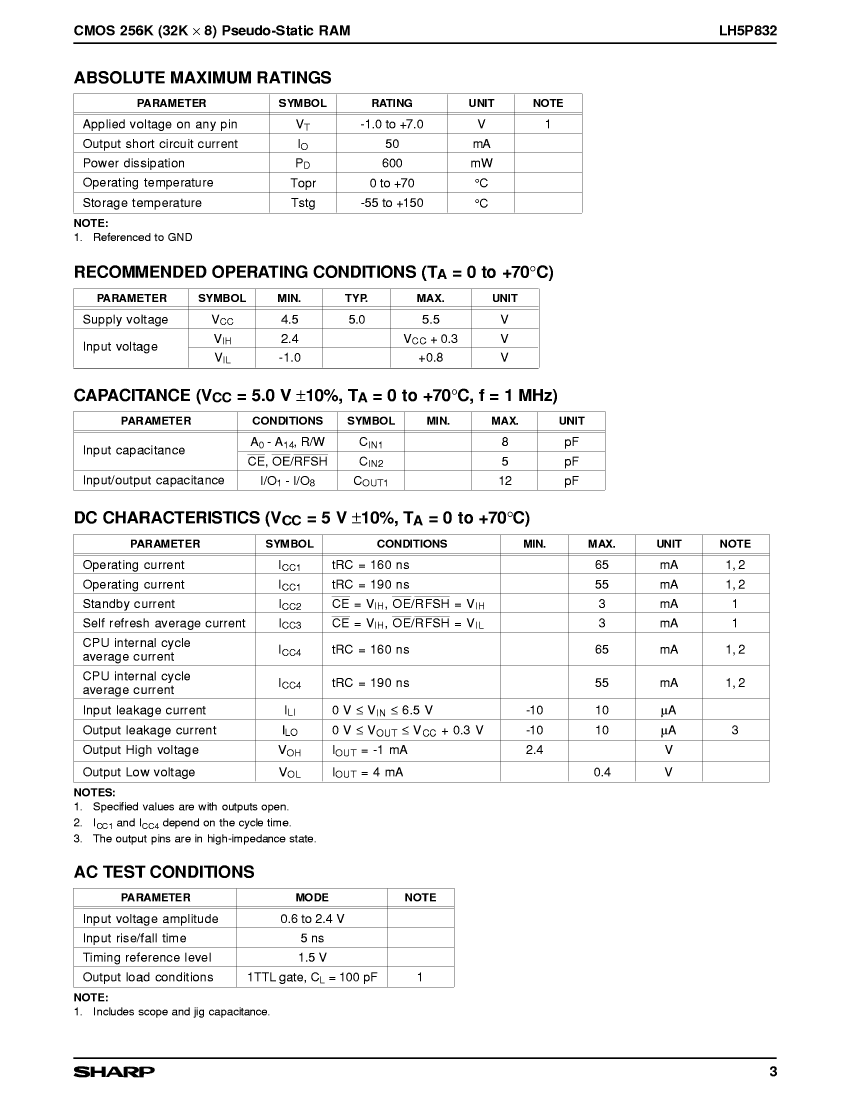

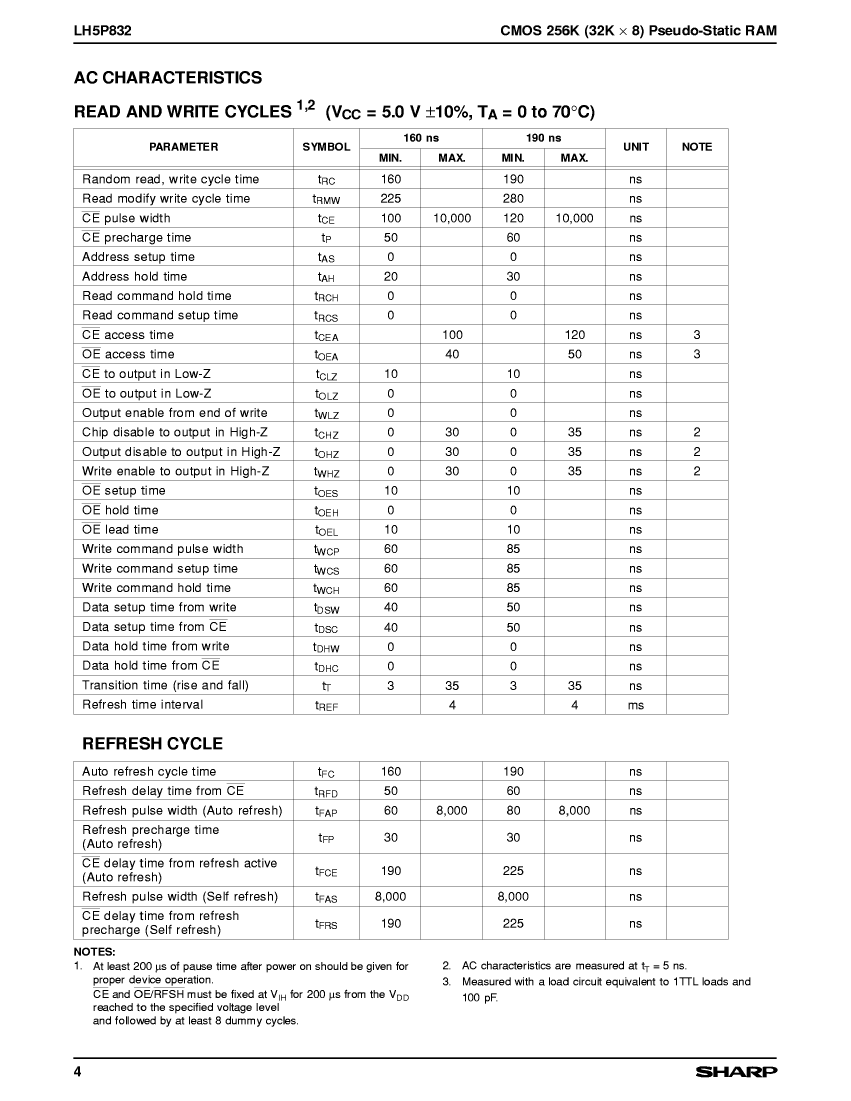

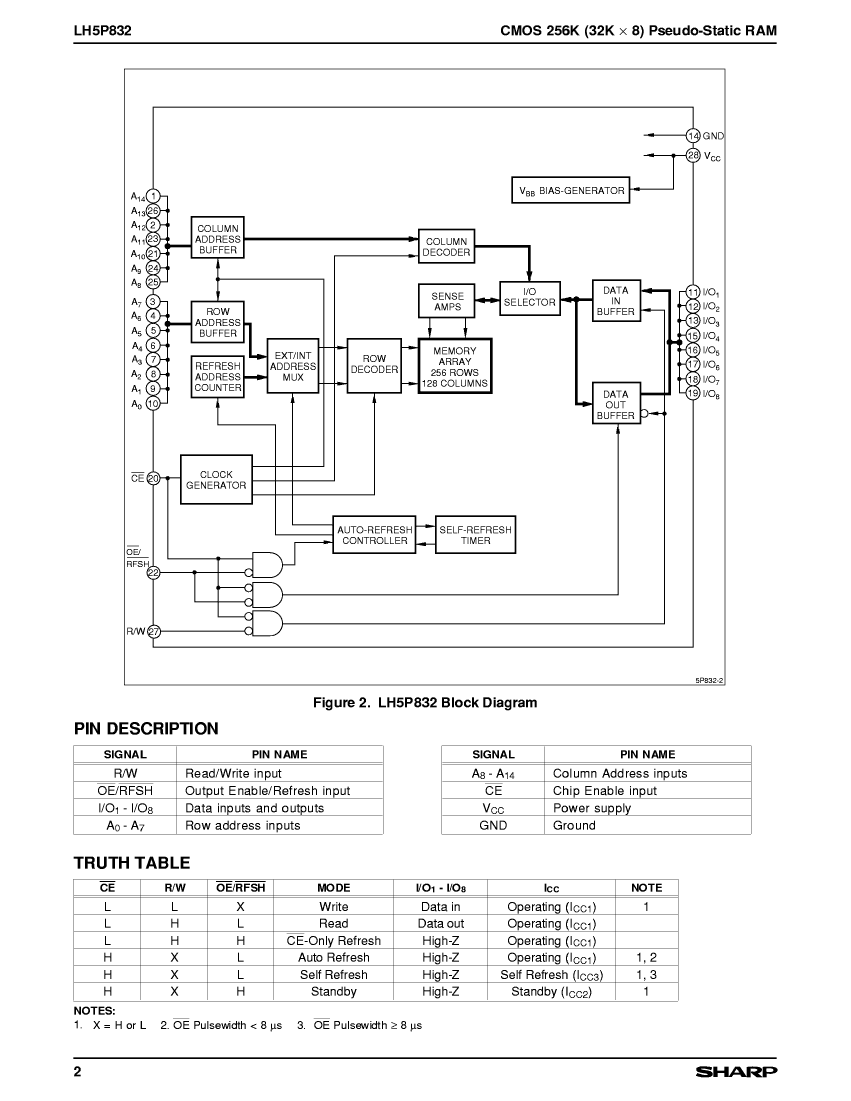

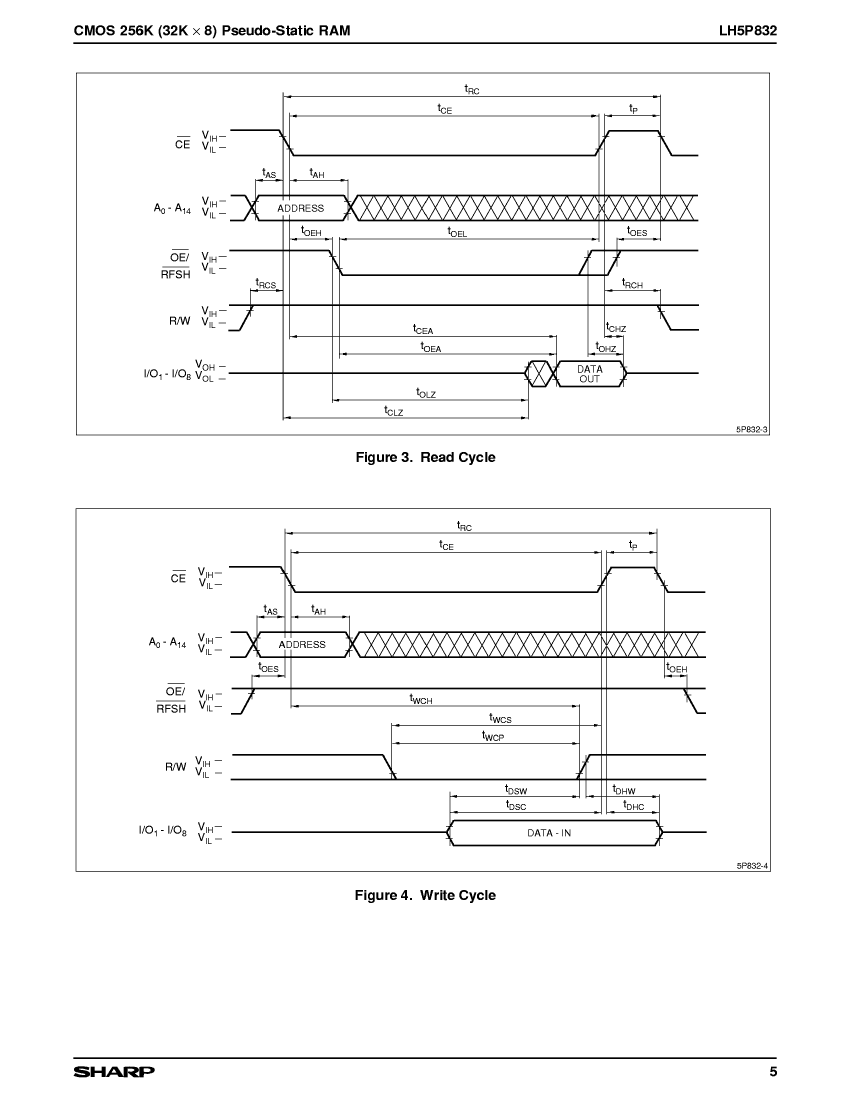

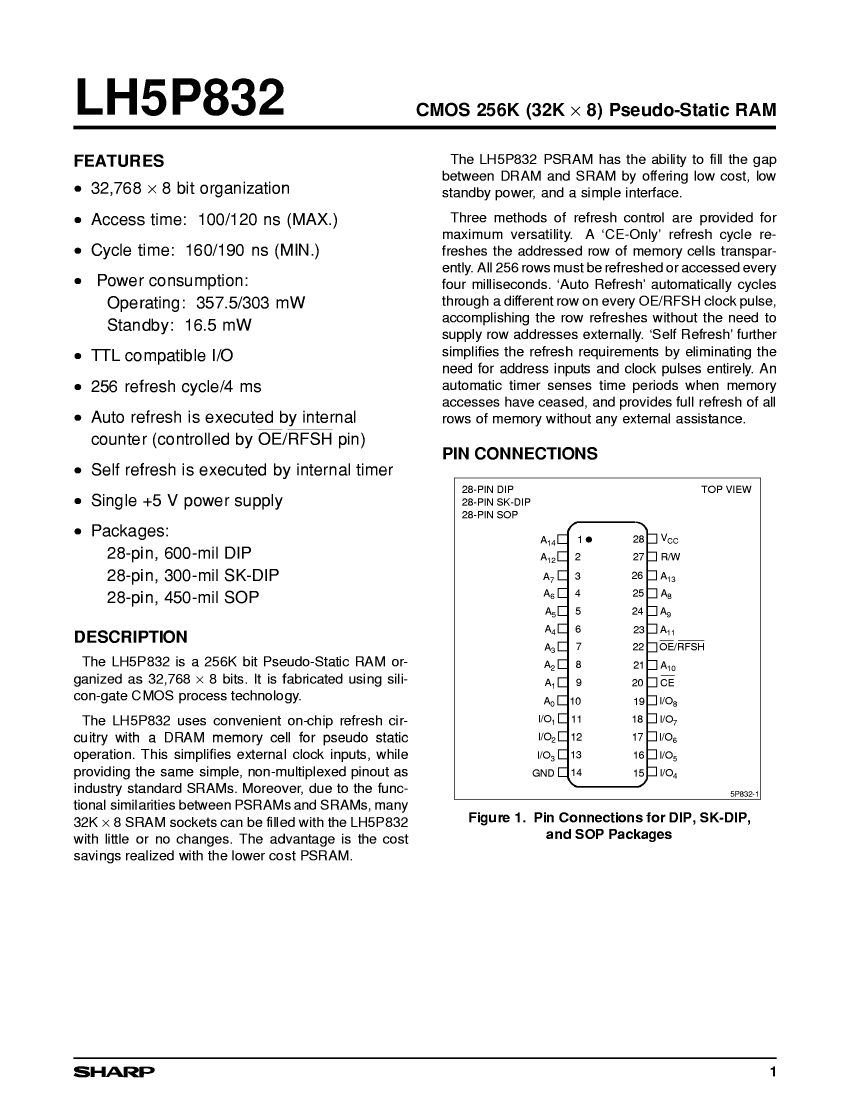

Preview

LH5P832N-12: DescriptionPseudo Static RAM, 32KX8, 120ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28; Categorystorage storage; File Size225KB，9 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH5P832N-12 Overview

Pseudo Static RAM, 32KX8, 120ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28

LH5P832N-12 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	0.450 INCH, PLASTIC, SOP-28
Reach Compliance Code	unknown
Maximum access time	120 ns
Other features	CE/AUTO/SELF REFRESH
JESD-30 code	R-PDSO-G28
JESD-609 code	e6
length	18 mm
memory density	262144 bit
Memory IC Type	PSEUDO STATIC RAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.6 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.6 mm

Preview

Download Datasheet

View All

LH5P832N-12 Related Products

	LH5P832N-12	LH5P832-10	LH5P832-12	LH5P832D-10	LH5P832D-12	LH5P832N-10
Description	Pseudo Static RAM, 32KX8, 120ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28	Pseudo Static RAM, 32KX8, 100ns, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28	Pseudo Static RAM, 32KX8, 120ns, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28	Pseudo Static RAM, 32KX8, 100ns, CMOS, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28	Pseudo Static RAM, 32KX8, 120ns, CMOS, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28	Pseudo Static RAM, 32KX8, 100ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	0.450 INCH, PLASTIC, SOP-28	0.600 INCH, PLASTIC, DIP-28	0.600 INCH, PLASTIC, DIP-28	0.300 INCH, SKINNY, PLASTIC, DIP-28	0.300 INCH, SKINNY, PLASTIC, DIP-28	0.450 INCH, PLASTIC, SOP-28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	100 ns	120 ns	100 ns	120 ns	100 ns
Other features	CE/AUTO/SELF REFRESH	CE/AUTO/SELF REFRESH	CE/AUTO/SELF REFRESH	CE/AUTO/SELF REFRESH	CE/AUTO/SELF REFRESH	CE/AUTO/SELF REFRESH
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28
length	18 mm	36 mm	36 mm	34.7 mm	34.7 mm	18 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.6 mm	5.2 mm	5.2 mm	4.4 mm	4.4 mm	2.6 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	8.6 mm	15.24 mm	15.24 mm	7.62 mm	7.62 mm	8.6 mm
