MA2300-A: DescriptionZener Diode, 29.05V V(Z), 3.61%, Silicon, Unidirectional, DO-41, GLASS, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size65KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

MA2300-A Overview

Zener Diode, 29.05V V(Z), 3.61%, Silicon, Unidirectional, DO-41, GLASS, DO-41, 2 PIN

MA2300-A Parametric

Parameter Name	Attribute value
Maker	Panasonic
Parts packaging code	DO-41
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Nominal reference voltage	29.05 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	3.61%

Preview

Download Datasheet

View All

Zener Diodes

MA111

MA2000

Series

Unit : mm

Silicon planer type

For stabilization of power supply

ø0.8

Cathode

Features

High reliability because of combination of a planer chip and glass

seal

27 min.

Colored band indicates

Vz classification

Large power dissipation : P

=1W

Easy to use because of fine classification of the voltage rank : A and

27 min.

3rd Band

2nd Band

1st Band

Wide voltage range : V

= 5.1 to 56V

B ranks

5.0 max.

ø3.0 max.

Anode

Absolute Maximum Ratings

(Ta= 25˚C)

Parameter

Repetitive peak forward current

Total power dissipation

Non-repetitive reverse surge power dissipation

Junction temperature

Storage temperature

With a printed-circuit board

t=100µ s, T

=150˚C

Colored bands indicates type No.

Symbol

FRM

tot

ZSM

stg

Rating

400

200

– 55 to + 200

Unit

˚C

1 : Cathode

2 : Anode

JEDEC : DO-41

Color indication of V

rank classification

A rank

Blue

B rank

Red

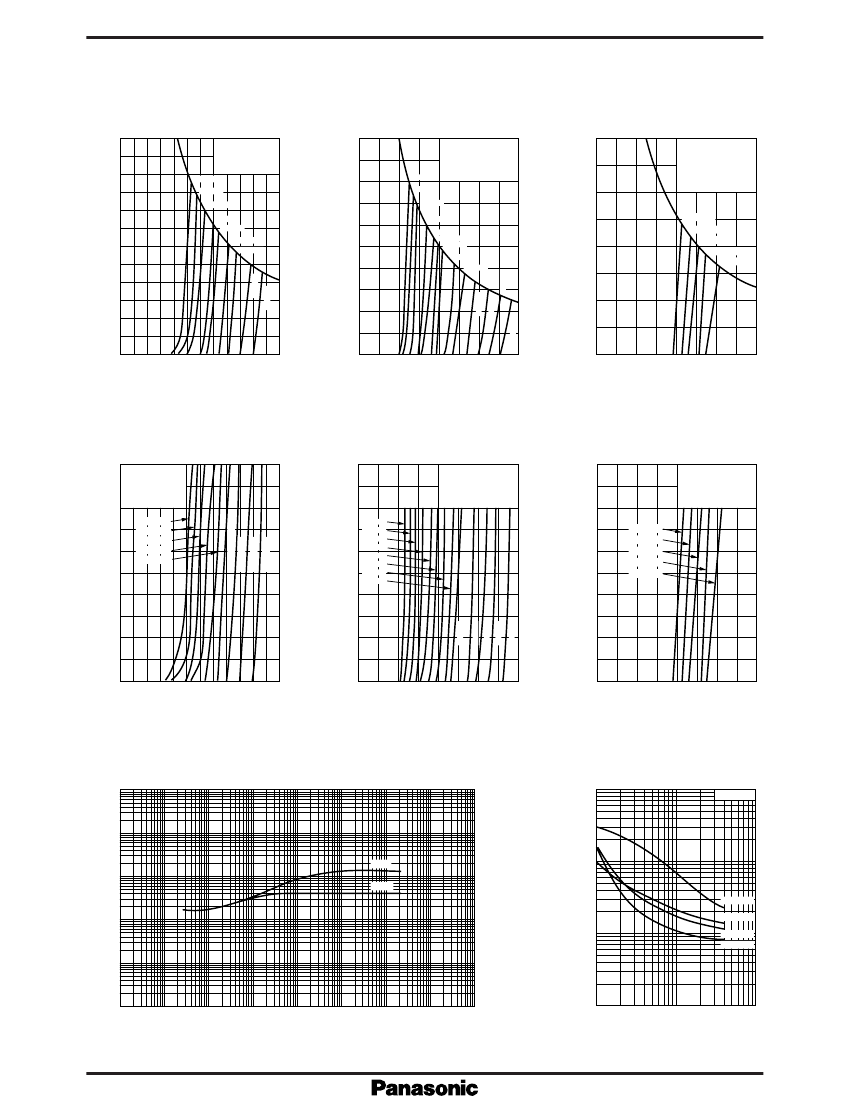

Common Electrical Characteristics

(Ta= 25˚C)*

Parameter

Forward voltage

Zener voltage

Operating resistance

Reverse current

Temperature coefficient of zener voltage

Terminal capacitance

Symbol

Condition

= 200mA

.............. Specified value

............. Specified value

.............. Specified value

............. Specified value

min

typ

max

Unit

Ω

µA

mV/˚C

Refer to the electrical characteristics

list of P442 to P443

Note 1. Rated input/output frequency : 5MHz

2. *

: The V

value is for the temperature of 25˚C. In other cases, carry out the temperature compensation.

: Guaranteeed at 20ms after power application

: T

= 25 to 150˚C
