#A960AW-1R8M=P3 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> #A960AW-1R8M=P3

#A960AW-1R8M=P3: DescriptionGeneral Purpose Inductor, 1.8uH, 20%, 1 Element, SMD, LEAD FREE; CategoryPassive components inductor; File Size493KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric View All

#A960AW-1R8M=P3 Overview

General Purpose Inductor, 1.8uH, 20%, 1 Element, SMD, LEAD FREE

#A960AW-1R8M=P3 Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.054 Ω
Nominal inductance(L)	1.8 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	D518LC
Number of functions	1
Number of terminals	2
Maximum rated current	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%

Preview

Download Datasheet

View All

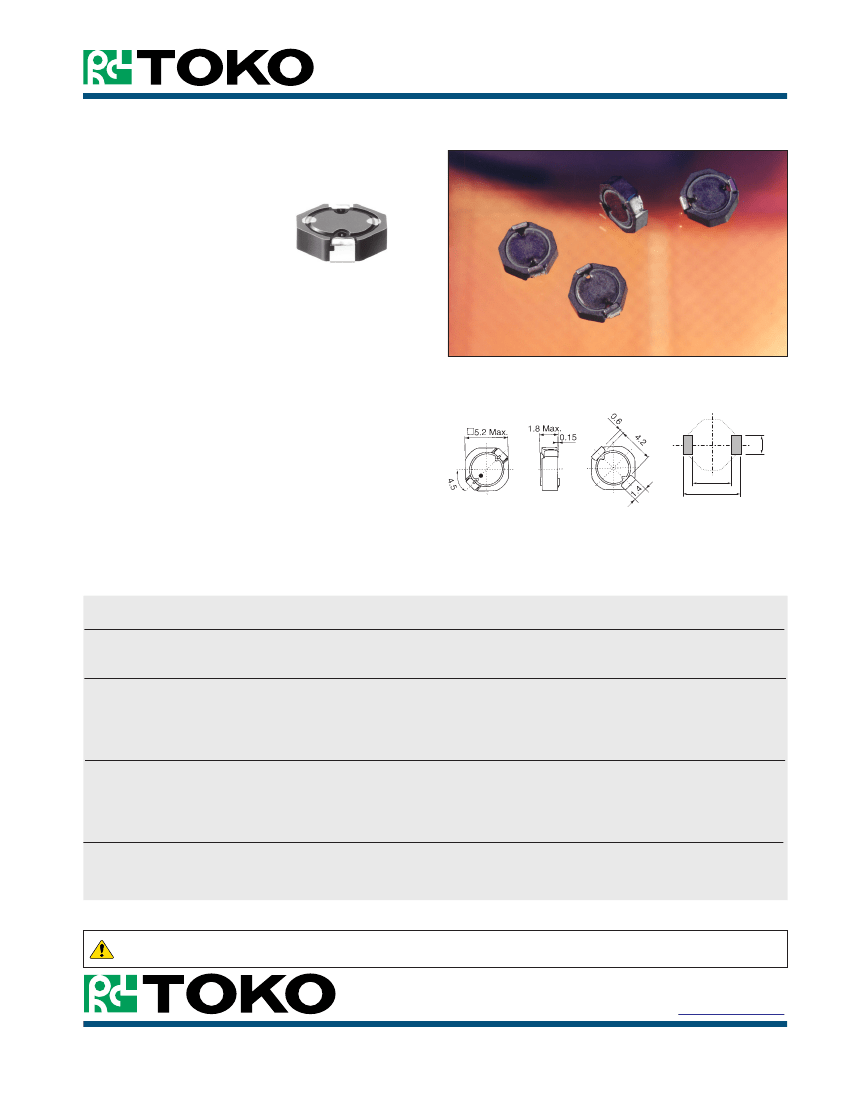

D518LC Series

SURFACE MOUNT FIXED INDUCTOR

TYPE D518LC

Inductance Range:

1.2 - 47µH

Frequency Range:

0.1 - 1MHz

Description

The TOKO D518LC Series is a low profile surface mount fixed

inductor with a maximum height of 1.8mm. The product is

specifically designed for space constrained DC-DC converter

applications in portable platforms including wireless handsets,

PDA's, and consumer electronics.

Features

•

5.0mm x 5.0mm footprint (±0.2mm)

1.8mm maximum height

Magnetically shielded

Reflow solderable

Packaged on 2000 piece reels

Lead-free terminations

Dimensions & Recommended Patterns:

2.0

4.0

6.0

STANDARD PARTS SELECTION GUIDE

(1) Inductance is measured by LCR-meter 4284A (Agilent) or equivalent.

(2) DC resistance is measured by Digital Multimeter TR6871 (Advantest) or equivalent.

(3) Maximum allowable DC current is that which causes a 30% inductance reduction from the initial value,

or coil temperature to rise by 40°C, whichever is smaller. (Reference ambient temperature 20°C).

Unit: mm

TYPE D518LC

TOKO

Part

Number

#A960AW-1R2M=P3

#A960AW-1R8M=P3

#A960AW-2R3M=P3

#A960AW-3R6M=P3

#A960AW-4R3M=P3

#A960AW-5R1M=P3

#A960AW-6R8M=P3

#A960AW-100M=P3

#A960AW-150M=P3

#A960AW-180M=P3

#A960AW-220M=P3

#A960AW-330M=P3

#A960AW-470M=P3

Inductance

(1)

(µH)

1.2

1.8

2.3

3.6

4.3

5.1

6.8

Tolerance

(%)

±20

(2)

Resistance

(

Ω

) max.

0.046

0.054

0.063

0.082

0.092

0.105

0.130

0.180

0.270

0.320

0.450

0.640

0.930

Rated

(3)

DC Current

(A) max.

1.8

1.6

1.5

1.2

1.1

1.0

0.94

0.80

0.64

0.56

0.49

0.41

0.33

Note:

=P3

is added to each part number to indicate tape and reel packaging.

The information furnished by TOKO, Inc. is believed to be accurate and reliable. However, TOKO reserves the right to make changes or improvements in the design, specification or manufacture

of its products without further notice. TOKO does not assume any liability arising from the application or use of any product or circuit described herein, nor for any infringements of patents

or other rights of third parties which may result from the use of its products. No license is granted by implication or otherwise under any patent or patent rights of TOKO, Inc.

TOKO America, Inc.

1250 Feehanville Drive, Mount Prospect, Illinois 60056

Tel: (847) 297-0070 Fax: (847) 699-7864 Web: http://www.tokoam.com

November 2004

Printed in USA

CF-275-D518LC

R-LOG1104A
