GC4410 – GC4495
TM
®
CONTROL DEVICES – HIGH VOLTAGE PIN DIODES
RoHS Compliant
DESCRIPTION
The GC4400 series are high voltage, high power (cathode base) PIN diodes. These
high resistivity silicon devices are glass passivated for high stability and reliability
and have been proven by thousands of device hours in high reliability systems.
Each device can withstand storage temperatures from -65°C to +200°C and will
operate over the range from -55°C to +150°C. All devices meet or exceed military
environmental specifications of MIL-PRF-19500.
The GC4400 series will operate typically with +50 mA forward bias. Breakdown
voltages are available up to 750 volts. Consult the factory for higher voltage devices.
KEY FEATURES
Available as packaged devices or
as chips for hybrid applications
www.MICROSEMI.com
High power handling
Suitable for application to 18Ghz
Low Loss
Low Distortion
RoHS Compliant
1
APPLICATIONS
The GC4400 series can be used in RF circuits as an on/off element, as a switch, or
as a current controlled resistor in attenuators extending over the frequency range
from UHF through Ku band.
Switch applications include high speed switches (ECM systems), TR or lobing
switches, channel or antenna selection switches (telecommunications), duplexers
(radar) and digital phase shifters (phased arrays).
The GC4400 series can be used in RF circuits as an on/off at moderate RF power
levels.
Attenuator type applications include amplitude modulators, AGC attenuators, power
levelers and level set attenuators.
1 Products are supplied with a Gold finish and are
suitable for RoHS complaint assembly. Consult
factory for details.
APPLICATIONS/BENEFITS
TR Switches
Antenna Selector Switches
Duplexers
Digital Phase Shifters
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Leakage Current @80%
Minimum Rated V
B
Leakage Current @80%
Minimum Rated V
B
Operating Temperature
Storage Temperature
GC441X
GC443X
GC449X
Symbol
I
R
I
R
T
OP
T
STG
Value
0.5
1.0
-55 to +150
-65 to +200
Unit
uA
uA
GC4410 - GC4495
ºC
ºC
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
www.MICROSEMI.com
H
Specifications are subject to change, consult the factory for further information.
These devices are ESD sensitive and must be handled using ESD precautions.
Copyright
2006
Rev: 2009-02-03
Microsemi
Microwave Products
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
Page 1
GC4410 – GC4495
TM
®
CONTROL DEVICES – HIGH VOLTAGE PIN DIODES
RoHS Compliant
.
ELECTRICAL CHARACTERISTICS AT 25 ˚C
Model Number
V
b
(V)
I
R
=10uA
(Min)
GC4410
GC4411
GC4412
GC4413
3
1
C
j
(pF)
V
R =
50V
(Max)
0.10
0.25
0.50
0.75
0.10
0.25
0.50
0.75
0.10
0.25
0.50
0.75
1.30
2.50
R
s 2
(Ω)
I
F
= 100 mA
F=100 MHz
(Max)
0.6
0.5
0.4
0.3
1.5
1.2
1.0
0.8
1.5
1.2
1.0
0.8
0.35
0.30
T
L
(uS)
I
R
=6 mA
I
F
=10 mA
(Typ)
0.4
0.6
0.8
1.2
0.6
1.2
1.5
2.0
1.0
2.0
3.0
5.0
6.0
7.5
P
(˚C/W)
THERMAL
RESISTANCE
(Max)
2
www.MICROSEMI.com
100
100
100
100
300
300
300
300
750
750
750
750
750
750
40
25
20
10
40
30
20
10
30
25
20
10
7
5
GC4430
GC4431
GC4432
GC4433
3
GC4490
GC4491
GC4492
GC4493
3
GC4494
GC4495
1. Capacitance is measured at 1 MHz and -50 volts.
2. Resistance is measured using transmission loss techniques using a 30 style package.
3. These devices are not available in all case styles. Please consult the factory for specific package styles offered.
DEVICE NOTES
The tabulated specifications above are for package style 00. Diodes are
also available in various packaged configurations. Some limitations apply.
Consult factory for details.
Each type offers trade offs in series resistance, junction capacitance, carrier
lifetime and breakdown voltage; the proper choice of which depends on the
end application. Reverse polarity diodes (NIP) and faster speed PIN and
NIP diodes are also available. (See data sheets for GC4500, GC4200, and
GC4300 series respectively.)
E
LECTRICAL
E
LECTRICAL
Copyright
2006
Rev: 2009-02-03
Microsemi
Microwave Products
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
Page 2

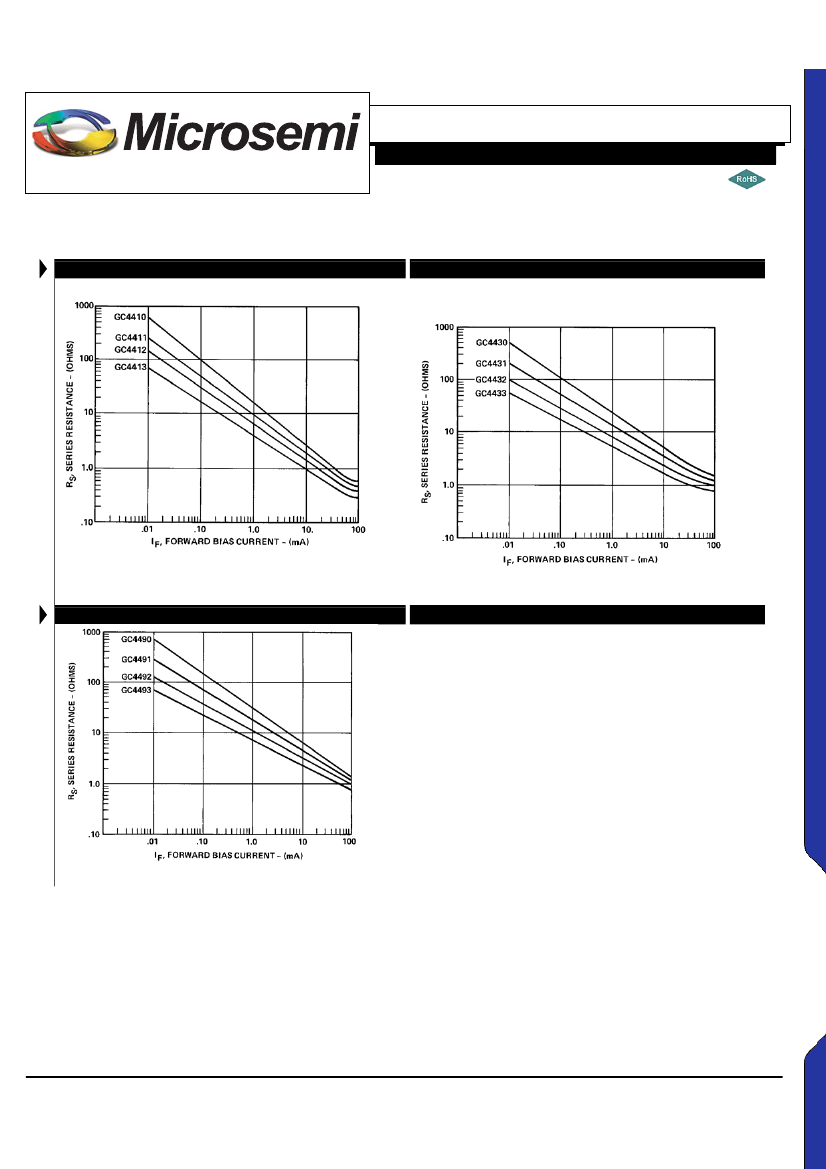

GC4410 – GC4495
TM
®
CONTROL DEVICES – HIGH VOLTAGE PIN DIODES
RoHS Compliant

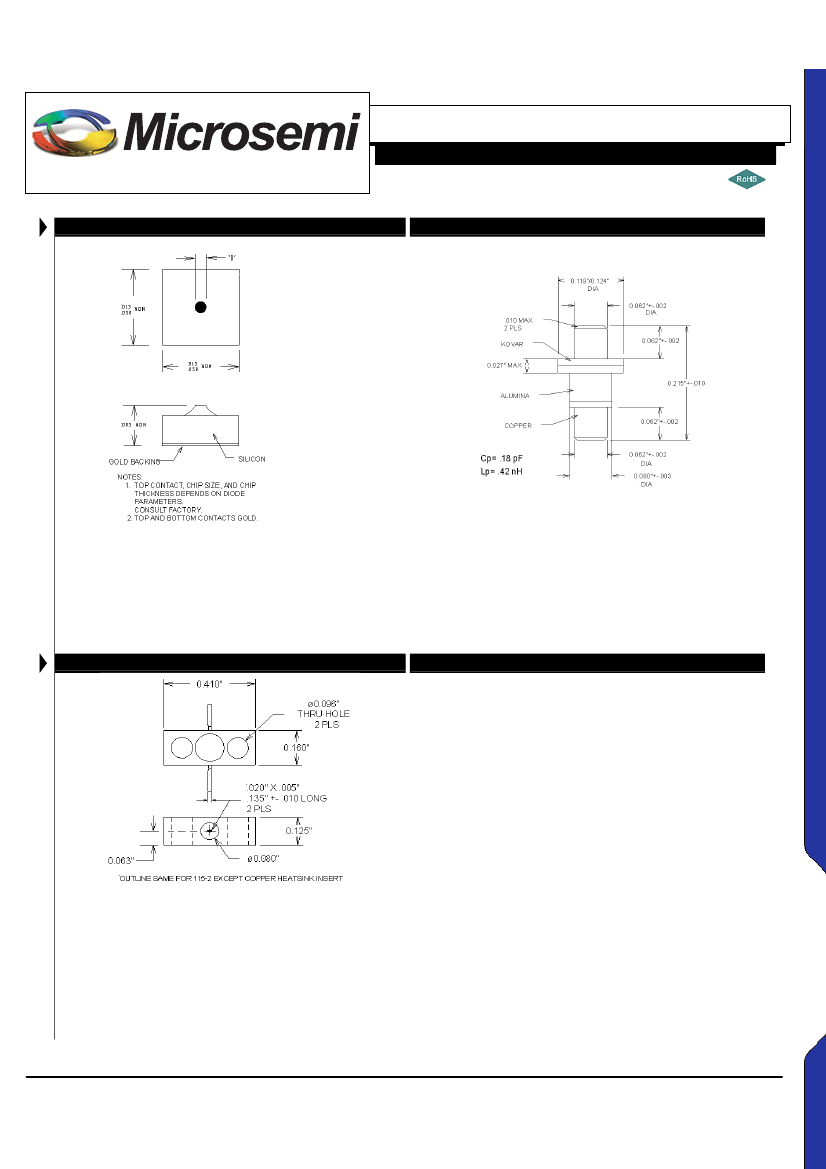

PACKAGE STYLE 00
PACKAGE SYLE 30
www.MICROSEMI.com
Notes:
-
-
-
Dimensions vary by model number
Consult factory for details
Order as GC44xx – 00
PACKAGE STYLE 115
Notes:
-
Order as GC44xx – 30
MECHANICAL
MECHANICAL
Notes:
-
Order as GC44xx – 115
OTHER PACKAGE STYLES AVAILABLE ON REQUEST
CONSULT FACTORY
Copyright
2006
Rev: 2009-02-03
Microsemi
Microwave Products
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
Page 4
