SMDA24C-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMDA24C-8

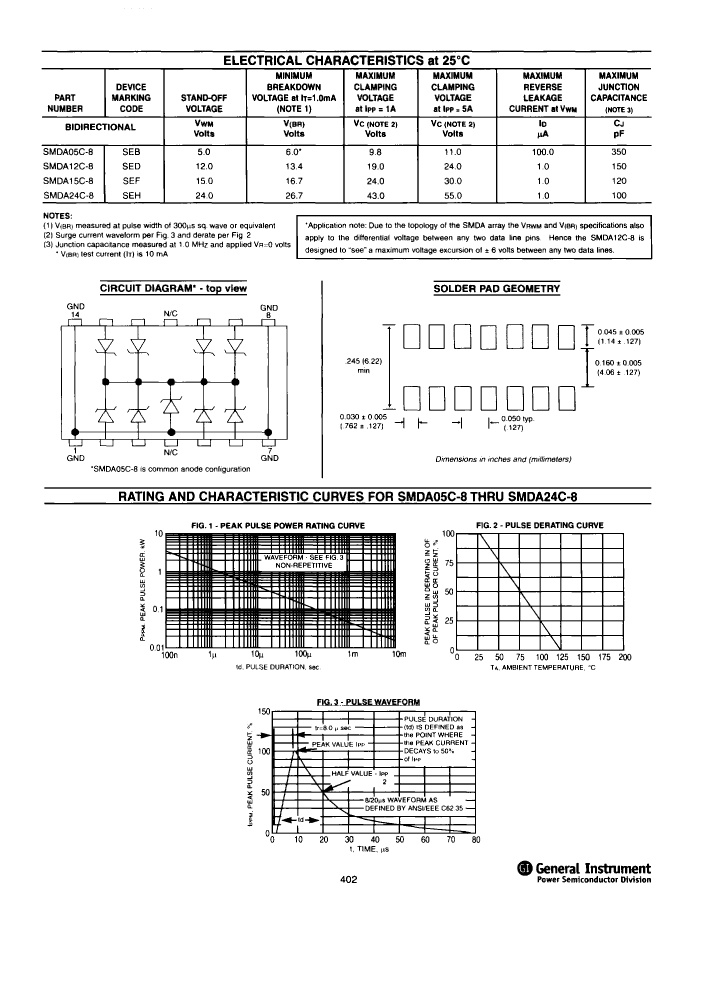

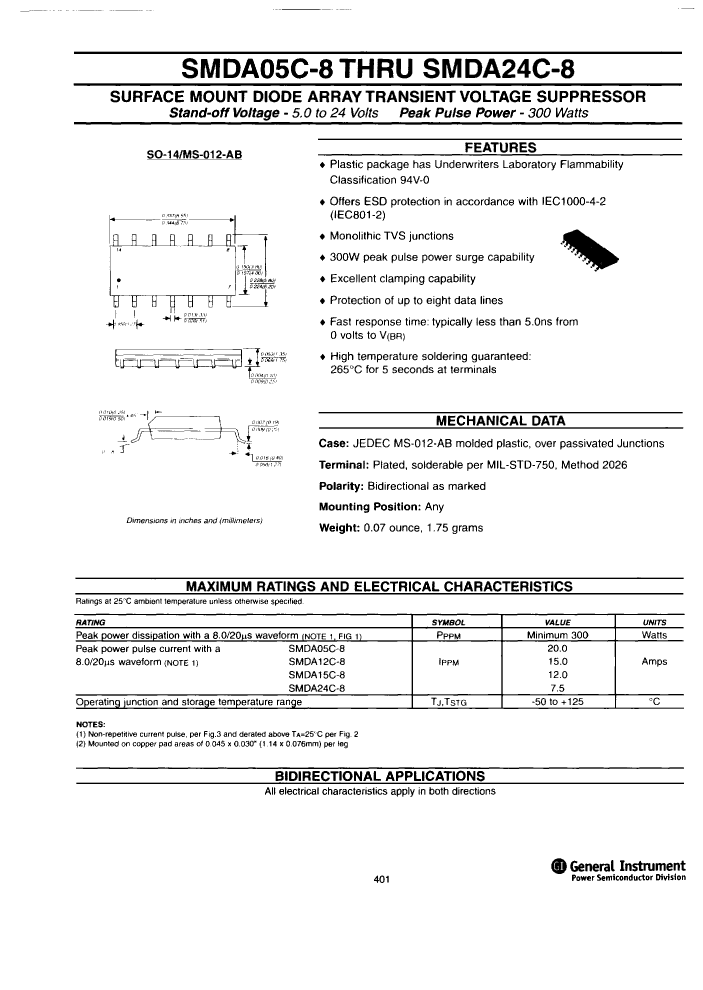

Preview

SMDA24C-8: DescriptionTrans Voltage Suppressor Diode, 300W, 24V V(RWM), Bidirectional, 8 Element, Silicon, MS-012AB, MS-012AB, 14 PIN; CategoryDiscrete semiconductor diode; File Size70KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

SMDA24C-8 Overview

Trans Voltage Suppressor Diode, 300W, 24V V(RWM), Bidirectional, 8 Element, Silicon, MS-012AB, MS-012AB, 14 PIN

SMDA24C-8 Parametric

Parameter Name	Attribute value
Maker	General Instrument Corp
package instruction	MS-012AB, 14 PIN
Reach Compliance Code	unknown
Other features	COMMON BIDIRECTIONAL ELEMENT
Minimum breakdown voltage	26.7 V
Maximum clamping voltage	55 V
Configuration	COMMON BIPOLAR TERMINAL, 8 ELEMENTS
Minimum diode capacitance	100 pF
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	MS-012AB
JESD-30 code	R-PDSO-G14
Maximum non-repetitive peak reverse power dissipation	300 W
Number of components	8
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	24 V
Maximum reverse current	1 µA
surface mount	YES
technology	AVALANCHE
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

SMDA24C-8 Related Products

	SMDA24C-8	SMDA05C-8	SMDA12C-8	SMDA15C-8
Description	Trans Voltage Suppressor Diode, 300W, 24V V(RWM), Bidirectional, 8 Element, Silicon, MS-012AB, MS-012AB, 14 PIN	Trans Voltage Suppressor Diode, 300W, Bidirectional, 8 Element, Silicon, MS-012AB, MS-012AB, 14 PIN	Trans Voltage Suppressor Diode, 300W, 12V V(RWM), Bidirectional, 8 Element, Silicon, MS-012AB, MS-012AB, 14 PIN	Trans Voltage Suppressor Diode, 300W, 15V V(RWM), Bidirectional, 8 Element, Silicon, MS-012AB, MS-012AB, 14 PIN
Maker	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp
package instruction	MS-012AB, 14 PIN	MS-012AB, 14 PIN	MS-012AB, 14 PIN	MS-012AB, 14 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	COMMON BIDIRECTIONAL ELEMENT	COMMON BIDIRECTIONAL ELEMENT	COMMON BIDIRECTIONAL ELEMENT	COMMON BIDIRECTIONAL ELEMENT
Minimum breakdown voltage	26.7 V	6 V	13.4 V	16.7 V
Maximum clamping voltage	55 V	11 V	24 V	30 V
Configuration	COMMON BIPOLAR TERMINAL, 8 ELEMENTS	COMMON BIPOLAR TERMINAL, 8 ELEMENTS	COMMON BIPOLAR TERMINAL, 8 ELEMENTS	COMMON BIPOLAR TERMINAL, 8 ELEMENTS
Minimum diode capacitance	100 pF	350 pF	150 pF	120 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	MS-012AB	MS-012AB	MS-012AB	MS-012AB
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
Maximum non-repetitive peak reverse power dissipation	300 W	300 W	300 W	300 W
Number of components	8	8	8	8
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
polarity	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	1 µA	100 µA	1 µA	1 µA
surface mount	YES	YES	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum repetitive peak reverse voltage	24 V	-	12 V	15 V
