KV1401 – KV1801
TM
®
VARACTOR DIODES
HF/VHF Super Hyperabrupt Junction
RoHS Compliant
DESCRIPTION
These super hyperabrupt varactor diodes are ideal for tuning LC resonant
circuits from video frequencies through VHF with frequency ratios as high
as 4 to 1. They are also ideal for wide deviation voltage controlled
oscillators and voltage controlled crystal oscillators. Two volt capacitance
values range from 57 to 350 pF are offered in this designer-oriented family.
These diodes feature exceptionally large capacitance ratios, very high Q,
straight-line frequency performance over a 1.5 to 4 volt tuning range.
They are also available in closely matched sets as well as tight Ct
tolerance options. Consult the factory for details.
The standard Super Hyperabrupt series of devices meet RoHS
requirements per EU Directive 2002/95/EC, including the discrete chip
(style 00) and package styles 30 and 17. The standard axial device (style
11) is not RoHS compliant. Please consult the factory for ordering
information for the RoHS version of the 11 style package.
KEY FEATURES
Available as packaged devices or
as chips for hybrid applications
Octave Tuning Range
Ultrahigh Q
Tough MIL-Spec Glass
Passivation
Precision Grown Junction Epitaxy
Available with 5% Tolerance C
T
ROHS Compliant
1
www.MICROSEMI.com
APPLICATIONS
Ultrahigh Q and excellent large signal handling capabilities, along with a
greater than 10 to 1 capacitance ratio, is obtained by tuning from 2 to 10
volts of reverse bias. These diodes are well suited for linear, wide deviation
tuning of VCXO/TCXO’S and frequency modulators as well as analog
phase shifters, receiver preselectors, and active antenna matching units.
APPLICATIONS/BENEFITS
HV-VHF VCO’s
TCXOs and VCXOs
Analog phase shifters
Frequency Modulators
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Maximum Working Voltage
Storage Temperature
Operating Temperature
Symbol
V
R
T
STG
T
OP
Value
12
-55 to +125
-65 to +200
Unit
V
Preselectors
KV1401-KV1801
KV1401-KV1801
ºC
ºC
IMPORTANT:
For the most current data, consult our website:
www.MICROSEMI.com
Specifications are subject to change. Consult factory for the latest information
.
These devices are ESD sensitive and must be handled using ESD precautions.
Unless otherwise specified, these products
are supplied with Gold terminations suitable
for RoHS compliant assembly.
1
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748

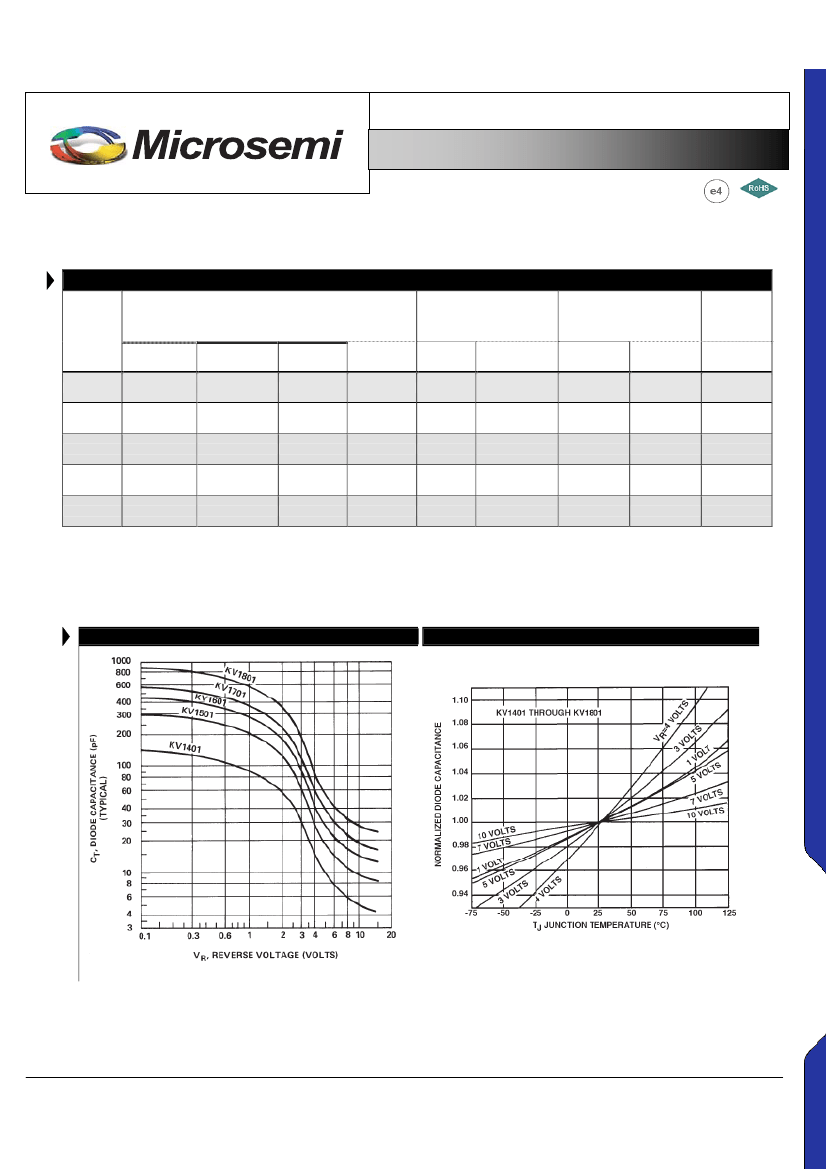

KV1401 – KV1801
TM
®
VARACTOR DIODES
HF/VHF Super Hyperabrupt Junction
RoHS Compliant

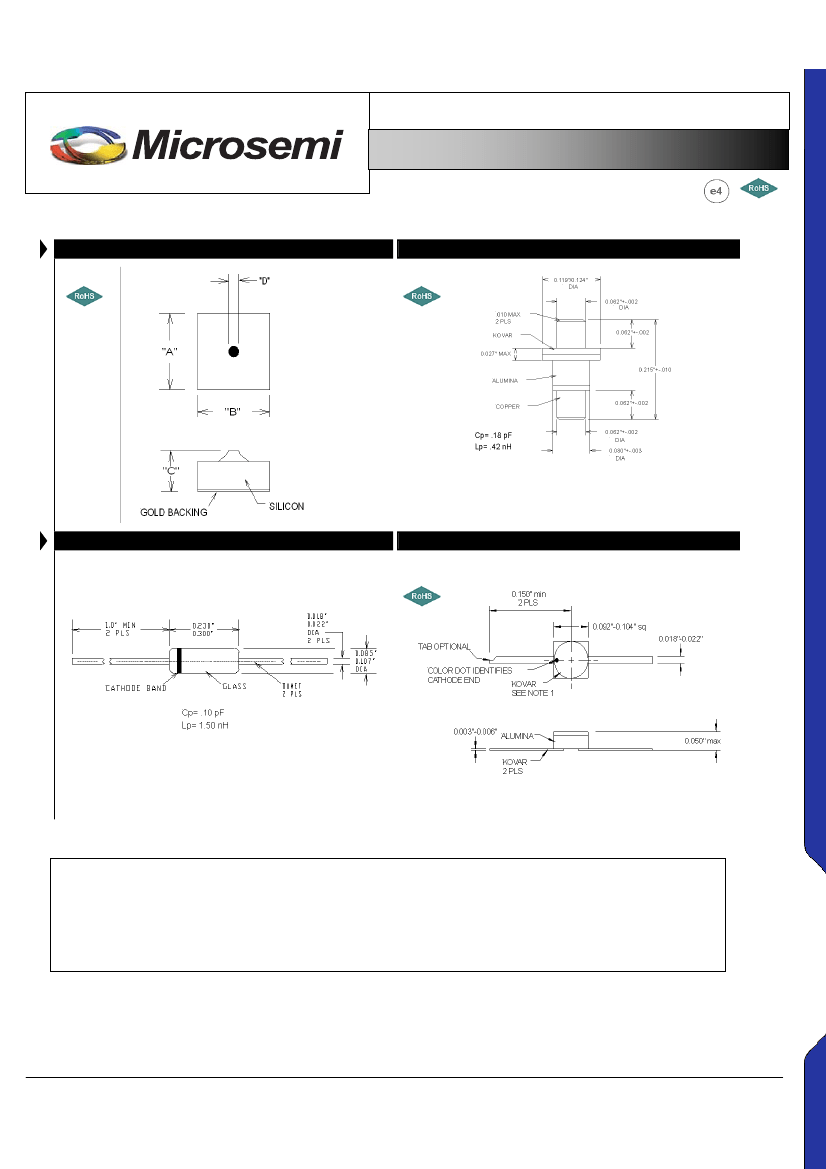

PACKAGE STYLE 00
(NOTE1)
PACKAGE STYE 30
www.MICROSEMI.com
PACKAGE STYLE 11
PACKAGE STYLE 17
The standard 11pkg is not RoHS compliant.
Consult factor for RoHS compliant version.
TYPICAL PACKAGE SYLES
Microsemi offers a variety of package styles to meet specific application requirements. Some limitations apply. Consult factory for
details.
Notes:
1.
MECHANICAL
MECHANICAL
Chip dimensions vary by device characteristics / model number. Please consult the factory for details.
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 3
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
