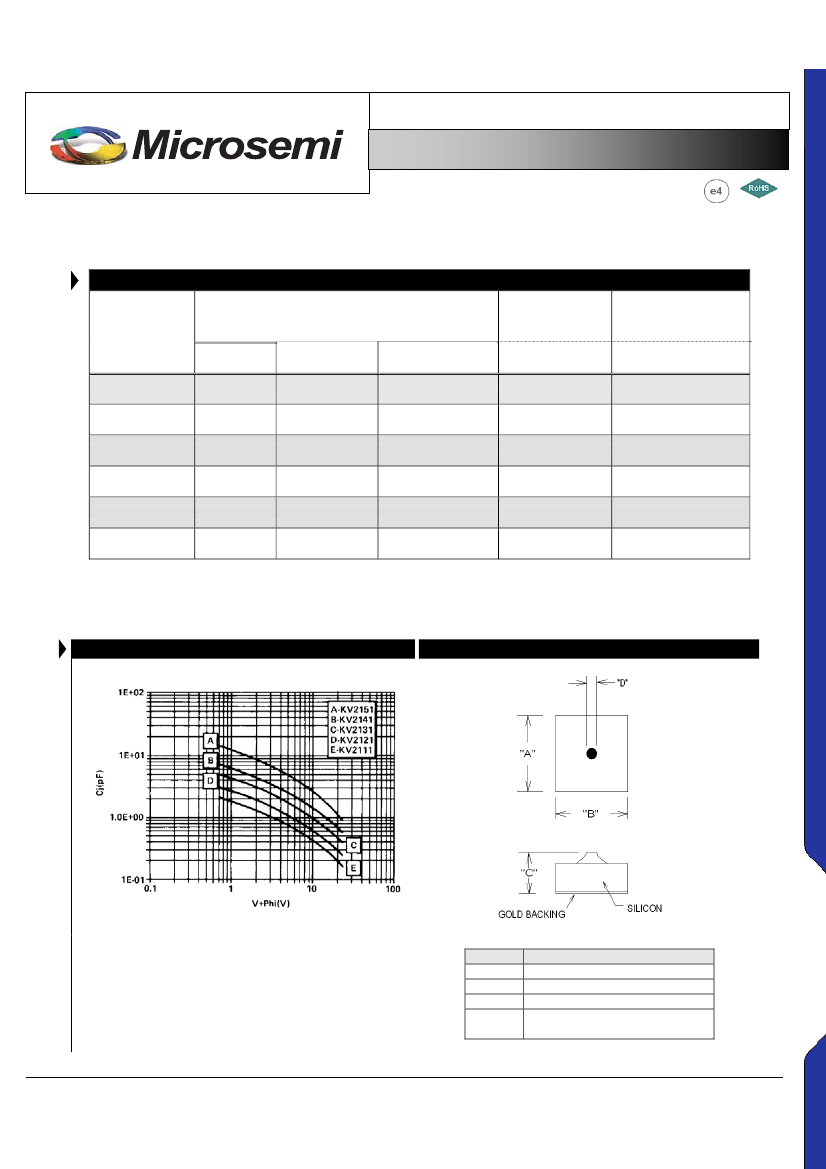

KV2111 – KV2161
TM
®
VARACTOR DIODES
Microwave Hyperabrupt Junction
RoHS Compliant
DESCRIPTION
The KV2100 series of microwave hyperabrupt varactor diodes offers octave
tuning through 8 GHz. High reliability passivated construction, insures
excellent VCO settling time and post tuning drift characteristics. As with
their UHF counterparts, straight-line tuning can be achieved over a mid
voltage bias range. They are available in a wide range of package styles
and configurations including matched sets with tighter tolerances. As is the
case with all microwave applications, chip devices (style 00) are
recommended for best wide bandwidth and highest frequency
performance. When ordering specify the desired case style by adding its
number as a suffix to the basic model number. Some limitations apply.
Consult factory for details.
KEY FEATURES
Available as packaged devices or
as chips for hybrid applications
Octave Tuning Range
Ultrahigh Q
Available With 5% C
T
Tolerance
www.MICROSEMI.com
APPLICATIONS
Ultrahigh Q and excellent large signal handling capabilities, along with a
greater than 4 to 1 capacitance ratio, is obtained by tuning from 4 to 20
volts of reverse bias.
These products are ideal for linear, wide deviation tuning of VCXO/TCXO’S
and frequency modulators results when these diodes are tuned over a 3 to
8 volt bias range.
APPLICATIONS/BENEFITS
HV-VHF VCXO & TCXO
Applications
Frequency Modulators
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Maximum Working Voltage
Storage Temperature
Operating Temperature
Symbol
V
R
T
STG
T
OP
Value
22
-65 to +150
-55 to +150
Unit
V
ºC
ºC
KV2111-KV2161
KV2111-KV2161
IMPORTANT:
For the most current data, consult our website:
www.MICROSEMI.com
Specifications are subject to change. Consult factory for the latest information
.
These devices are ESD sensitive and must be handled using ESD precautions.
Unless otherwise specified, these products
are supplied with Gold terminations suitable
for RoHS compliant assembly.
1
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
KV2111 – KV2161
TM
®
VARACTOR DIODES
Microwave Hyperabrupt Junction
RoHS Compliant
MICROWAVE HYPERABRUPT VARACTORS
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
C
J
(pF)
MODEL
NUMBER
V
R
= 0V (typ)
KV2111-00
KV2121-00
KV2131-00
KV2141-00
KV2151-00
KV2161-00
Notes
2.1
3.1
4.9
7.2
14.0
26.0
ƒ = 1 MHz
www.MICROSEMI.com
Min / Typ / Max
V
R
= 4V
0.70 / 0.80 / 0.90
1.15 / 1.3 / 1.45
1.6 / 1.8 / 2.0
2.5 / 2.8 / 3.1
4.3 / 4.8 / 5.3
8.6 / 9.6 / 10.6
V
R
= 20V
0.15 / 0.20 / 0.25
0.25 / 0.30 / 0.35
0.35 / 0.42 / 0.50
0.50 / 0.60 / 0.70
0.80 / 0.95 / 1.10
1.7 / 1.9 / 2.3
Capacitance
Ratio
Typ.
C(-4V) / C(-20V)
4.0
4.3
4.3
4.7
5.0
5.1
Quality
1
Factor
Min
Q @ -4V
ƒ = 50MHz
1200
1000
850
700
600
400
1)
Q is determined at V
R
= 4V, ƒ=50 MHz by
1 / 2
fRsCj
PACKAGE STYLE 00
CJ VS VOLTAGE
KV2111 – KV2161
KV2111 – KV2161
Dimension
Nominal
0.015”
0.015”
0.007”
Depends on Part#
Consult Factory for Details
Microsemi offers a wide selection of package options
depending on your circuit application. Please consult
the factory for assistance.
A
B
C
D
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 2
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
