MT8965AE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> MT8965AE

MT8965AE: DescriptionPCM Codec, A-Law, 1-Func, CMOS, PDIP18,; CategoryWireless rf/communication Telecom circuit; File Size750KB，21 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MT8965AE Overview

PCM Codec, A-Law, 1-Func, CMOS, PDIP18,

MT8965AE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	DIP, DIP18,.3
Reach Compliance Code	unknown
Law of compression and extension	A-LAW
filter	YES
Maximum gain tolerance	0.25 dB
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
linear encoding	NOT AVAILABLE
Negative supply voltage rating	-5 V
Number of functions	1
Number of terminals	18
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5 V
Certification status	Not Qualified
Maximum slew rate	4 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Telecom integrated circuit types	PCM CODEC
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

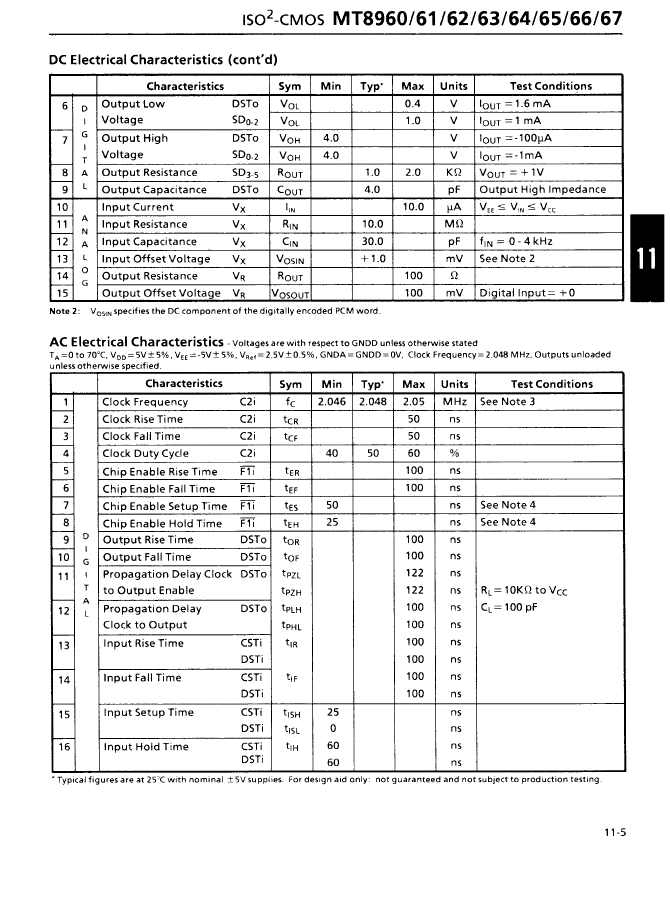

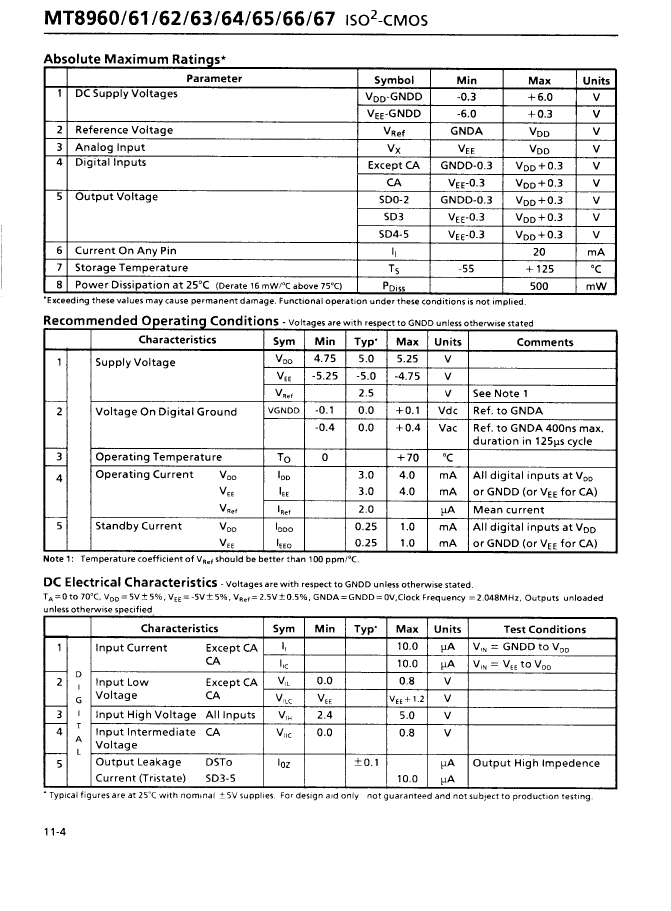

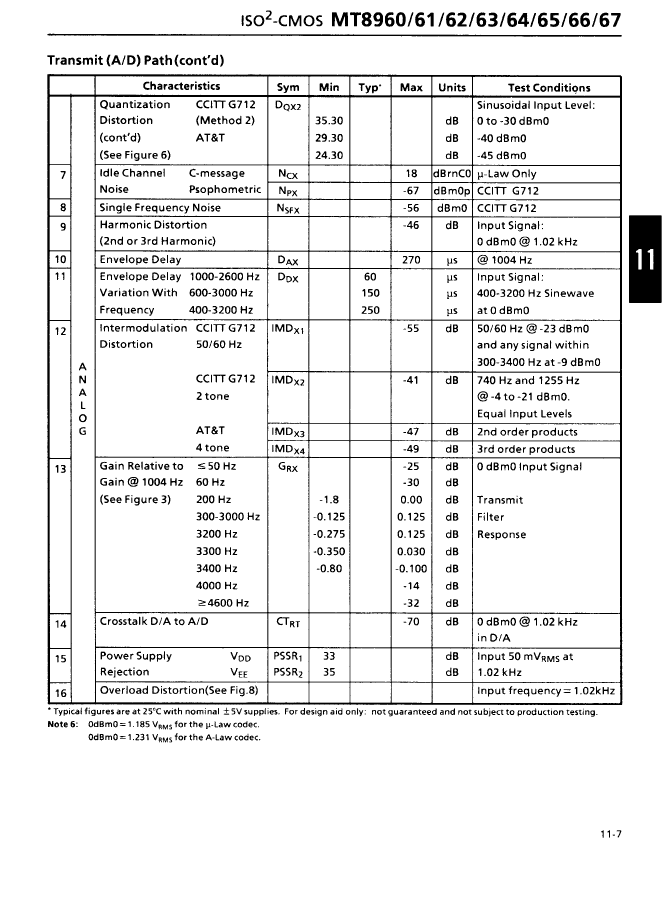

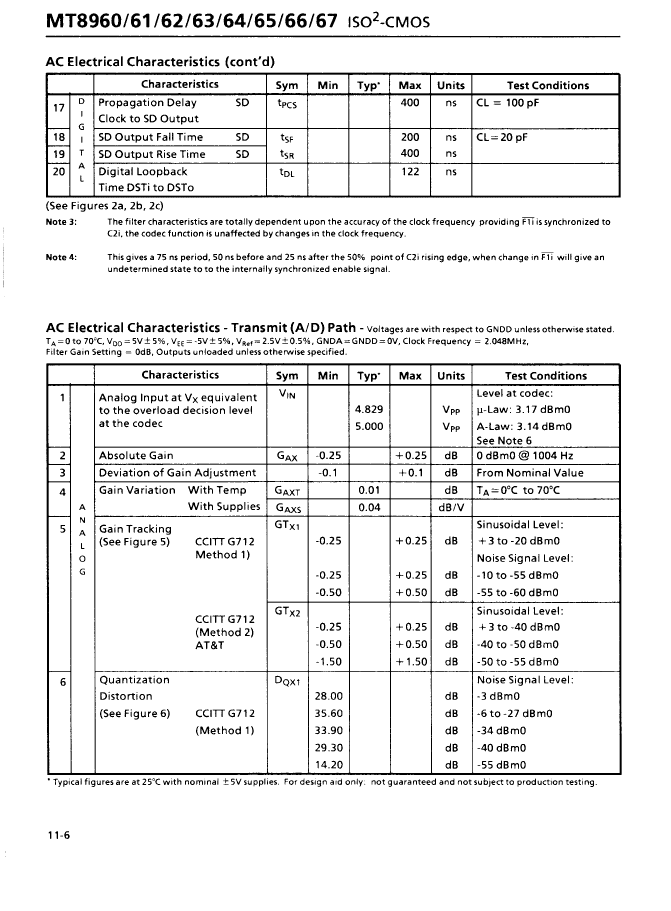

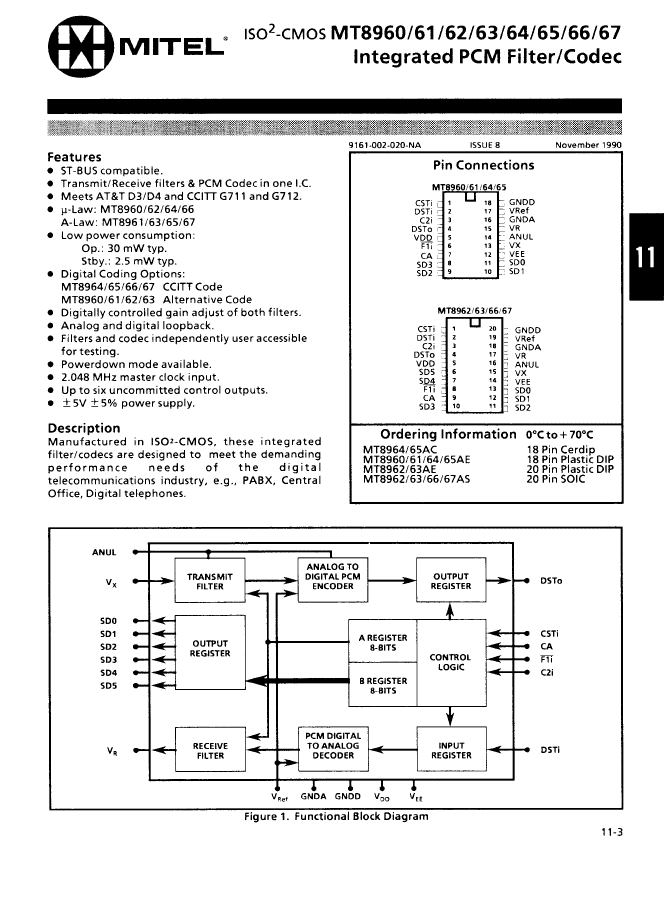

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MT8965AE Related Products

	MT8965AE	MT8967AS	MT8964AE	MT8966AS
Description	PCM Codec, A-Law, 1-Func, CMOS, PDIP18,	PCM Codec, A-Law, 1-Func, CMOS, PDSO20,	PCM Codec, MU-Law, 1-Func, CMOS, PDIP18,	PCM Codec, MU-Law, 1-Func, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknow
Law of compression and extension	A-LAW	A-LAW	MU-LAW	MU-LAW
filter	YES	YES	YES	YES
Maximum gain tolerance	0.25 dB	0.25 dB	0.25 dB	0.25 dB
JESD-30 code	R-PDIP-T18	R-PDSO-G20	R-PDIP-T18	R-PDSO-G20
linear encoding	NOT AVAILABLE	NOT AVAILABLE	NOT AVAILABLE	NOT AVAILABLE
Negative supply voltage rating	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1
Number of terminals	18	20	18	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP
Encapsulate equivalent code	DIP18,.3	SOP20,.4	DIP18,.3	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Telecom integrated circuit types	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP18,.3	-	DIP, DIP18,.3	SOP, SOP20,.4
JESD-609 code	e0	-	e0	e0
Operating mode	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS
Maximum slew rate	4 mA	-	4 mA	4 mA
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
