BD37513FS Overview

Silicon Monolithic Integrated Circuit

BD37513FS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	20
Reach Compliance Code	compli
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G20
JESD-609 code	e2
length	8.7 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	9.5 V
Minimum supply voltage (Vsup)	7 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

1/4

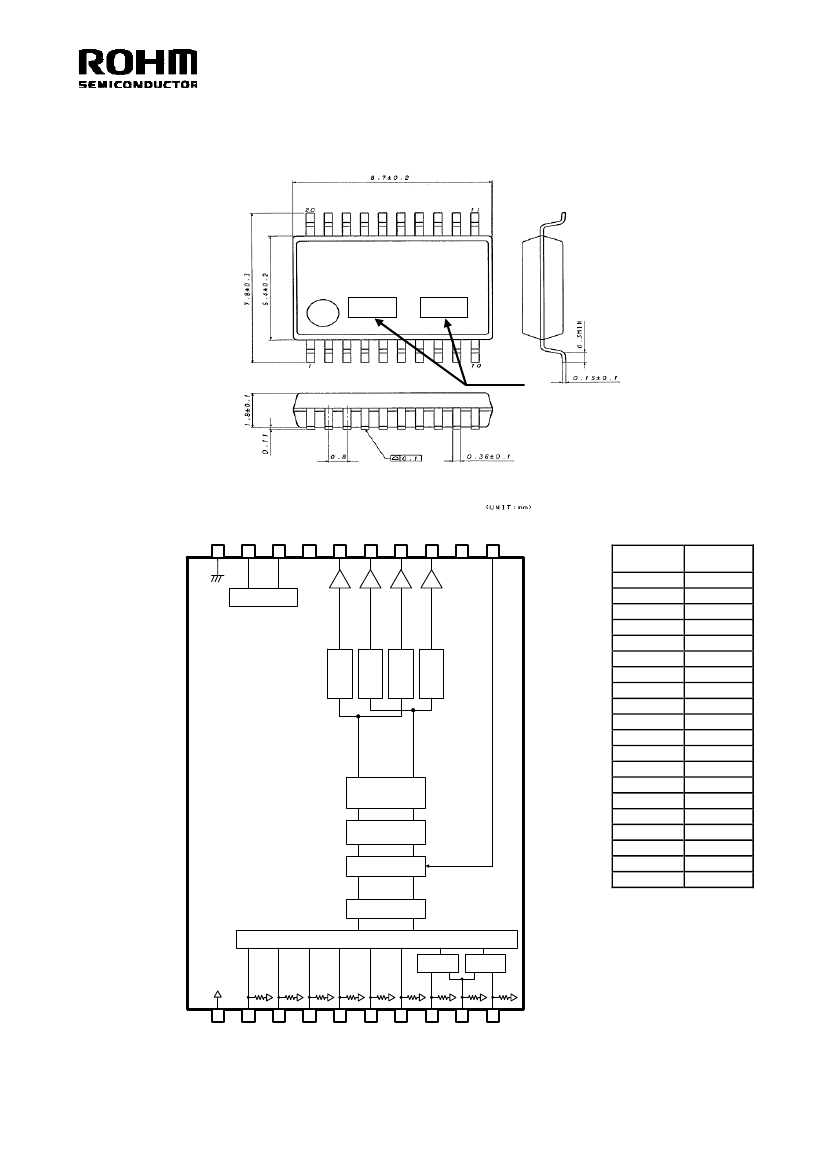

Structure

Product

Type:

Package:

Silicon Monolithic Integrated Circuit

Sound Processor for car audio

BD37513FS

SSOP-A20

●

Feature

1. Reduce switching noise of input gain control, mute, main volume, fader volume, bass, treble, loudness by using

advanced switch circuit [Possible to control all steps]

2. Built-in ground isolation amplifier inputs, ideal for external stereo input.

3. Built-in input gain controller reduce switching noise for volume of a portable audio input.

4. Decrease the number of external components by built-in 2-band equalizer filter, loudness filter. And, possible to

control Gv by I

C BUS control.

5. It is possible for the bass, treble to the gain adjustment quantity of

±20dB

and 1 dB step gain adjustment.

6. Bi-CMOS process is suitable for the design of low current and low energy. And it provides more quality for small

scale regulator and heat in a set.

7. Package is SSOP-A20. Putting input-terminals together and output-terminals together can make PCB layout

easier and can makes area of PCB smaller.)

8. It is possible to control by 3.3V / 5V for I

C BUS.

●

Absolute Maximum Ratings

(Ta=25℃)

Parameter

Power supply Voltage

Input voltage

Power Dissipation

Storage Temperature

Symbol

VCC

VIN

Tastg

Limits

10.0

VCC+0.3½GND-0.3

940

※1

-55½+150

Unit

℃

※1

At Ta＝25°C or higher, this value is decreaced to 7.5mW/°C

When Rohm standard board is mounted.

Rohm standard board:

Size：70×70×1.6(mm )

material：FR4 glass-epoxy substrate (copper foil area: not more than 3%).

●

Operating Range

Parameter

Power supply Voltage

Temperature

Symbol

VCC

Topr

Min.

7.0

-40

Typ.

－

Max.

9.5

+85

Unit

℃

※Design

against radiation-proof isn’t made.
