BZW06-19 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZW06-19

BZW06-19: DescriptionTrans Voltage Suppressor Diode, 600W, 18.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size65KB，4 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric View All

BZW06-19 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZW06-19	-	-	View	Buy Now

BZW06-19 Overview

Trans Voltage Suppressor Diode, 600W, 18.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2

BZW06-19 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-15
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW CAPACITANCE
Maximum breakdown voltage	23.1 V
Minimum breakdown voltage	20.9 V
Breakdown voltage nominal value	22 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	18.8 V
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

BZW06-5V8........ BZW06-376

BZW06-5V8B.... BZW06-256B

600 W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes

Dimensions in mm.

DO-15

(Plastic)

Peak Pulse

Power Rating

At 1 ms. Exp.

600 W

Reverse

stand-off

Voltage

5.8 ÷ 376 V

6.35

± 0.2

58.5

±0.5

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 °C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

2 mm. to the body.

•

Glass passivated junction

•

Low Capacitance AC signal protection

•

Response time typically < 1 ns.

•

Molded case

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial leads

•

Polarity: Color band denotes

Cathode except bidirectional types

Maximum Ratings, according to IEC publication No. 134

FSM

stg

M(AV)

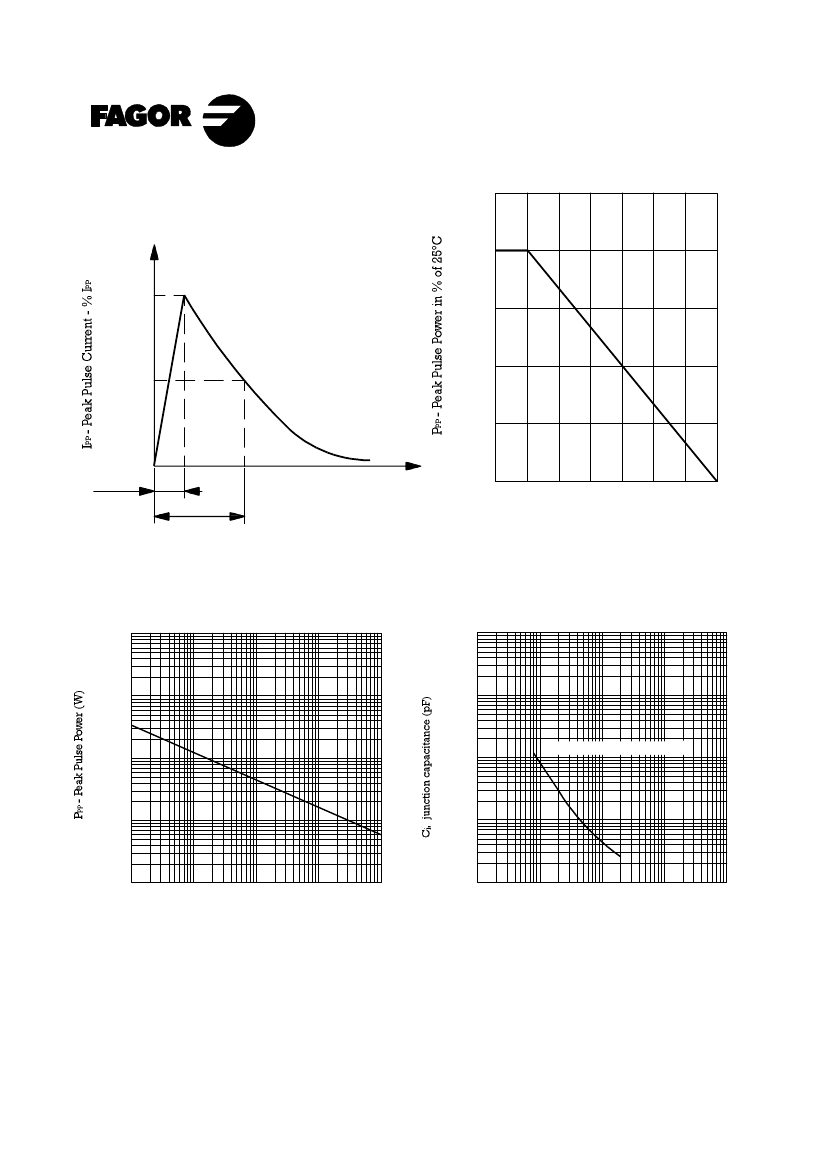

Peak pulse power with 10/1000 µs

exponential pulse

Non repetitive surge peak forward

current (t = 10 ms)

(Note 1)

Operating temperature range

Storage temperature range

Steady state Power dissipation (l = 10 mm)

600 W

100 A

– 65 to + 175 °C

Electrical Characteristics at Tamb = 25 °C

thj-l

Max. forward voltage

drop at I

= 50 A

(Note 1)

220 V

> 220 V

3.5 V

5.0 V

30 °C/W

Max. thermal resistance (1 = 10 mm.)

Note 1: Valid only for Unidirectional.

Jan - 00
