81-182-RFX: DescriptionRF UHF Connector, Female, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size227KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

81-182-RFX Overview

RF UHF Connector, Female, Cable Mount, Crimp Terminal, Jack

81-182-RFX Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	APPLICABLE CABLE: RG-59/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF UHF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYPROPYLENE
MIL compliance	NO
Manufacturer's serial number	MINI-UHF
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	2.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

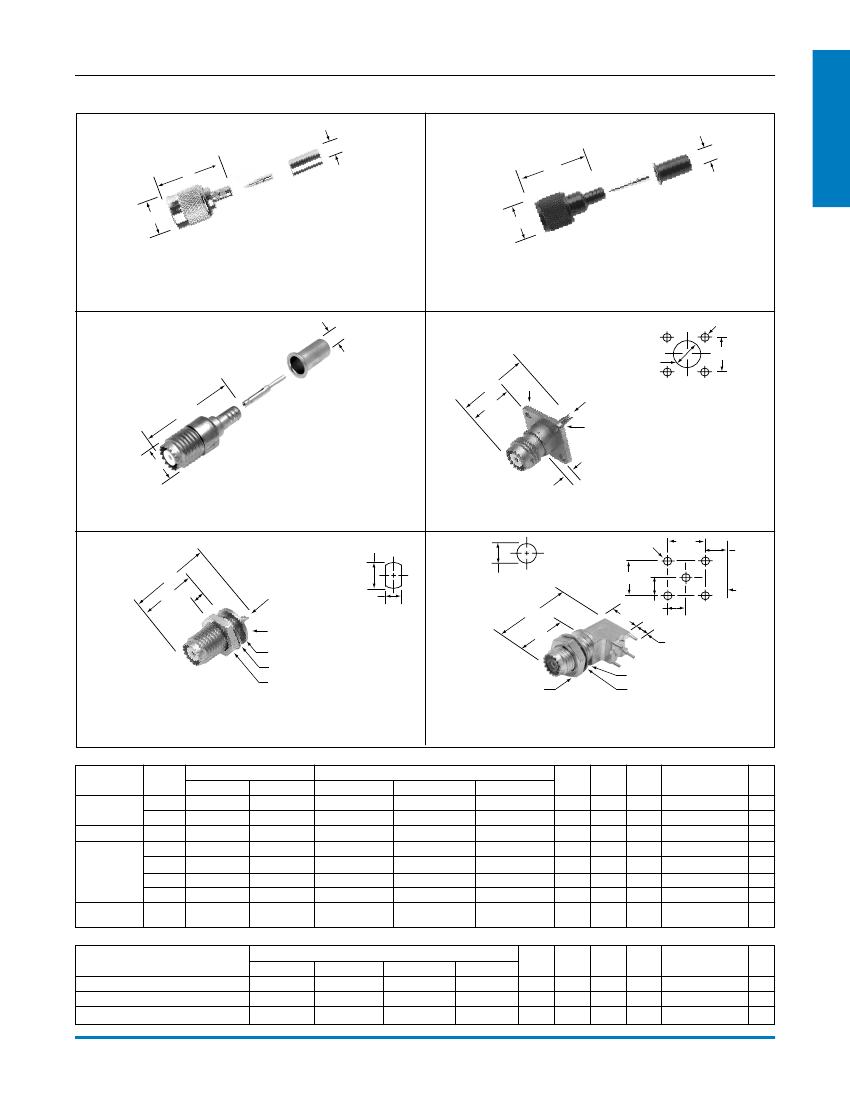

Mini-UHF

Fig. 1

c•

Amphenol

®

Fig. 2

c•

Mini-UHF

a

b

Crimp Type Plugs with bright nickel finish

81-115N-1000

81-196-RFX

81-114-RFX

81-181-RFX

Fig. 3

c•

Crimp Type Plug with black chromate finish

81-115BK-1000

Fig. 4

.390

(9.9)

dia.

.096(2.4) dia.

4 places

.436(11.1)

a

c

b

.064

(1.6) i.d.

solder cup

.082 thick

e

max. panel

L

Mini-UHF

b

Crimp Type Jack

81-116

81-182-RFX

81-183-RFX (Diecast)

.390(9.9)dia.

a

c

e

max.

panel

Panel Receptacle (J)

81-118-1001

Fig. 6

.390(9.9)

.320(8.1)

U

a

c

b

Y

.047(1.2) dia

5 holes

.300(

7.6)

.200

(5.1)

Fig. 5

.064(1.6) i.d.

solder cup

.300(7.6)

edge of

P.C. board

.150

(3.8)

B

.120(3.0)

.082 thick

b

lock washer

.500(12.7)

hex nut

.500(12.7)

hex nut

e

max panel

lock washer

Bulkhead Receptacle (J)

81-120

PCB Angle Bulkhead Receptacle (J)

81-119-1007

Dimensions Inches (mm)

b

s

MINI UHF PLUGS & JACKS

Cable

RG-/U

59

58/U, 58 B/U

58

Conn.

Type

Jack

Plug

Jack

Belden 9258

8X Type

Plug

Cable Attachment

Outer

Inner

Crimp

CAI

c

q

Plt.

P15

P35

P5

P15

Ins.

D1

D23

D9

D14

D23

D1

a

1.24(31.5)

1.14(28.9)

1.17(29.7)

1.01(25.7)

1.21(30.7)

Amphenol

Number

81-182-RFX

81-181-RFX

81-196-RFX

81-115N-1000

81-115BK-1000

81-116

81-183-RFX

81-114-RFX

Fig.

3

1

2

3

1

v

.375(9.5)

.453(11.5)

.447(11.3)

.375(9.50)

—

.447(11.3)

.260(6.6)

.210(5.3)

.206(5.2)

—

.256(6.5)

C39

MINI UHF RECEPTACLES

Connector

Type

Panel Receptacle (J)

Bulkhead Receptacle (J)

PCB Angle Bulkhead Receptacle (J)

a

.925(23.5)

.901(22.9)

1.13(28.8)

Dimensions Inches (mm)

b

c

.625(15.9) sq

.500(12.7) dia

.598(15.2)

.487(12.4)

.630(16.0)

.575(14.6)

CAI

e

.187(4.7)

w

.125(3.2)

—

P5

P36

D14

D1/26

Plt.

Ins.

MTG

Hole

L

U

Y/B

Amphenol

Number

81-118-1001

81-120

81-119-1007

Fig.

4

5

6

• accommodates cable diameter

v

distributor stocked

w

max. panel when rear mounted thru panel

s

includes outer ferrule

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

195

81-182-RFX Related Products

	81-182-RFX	81-119-1007	81-118-1001	81-181-RFX	81-183-RFX	81-196-RFX
Description	RF UHF Connector, Female, Cable Mount, Crimp Terminal, Jack	RF UHF Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF UHF Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle	RF UHF Connector, Male, Cable Mount, Crimp Terminal, Plug	RF UHF Connector, Female, Cable Mount, Crimp Terminal, Jack	RF UHF Connector, Male, Cable Mount, Crimp Terminal, Plug
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	JACK	RECEPTACLE	RECEPTACLE	PLUG	JACK	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	FEMALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	MINI-UHF	MINI-UHF	MINI-UHF	MINI-UHF	MINI-UHF	MINI-UHF
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	BOARD	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	YES	YES	NO	NO	NO
Termination type	CRIMP	SOLDER	SOLDER	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.25	1.25	1.25	1.25	1.25	1.25
Other features	APPLICABLE CABLE: RG-59/U	-	-	APPLICABLE CABLE: RG-59/U	APPLICABLE CABLE: RG-58/U	APPLICABLE CABLES: RG-58/U; RG-59B/U
