B380C5000/3300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B380C5000/3300

B380C5000/3300: DescriptionBridge Rectifier Diode, 1 Phase, 4A, 900V V(RRM), Silicon, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size68KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

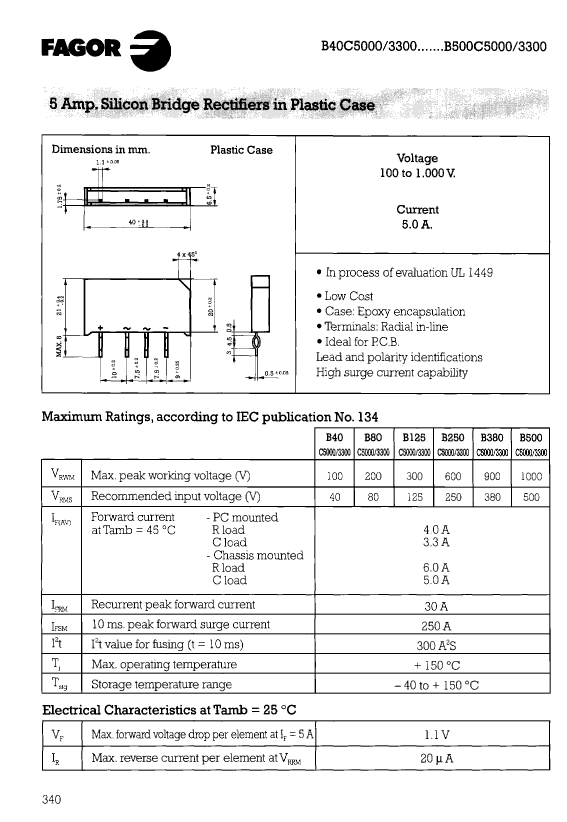

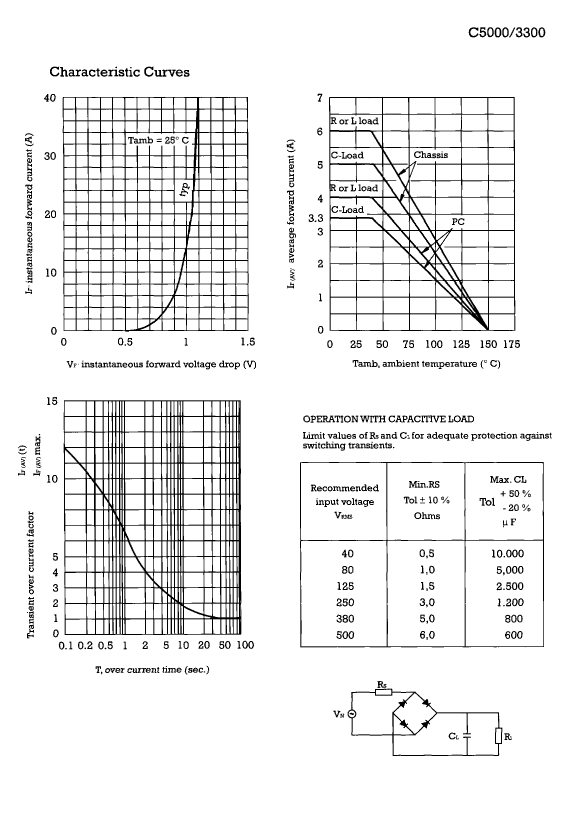

B380C5000/3300 Overview

Bridge Rectifier Diode, 1 Phase, 4A, 900V V(RRM), Silicon, PLASTIC PACKAGE-4

B380C5000/3300 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
package instruction	R-PSIP-T4
Contacts	4
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSIP-T4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	250 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	4 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	900 V
surface mount	NO
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

B380C5000/3300 Related Products

	B380C5000/3300	B125C5000/3300	B500C5000/3300	B250C5000/3300	B80C5000/3300	B40C5000/3300
Description	Bridge Rectifier Diode, 1 Phase, 4A, 900V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, 300V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, 600V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, 200V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, 100V V(RRM), Silicon, PLASTIC PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	PLASTIC PACKAGE-4	PLASTIC PACKAGE-4	PLASTIC PACKAGE-4
Contacts	4	4	4	4	4	4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Humidity sensitivity level	1	1	1	1	1	1
Maximum non-repetitive peak forward current	250 A	250 A	250 A	250 A	250 A	250 A
Number of components	4	4	4	4	4	4
Phase	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	4 A	4 A	4 A	4 A	4 A	4 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	900 V	300 V	1000 V	600 V	200 V	100 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Fagor Electrónica	-	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
