B80C3700/2200 datasheet, PDF - EEWORLD Datasheet

B80C3700/2200: DescriptionBridge Rectifier Diode, 3.7A, 200V V(RRM),; CategoryDiscrete semiconductor diode; File Size612KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

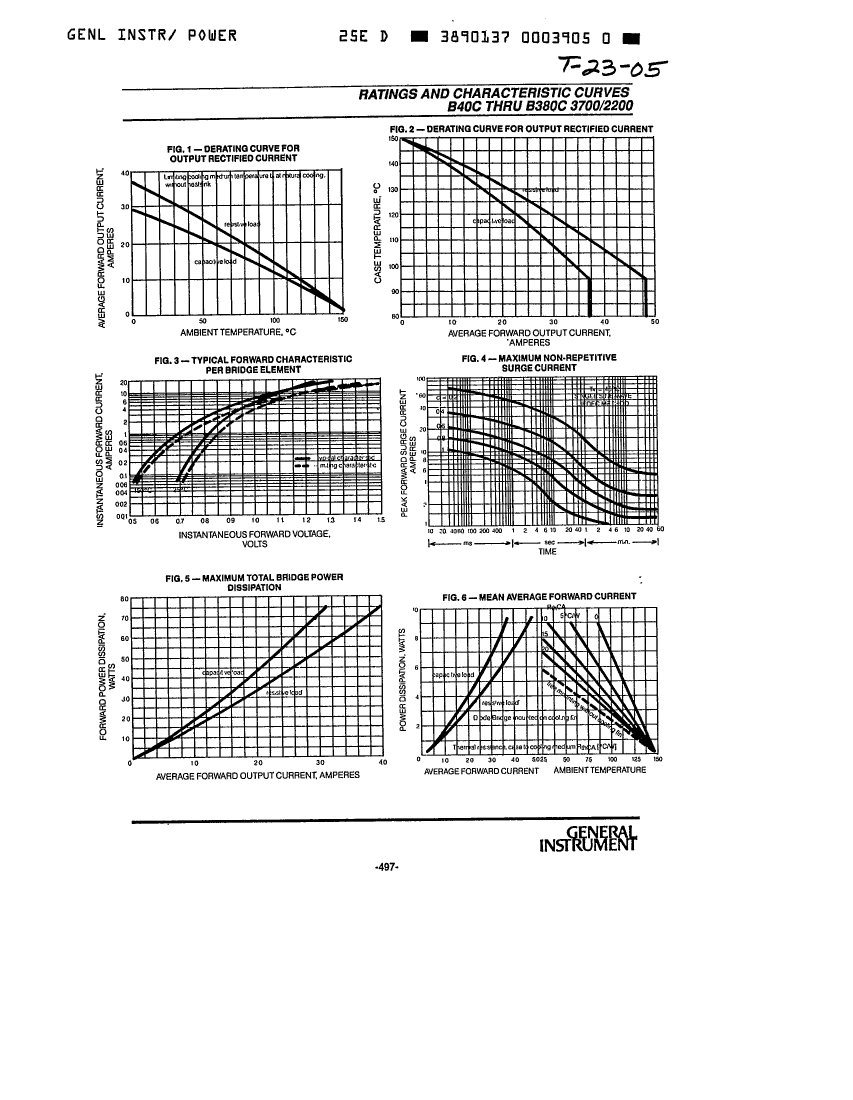

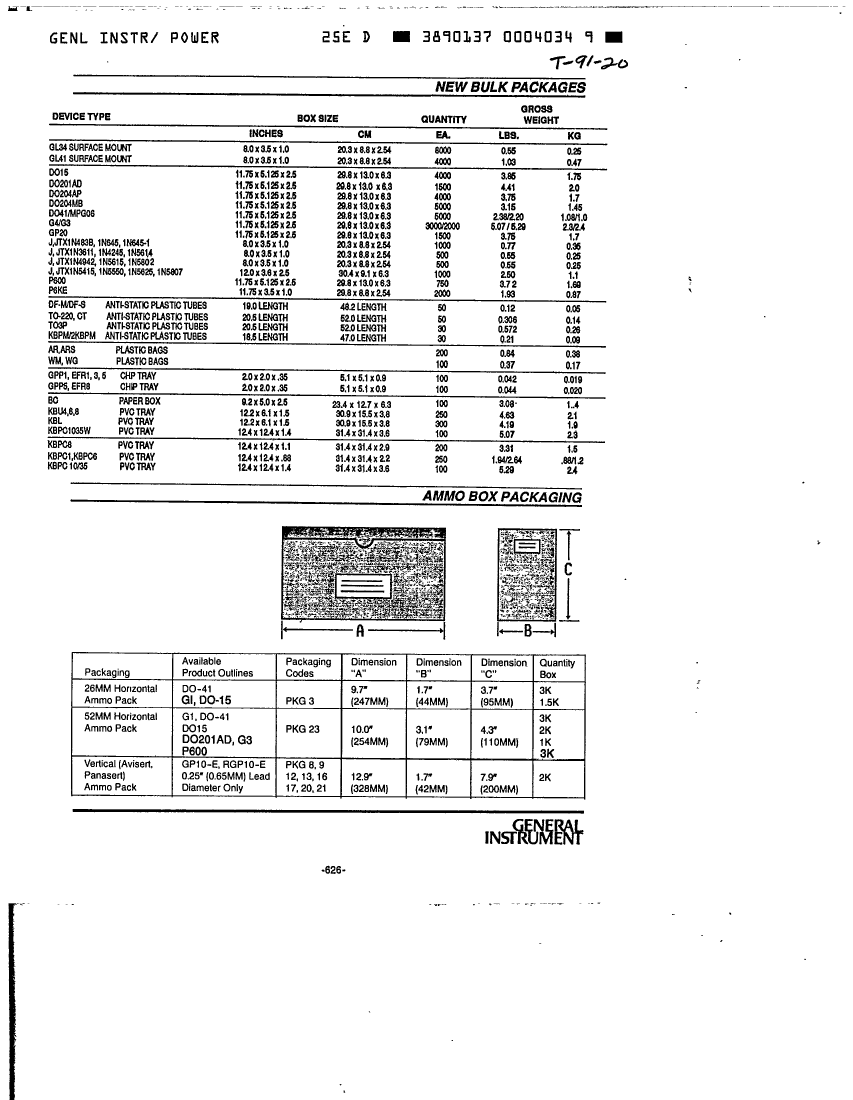

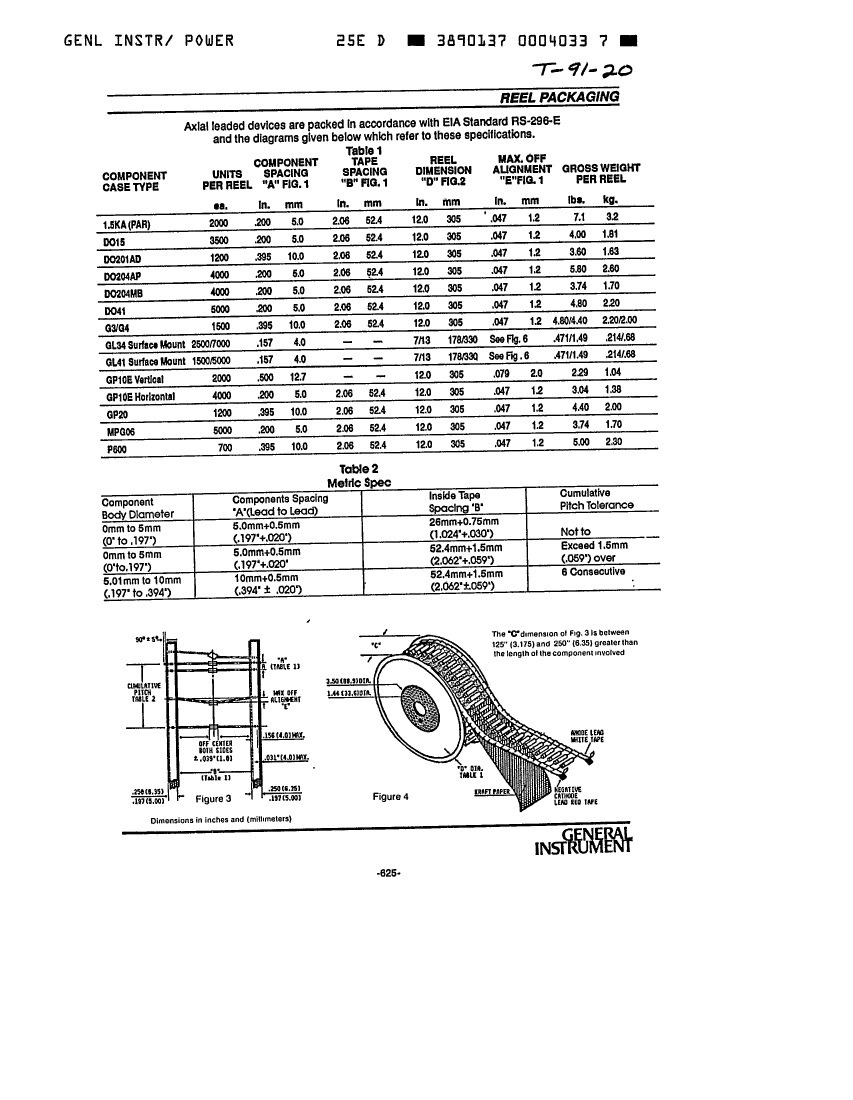

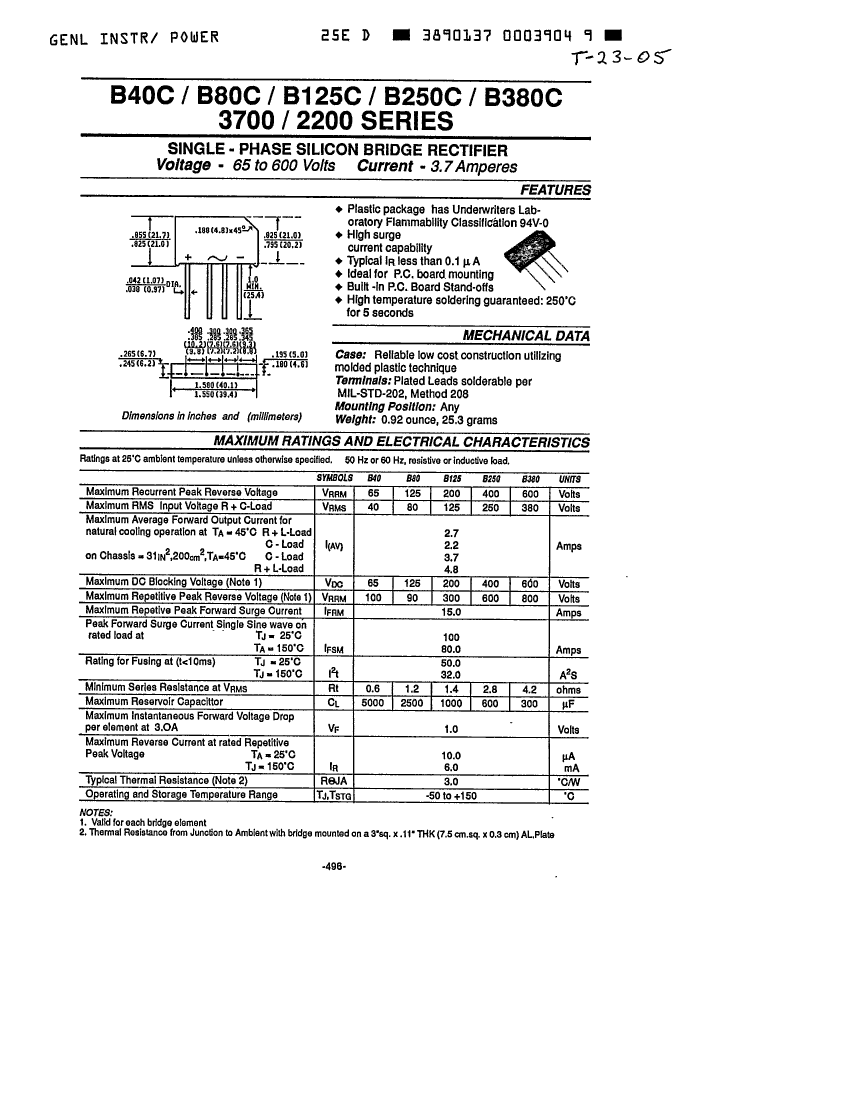

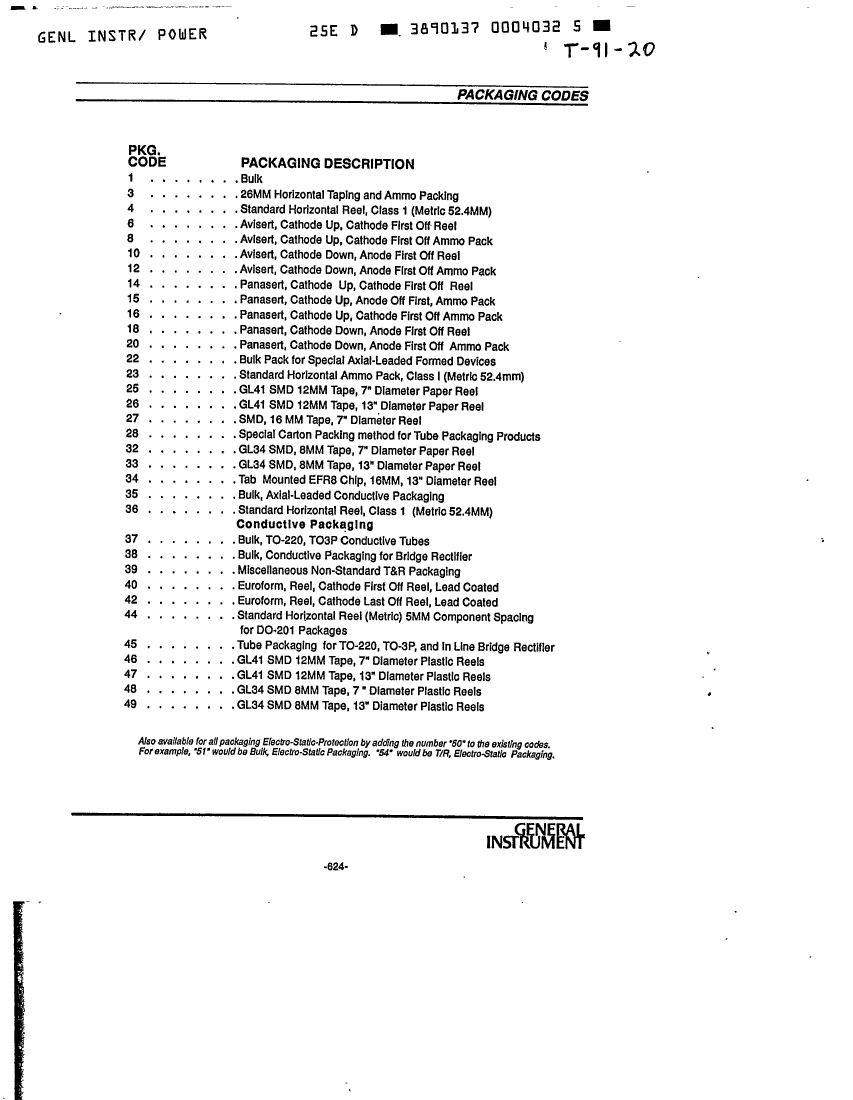

B80C3700/2200 Overview

Bridge Rectifier Diode, 3.7A, 200V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	150 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	3.7 A
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

	B80C3700/2200	B380C3700/2200	B250C3700/2200	B125C3700/2200	B40C3700/2200
Description	Bridge Rectifier Diode, 3.7A, 200V V(RRM),	Bridge Rectifier Diode, 3.7A, 900V V(RRM),	Bridge Rectifier Diode, 3.7A, 600V V(RRM),	Bridge Rectifier Diode, 3.7A, 300V V(RRM),	Bridge Rectifier Diode, 3.7A, 100V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Vishay	Vishay	Vishay	Vishay	Vishay
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A
Number of components	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	3.7 A	3.7 A	3.7 A	3.7 A	3.7 A
Maximum repetitive peak reverse voltage	200 V	900 V	600 V	300 V	100 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
