Small and High Accuracy Temperature Sensor IC Series
Detect TemperatureChangeable
Thermostat Output Temperature Sensor IC
BDE□□□0G Series
No.09047EAT03
●Description
Low quiescent current (16µA), high accuracy thermostat (temperature switch) ICs. Built in temperature sensor, reference
voltage regulator, D/A converter, and comparator. Detecting temperature by itself, OS terminal state is changed at logically.
Open Drain Output ( Active L ) is available in BDE□□□0G series.
●Features
1) Detection Temperature Range -25½+125℃ by 15 products.
2) ±5℃ Step Selectable Detection Temperature with CTRL.
3) Hysteresis Temperature ( typically 10℃ )
4) High Accuracy Analog Output ( typically ±3.5℃@Ta=30℃ )
5) Analog Output Temperature Sensitivity ( typically -10.8mV/℃ )
6) Low Supply Current ( typically 16µA )
7) Small Package ( typically 2.90mm×2.80mm×1.25mm )
8) ESD Rating 8kV ( HBM )
9) Excellent Ripple Rejection Characteristic
●Applications
Thermal Protection for Electrical Equipment (NoteBook PC, Cell phone, FPD-TV, etc.) FAN Control for Thermal Management
●Products
Line up
BDE
□□□
Detection Temperature
(Center Temperature)
120:120℃
040: 40℃
110:110℃
030: 30℃
100:100℃
020: 20℃
090: 90℃
010: 10℃
080: 80℃
000: 0℃
070: 70℃
910:-10℃
060: 60℃
920:-20℃
050: 50℃
0
Output Format
(OpenDrain, Active Low)
G
Package
(SSOP5)
Temperature / Output Format Table
CTRL status description ( L : Low, O : Open,
Product
Name
BDE1200G
BDE1100G
BDE1000G
BDE0900G
BDE0800G
BDE0700G
BDE0600G
BDE0500G
Detection
Temperature (℃)
CTRL
L
115
105
95
85
75
65
55
45
H
120
110
100
90
80
70
60
50
O
125
115
105
95
85
75
65
55
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Active L
Active L
Active L
Active L
Active L
Active L
Active L
Active L
Marking
eA
eB
eC
eD
eE
eF
eG
eH
OS Output Format
Product
Name
BDE0400G
BDE0300G
BDE0200G
BDE0100G
BDE0000G
BDE9100G
BDE9200G
H : High )
Detection
Temperature (℃)
CTRL
L
35
25
15
5
-5
-15
-25
H
40
30
20
10
0
-10
-20
O
45
35
25
15
5
-5
-15
Marking
OS Output Format
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Active L
Active L
Active L
Active L
Active L
Active L
Active L
eJ
eK
eL
eM
eN
eP
eQ
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
1/8
2009.06 - Rev.A
BDE□□□0G Series
●Absolute
Maximum Ratings
( Ta = 25℃ )
Parameters
Power Supply Voltage
Input Voltage ( CTRL )
Input Current ( CTRL )
OS terminal Voltage
OS terminal Current
Power dissipation
Storage Temperature Range
Symbol
V
DD
V
IN
I
IN
V
OS
I
OS
Pd
T
stg
Limit
-0.3 to 7.0
*1
-0.3 to V
DD
+0.3
-1.0, +0.1
-0.3 to 7.0
5.0
540
※
2
-55 to 150
Unit
V
V
mA
V
mA
mW
℃
Technical Note
*1. Not to exceed Pd
*2. Reduced by 5.40mW for each increase in Ta of 1℃ over 25℃( mounted on 70mm×70mm×1.6mm Glass-epoxy PCB )
●Recommended
Operating Condition
Parameters
Power Supply Voltage
Operating Temperature Range
Symbol
VDD
Topr
Min.
2.9
-30
Typ.
3.0
-
Max.
5.5
130
Unit
V
℃
●Temperature
Accuracy
( Unless otherwise specified, V
DD
= 3.0V )
Parameters
Thermostat ( Temperature Switch )
Detection TemperatureAccuracy
Detection Temperature Hysteresis
Analog Output
VTemp Temperature Accuracy
Tacc
Thys
TTemp
-
7.5
-
0
10.0
-
±4.0
±5.0
12.5
±3.5
℃
℃
℃
Ta = 30℃
Ta = -20℃½115℃
Ta =
½125℃
Symbol
Min.
Limit
Typ.
Max.
Unit
Conditions
●Electrical
Characteristics
( Unless otherwise specified, V
DD
= 3.0V, Ta = 25℃ )
LIMIT
PARAMETER
SYMBOL
MIN.
TYP.
MAX.
Supply Current
IDD
-
16.0
20.0
Analog Output
VTemp Output Voltage
VTemp
1.716
1.753
1.790
VTemp Temperature Sensitivity
VSE
-10.28
-10.68
-11.08
VTemp Load Regulation
OS Output Open Drain
OS Leakage Current
OS Output Voltage
CTRL
Input L Voltage
Input H Voltage
*Radiation hardiness is not designed.
UNIT
µA
V
mV/℃
mV
µA
V
V
V
CONDITIONS
CTRL = 3.0V
Ta = 30℃
Ta = -30 to 100℃
difference of
IOUT : 0µA / 2µA
OS : 5.0V
IinOS = 1.2mA
⊿VTempRL
-
-
-
GND
2.4
-
-
-
-
-
1
1.0
0.4
0.6
VDD
IL
VOL
VIL
VIH
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
2/8
2009.06 - Rev.A
BDE□□□0G Series

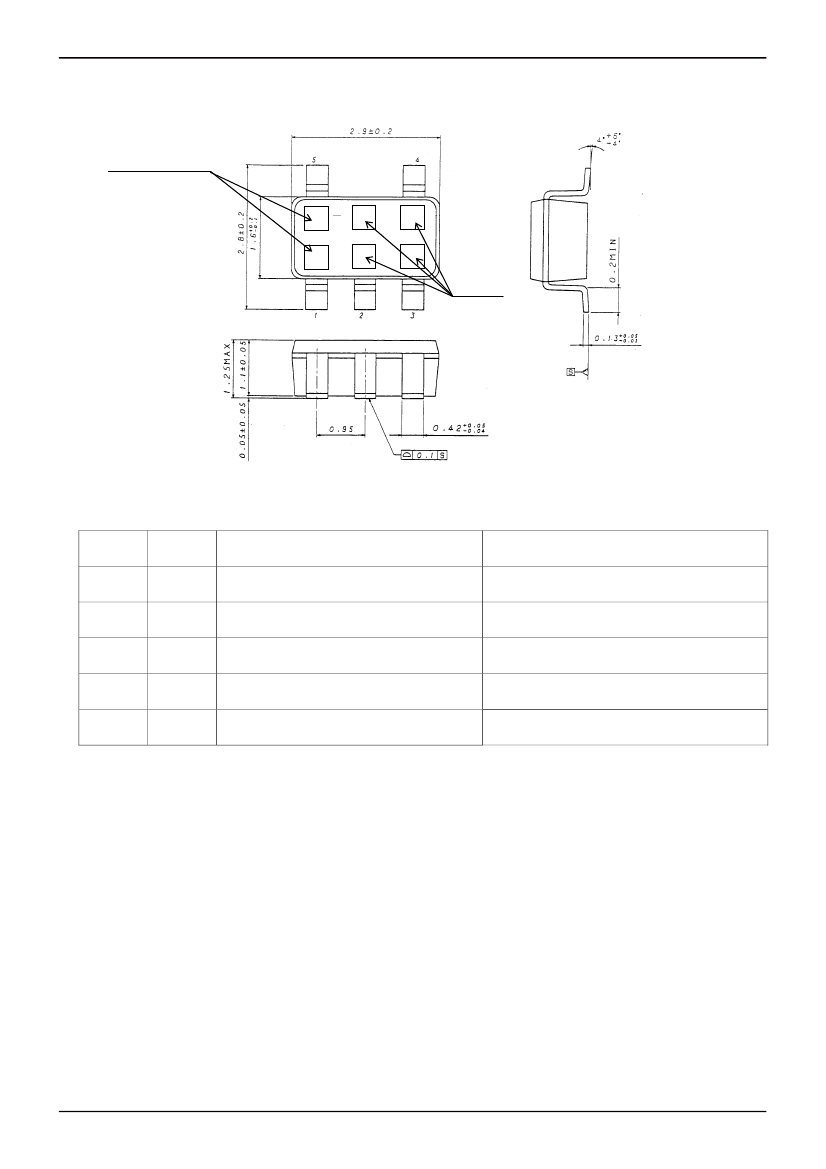

●Package
Outline
Technical Note
Product Type
Lot No.
SSOP5 (Unit：mm )
●Pin
Description
Pin No.
1
2
3
4
5
Pin Name
CTRL
GND
Vtemp
VDD
OS
Function
Detection temperature setting
GROUND
Output voltage in inverse proportion to the
temperature( TYP. -10.68mV/℃)
POWER SUPPLY
Digital thermostat output
Comment
Refer to 2/7 page for the emperature set.
( Temperature / Output Format Table )
-
Set the OPEN state or
Connect high impedance input node.
-
Open Drain type
Use the pull-up resistor over 10kΩ.
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
3/8
2009.06 - Rev.A
BDE□□□0G Series
●Equivalence
Circuit
Technical Note
CTRL
VDD
OS
OS
CTRL
GND
GND
VTemp
VDD
Please connect the pull-up resistor over 10kΩ.
VTemp
GND
Please don’t connect the pull-down resistor
●Block
Diagram
CTRL
1
OUT
5 OS
GND
2
Vref
+
-
V
Temp
3
TEMP
SENSOR
Iref
4 VDD
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
4/8
2009.06 - Rev.A
BDE□□□0G Series
●Functional
Diagram ( ex. Detection Temperature 110℃ )
Technical Note
Analog Output Voltage ( VTemp ) [V]
3.0
2.5
2.0
1.5
1.0
0.5
-50
-30
-10
10
30
50
70
90
110
130
VTemp@30℃
( 1.753V Typical )
Temperature
Sensitivity
( -10.68mV/℃ Typical )
Temperature [℃]
OS Output Voltage ( VOS ) [V]
Vos
Temperature Hysteresis
( 10℃ Typical )
0
-50
-30
-10
10
30
50
70
90
110
130
Temperature [℃]
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
5/8
2009.06 - Rev.A
