1/3
Structure
Product series
Type
Function
特
長
Silicon Monolithic Integrated Circuit
PWM Driver for combi drive
BH5510KVT
・Super
silent spindle drive by S!PWM
×
2
technology.
・Built
in 2mode of spindle driver’s gain for low-speed stability rotation.
○Absolute
maximum ratings
Parameter
Power MOS supply voltage
Control circuit power supply voltage
Maximum driver output current
Power dissipation
Operating temperature range
Storage temperature range
Joint part temperature
Symbol
PVcc
Vcc
IoMAX
Pd
Topr
Tstg
Tjmax
Limits
6
6
3
＃1
1.37
＃2
-40½85
-55½150
150
Unit
V
V
A
W
℃
℃
℃
#1 The current is guaranteed 3.0A in case of the current is turned on/off in a duty-ratio of less than 1/10 with a maximum
on-time of 5msec and when short brake.
#2 PCB (70mm×70mm×1.6mm,occupied copper foil is less than 3%,glass epoxy standard board) mounting.
Reduce power by 11.0mW for each degree above 25℃.
○Recommended
operating conditions(Ta=-10½+70℃)
〔Set
the power supply voltage taking allowable dissipation into considering〕
Parameter
Power MOS supply voltage
Control circuit power supply voltage
Symbol
PVcc
Vcc
MIN.
3.0
4.0
TYP.
5.0
5.0
MAX.
5.5
5.5
Unit
V
V
This product isn’t designed for protection against radioactive rays.
Status of this document
The Japanese version of this document is the formal specification.
A customer may use this translation version only for a reference to help reading the formal version.
If there are any differences in translation version of this document , formal version takes priority.
REV. A
2/3
○Electrical
characteristics
(Unless otherwise noted Ta=25℃, Vcc=PVcc=5V, Vref=1.25V, RL(act)=8Ω+47μH, RL(SP)=2Ω+47μH, SPRNF=0.2Ω)
Parameter
Circuit current
Quiescent current
Current in standby mode
Input dead zone (one side)
Stepping
driver
block
Output offset voltage
Voltage gain
Output On resistor（top and bottom）
Symbol
ICC
IST
VDZSTP4,5
VOO4,5
GVC4,5
RON4,5
f4,5CH
VDZSP1
VDZSP2
gm1
gm2
RONSP
VLIMSP
fSP
VDZACT1,2,3
VOO1,2,3
GVC1,2,3
RON1,2,3
f1,2,3CH
VMVref
VMVcc
VSTH
VSTHZ
VSTL
MIN.
－
－
10
-50
12.0
－
240
2
10
0.8
0.16
－
0.16
60
－
-50
12.0
－
240
－
3.2
2.6
1.6
0
TYP.
10.5
－
30
－
14.0
1.5
300
50
210
1.0
0.2
0.6
0.20
80
－
－
14.0
1.3
300
0.7
3.6
－
－
－
MAX.
20
0.1
50
50
16.0
2.3
360
100
460
1.2
0.24
1.2
0.24
100
3
50
16.0
2.0
360
1.0
4.0
3.3
2.0
1.0
Unit
mA
mA
mV
mV
dB
Ω
kHz
mV
mV
A/V
A/V
Ω
V
kHz
mV
mV
dB
Ω
kHz
V
V
V
V
V
GVSW=L
Condition
VST=2.6V
VST=1.0V
Io=500mA
PWM frequency
Input dead zone of gm1(one side)
Input dead zone of gm2(one side)
Spindle driver
block
Input output gain 1
Input output gain 2
Output On resistor（top and bottom）
GVSW=H
SPRNF=0.2Ω GVSW=L
SPRNF=0.2Ω GVSW=H
Io=500mA
SPRNF=0.2Ω
Output limit voltage
PWM frequency
Input dead zone (one side)
Actuator driver
block
Output offset voltage
Voltage gain
Output On resistor（top and bottom）
Value of design guarantee
Io=500mA
PWM frequency
Vref drop mute ON threshold voltage
Vcc drop mute ON threshold voltage
Others
Standby High level voltage range
Standby Hi-Z level voltage range
Standby Low level voltage range
OPEN(Hi-z) is also available.

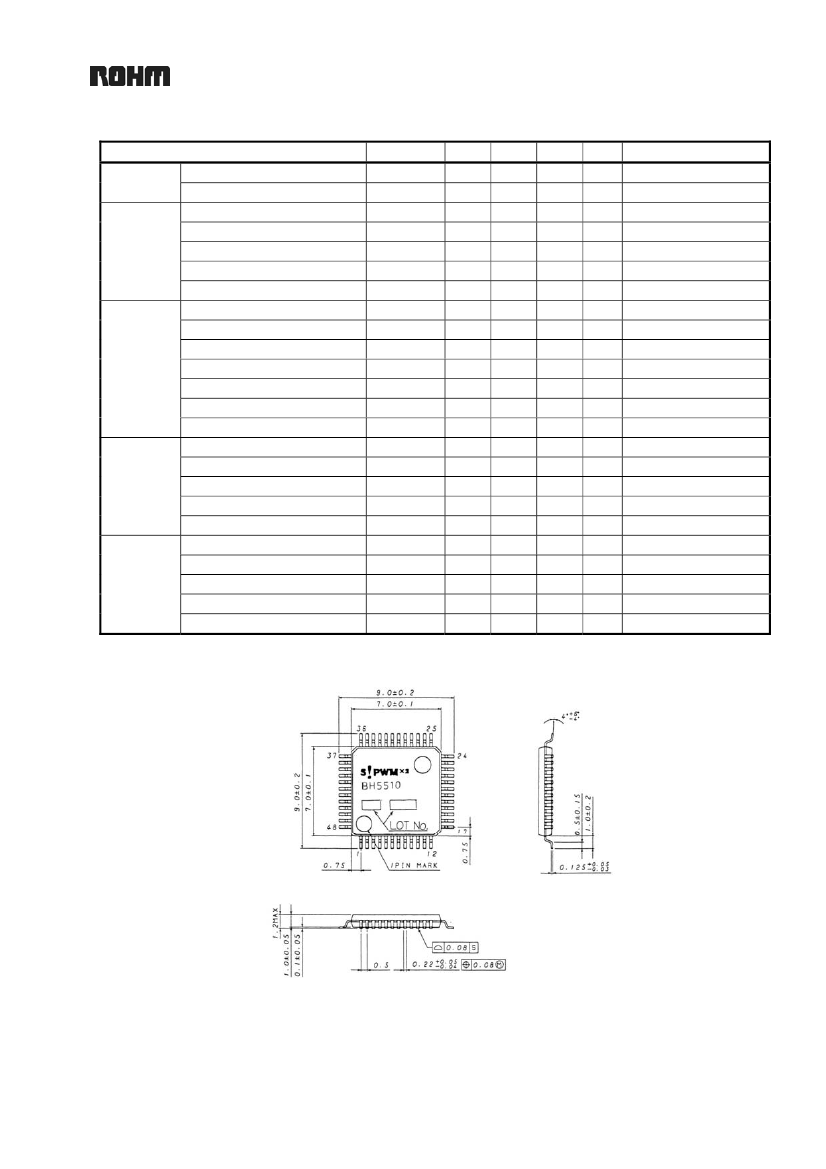

○Package
outlines
(UNIT : mm)
Figure No
; EX290-6001

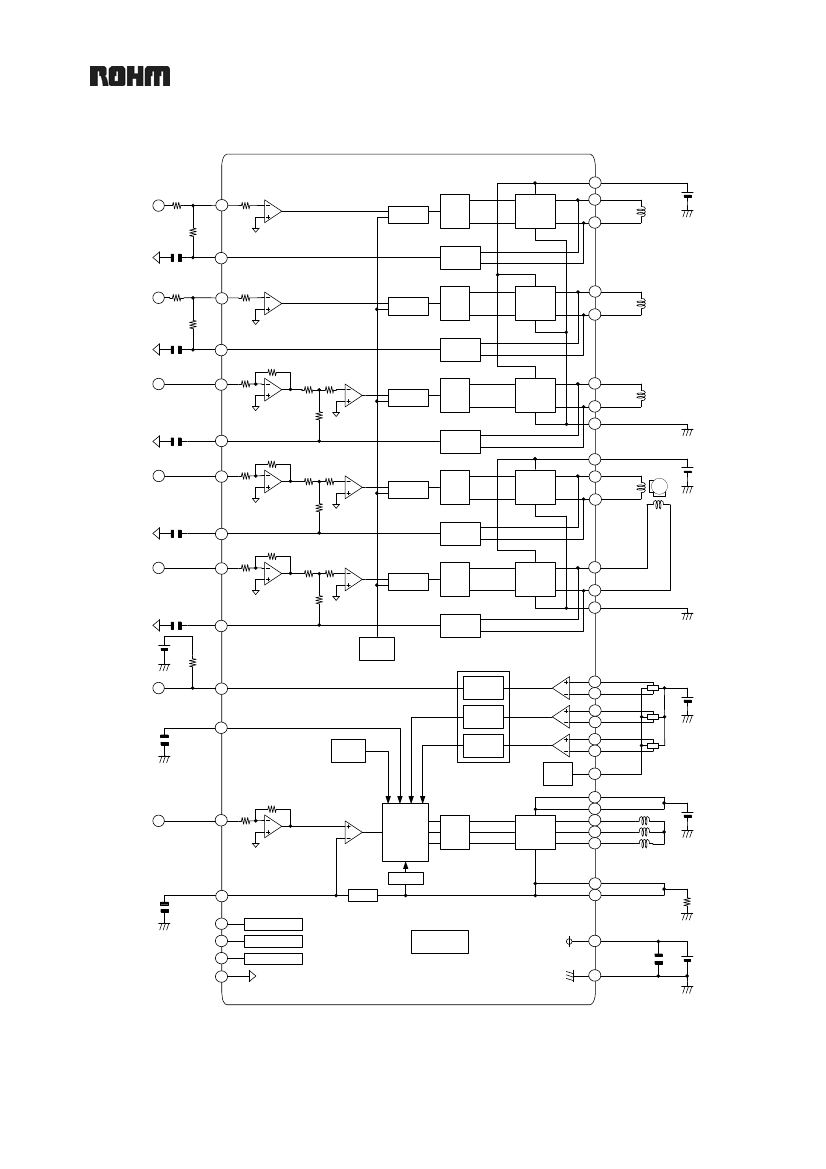

REV. A
