BU6650NUX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BU6650NUX

BU6650NUX: DescriptionHigh-speed Load Response Full CMOS LDP Regulators; CategoryPower/power management The power supply circuit; File Size961KB，18 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BU6650NUX Overview

High-speed Load Response Full CMOS LDP Regulators

BU6650NUX Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SON
package instruction	2 X 3 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, VSON-8
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Maximum drop-back voltage 1	0.72 V
Maximum drop-back voltage 2	0.72 V
Maximum input voltage	5.5 V
Minimum input voltage	2.5 V
JESD-30 code	R-PDSO-N8
JESD-609 code	e3
length	3 mm
Number of functions	1
Output times	3
Number of terminals	8
Working temperatureTJ-Max	125 °C
Maximum output current 1	0.2 A
Maximum output current 2	0.2 A
Maximum output voltage 1	2.828 V
Minimum output voltage 1	2.772 V
Nominal output voltage 1	2.8 V
Maximum output voltage 2	2.828 V
Minimum output voltage 2	2.772 V
Nominal output voltage 2	2.8 V
Package body material	PLASTIC/EPOXY
encapsulated code	HVSON
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Maximum seat height	0.6 mm
surface mount	YES
technology	CMOS
Terminal surface	Matte Tin (Sn)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	2 mm
Base Number Matches	1

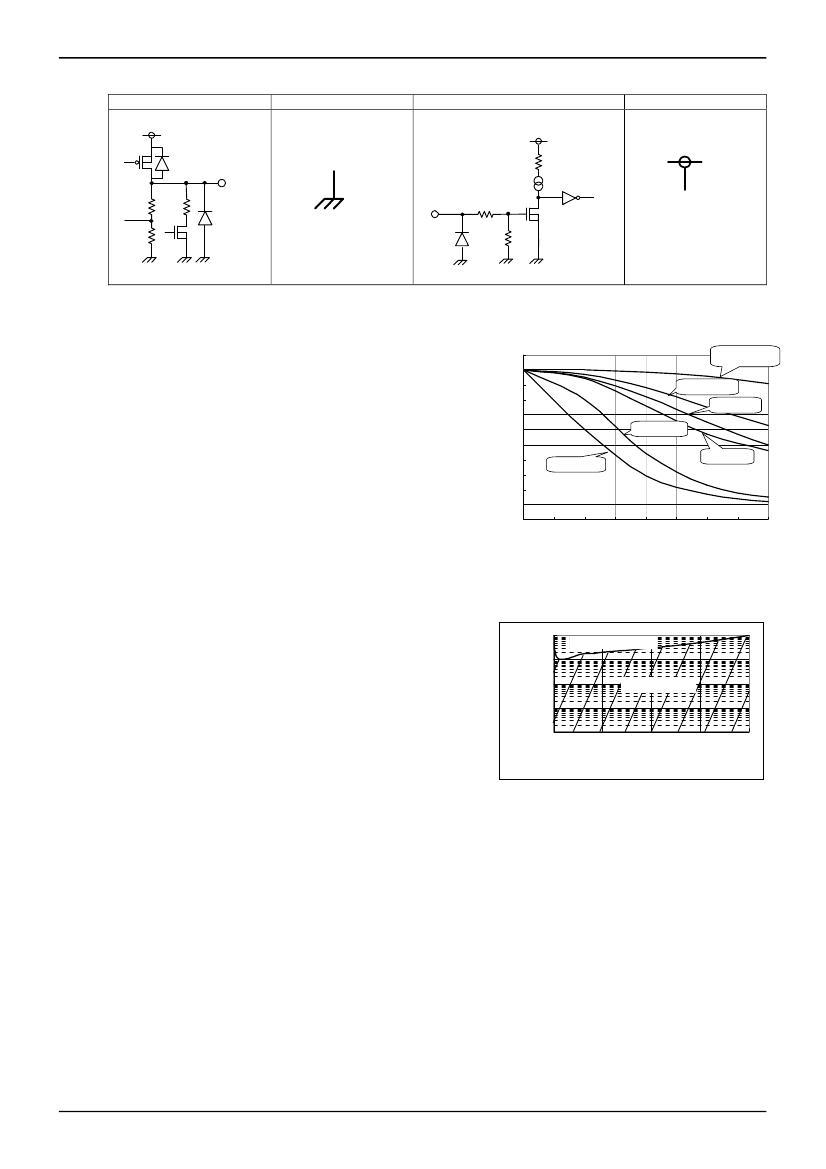

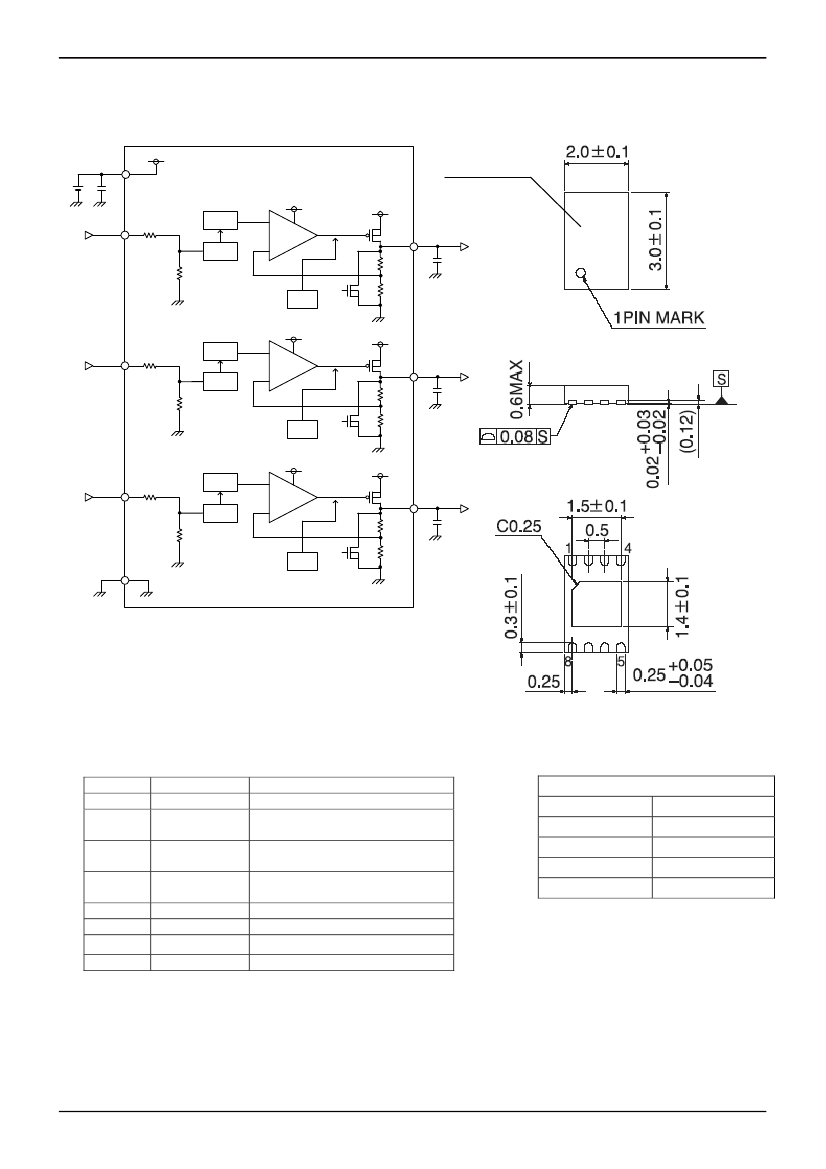

Preview

Download Datasheet

View All

CMOS LDO Regulator Series for Portable Equipments

High-speed Load Response

Full CMOS LDP Regulators

BU6650NUX, BU6651NUX, BU6652NUX, BU6653NUX

No.09020EBT06

●Description

BU6650NUX, BU6651NUX, BU6652NUX, BU6653NUX are high-performance 3ch FULL CMOS regulator with 200-mA

outputs, which is mounted on small package VSON008X2030(2.0 mm



3.0 mm



0.6 mm). It has excellent noise

characteristics and load responsiveness characteristics despite its low circuit current consumption of 120

A.

It is most

appropriate for various applications such as power supplies for logic IC, RF, and camera modules.

●Features

1) High-accuracy output voltage of

1%

(25 mV on 1.5-V & 1.8-V products)

2) High ripple rejection: 70 dB (Typ., 1 kHz, VOUT≦1.8 V))

3) Compatible with small ceramic capacitor (CIN=2.2F ,Co=1.0

F)

4) Low current consumption: 120

A

5) ON/OFF control pin(STBY) of output voltage

6) With built-in overcurrent protection circuit and thermal shutdown circuit

7) With built-in output discharge circuit

8) Adopting small package VSON008X2030

●Applications

Battery-powered portable equipment, etc.

●Line

up matrix

■

200 mA

BU6650NUX

BU6651NUX

BU6652NUX

BU6653NUX

BU665□NUX series

VOUT1

2.8V

VOUT2

2.8V

1.8V

2.8V

1.8V

VOUT3

1.8V

1.5V

1.8V

VSON008X2030

Package

Product Name

www.rohm.com

1/17

2009.09 - Rev.B

BU6650NUX Related Products

	BU6650NUX	BU6652NUX	BU6651NUX	BU665XNUX	BU6653NUX
Description	High-speed Load Response Full CMOS LDP Regulators	High-speed Load Response Full CMOS LDP Regulators	High-speed Load Response Full CMOS LDP Regulators	High-speed Load Response Full CMOS LDP Regulators	High-speed Load Response Full CMOS LDP Regulators
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to
Parts packaging code	SON	SON	SON	-	SON
package instruction	2 X 3 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, VSON-8	2 X 3 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, VSON-8	HVSON,	-	HVSON,
Contacts	8	8	8	-	8
Reach Compliance Code	compli	compli	compli	-	compli
ECCN code	EAR99	EAR99	EAR99	-	EAR99
Maximum drop-back voltage 1	0.72 V	0.72 V	0.72 V	-	0.72 V
Maximum input voltage	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum input voltage	2.5 V	2.5 V	2.5 V	-	2.5 V
JESD-30 code	R-PDSO-N8	R-PDSO-N8	R-PDSO-N8	-	R-PDSO-N8
JESD-609 code	e3	e3	e3	-	e3
length	3 mm	3 mm	3 mm	-	3 mm
Number of functions	1	1	1	-	1
Output times	3	3	3	-	3
Number of terminals	8	8	8	-	8
Working temperatureTJ-Max	125 °C	125 °C	125 °C	-	125 °C
Maximum output current 1	0.2 A	0.2 A	0.2 A	-	0.2 A
Maximum output current 2	0.2 A	0.2 A	0.2 A	-	0.2 A
Maximum output voltage 1	2.828 V	2.828 V	2.828 V	-	2.828 V
Minimum output voltage 1	2.772 V	2.772 V	2.772 V	-	2.772 V
Nominal output voltage 1	2.8 V	2.8 V	2.8 V	-	2.8 V
Maximum output voltage 2	2.828 V	2.828 V	1.825 V	-	1.825 V
Minimum output voltage 2	2.772 V	2.772 V	1.775 V	-	1.775 V
Nominal output voltage 2	2.8 V	2.8 V	1.8 V	-	1.8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	HVSON	HVSON	HVSON	-	HVSON
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	-	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260	260	260	-	260
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR	-	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Maximum seat height	0.6 mm	0.6 mm	0.6 mm	-	0.6 mm
surface mount	YES	YES	YES	-	YES
technology	CMOS	CMOS	CMOS	-	CMOS
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-	Matte Tin (Sn)
Terminal form	NO LEAD	NO LEAD	NO LEAD	-	NO LEAD
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	-	0.5 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL
Maximum time at peak reflow temperature	10	10	NOT SPECIFIED	-	NOT SPECIFIED
width	2 mm	2 mm	2 mm	-	2 mm
