NJM2508M-(TE1) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> NJM2508M-(TE1)

NJM2508M-(TE1): DescriptionVideo Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO16, DMP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size227KB，10 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJM2508M-(TE1) Overview

Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO16, DMP-16

NJM2508M-(TE1) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
Other features	BUILT-IN SPDT SWITCH
Analog Integrated Circuits - Other Types	VIDEO MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e6
length	10 mm
Number of channels	3
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5 mm

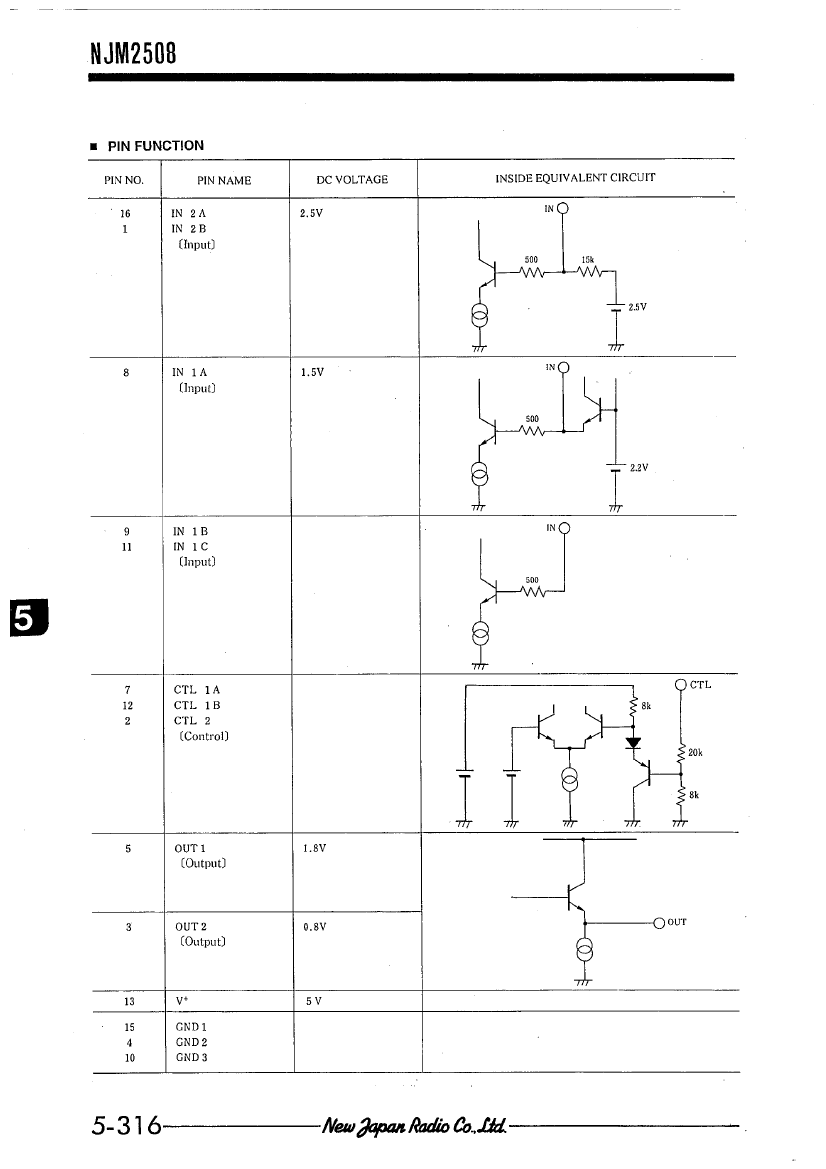

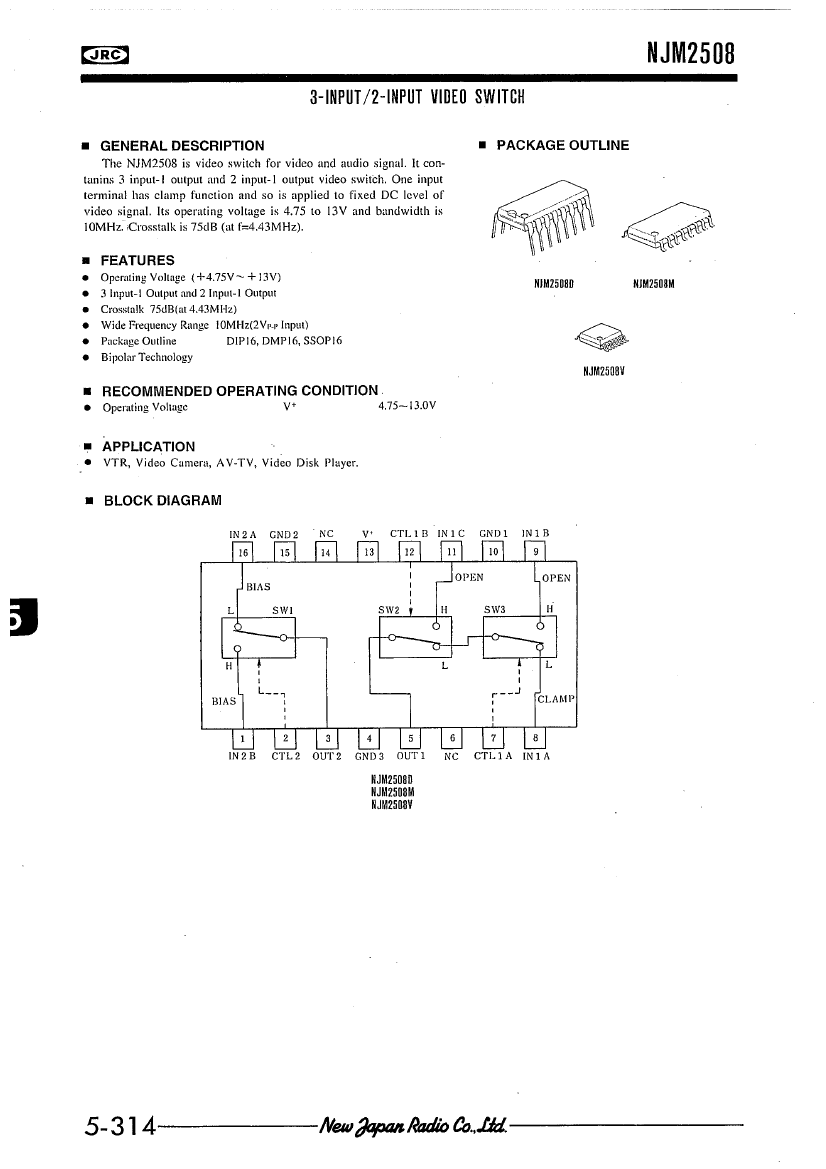

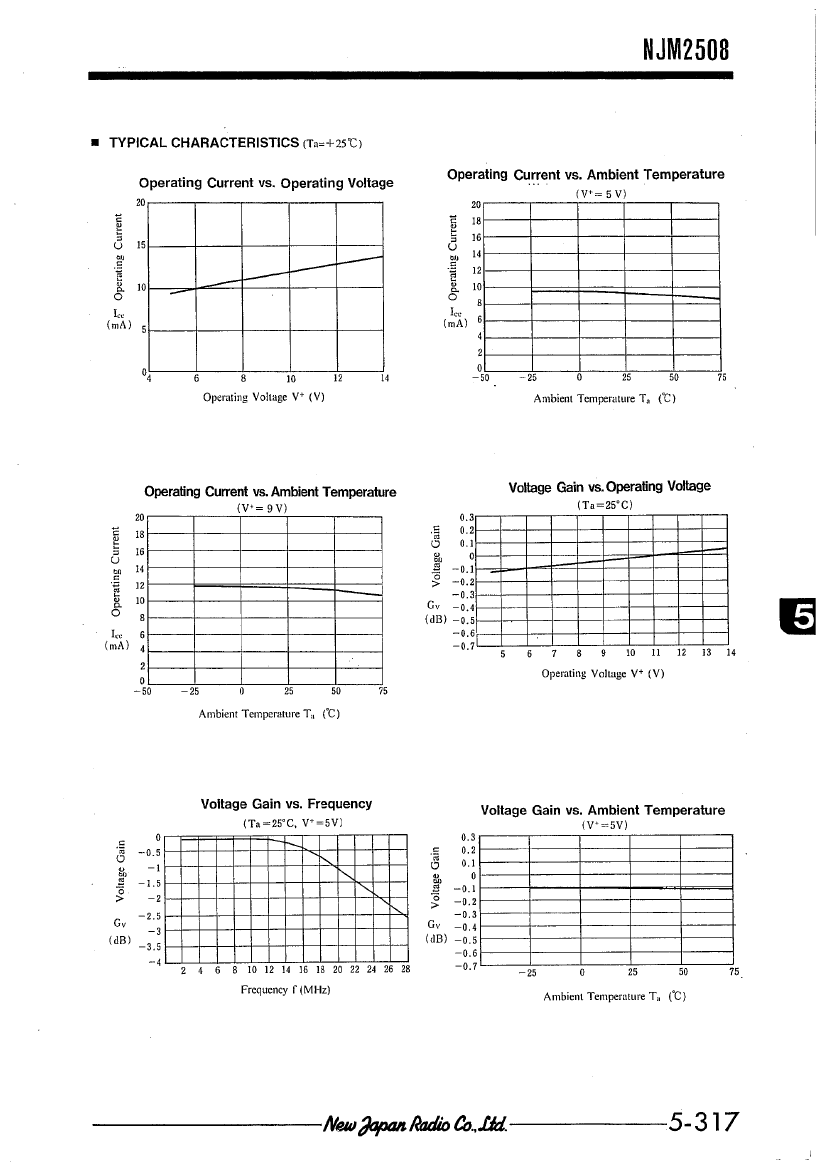

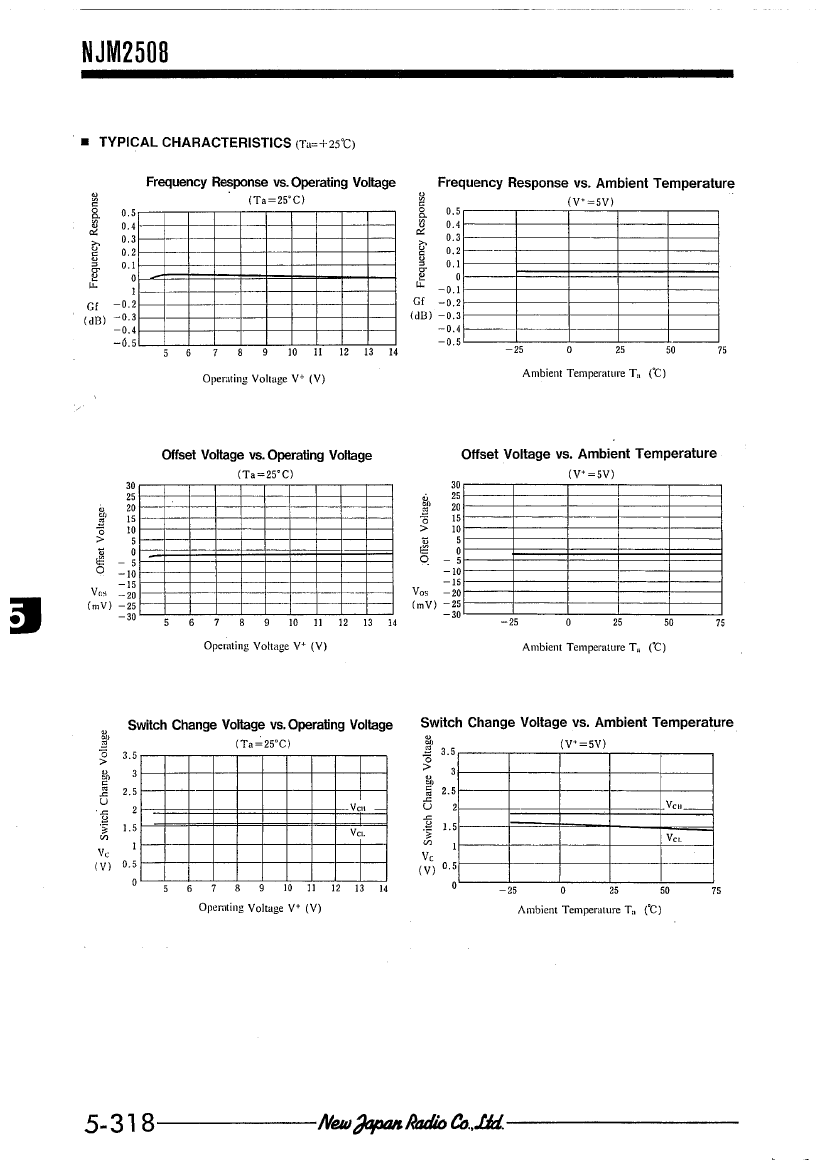

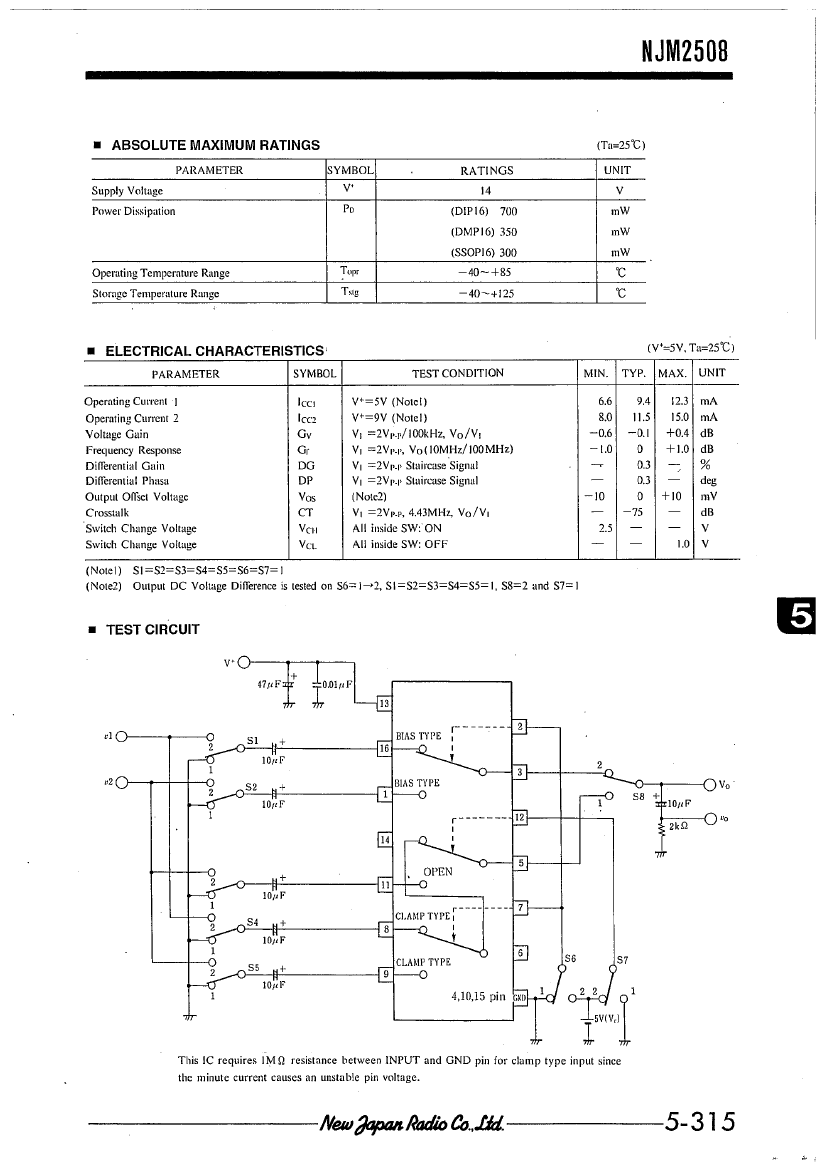

Preview

Download Datasheet

View All

NJM2508M-(TE1) Related Products

	NJM2508M-(TE1)	NJM2508V-(TE2)	NJM2508V-(TE1)	NJM2508M-(TE2)	NJM2508M-(T1)	NJM2508M-(T2)
Description	Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO16, DMP-16	Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO16, SSOP-16	Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO16, SSOP-16	Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO16, DMP-16	Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO16, DMP-16	Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO16, DMP-16
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	LSSOP,	LSSOP,	SOP,	SOP,	SOP,
Contacts	16	16	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	BUILT-IN SPDT SWITCH	BUILT-IN SPDT SWITCH	BUILT-IN SPDT SWITCH	BUILT-IN SPDT SWITCH	BUILT-IN SPDT SWITCH	BUILT-IN SPDT SWITCH
Analog Integrated Circuits - Other Types	VIDEO MULTIPLEXER	VIDEO MULTIPLEXER	VIDEO MULTIPLEXER	VIDEO MULTIPLEXER	VIDEO MULTIPLEXER	VIDEO MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e6	e6	e6	e6	e6	e6
length	10 mm	5 mm	5 mm	10 mm	10 mm	10 mm
Number of channels	3	3	3	3	3	3
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	LSSOP	LSSOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	1.45 mm	1.45 mm	2 mm	2 mm	2 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	5 mm	4.4 mm	4.4 mm	5 mm	5 mm	5 mm
