S3C1-12-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> S3C1-12-RC

S3C1-12-RC: DescriptionSP3T, 4000MHz Min, 8000MHz Max, 2dB Insertion Loss-Max, ROHS COMPLIANT, CASE S3; CategoryWireless rf/communication Radio frequency and microwave; File Size263KB，2 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric View All

S3C1-12-RC Overview

SP3T, 4000MHz Min, 8000MHz Max, 2dB Insertion Loss-Max, ROHS COMPLIANT, CASE S3

S3C1-12-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	SMA-F, TTL COMPATIBLE
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	2 dB
JESD-609 code	e4
Maximum operating frequency	8000 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SP3T
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.6

Preview

Download Datasheet

View All

S3C1 Pin Diode Switch

Single Pole, Three Throw

Absorptive

Features:

•

Incorporated TTL-compatible driver for

convenient system integration and operates

from +5 V and -15 V DC power supplies.

DC blocks at all RF ports.

Ruggedized construction.

RoHS-compliant versions available.

Hermetic versions available.

•

Specifications:

Parameter

Frequency Range

Insertion Loss (max)

VSWR (max) 50 ohms

Isolation (min)

Switching Speed (max)

CW RF Power, Operating (max)

Specification

4–8

2.0

1.6

100

0.5

Units

GHz

ratio

nsec

Notes:

DC Bias:

(Standard)

DC Bias:

(-5 option)

DC Bias:

(-12 option)

Control:

+5 V +/-0.5 V @ 120 mA max

-15 V +/-3 V @ 50 mA max

+5 V +/-0.5 V @ 150 mA max

-5 V +/-0.5 V @ 60 mA max

+15 V +/-3 V @ 120 mA max

-15 V +/-3 V @ 50 mA max

TTL 0 = Low Loss

TTL 1 = Isolation

E1 controls J2 – J1

E2 controls J3 – J1

E3 controls J4 – J1

Mechanical Specifications:

Case Style:

Finish:

Bias & Control Pins:

Weight:

Mounting:

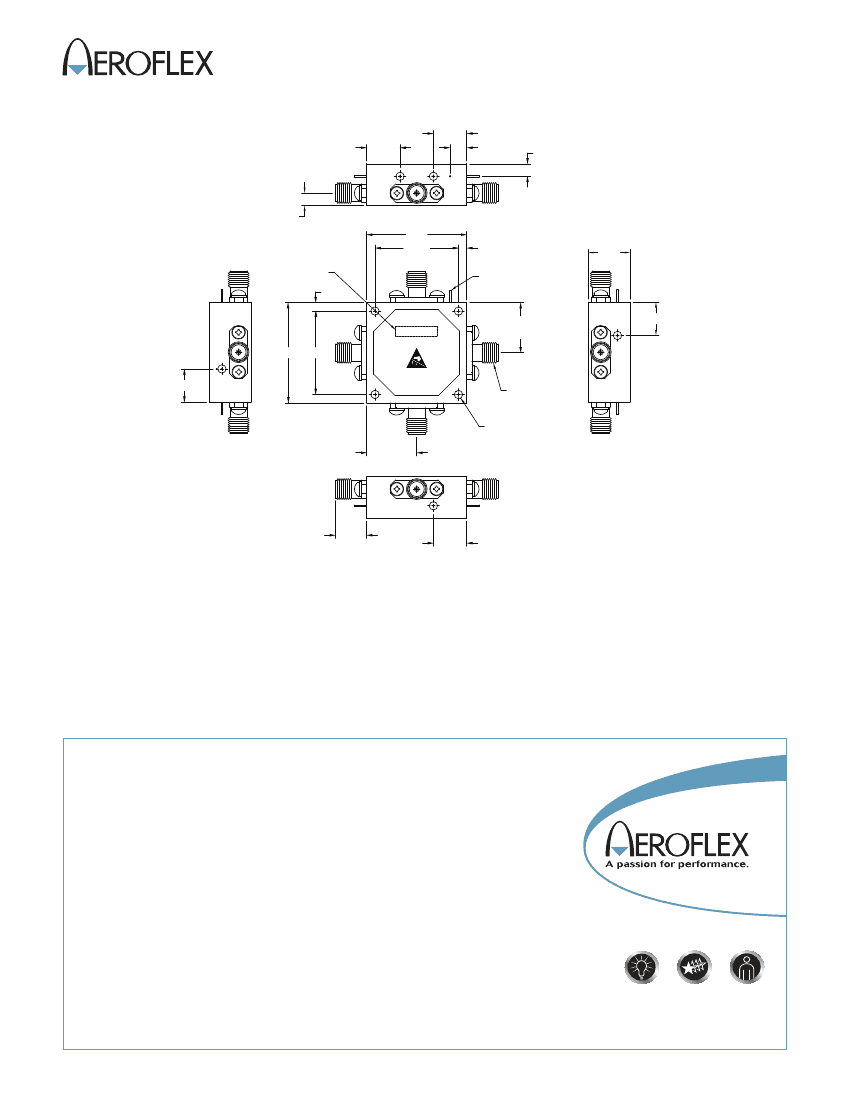

S3 Outline

Gold Plate per MIL-G-45204

Chem film per MIL-C-5541

ø0.02” x 0.15” long

35 g max

ø0.10” through holes

(4) places

Absorptive Switch: 50 ohm termination present at J2, J3 and J4

(in isolation mode).

Switching speed is defined as 50% TTL to 90% RF (t-on) and 50%

TTL to 10% RF (t-off).

Screening:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65 °C to +100 °C, 10 cycles

Hermetically-sealed switches are fine and gross leak checked per

MIL-STD-883, Method 1014.

Optional High-Rel screening available upon request. Contact the

factory to discuss your screening requirements.

Environmental Specifications:

MIL-E-5400, MIL-STD-202, MIL-E-16400

Operating Temp:

-55 °C to +85 °C

Storage Temp:

-65 °C to +125 °C

Humidity:

MIL-STD-202F, M103, Cond B

Shock:

MIL-STD-202F, M213, Cond B

Altitude:

MIL-STD-202F, M105, Cond B

Vibration:

MIL-STD-202F, M204, Cond B

Thermal Shock:

MIL-STD-202F, M107, Cond A

Temperature Cycle:

MIL-STD-202F, M105C, Cond D

SIGNAL & CONTROL SOLUTIONS

Revision Date: 2/11/2014

40 Industrial Way East, Eatontown , NJ 07724 [USA]

Phone: (732) 460-0212, Fax: (732) 460-0214

www.aeroflex.com/ASCS, email: ascs-sales@aeroflex.com
