LPO1704-102MC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPO1704-102MC

LPO1704-102MC: DescriptionGeneral Purpose Inductor, 1uH, 20%, 1 Element, SMD; CategoryPassive components inductor; File Size156KB，1 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

LPO1704-102MC Overview

General Purpose Inductor, 1uH, 20%, 1 Element, SMD

LPO1704-102MC Parametric

Parameter Name	Attribute value
Maker	COILCRAFT
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.18 Ω
Nominal inductance(L)	1 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LPO1704
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	SINGLE SIDE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Document 233

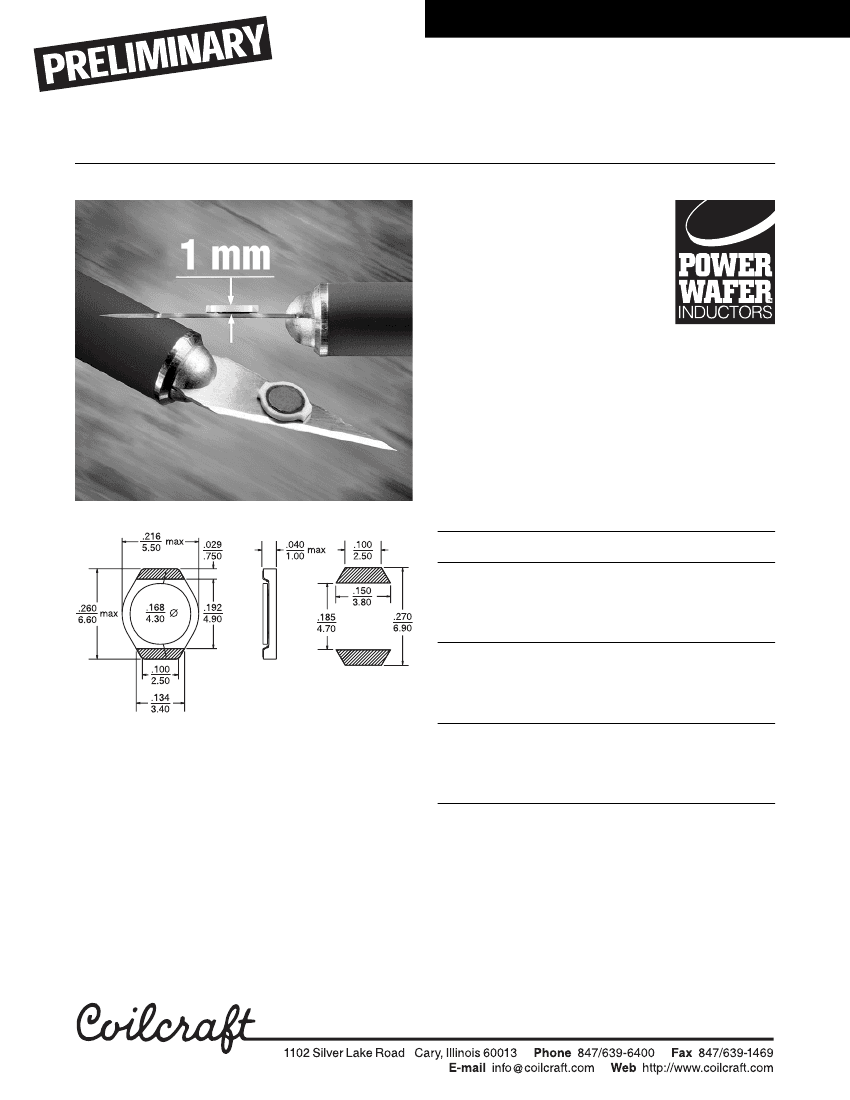

SMT Power Inductors - LPO1704 Series

Measuring just 1 mm high, the

LPO1704 is the world’s lowest pro-

file power inductor!

This series has been specially de-

signed for applications requiring the

smallest possible footprint and low-

est height: notebook computers,

PDAs, PC Cards, mobile phones and

other handheld products.

The specially designed ceramic case totally protects the

winding while the flat top provides the best possible

surface for pick and place handling.

For free evaluation samples, please contact Coilcraft.

Part number

LPO1704-102MC

LPO1704-152MC

LPO1704-222MC

LPO1704-332MC

LPO1704-472MC

LPO1704-682MC

LPO1704-103MC

LPO1704-153MC

LPO1704-223MC

LPO1704-333MC

Parts/reel: 7" 2,000; 13" 7,000 Tape width: 12 mm

For packaging data see “Tape and Reel Specifications” section (Doc. 173)

L ±20%

DCR max

(µH)

(Ohms)

0.18

1.5

2.2

3.3

4.7

6.8

100

150

220

330

0.41

sat

(mA)

1900

rms

(mA)

1500

TBD

800

LPO1704-473MC

LPO1704-683MC

LPO1704-104MC

LPO1704-154MC

LPO1704-224MC

LPO1704-334MC

TBD

3.5

250

TBD

For environmental data see “Product Specifications” (Document 164)

1. Tested @ 100 kHz, 0.1 Vrms.

sat is the DC current at which the inductance drops 10% (typ.)

from its value without current.

Irms

is the average current for a 40° C rise above 25° C

ambient.

4. Operating temperature range -40° C to +85° C.

5. Electrical specifications at 25° C.

Specifications subject to change without notice.

Document 233

Revised 3/29/01
