FPLD62T2G-132.0M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> FPLD62T2G-132.0M

FPLD62T2G-132.0M: DescriptionLVPECL Output Clock Oscillator, 132MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size236KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

FPLD62T2G-132.0M Overview

LVPECL Output Clock Oscillator, 132MHz Nom, ROHS COMPLIANT PACKAGE-4

FPLD62T2G-132.0M Parametric

Parameter Name	Attribute value
Maker	Connor-Winfield
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	FPLD62T2G
Installation features	SURFACE MOUNT
Nominal operating frequency	132 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	14.1mm x 9.02mm x 5.84mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

THE CONNOR-WINFIELD CORP.

2111 COMPREHENSIVE DRIVE.

AURORA, IL 60505.

FAX (630) 851-5040.

PHONE (630) 851-4722.

WWW.CONWIN.COM

PRODUCT

D AT A

SHEET

CRYSTAL CONTROLLED OSCILLATORS

3.3V SURFACE MOUNT LVPECL CLOCK

0629

FPLD62T2G

100.0M

FPLD62T2G

ABSOLUTE M AXIMUM RATING S

PARAMETER

Storage Temperature

Supply Voltage

(Vcc)

UNITS

MINIMUM

-55

-0.5

NOMINAL

MAXIMUM

125

7.0

UNITS

°C

Vdc

TABLE 2.0

MINIMUM

(Fo)

-50

-40

3.135

NOMINAL

3.3

MAXIMUM

250

3.465

UNITS

MHz

ppm

°C

Vdc

pS RMS

TABLE 3.0

MINIMUM

2.275

NOMINAL

MAXIMUM

1.68

UNITS

Ohms

Vdc

NOTE

TABLE 1.0

NOTE

DESCRIPTION

OPERATING SPECIFIC ATIONS

PARAMETER

Center Frequency

Total Frequency Tolerance

Operating Temperature Range

Supply Voltage

Supply Current

Jitter (BW=10Hz to 20MHz)

Jitter (BW=12kHz to 20MHz)

Start Up Time

(Vcc)

(Icc)

The Connor-Winfield

FPLD62T2G is a fixed

frequency, surface mount

Crystal Controlled Oscillator

(XO) designed for

applications requiring low

jitter and a ±50ppm overall

stability. Operating at 3.3V

supply voltage, the

FPLD62T2G provides

LVPECL Differential Outputs.

FEATURES

3.3V OPERATION

LVPECL DIFFERENTIAL OUTPUTS

LVPECL OUTPUT CHARACTERISTICS

PARAMETER

LOAD

Voltage

(High)

(Low)

Duty Cycle

Rise / Fall Time 20% to 80%

(Voh)

(Vol)

LOW JITTER <1pS RMS

OVERALL FREQUENCY TOLERANCE:

±50ppm

PACKAG E CHARACTERISTICS

Package

TABLE 4.0

Non-hermetic package consisting of an FR4 substrate with grounded metal

cover.

TABLE 5.0

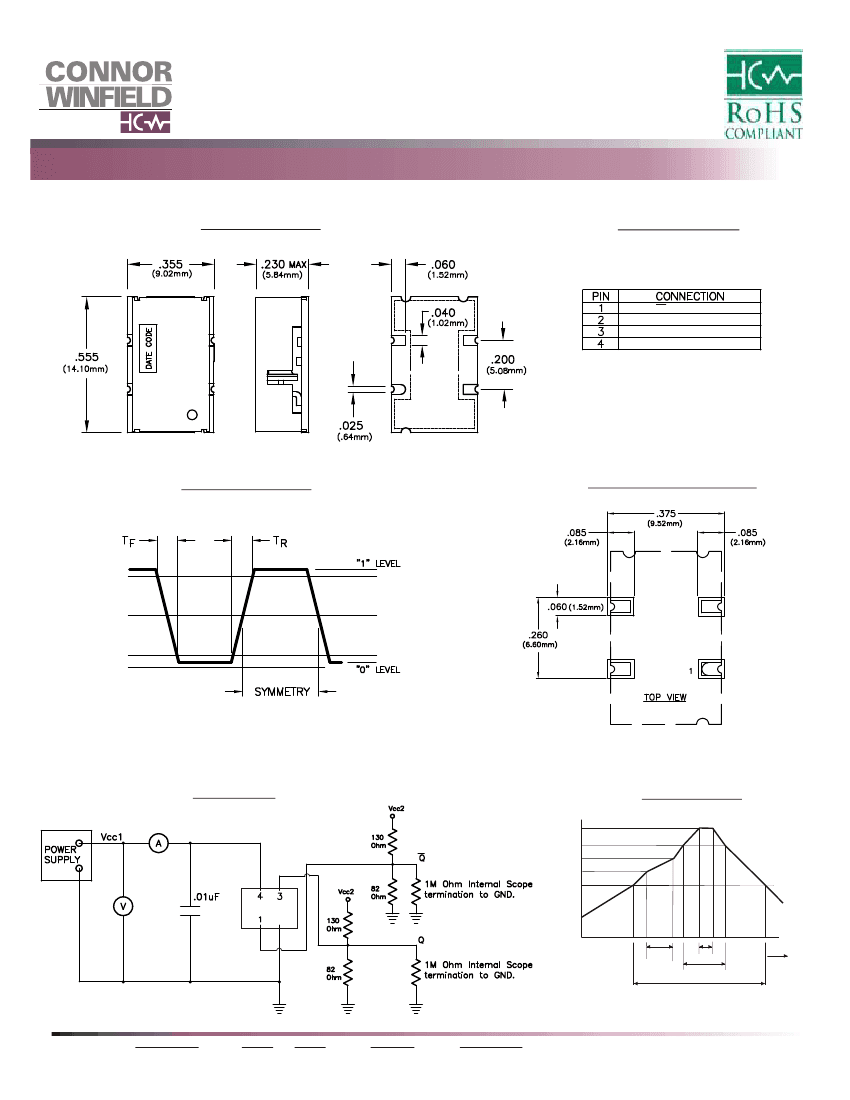

See solder profile page 2.

Ultrasonic cleaning is not recommended.

TEMPERATURE RANGE: -40 to 85°C

SURFACE MOUNT PACKAGE

PROCESS RECOMMENDATIONS

Soldering Process

Wash

TAPE AND REEL PACKAGING

RoHS COMPLIANT / LEAD FREE

Notes

1) Includes initial tolerance, deviation over temperature, supply and load variations, shock, vibration and 20 years

aging.

2) Output must be terminated into 50 ohms to Vcc – 2V or Thevenin equivalent.

3) Duty Cycle measured at 1.977V

ORDERING INFORMATION

FPLD62T2G - 100.0MHz

LV PECL

CLOCK

SERIES

CENTER

FREQUENCY

Specifications subject to change without notice.

DATA SHEET #:

Ec240

PAGE

REV:

DATE:

07/17/06

FPLD62T2G-132.0M Related Products

	FPLD62T2G-132.0M	FPLD62T2G-100.0MHZ
Description	LVPECL Output Clock Oscillator, 132MHz Nom, ROHS COMPLIANT PACKAGE-4	LVPECL Output Clock Oscillator, 100MHz Nom, ROHS COMPLIANT PACKAGE-4
Maker	Connor-Winfield	Connor-Winfield
Reach Compliance Code	unknown	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	1 ns	1 ns
Frequency Adjustment - Mechanical	NO	NO
frequency stability	50%	50%
Manufacturer's serial number	FPLD62T2G	FPLD62T2G
Installation features	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	132 MHz	100 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Oscillator type	LVPECL	LVPECL
Output load	50 OHM	50 OHM
physical size	14.1mm x 9.02mm x 5.84mm	14.1mm x 9.02mm x 5.84mm
longest rise time	1 ns	1 ns
Maximum supply voltage	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V
surface mount	YES	YES
maximum symmetry	55/45 %	55/45 %
