1/4
Silicon monolithic integrated circuit
Lens control LSI
BU24025MWV
Digital still cameras
・driver (1-5 channels) : Voltage control type H-bridge(Adaptable to STM 2 systems)
・driver (6,7 channels) : Current control type H-bridge
◇Absolute
maximum ratings (Ta
½
25℃)
Symbol
Limits
Remark
Parameter
Unit
DVDD
-0.3½4.5
V
Power supply voltage
MVCC
-0.3½7.0
V
Input voltage
VIN
-0.3½DVDD+0.3
V
±500
mA Driver block (by MVCC pin)
Input/output current
IIN
＋50
mA by PIOUT pin
Storage temperature range
TSTG
-55½125
C
Operating temperature range
TOPE
-10½85
C
Permissible dissipation
1
PD
3000
mW
This product is not designed for anti-radiation applications.
*1 To use this product at a temperature higher than Ta=25℃, reduce 30mW per 1℃
(At mounting ROHM’s standard board : 74.2mm x 74.2mm x 1.6
t
mm / 4 layer Board )
◇Operating
conditions (Ta=25℃)
Parameter
Symbol
Digital power supply voltage
DVDD
Driver power supply voltage
MVCC
Clock operating frequency
FCLK
◇Structure
◇Product
Series
◇Type
◇Applications
◇Functions
Limits
2.7½3.6
2.7½5.5
1½27.5
Unit
V
V
MHz
Remark
DVDD≦MVCC
Reference clock
REV. A
2/4

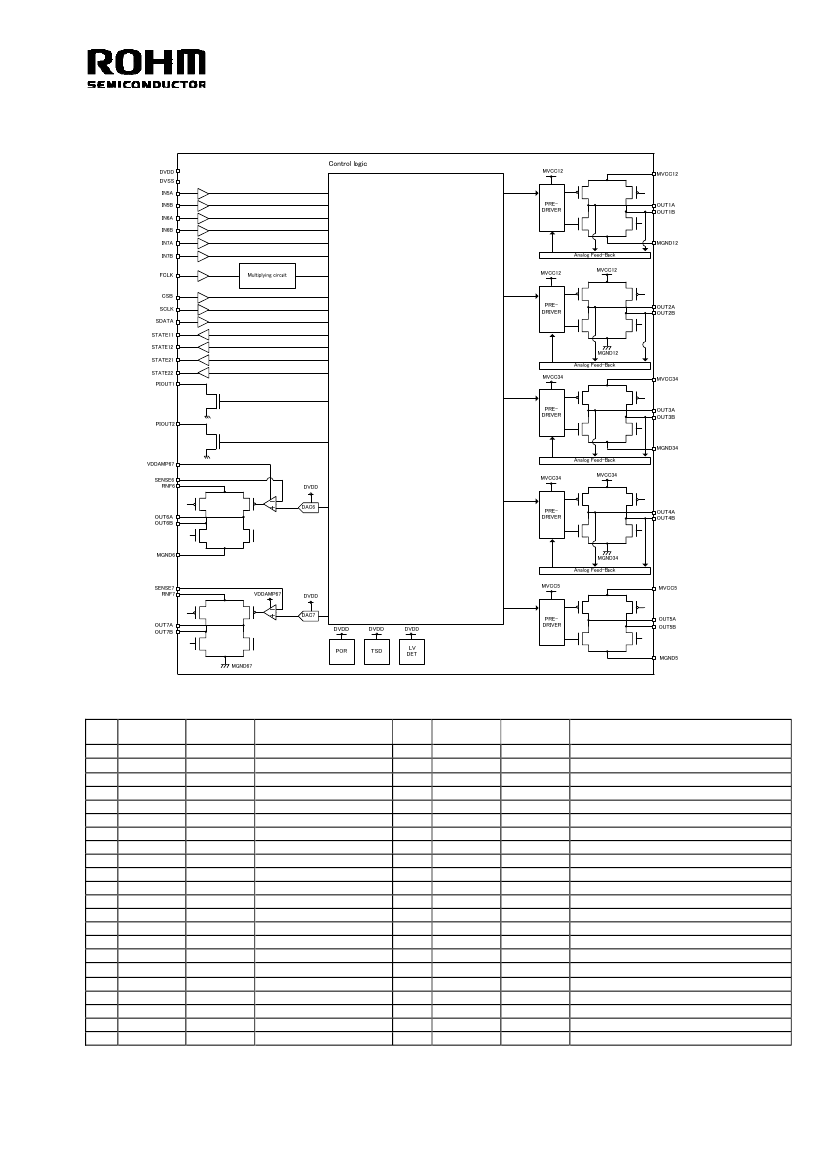

◇Block
Diagram
◇Pin
functions
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Pin name
CSB
SCLK
SDATA
PIOUT1
OUT5A
MVCC5
MGND5
OUT5B
DVSS
FCLK
DVDD
OUT1A
MVCC12
OUT1B
OUT2A
MGND12
OUT2B
PIOUT2
IN5A
IN5B
IN6A
IN6B
Power supply
DVDD
DVDD
DVDD
DVDD
MVCC5
-
-
MVCC5
-
DVDD
-
MVCC12
-
MVCC12
MVCC12
-
MVCC12
DVDD
DVDD
DVDD
DVDD
DVDD
Function
CSB logic input
SCLK logic input
SDATA logic input
PI driving output1
5-channel driver A output
5-channel driver power supply
5-channel driver ground
5-channel driver B output
Digital ground
FCLK logic input
Digital power supply
1-channel drive A output
1-2channel driver power supply
1-channel drive B output
2-channel drive A output
1-2channel driver ground
2-channel drive B output
PI driving output2
IN5A logic input
IN5B logic input
IN6A logic input
IN6B logic input
No.
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Pin name
SENSE6
VDDAMP67
OUT6A
RNF6
OUT6B
MGND67
OUT7A
RNF7
OUT7B
SENSE7
IN7A
IN7B
STATE11
STATE12
STATE21
STATE22
OUT3A
MVCC34
OUT3B
OUT4A
MGND34
OUT4B
Power supply
VDDAMP67
-
RNF6
RNF6
RNF6
-
RNF7
RNF7
RNF7
VDDAMP67
DVDD
DVDD
DVDD
DVDD
DVDD
DVDD
MVCC34
-
MVCC34
MVCC34
-
MVCC34
Function
Negative input for 6ch current driver
Power supply of 6-7channel current driver control
6-channel driver A output
6-channel driver power supply
6-channel driver B output
6-7channel driver ground
7-channel driver A output
7-channel driver power supply
7-channel driver B output
Negative input for 7ch current driver
IN7A logic input
IN7B logic input
STATE11 logic output
STATE12 logic output
STATE21 logic output
STATE22 logic output
3-channel driver A output
3-4channel driver power supply
3-channel driver B output
4-channel driver A output
3-4channel driver ground
4-channel driver B output
REV. A

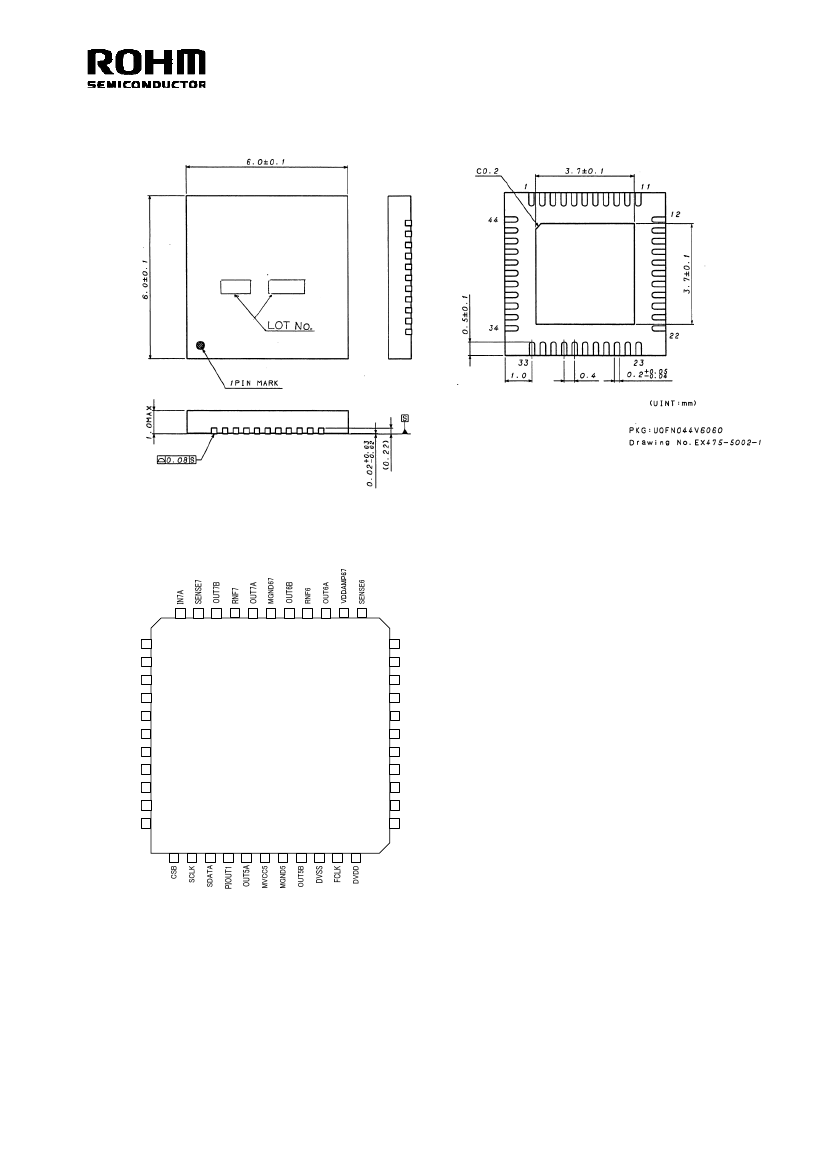

4/4
◇Cautions on use
(1)
Absolute maximum ratings
If applied voltage, operating temperature range, or other absolute maximum ratings are exceeded, the LSI may be damaged. Do not
apply voltages or temperatures that exceed the absolute maximum ratings. If you expect that any voltage or temperature could be
exceeding the absolute maximum ratings, take physical safety measures such as fuses to prevent any conditions exceeding the
absolute maximum ratings from being applied to the LSI.
(2)
GND potential
Maintain the GND pin at the minimum voltage even under any operating conditions.
Actually check to be sure that none of the pins have voltage lower than that of GND pin, including transient phenomena.
(3)
Thermal design
With consideration given to the permissible dissipation under actual use conditions, perform thermal design so that adequate margins
will be provided.
(4)
Short circuit between pins and malfunctions
To mount the LSI on a board, pay utmost attention to the orientation and displacement of the LSI. Faulty mounting to apply a
voltage to the LSI may cause damage to the LSI. Furthermore, the LSI may also be damaged if any foreign matters enter between
pins, between pin and power supply, or between pin and GND of the LSI.
(5)
Operation in strong magnetic field
Make a thorough evaluation on use of the LSI in a strong magnetic field. Not doing so may malfunction the LSI.
REV. A
