HD74LS26FP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HD74LS26FP

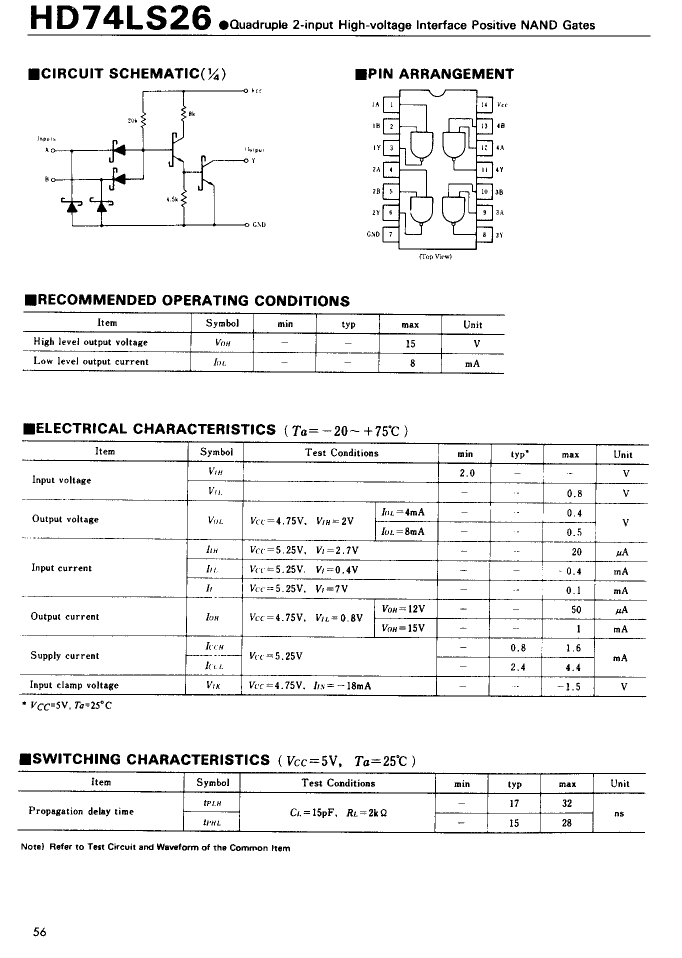

HD74LS26FP: DescriptionNAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, FP-14DA, 14 PIN; Categorylogic logic; File Size45KB，5 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/; Environmental Compliance

Download Datasheet Parametric Compare View All

HD74LS26FP Overview

NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, FP-14DA, 14 PIN

HD74LS26FP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDSO-G14
length	10.06 mm
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.008 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	4.4 mA
Prop。Delay @ Nom-Sup	32 ns
propagation delay (tpd)	32 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	2.2 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.5 mm

Preview

Download Datasheet

View All
