DM74161N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DM74161N

DM74161N: DescriptionBinary Counter, TTL/H/L Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, DIP-16; Categorylogic logic; File Size734KB，11 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DM74161N Overview

Binary Counter, TTL/H/L Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, DIP-16

DM74161N Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	TTL/H/L
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.305 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	29 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	25 MHz

Preview

Download Datasheet

View All

REI Datasheet

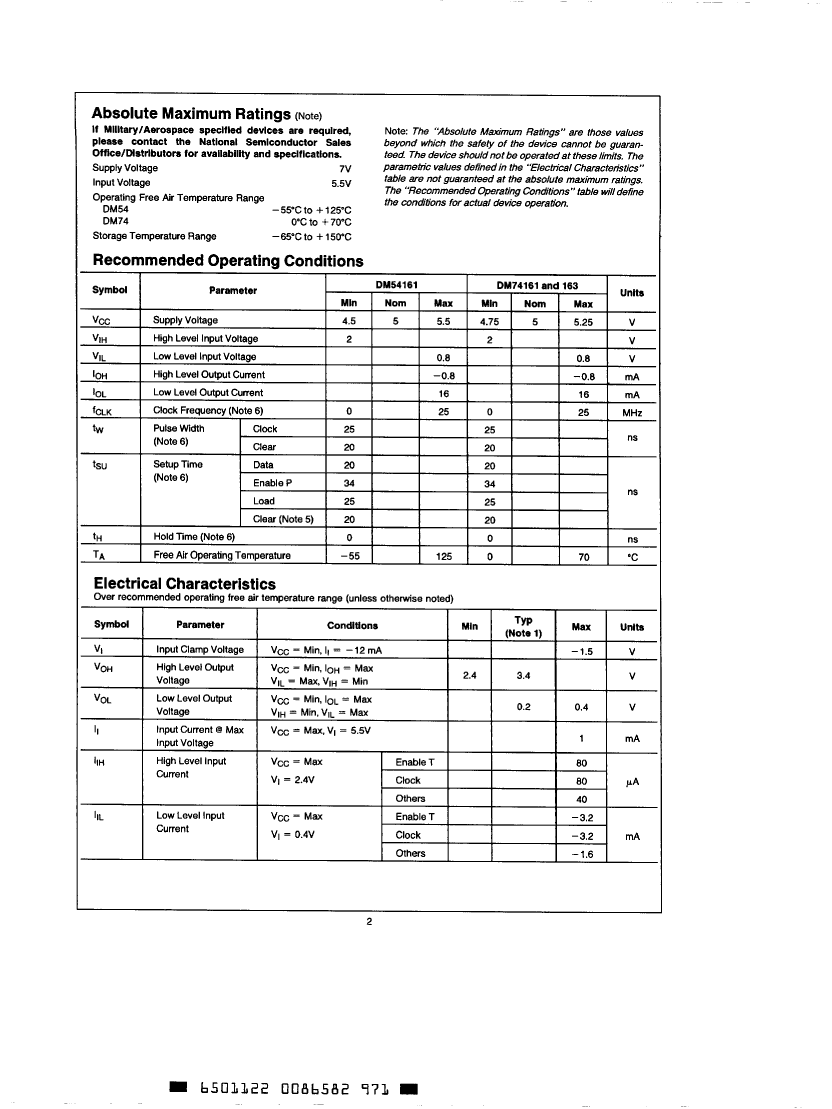

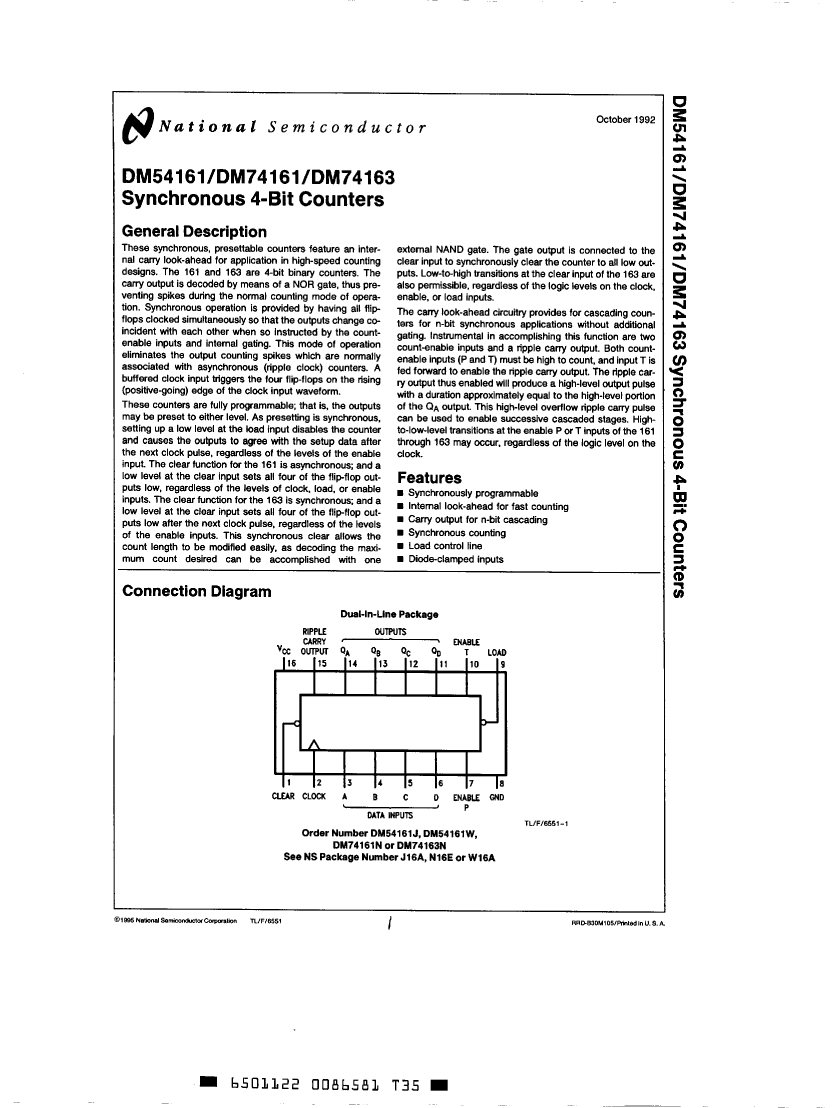

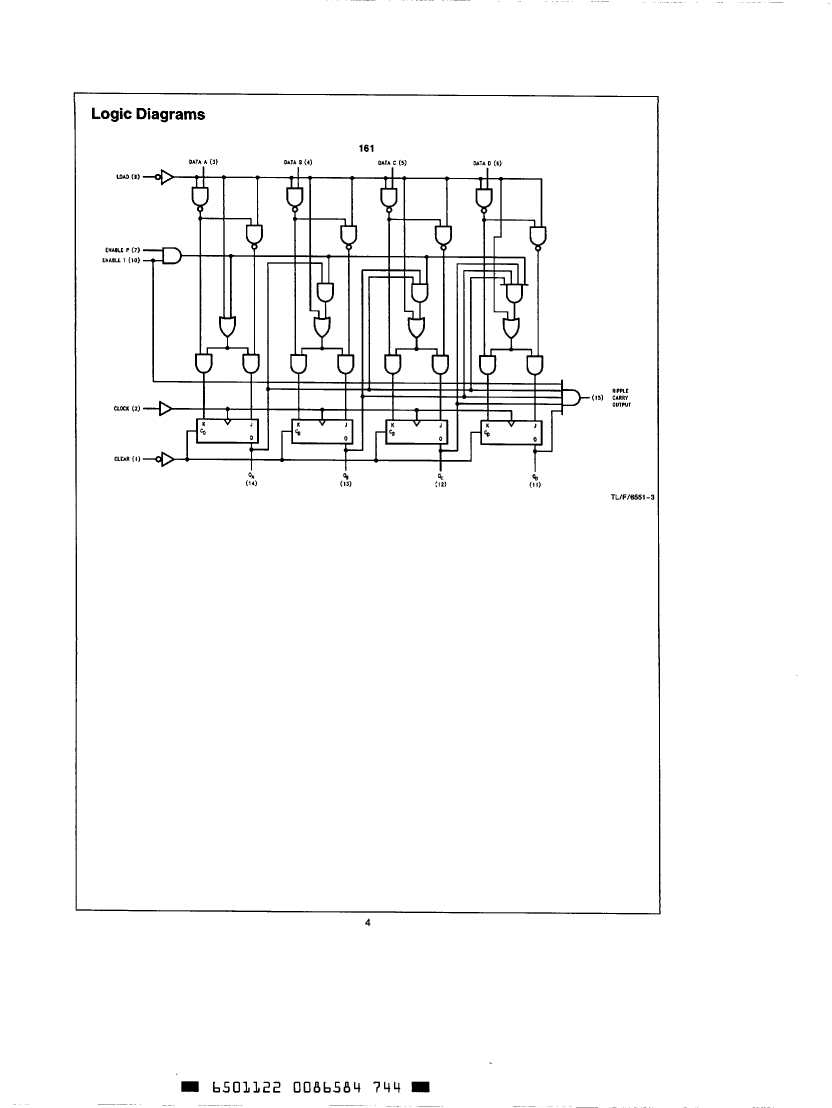

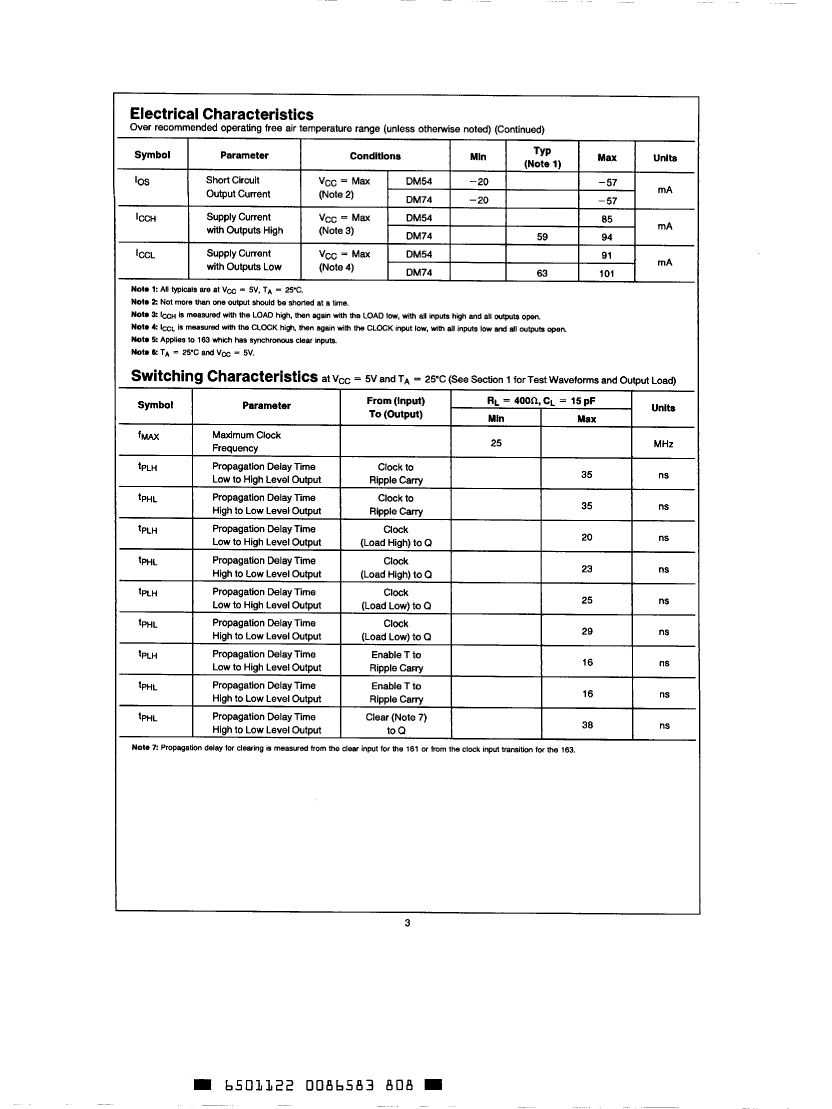

DM54161, DM74161, DM74163

Synchronous 4-Bit Counters

These synchronous, presettable counters feature an internal carry look-ahead for application in high-

speed counting designs. The 161 and 163 are 4-bit binary counters. The carry output is decoded

by means of a NOR gate, thus preventing spikes during the normal counting mode of operation.

Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs

change coincident with each other when so instructed by the count-enable inputs and internal gating.

This mode of operation eliminates the output counting spikes which are normally associated with

asynchronous (ripple clock) counters. A buffered clock input triggers the four flip-flops on the rising

(positive-going) edge of the clock input waveform.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

DM74161N Related Products

	DM74161N	DM74163N
Description	Binary Counter, TTL/H/L Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, DIP-16	Binary Counter, TTL/H/L Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, DIP-16
Maker	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
Other features	TCO OUTPUT	TCO OUTPUT
Counting direction	UP	UP
series	TTL/H/L	TTL/H/L
JESD-30 code	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0
length	19.305 mm	19.305 mm
Load/preset input	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
propagation delay (tpd)	29 ns	29 ns
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm
minfmax	25 MHz	25 MHz
