Part Number

Search

DM54LS165J

Description
Parallel In Serial Out, LS Series, 8-Bit, Right Direction, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16
Categorylogic    logic
File Size124KB,6 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric View All

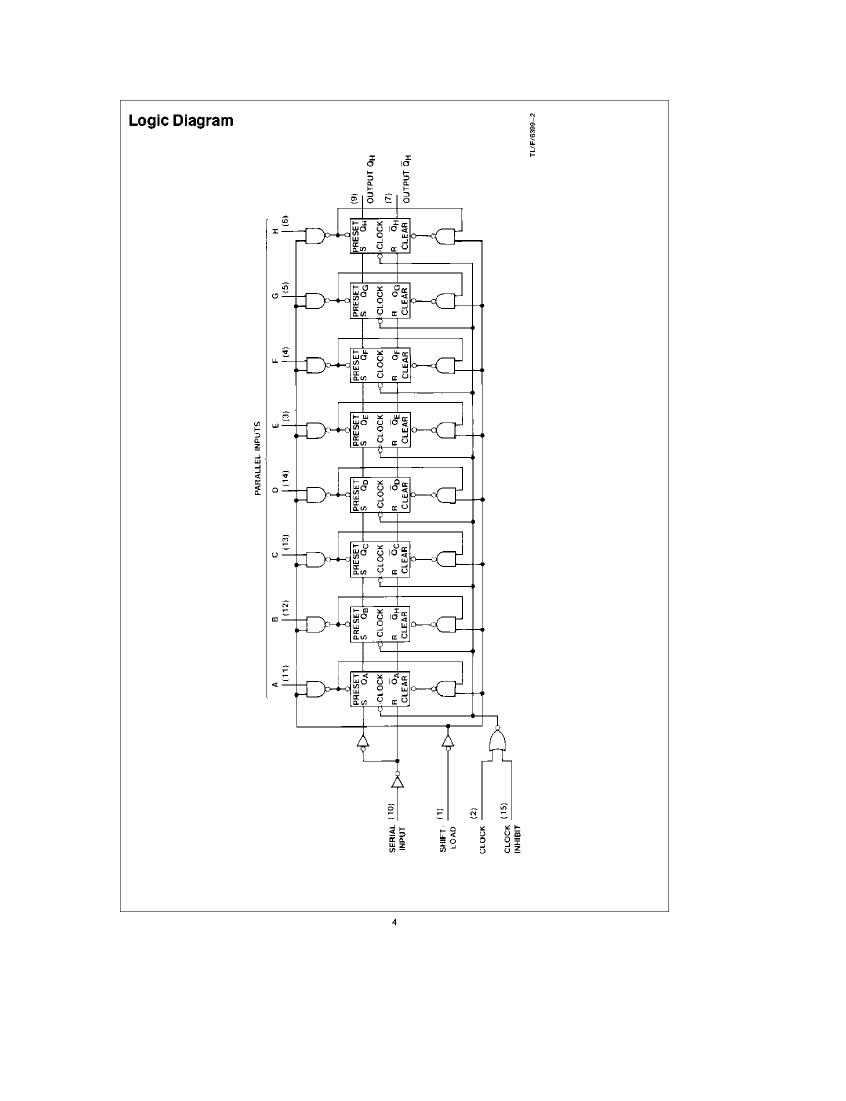

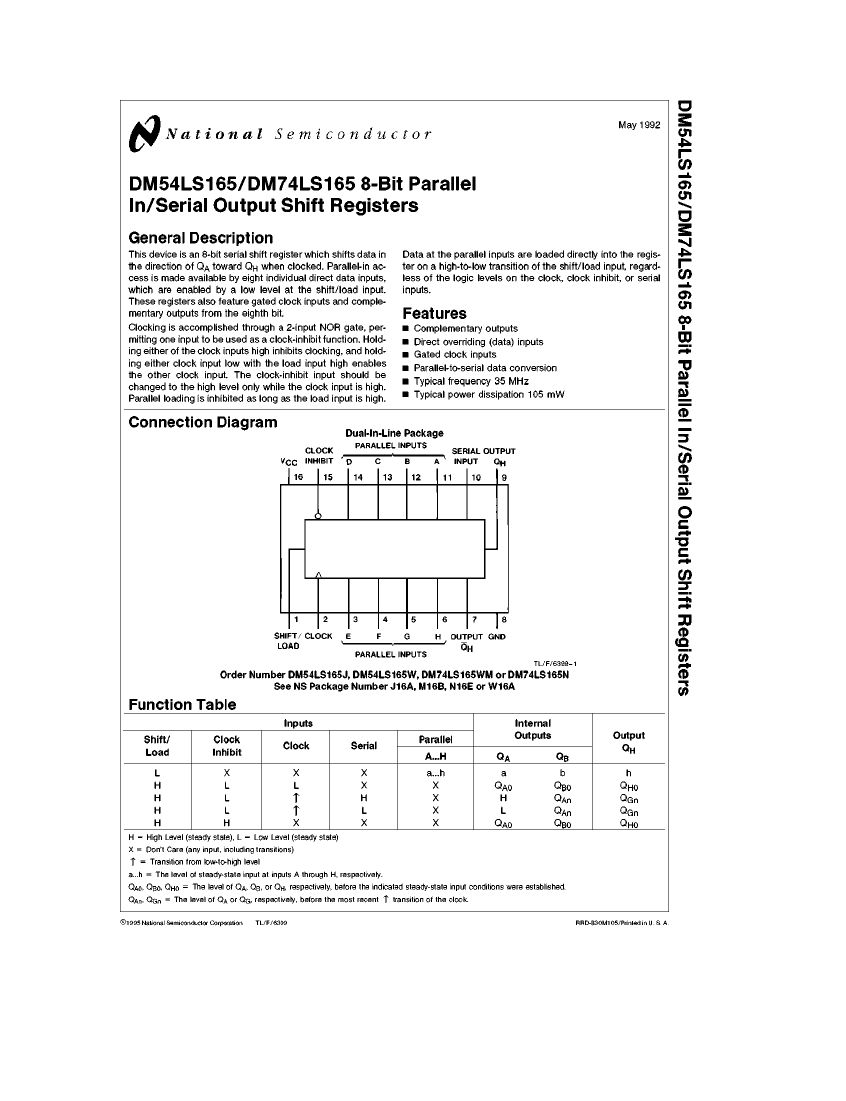

DM54LS165J Overview

Parallel In Serial Out, LS Series, 8-Bit, Right Direction, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16

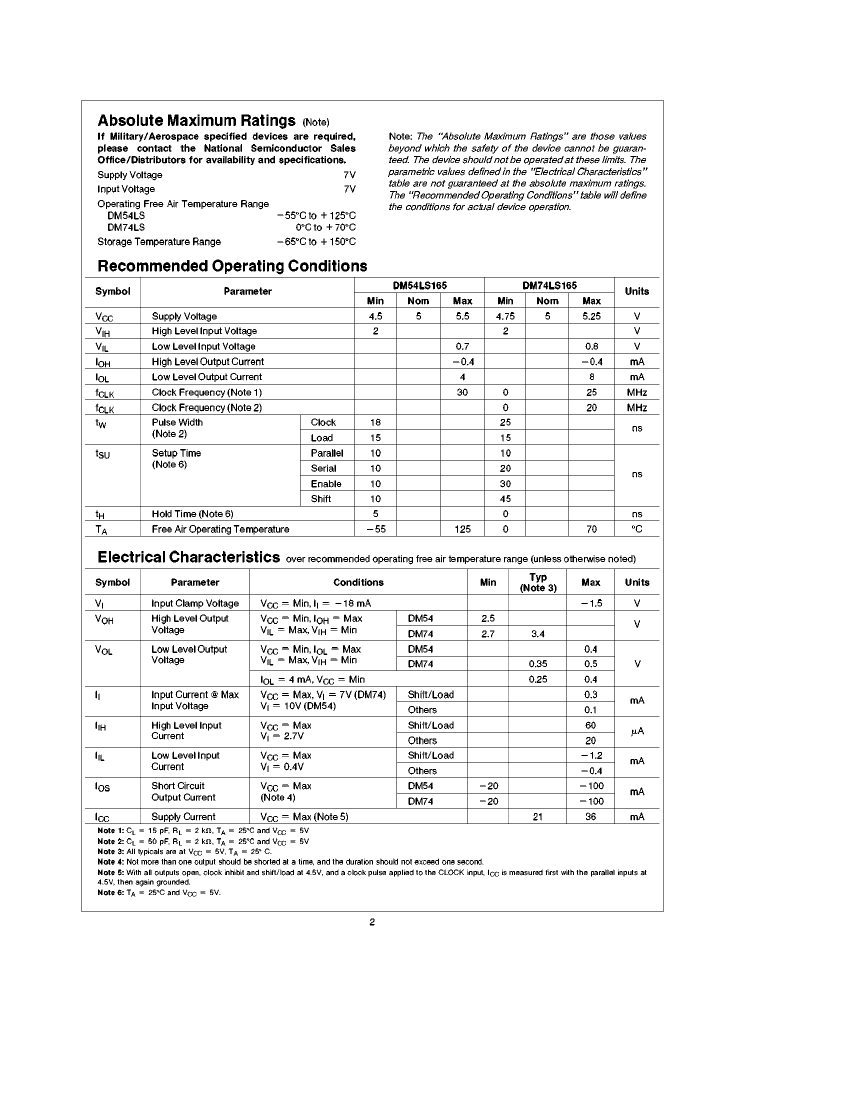

DM54LS165J Parametric

Parameter NameAttribute value
MakerRochester Electronics
package instructionDIP,
Reach Compliance Codeunknown
Other featuresCLOCK INHIBIT
Counting directionRIGHT
seriesLS
JESD-30 codeR-GDIP-T16

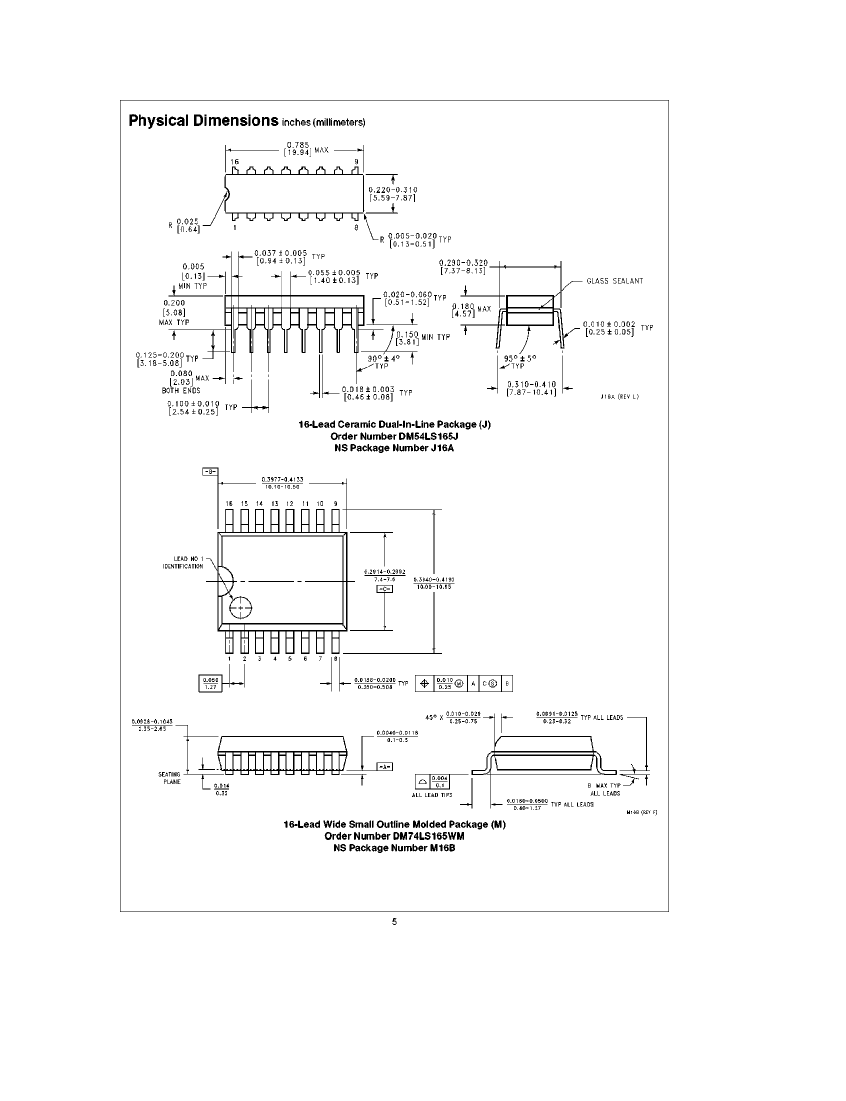

length19.43 mm
Logic integrated circuit typePARALLEL IN SERIAL OUT
Number of digits8
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityCOMPLEMENTARY
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE

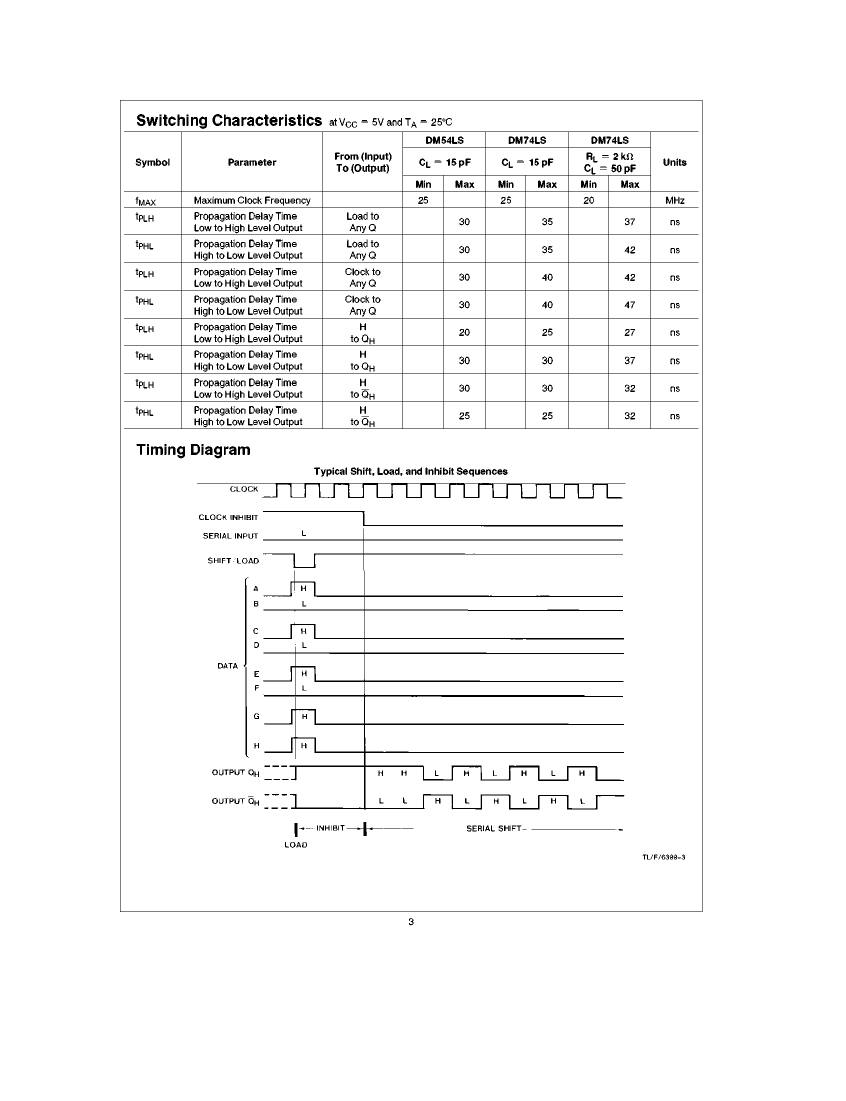

propagation delay (tpd)30 ns
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax25 MHz
