MDJ-005-RN01-AGZ: DescriptionCircular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Locking; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

MDJ-005-RN01-AGZ Overview

Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Locking

MDJ-005-RN01-AGZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-tec Interconnect Ltd.
Reach Compliance Code	compliant
body width	0.512 inch
subject depth	0.492 inch
body length	0.551 inch
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AG
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	250VAC V
Insulation resistance	50000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MDJ
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	5

Preview

Download Datasheet

View All

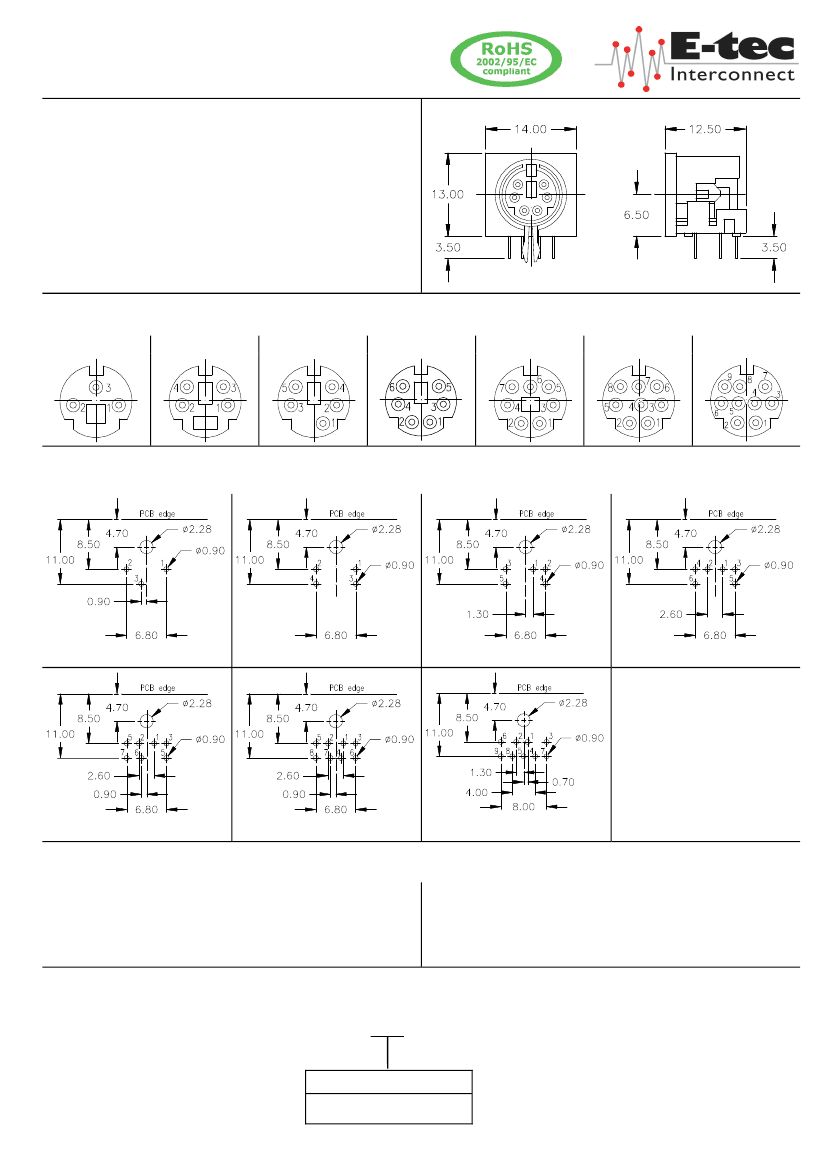

Mini DIN Connector

non shielded type

-

90°

non shielded type

Mini DIN Connectors offered by E-tec have either

silver or tin plated contacts. They allow a high number

of insertion/extraction cycles and always a save

connection to the Plug.

For any other types you may looking for and cannot

find specified in this catalog, for example Mini DIN

connectors with Filter or switch, please contact the

nearest E-tec office or Distributor.

FRONT VIEWS

3 pos.

4 pos.

5 pos.

6

pos.

7 pos.

8 pos.

9 pos.

PCB through hole layout

3 pos

4 pos

5 pos

6 pos

7 pos

8 pos

9 pos

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Dielectric withstanding voltage

Operating temperature

1 A max. at 100 V AC

or

2 A max. at 12 V DC

50 MΩ min. at 250 V DC

30 mΩ max.

250 V AC for 1 min.

-55°C to +85°C

Contact material

(RoHS compliant)

Contact plating

Insulator material

(RoHS compliant)

Insertion force

Extraction force

Insertion/extraction cycles

Phosphor bronze

Silver

P.B.T. UL 94 V-0

4.5kg max.

0.8kg min.

500 min.

Ordering Code

MDJ - xxx - RN 01 -

AGZ

Nbr of contacts

003

to

009

87

MDJ-005-RN01-AGZ Related Products

	MDJ-005-RN01-AGZ	MDJ-006-RN01-AGZ
Description	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Locking	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Locking
Is it Rohs certified?	conform to	conform to
Maker	E-tec Interconnect Ltd.	E-tec Interconnect Ltd.
Reach Compliance Code	compliant	compliant
body width	0.512 inch	0.512 inch
subject depth	0.492 inch	0.492 inch
body length	0.551 inch	0.551 inch
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AG	AG
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES
Dielectric withstand voltage	250VAC V	250VAC V
Insulation resistance	50000000 Ω	50000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MDJ	MDJ
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch
Termination type	SOLDER	SOLDER
Total number of contacts	5	6
