DM74LS299WM

Description
Parallel In Parallel Out, LS Series, 8-Bit, Bidirectional, True Output, TTL, PDSO20, 0.300 INCH, MS-013, SOIC-20
Categorylogic    logic
File Size345KB,10 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

DM74LS299WM Online Shopping

Suppliers Part Number Price MOQ In stock
DM74LS299WM - - View Buy Now

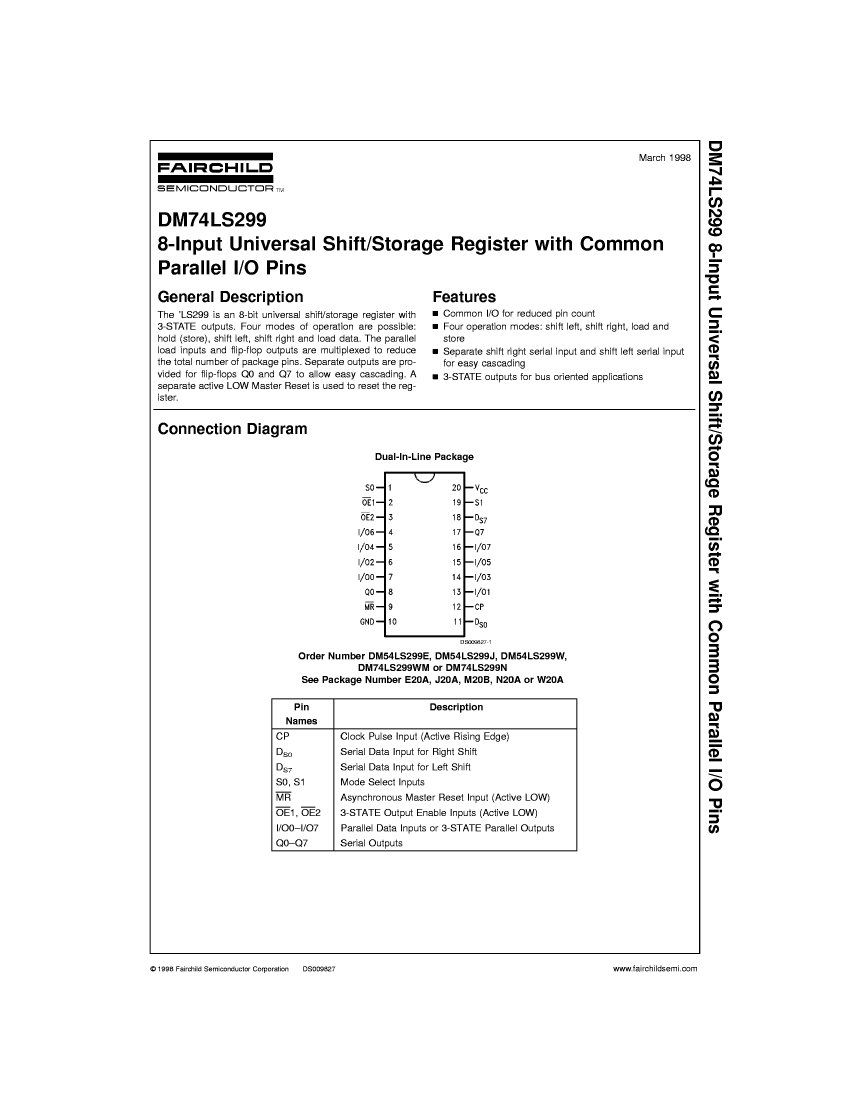

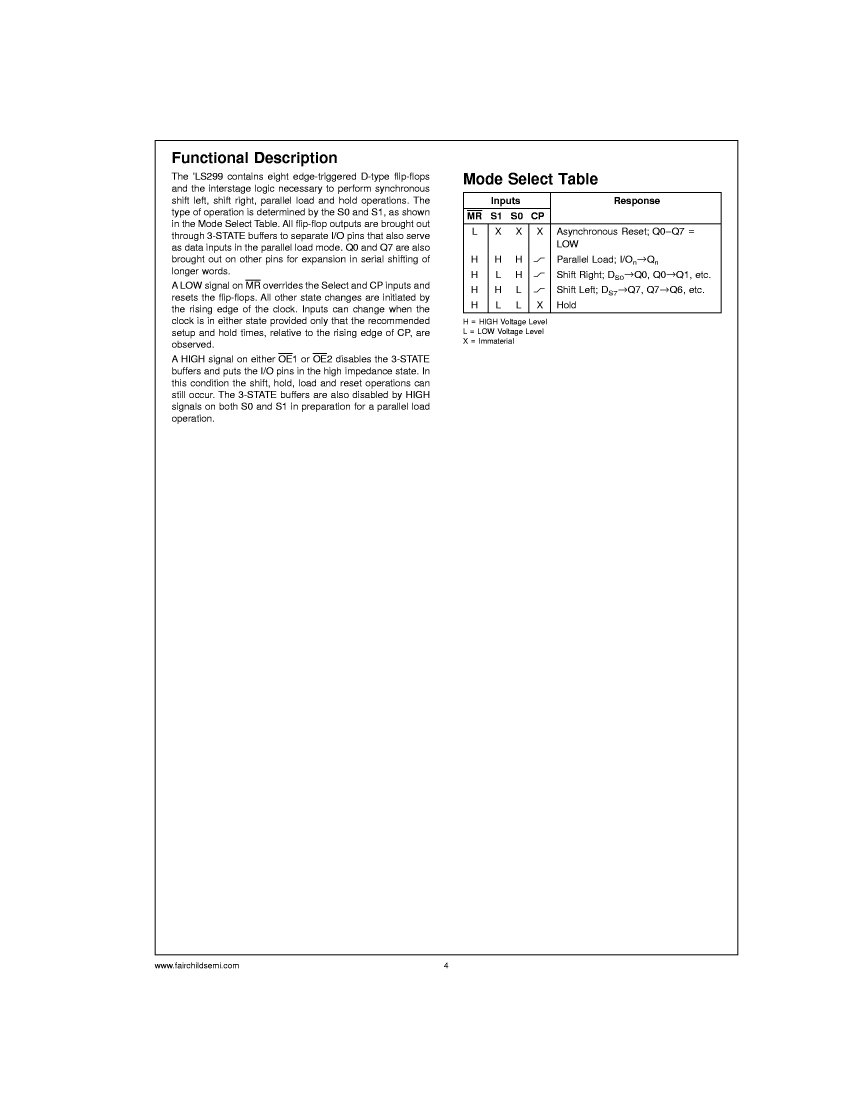

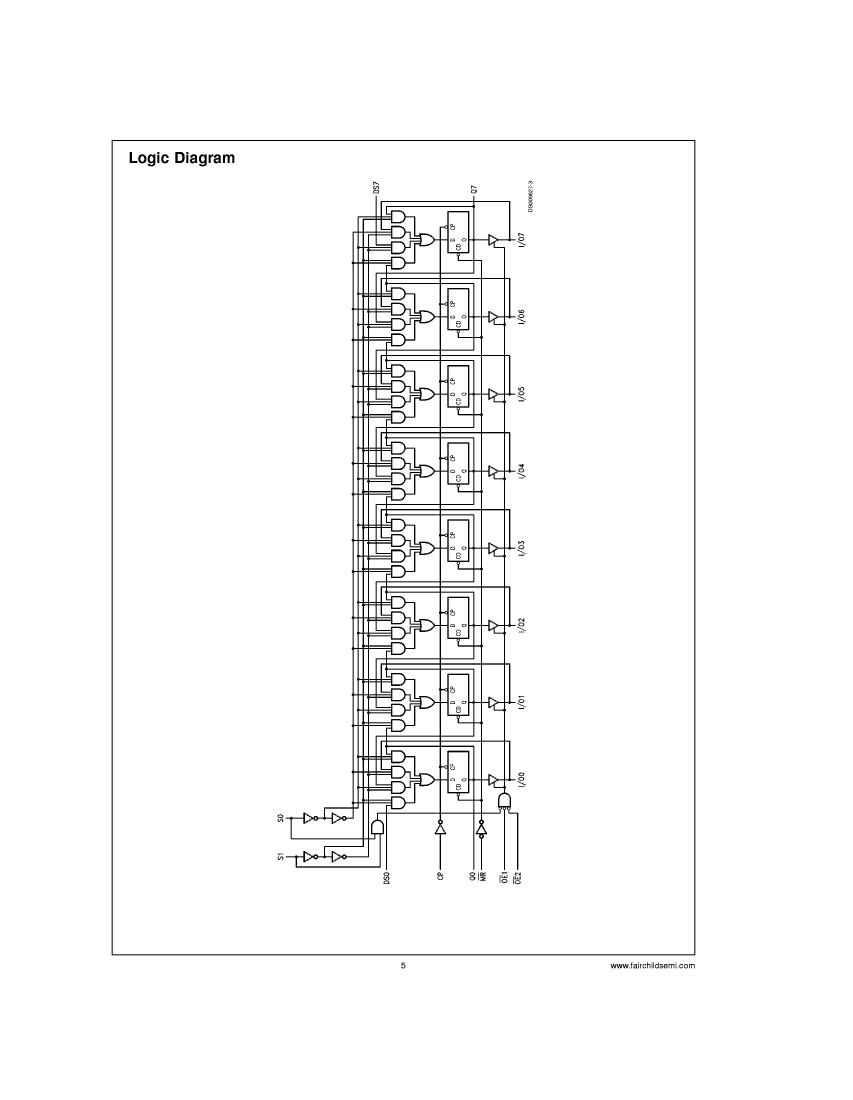

DM74LS299WM Overview

Parallel In Parallel Out, LS Series, 8-Bit, Bidirectional, True Output, TTL, PDSO20, 0.300 INCH, MS-013, SOIC-20

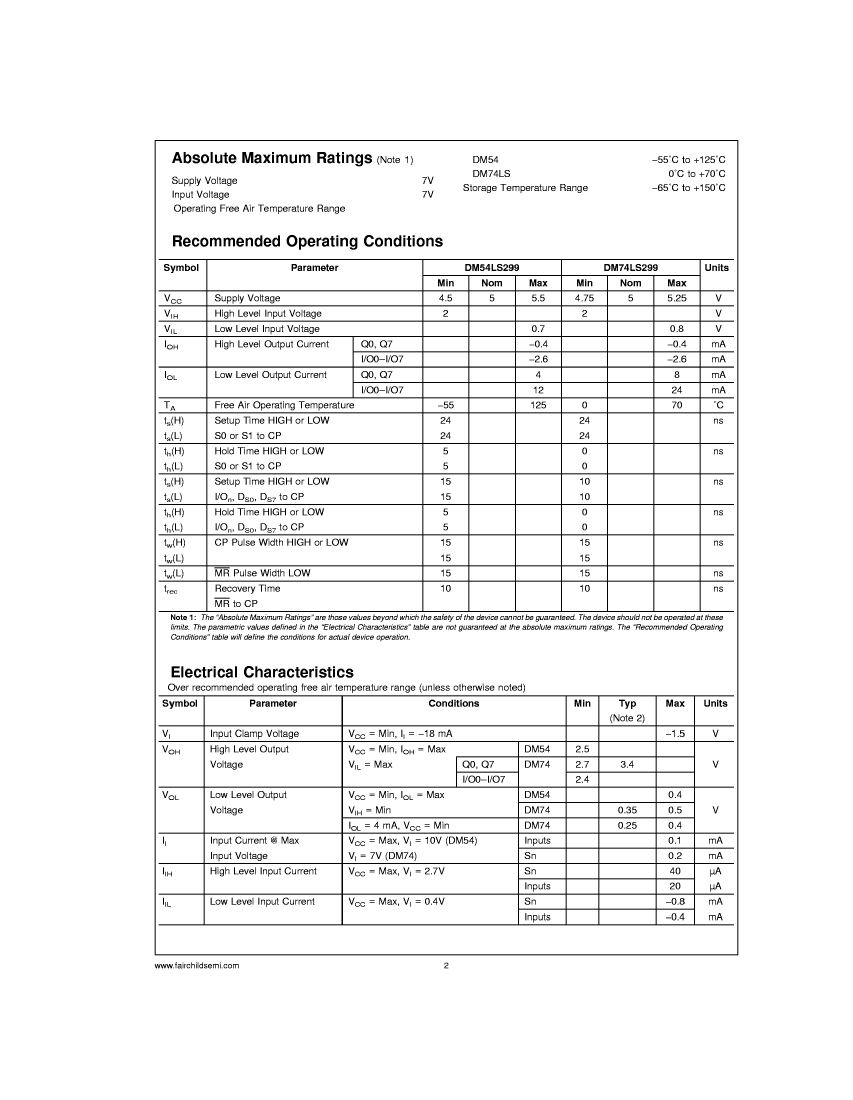

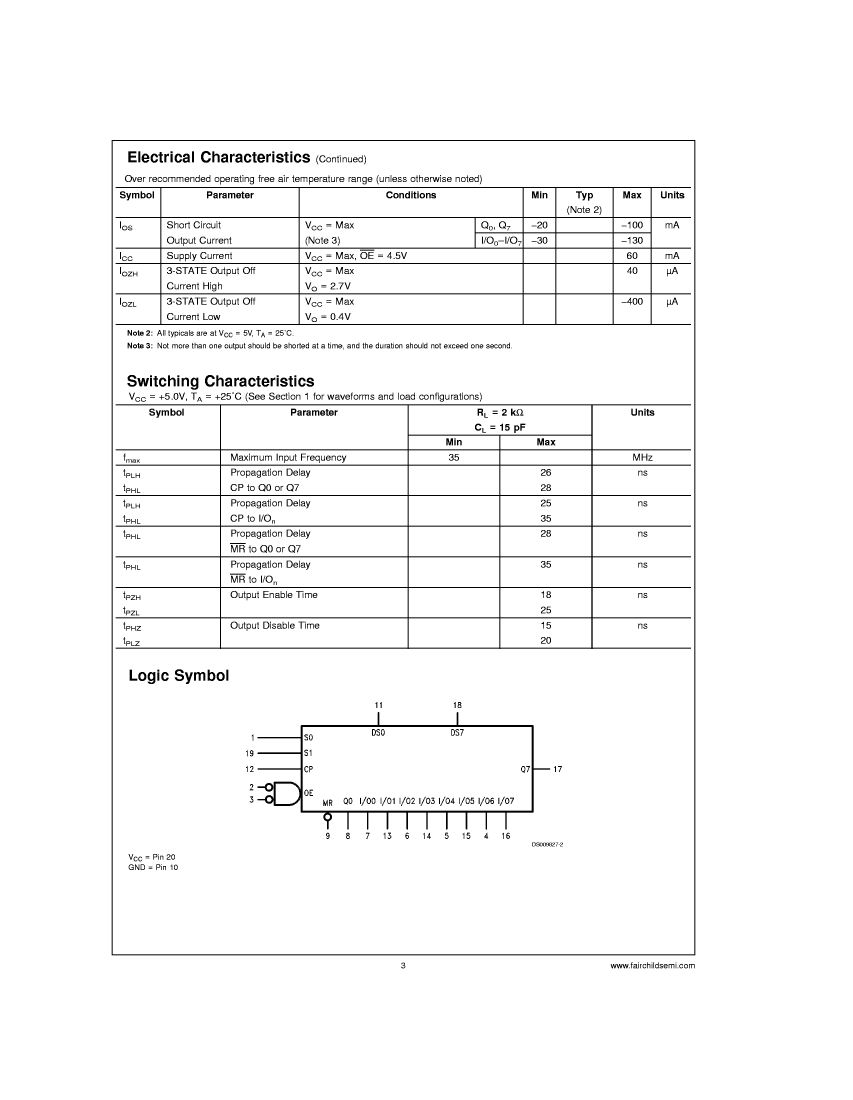

DM74LS299WM Parametric

Parameter NameAttribute value
MakerRochester Electronics
package instructionSOP,
Reach Compliance Codeunknown
Other featuresHOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL
Counting directionBIDIRECTIONAL
seriesLS
JESD-30 codeR-PDSO-G20
length12.8 mm
Logic integrated circuit typePARALLEL IN PARALLEL OUT
Number of digits8
Number of functions1
Number of terminals20
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
propagation delay (tpd)35 ns
Maximum seat height2.65 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
width7.5 mm
minfmax35 MHz
