DM9312J/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DM9312J/883

DM9312J/883: DescriptionMultiplexer, 9309 Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size116KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DM9312J/883 Overview

Multiplexer, 9309 Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CDIP16, CERAMIC, DIP-16

DM9312J/883 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
series	9309
JESD-30 code	R-GDIP-T16
length	19.43 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	34 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

9312 DM9312 One of Eight Line Data Selectors Multiplexers

June 1989

9312 DM9312 One of Eight Line

Data Selectors Multiplexers

General Description

These data selectors multiplexers contain inverter drivers

to supply full complementary on-chip binary decoded data

selection

The 9312 is a single 8-bit multiplexer with complementary

outputs and a strobe control When the strobe is low the

function is enabled When a high logic level is applied to the

strobe the output is forced to the logic zero state regardless

of the logic level of the data inputs

Features

Selects one-of-eight data sources

Performs parallel to serial conversion

Strobe controlled outputs

Complementary outputs

Connection Diagram

Dual-In-Line Package

TL F 6605 – 1

Order Number 9312DMQB 9312FMQB or DM9312N

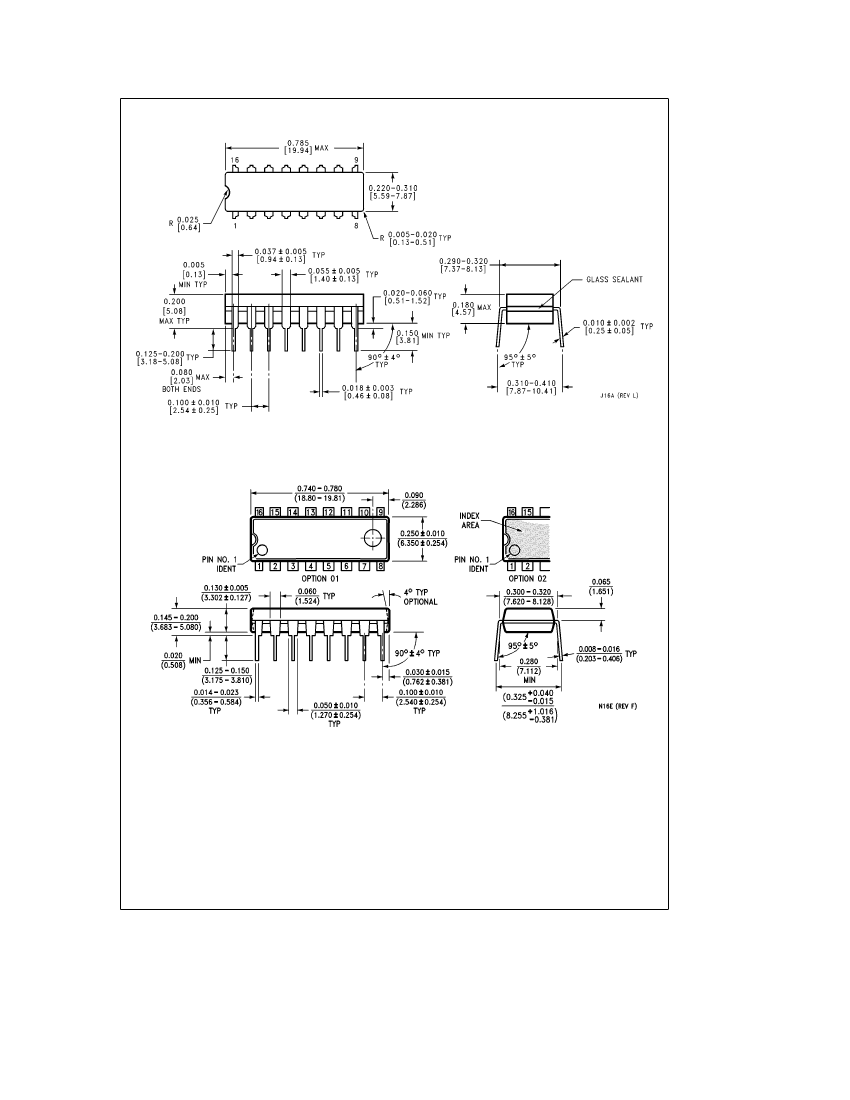

See NS Package Number J16A N16E or W16A

Function Table

Inputs

Select

D0 D1

Outputs

Strobe

High Level L

Low Level X

Don’t Care

The level of the respective D input

1995 National Semiconductor Corporation

TL F 6605

RRD-B30M105 Printed in U S A
