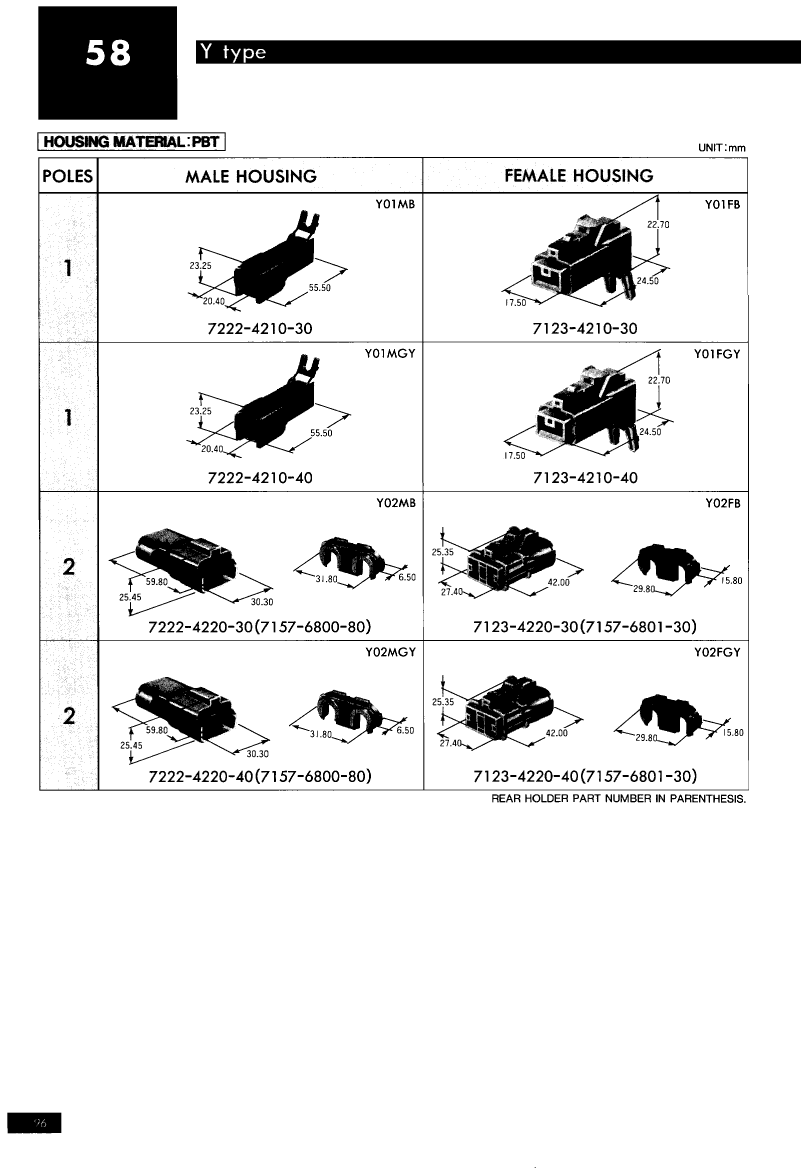

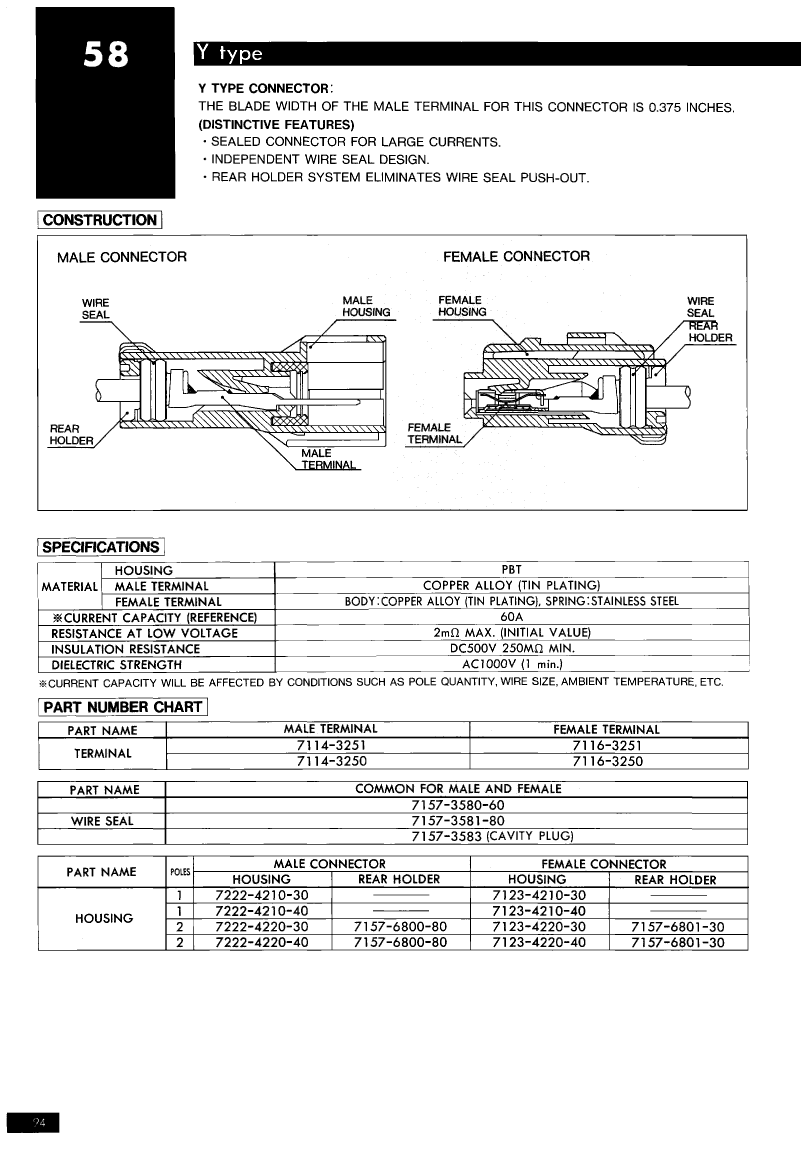

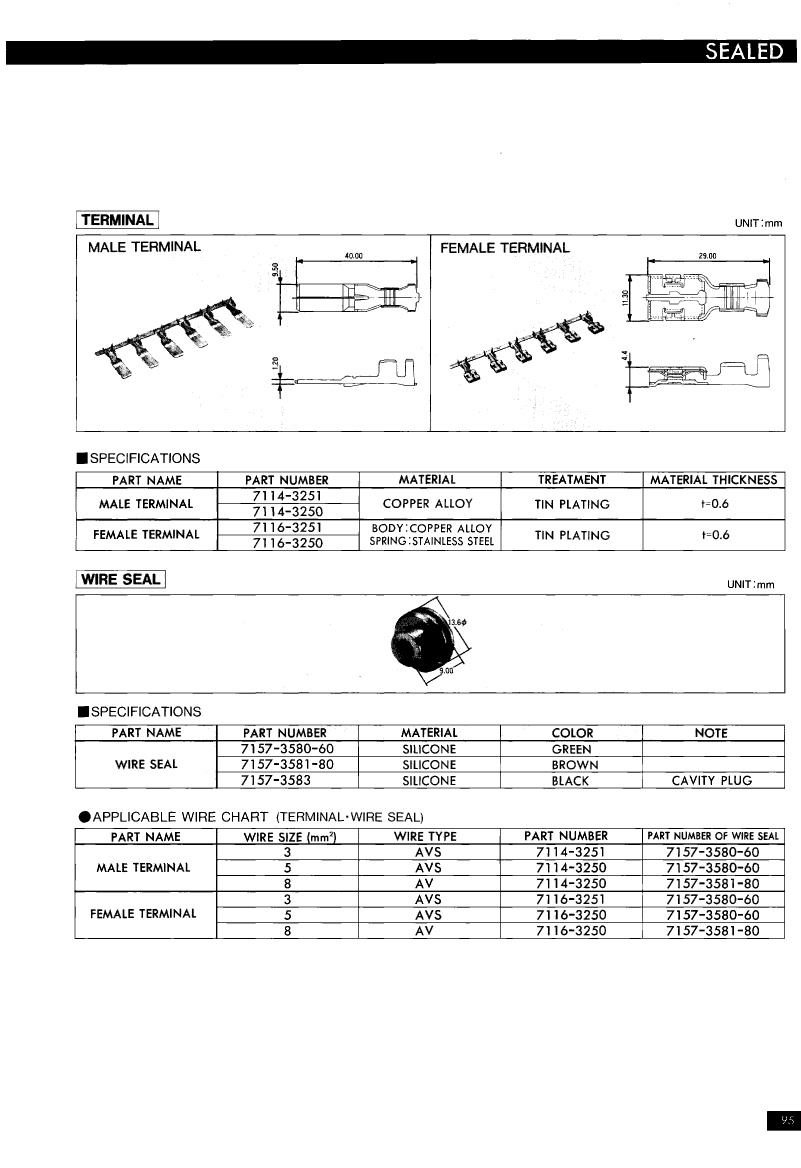

Preview

7222-4220-30: DescriptionCombination Line Connector, 2 Contact(s), Male; CategoryThe connector The connector; File Size128KB，3 Pages; ManufacturerYAZAKI; Websitehttp://www.yazaki-china.com

Download Datasheet Parametric Compare View All

7222-4220-30 Overview

Combination Line Connector, 2 Contact(s), Male

7222-4220-30 Parametric

Parameter Name	Attribute value
Maker	YAZAKI
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACTS: 7114-3251; 7114-3250
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	58
Plug information	7123-4220-30
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	2

Preview

Download Datasheet

View All

7222-4220-30 Related Products

	7222-4220-30	7222-4220-40	7222-4210-40	7123-4210-30	7123-4220-30	7222-4210-30	7123-4210-40	7123-4220-40
Description	Combination Line Connector, 2 Contact(s), Male	Combination Line Connector, 2 Contact(s), Male	Combination Line Connector, 1 Contact(s), Male	Combination Line Connector, 1 Contact(s), Female	Combination Line Connector, 2 Contact(s), Female	Combination Line Connector, 1 Contact(s), Male	Combination Line Connector, 1 Contact(s), Female	Combination Line Connector, 2 Contact(s), Female
Maker	YAZAKI	YAZAKI	YAZAKI	YAZAKI	YAZAKI	YAZAKI	YAZAKI	YAZAKI
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	COMPATIBLE CONTACTS: 7114-3251; 7114-3250	COMPATIBLE CONTACTS: 7114-3251; 7114-3250	COMPATIBLE CONTACTS: 7114-3251; 7114-3250	COMPATIBLE CONTACTS: 7116-3251; 7116-3250	COMPATIBLE CONTACTS: 7116-3251; 7116-3250	COMPATIBLE CONTACTS: 7114-3251; 7114-3250	COMPATIBLE CONTACTS: 7116-3251; 7116-3250	COMPATIBLE CONTACTS: 7116-3251; 7116-3250
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact point gender	MALE	MALE	MALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	58	58	58	58	58	58	58	58
Plug information	7123-4220-30	7123-4220-40	7123-4210-40	7222-4210-30	7222-4220-30	7123-4210-30	7222-4210-40	7222-4220-40
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	2	2	1	1	2	1	1	2
