DM74LS368AM

Description
Bus Driver, 2-Func, 6-Bit, Inverted Output, TTL, PDSO16,
Categorylogic    logic
File Size268KB,6 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

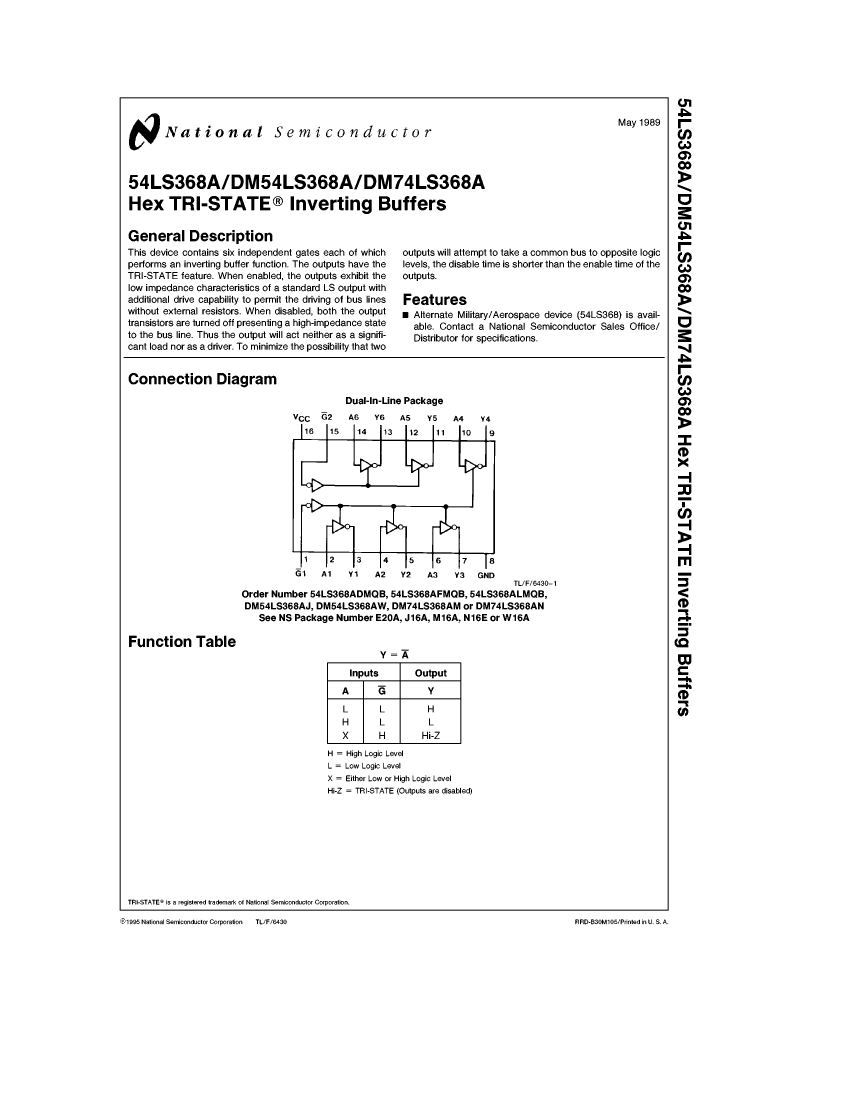

DM74LS368AM Overview

Bus Driver, 2-Func, 6-Bit, Inverted Output, TTL, PDSO16,

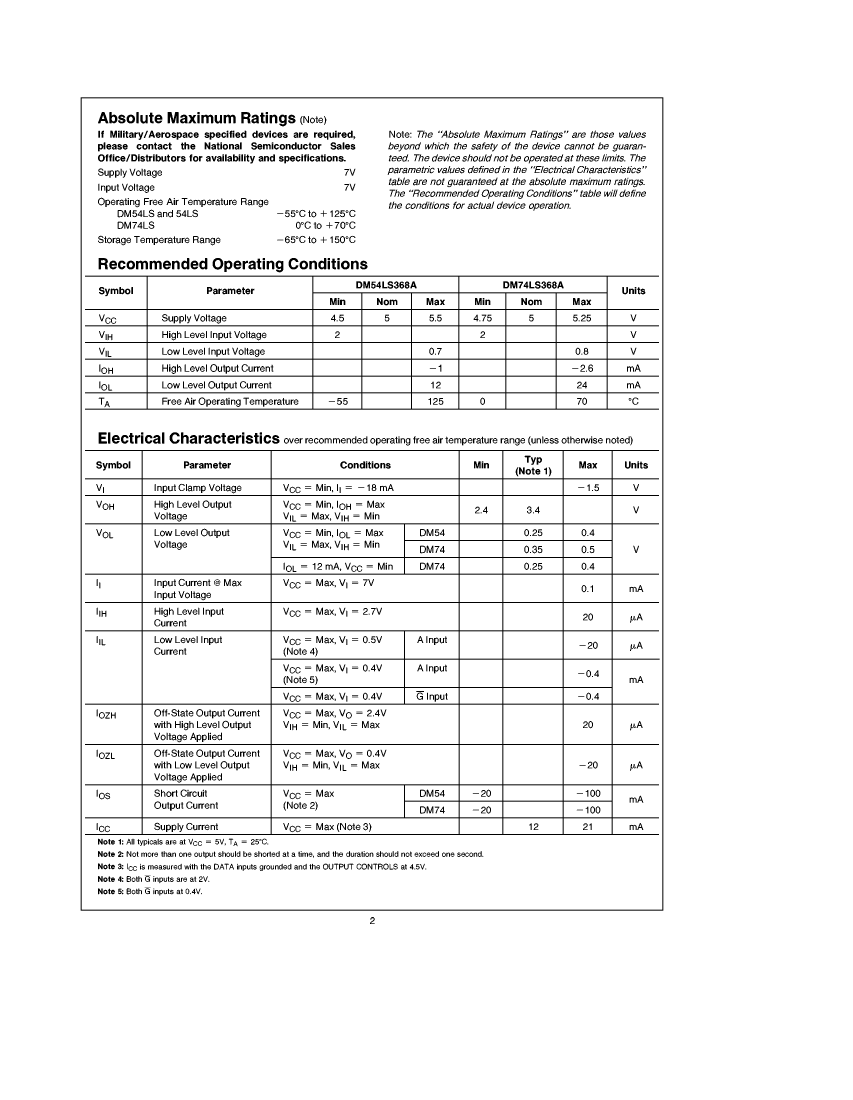

DM74LS368AM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild

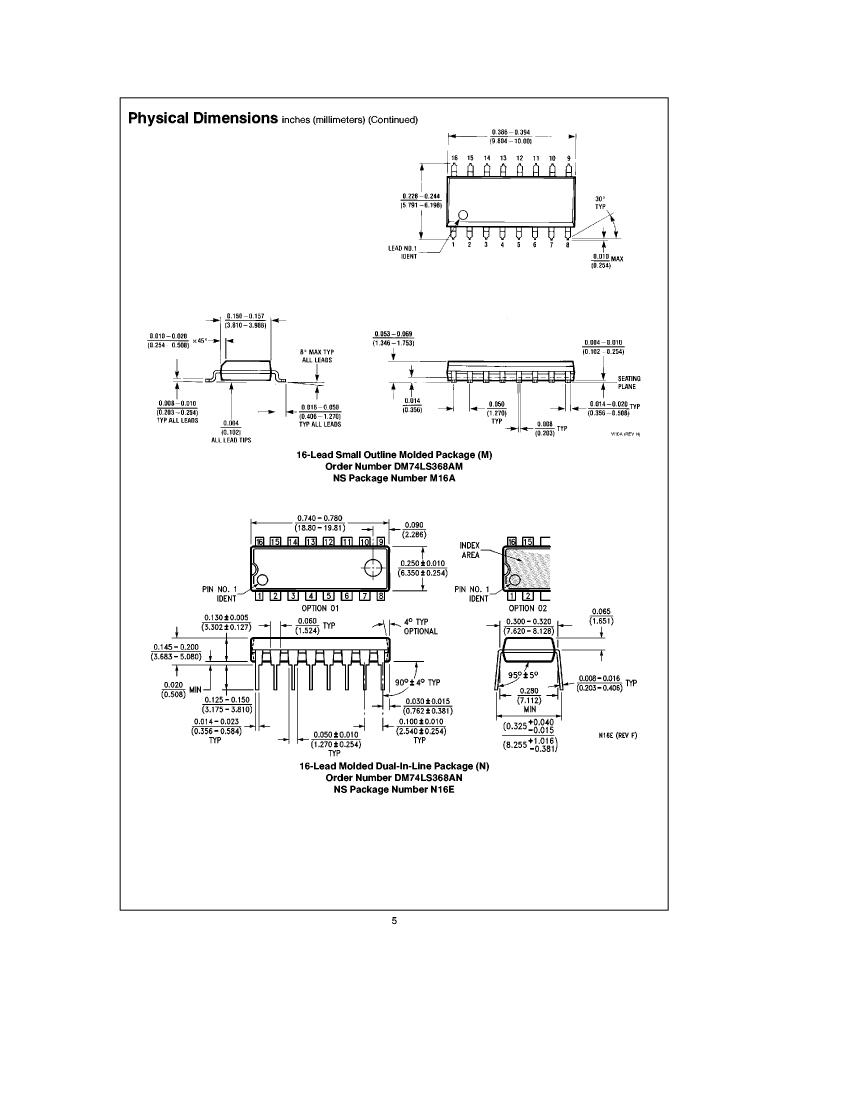

package instructionSOP, SOP16,.25
Reach Compliance Codeunknown
Control typeENABLE LOW
JESD-30 codeR-PDSO-G16
JESD-609 codee0
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.024 A
Number of digits6
Number of functions2
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP16,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
power supply5 V
Maximum supply current (ICC)21 mA
Prop。Delay @ Nom-Sup18 ns
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)

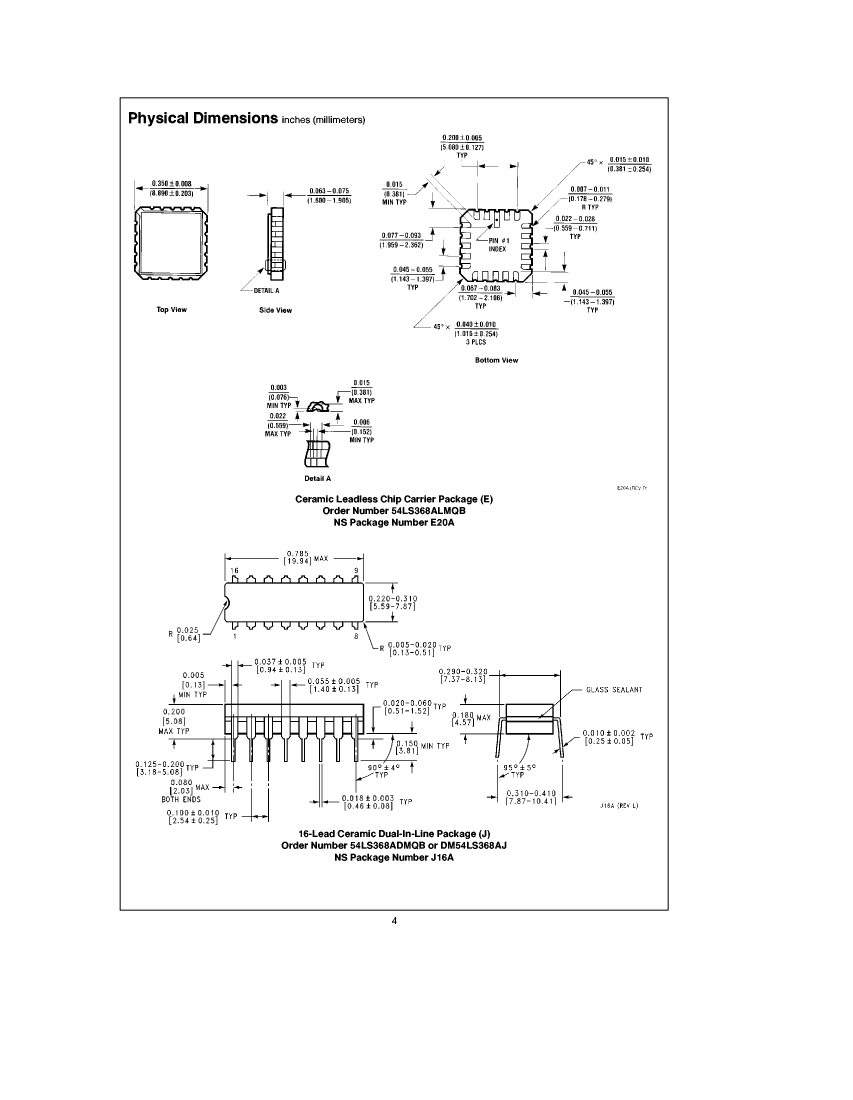

Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
