DM74LS373CW datasheet, PDF - EEWORLD Datasheet

DM74LS373CW: DescriptionBus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, WAFER; Categorylogic logic; File Size222KB，10 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

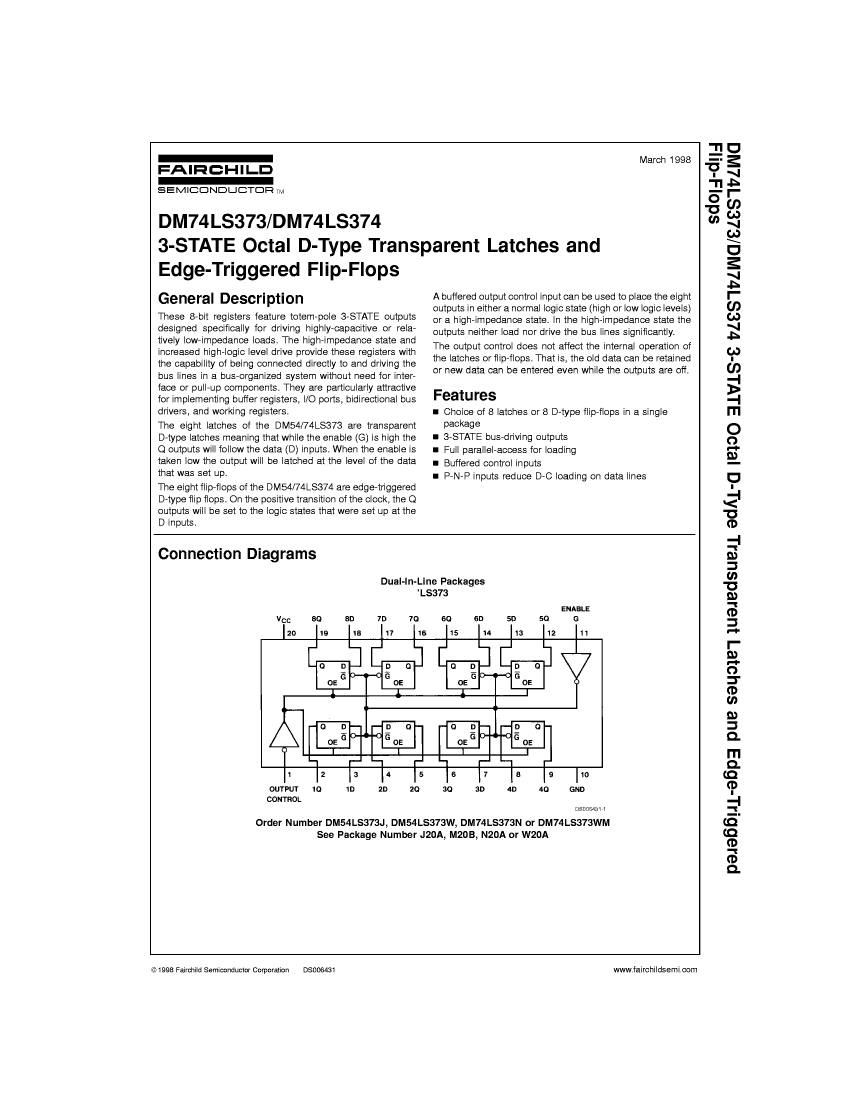

DM74LS373CW Overview

Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, WAFER

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIE,
Reach Compliance Code	unknown
series	LS
JESD-30 code	X-XUUC-N20

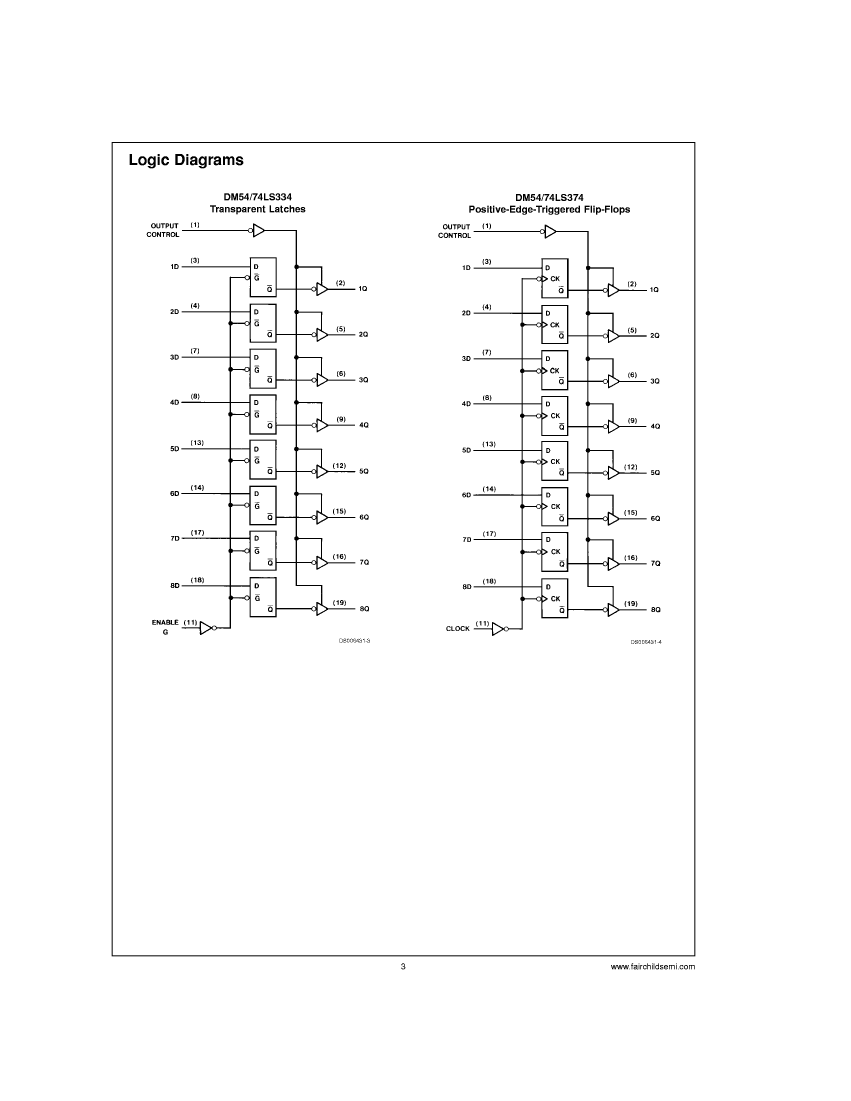

Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2

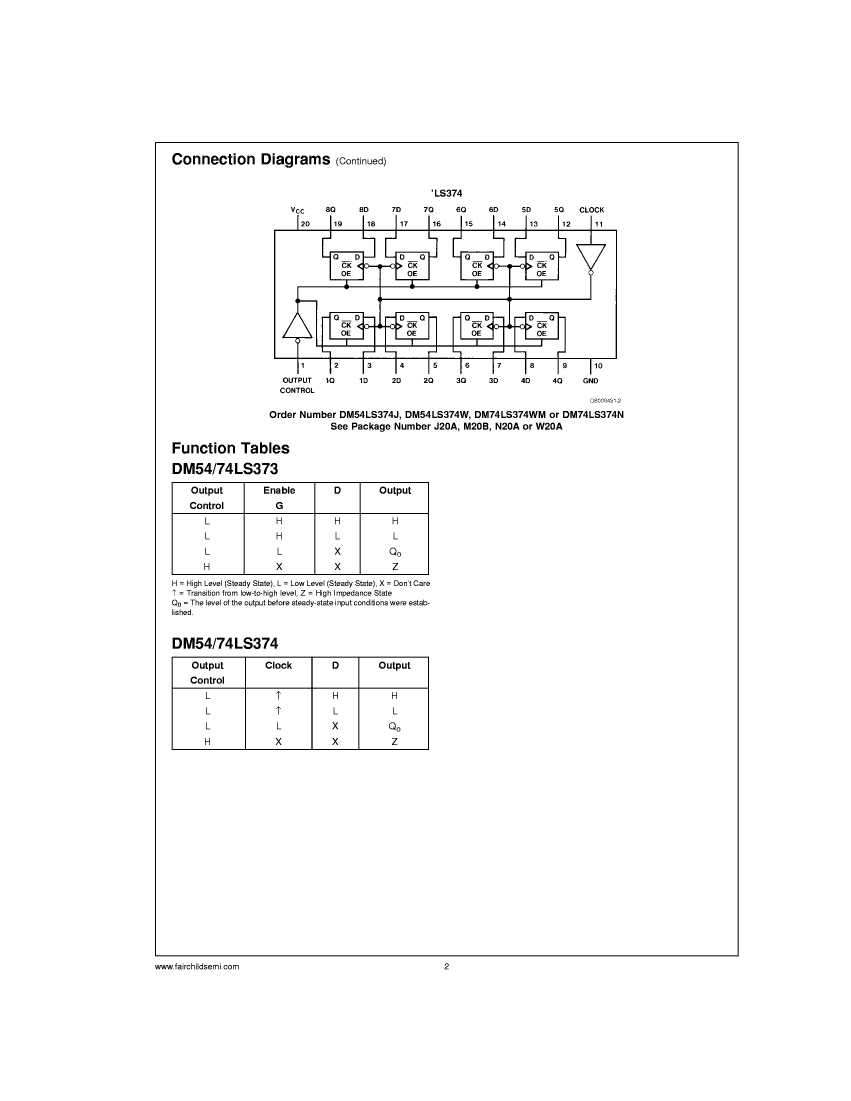

Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP

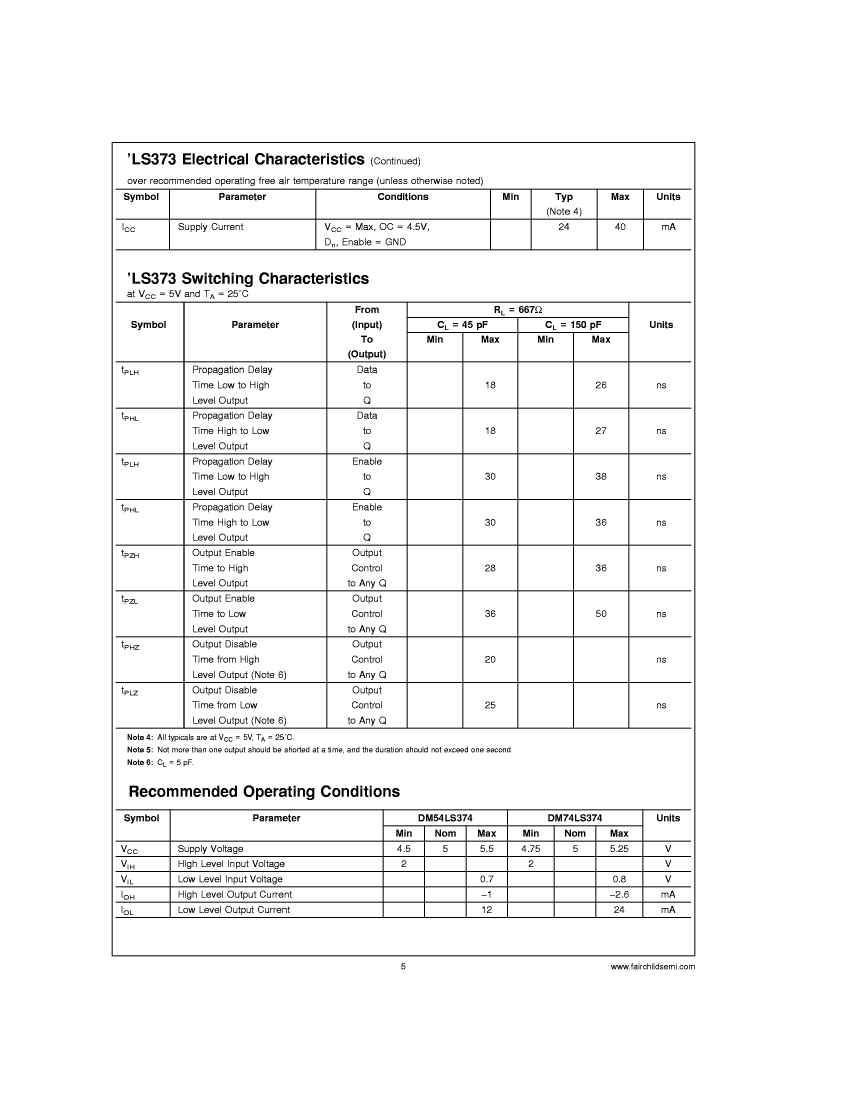

propagation delay (tpd)	27 ns

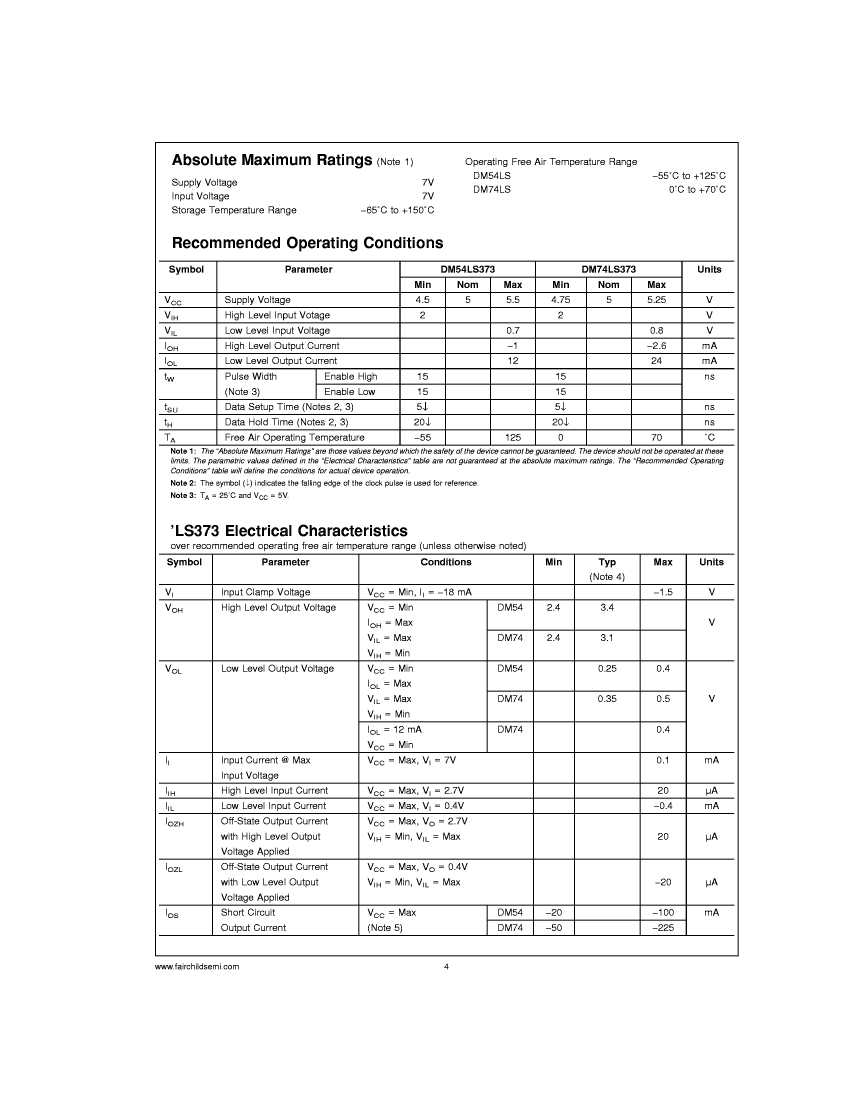

Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER

	DM74LS373CW	DM74LS374CW
Description	Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, WAFER	Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, WAFER
Maker	Rochester Electronics	Rochester Electronics
package instruction	DIE,	WAFER
Reach Compliance Code	unknown	unknown
series	LS	LS
JESD-30 code	X-XUUC-N20	X-XUUC-N20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	70 °C	70 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE
Package shape	UNSPECIFIED	UNSPECIFIED
Package form	UNCASED CHIP	UNCASED CHIP
propagation delay (tpd)	27 ns	38 ns
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
