DDTA114YLP
50V PRE-BIASED SMALL SIGNAL SURFACE MOUNT PNP TRANSISTOR
Features
•
•
•
•
•
•
Epitaxial Planar Die Construction
Ultra-Small Leadless Surface Mount Package
Ideally Suited for Automated Assembly Processes
“Lead Free”, RoHS Compliant (Note 1)
Halogen and Antimony Free "Green" Device (Note 2)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
Case: DFN1006-3
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish — NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
Weight: 0.0009 grams (approximate)
DFN1006-3
OUT
(or -supply)
B
1
2
3
C
IN
OUT
(or -supply)
B
C
E
Bottom View
Top View
Pin-Out
IN
10kΩ
1
B
47kΩ
C 3
E
2
R
1
R
2
E
+ Supply
or GND
GND (or +supply)
Device Symbol
Equivalent Inverter
Circuit
Ordering Information
(Note 3)
Product
DDTA114YLP-7
DDTA114YLP-7B
Notes:
Marking
P3
P3
Reel size (inches)
7
7
Tape width (mm)
8
8
Quantity per reel
3,000
10,000
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
DDTC113TLP-7
DDTC113TLP-7B
P3
Top View
Dot Denotes
Collector Side
P3
Top View
Bar Denotes Base
and Emitter Side
P3 = Product Type Marking Code
DDTA114YLP
Document number: DS30807 Rev. 6 - 2
1 of 5
www.diodes.com
February 2011
© Diodes Incorporated
DDTA114YLP
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Supply Voltage
Input Voltage
Output Current
Output (Collector) Current
Symbol
V
CC
V
IN
I
O
I
C(MAX)
Value
-50
+6 to -40
-70
-100
Unit
V
V
mA
mA
Thermal Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Power Dissipation (Note 4)
Power Derating above 25°C
Thermal Resistance, Junction to Ambient Air (Note 4)
(Equivalent to one heated junction of PNP)
Operating and Storage Temperature Range
Symbol
P
D
P
der
R
θ
JA
T
J
, T
STG
Value
250
2
500
-55 to +150
Unit
mW
mW/°C
°C/W
°C
Electrical Characteristics: Discrete PNP Transistor (Q1)
@T
A
= 25°C unless otherwise specified
Characteristic
Off Characteristics (Note 5)
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Collector-Base Cut Off Current
Collector-Emitter Cut Off Current, I
O(off)
Emitter-Base Cut Off Current
Input Off Voltage
On Characteristics (Note 5)
Input-On Voltage
Input Current
DC Current Gain
Collector-Emitter Saturation Voltage
Output On Voltage
Input Resistance
Resistance Ratio
Small Signal Characteristics
Current Gain-Bandwidth Product
Notes:
Symbol
BV
CBO
BV
CEO
I
CBO
I
CEO
I
EBO
V
I(off)
V
I(on)
I
I
h
FE
V
CE(sat)
V
O(on)
R1
(R2/R1)
f
T
Min
-50
-50
⎯
⎯
⎯
⎯
-1.4
⎯
80
⎯
⎯
7
3.7
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
-0.1
10
4.7
250
Max
⎯
⎯
-0.1
-0.5
-0.2
-0.3
⎯
-0.88
⎯
-0.25
-0.3
13
5.7
⎯
Unit
V
V
μA
μA
mA
V
V
mA
⎯
V
V
KΩ
⎯
MHz
Test Condition
I
C
= -10μA, I
E
= 0
I
C
= -1.0mA, I
B
= 0
V
CB
= -50V, I
E
= 0
V
CB
= -50V, I
B
= 0
V
EB
= 4V, I
C
= 0
V
CC
= -5V, I
O
= -100uA
V
O
= -0.3V, I
O
= I
C
= 1mA
V
I
= -5V
V
CE
= -5V, I
C
= -5mA
I
C
= -50mA, I
B
= -2.5mA
I
I
= -0.25mA, I
O
= -5mA
⎯
⎯
V
CE
= -10V, I
E
= -5mA, f = 100 MHz
4. Device mounted on FR-4 PCB, 1” x 0.85” x 0.062”.
5. Short duration pulse test used to minimize self-heating effect. Pulse width tp<300μS, Duty Cycle, d≤2%.
DDTA114YLP
Document number: DS30807 Rev. 6 - 2
2 of 5
www.diodes.com
February 2011
© Diodes Incorporated
DDTA114YLP
P
D
, POWER DISSIPATION (mW)
T
A
, AMBIENT TEMPERATURE (°C)

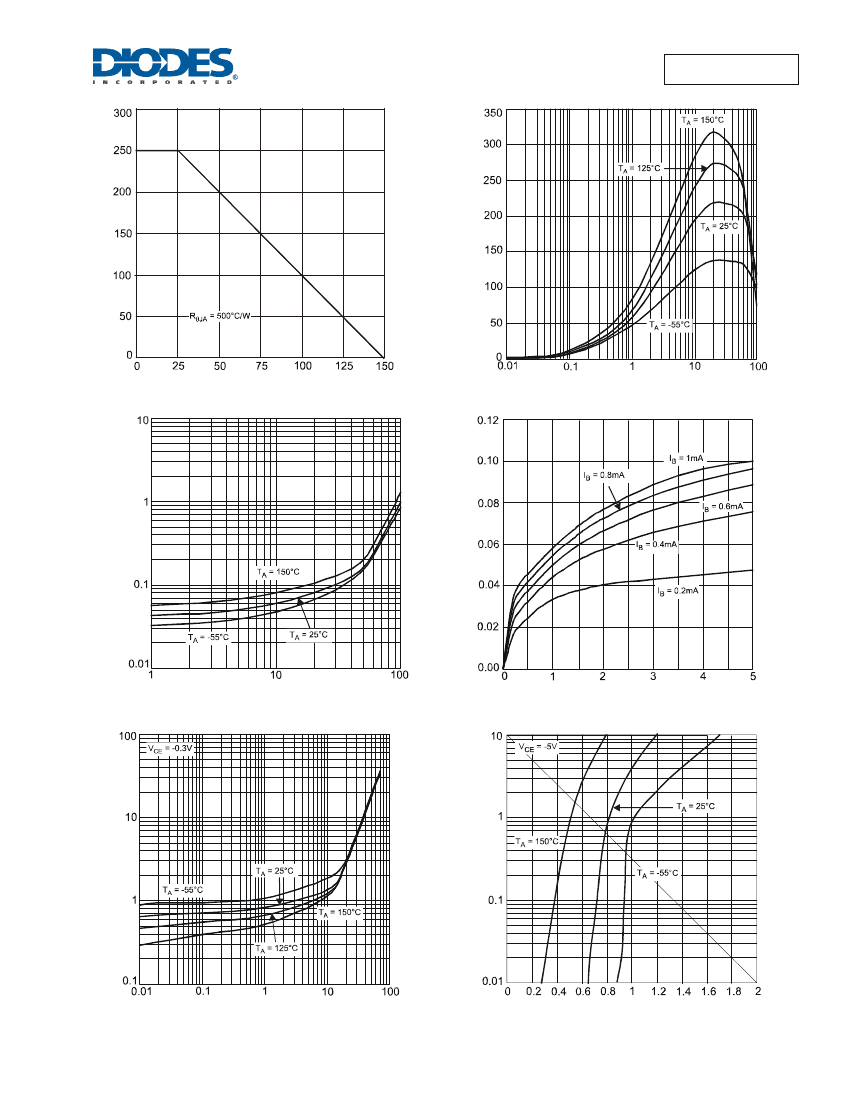

Fig. 1 Power Dissipation vs. Ambient Temperature (Note 4)
h
FE
, DC CURRENT GAIN
-I
C
, COLLECTOR CURRENT (mA)
Fig. 2 Typical DC Current Gain vs. Collector Current
-I
C
, COLLECTOR CURRENT (mA)
Fig. 3 Typical Collector-Emitter Saturation Voltage
vs. Collector Current
-I
C
, COLLECTOR CURRENT (A)
-V
CE
, COLLECTOR-EMITTER VOLTAGE (V)
Fig. 4 Typical Collector Current vs. Collector-Emitter Voltage
-V
CE(SAT)
, COLLECTOR-EMITTER
SATURATION VOLTAGE (V)
-I
C
, OUTPUT CURRENT (mA)
Fig. 5 Typical Input Voltage vs. Output Current
(On Characteristics)
-I
O
, OUTPUT CURRENT (mA)
-V
I
, INPUT VOLTAGE (V)
-V
I
, INPUT VOLTAGE (V)
Fig. 6 Typical Output Current vs. Input Voltage
(Off Characteristics)
DDTA114YLP
Document number: DS30807 Rev. 6 - 2
3 of 5
www.diodes.com
February 2011
© Diodes Incorporated
DDTA114YLP
Package Outline Dimensions
A
A1
D
b1
E
b2
e
DFN1006-3
Dim Min
Max Typ
A
0.47
0.53 0.50
A1
0
0.05 0.03
b1
0.10
0.20 0.15
b2
0.45
0.55 0.50
D
0.95 1.075 1.00
E
0.55 0.675 0.60
e
0.35
⎯
⎯
L1
0.20
0.30 0.25
L2
0.20
0.30 0.25
L3
0.40
⎯
⎯
All Dimensions in mm
L2
L3
L1
Suggested Pad Layout
C
X
1
X
G2
G1
Y
Z
Dimensions
Z
G1
G2
X
X1
Y
C
Value (in mm)
1.1
0.3
0.2
0.7
0.25
0.4
0.7
DDTA114YLP
Document number: DS30807 Rev. 6 - 2
4 of 5
www.diodes.com
February 2011
© Diodes Incorporated
DDTA114YLP
